Nikon D5300 vs Olympus E-330
The Nikon D5300 and the Olympus Evolt E-330 are two digital cameras that were officially introduced, respectively, in October 2013 and January 2006. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D5300) and a Four Thirds (E-330) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 7.4 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5300 and the Olympus Evolt E-330? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

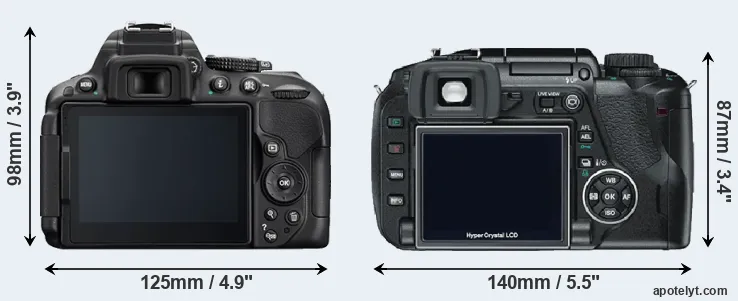

An illustration of the physical size and weight of the Nikon D5300 and the Olympus E-330 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The D5300 can be obtained in three different colors (black, grey, red), while the E-330 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5300 and the Olympus E-330 are of equal size. However, the E-330 is markedly heavier (33 percent) than the D5300. In this context, it is worth noting that neither the D5300 nor the E-330 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D5300) and the Four Thirds Lens Catalog (E-330).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|2.||Olympus E-330||140 mm||87 mm||72 mm||637 g||750||n||Jan 2006||999|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|5.||Canon 350D||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|6.||Leica Digilux 3||146 mm||87 mm||77 mm||606 g||750||n||Sep 2006||1,499|
|7.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|8.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|9.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899|
|10.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|11.||Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|12.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|13.||Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749|
|14.||Nikon D5100||128 mm||97 mm||79 mm||560 g||660||n||Apr 2011||749|
|15.||Olympus E-500||130 mm||95 mm||66 mm||479 g||750||n||Sep 2005||599|
|16.||Olympus E-300||147 mm||85 mm||64 mm||624 g||750||n||Sep 2004||799|
|17.||Panasonic L1||146 mm||87 mm||64 mm||606 g||750||n||Feb 2006||999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D5300 was launched at a somewhat lower price (by 20 percent) than the E-330, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D5300 features an APS-C sensor and the Olympus E-330 a Four Thirds sensor. The sensor area in the E-330 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D5300 has a native 3:2 aspect ratio, while the one in the E-330 offers a 4:3 aspect.
With 24MP, the D5300 offers a higher resolution than the E-330 (7.4MP), but the D5300 has smaller individual pixels (pixel pitch of 3.91μm versus 5.51μm for the E-330). However, the D5300 is a much more recent model (by 7 years and 8 months) than the E-330, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D5300 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5300 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-330 are 15.7 x 11.8 inches or 39.8 x 29.9 cm for good quality, 12.5 x 9.4 inches or 31.9 x 23.9 cm for very good quality, and 10.5 x 7.8 inches or 26.6 x 19.9 cm for excellent quality prints.
The Nikon D5300 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus Evolt E-330 are ISO 100 to ISO 400, with the possibility to increase the ISO range to 100-1600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Olympus E-330||Four Thirds||7.4||3136||2352||none||..||..||..||..|
|4.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|6.||Leica Digilux 3||Four Thirds||7.4||3136||2352||none||..||..||..||..|
|15.||Olympus E-500||Four Thirds||8.0||3264||2448||none||..||..||..||..|
|16.||Olympus E-300||Four Thirds||8.0||3264||2448||none||..||..||..||..|
|17.||Panasonic L1||Four Thirds||7.4||3136||2352||none||..||..||..||..|
Many modern cameras are not only capable of taking still images, but can also record movies. The D5300 indeed provides movie recording capabilities, while the E-330 does not. The highest resolution format that the D5300 can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. The D5300 and the E-330 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the D5300 has a higher magnification than the one of the E-330 (0.57x vs 0.47x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D5300 and Olympus E-330 along with similar information for a selection of comparators.
|1.||Nikon D5300||optical||n||3.2 / 1037||swivel||n||1/4000s||5.0||Y||n|
|2.||Olympus E-330||optical||n||2.5 / 215||tilting||n||1/4000s||3.0||Y||n|
|3.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|4.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5||Y||Y|
|5.||Canon 350D||optical||n||1.8 / 115||fixed||n||1/4000s||3.0||Y||n|
|6.||Leica Digilux 3||optical||n||2.5 / 207||fixed||n||1/4000s||3.0||Y||n|
|7.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|8.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|9.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|10.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|11.||Nikon D7100||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0||Y||n|
|12.||Nikon D3200||optical||n||3.0 / 921||fixed||n||1/4000s||4.0||Y||n|
|13.||Nikon D5200||optical||n||3.0 / 921||swivel||n||1/4000s||5.0||Y||n|
|14.||Nikon D5100||optical||n||3.0 / 921||swivel||n||1/4000s||4.0||Y||n|
|15.||Olympus E-500||optical||n||2.5 / 215||fixed||n||1/4000s||2.5||Y||n|
|16.||Olympus E-300||optical||n||1.8 / 134||fixed||n||1/4000s||2.5||Y||n|
|17.||Panasonic L1||optical||n||2.5 / 207||fixed||n||1/4000s||3.0||Y||n|
The Nikon D5300 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D5300 writes its imaging data to SDXC cards, while the E-330 uses Compact Flash or xD Picture cards. The E-330 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D5300 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5300 and Olympus Evolt E-330 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Nikon D5300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|2.||Olympus E-330||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|5.||Canon 350D||Y||- / -||-||-||-||2.0||-||-||-|
|6.||Leica Digilux 3||Y||stereo / mono||-||-||-||2.0||-||-||-|
|7.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|9.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|10.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Nikon D7100||Y||stereo / mono||Y||Y||mini||2.0||-||-||-|
|12.||Nikon D3200||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|13.||Nikon D5200||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|14.||Nikon D5100||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|15.||Olympus E-500||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Olympus E-300||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Panasonic L1||Y||- / -||-||-||-||2.0||-||-||-|
It is notable that the D5300 offers wifi support, while the E-330 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Travel and landscape photographers will find it useful that the D5300 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the D5300 and the E-330 have been discontinued, but can regularly be found used on eBay. The D5300 was replaced by the Nikon D5500, while the E-330 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what conclusions can be drawn? Is there a clear favorite between the Nikon D5300 and the Olympus E-330? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Nikon D5300:
- More detail: Offers more megapixels (24 vs 7.4MP) with a 84% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.57x vs 0.47x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 215k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Less heavy: Is lighter (by 157g or 25 percent) and hence easier to carry around.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced segment (20 percent cheaper at launch).
- More modern: Reflects 7 years and 8 months of technical progress since the E-330 launch.
Arguments in favor of the Olympus Evolt E-330:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Longer lasting: Gets more shots (750 versus 600) out of a single battery charge.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in January 2006).
If the number of relative strengths (bullet points above) is taken as a guide, the D5300 is the clear winner of the match-up (19 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5300 and the Olympus E-330 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the D5300 or the E-330 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D5300||4/5||+ +||..||79/100||4.5/5||4.5/5||Oct 2013||799|
|2.||Olympus E-330||..||..||..||+||o||..||Jan 2006||999|
|3.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699|
|5.||Canon 350D||..||80/100||..||+ +||o||..||Feb 2005||899|
|6.||Leica Digilux 3||..||..||..||..||..||..||Sep 2006||1,499|
|7.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|8.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499|
|9.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899|
|10.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499|
|11.||Nikon D7100||5/5||+ +||..||85/100||4.5/5||4.5/5||Feb 2013||1,199|
|12.||Nikon D3200||5/5||+ +||..||73/100||4.5/5||4.5/5||Apr 2012||599|
|13.||Nikon D5200||4/5||+ +||..||79/100||4.5/5||4.5/5||Nov 2012||749|
|14.||Nikon D5100||5/5||+ +||..||76/100||4.5/5||4.5/5||Apr 2011||749|
|15.||Olympus E-500||..||76/100||..||+ +||..||..||Sep 2005||599|
|16.||Olympus E-300||..||..||..||+||o||4.5/5||Sep 2004||799|
|17.||Panasonic L1||..||85/100||..||+||..||3.5/5||Feb 2006||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1Ds vs Olympus E-330
- Canon M200 vs Nikon D5300
- Nikon B700 vs Nikon D5300
- Nikon D4S vs Olympus E-330
- Nikon D5300 vs Nikon D600
- Nikon D5300 vs Nikon D800
- Nikon D5300 vs Panasonic G95
- Nikon D5300 vs Sigma fp
- Nikon D7500 vs Olympus E-330
- Olympus E-330 vs Panasonic G9
- Olympus E-330 vs Ricoh GR II
- Olympus E-330 vs Ricoh GR III
Specifications: Nikon D5300 vs Olympus E-330
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5300||Olympus E-330|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Four Thirds lenses|
|Launch Date||October 2013||January 2006|
|Launch Price||USD 799||USD 999|
|Sensor Specs||Nikon D5300||Olympus E-330|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.5 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||366.6 mm2||224.9 mm2|
|Sensor Diagonal||28.2 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||7.4 Megapixels|
|Image Resolution||6000 x 4000 pixels||3136 x 2352 pixels|
|Pixel Pitch||3.91 μm||5.51 μm|
|Pixel Density||6.55 MP/cm2||3.28 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||100 - 12,800 ISO||100 - 400 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 1,600 ISO|
|Image Processor||EXPEED 4||TruePic|
|DXO Sensor Quality (score)||83||..|
|DXO Color Depth (bits)||24.0||..|
|DXO Dynamic Range (EV)||13.9||..|
|DXO Low Light (ISO)||1338||..|
|Screen Specs||Nikon D5300||Olympus E-330|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||2.5inch|
|LCD Resolution||1037k dots||215k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Nikon D5300||Olympus E-330|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||3 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Nikon D5300||Olympus E-330|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Nikon D5300||Olympus E-330|
|Battery Life (CIPA)||600 shots per charge||750 shots per charge|
125 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
140 x 87 x 72 mm
(5.5 x 3.4 x 2.8 in)
|Camera Weight||480 g (16.9 oz)||637 g (22.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
