Nikon D5200 vs Panasonic GH5s
The Nikon D5200 and the Panasonic Lumix DC-GH5s are two digital cameras that were revealed to the public, respectively, in November 2012 and January 2018. The D5200 is a DSLR, while the GH5s is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D5200) and a Four Thirds (GH5s) sensor. The Nikon has a resolution of 24 megapixels, whereas the Panasonic provides 9.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5200 and the Panasonic Lumix DC-GH5s? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

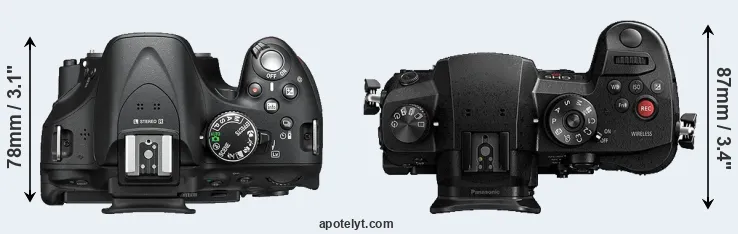

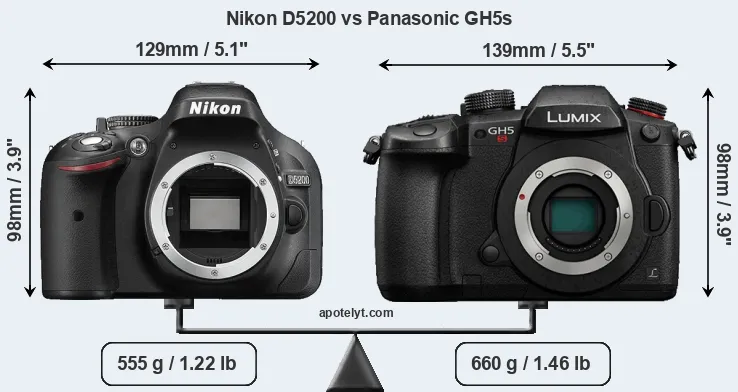

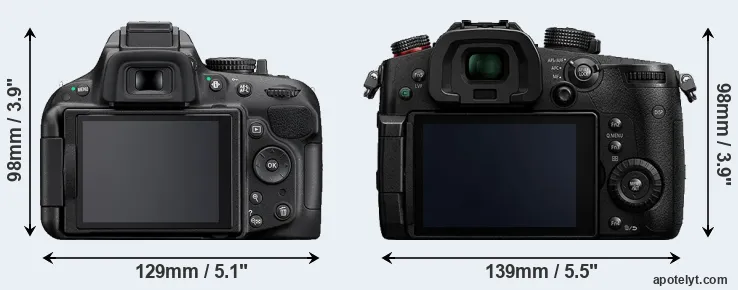

An illustration of the physical size and weight of the Nikon D5200 and the Panasonic GH5s is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The D5200 can be obtained in two different colors (black, red), while the GH5s is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH5s is notably larger (8 percent) than the Nikon D5200. Moreover, the GH5s is markedly heavier (19 percent) than the D5200. It is noteworthy in this context that the GH5s is splash and dust-proof, while the D5200 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D5200) and the Micro Four Thirds Lens Catalog (GH5s). Mirrorless cameras, such as the GH5s, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Nikon D5200||5.1 in||3.9 in||3.1 in||19.6 oz||500||n||Nov 2012||749|
|Panasonic GH5s||5.5 in||3.9 in||3.4 in||23.3 oz||440||Y||Jan 2018||2,499|
|Nikon D5600||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699|
|Nikon D3400||4.9 in||3.9 in||3.0 in||15.7 oz||1200||n||Aug 2016||499|
|Nikon D5500||4.9 in||3.8 in||2.8 in||14.8 oz||820||n||Jan 2015||899|
|Nikon D3300||4.9 in||3.9 in||3.0 in||15.2 oz||700||n||Jan 2014||499|
|Nikon D7100||5.4 in||4.2 in||3.0 in||27.0 oz||950||Y||Feb 2013||1,199|
|Nikon D5300||4.9 in||3.9 in||3.0 in||16.9 oz||600||n||Oct 2013||799|
|Nikon D3200||4.9 in||3.8 in||3.0 in||17.8 oz||540||n||Apr 2012||599|
|Nikon D5100||5.0 in||3.8 in||3.1 in||19.8 oz||660||n||Apr 2011||749|
|Nikon D5000||5.0 in||4.1 in||3.1 in||20.8 oz||510||n||Apr 2009||749|
|Nikon D60||5.0 in||3.7 in||2.5 in||18.4 oz||500||n||Jan 2008||629|
|Panasonic GH5||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999|
|Panasonic FZ300||5.2 in||3.6 in||4.6 in||24.4 oz||380||Y||Jul 2015||599|
|Panasonic GH4||5.2 in||3.7 in||3.3 in||19.8 oz||500||Y||Feb 2014||1,499|
|Panasonic GH3||5.2 in||3.7 in||3.2 in||19.4 oz||540||Y||Sep 2012||1,299|
|Panasonic G2||4.9 in||3.3 in||2.9 in||15.1 oz||360||n||Mar 2010||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D5200 was launched at a markedly lower price (by 70 percent) than the GH5s, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

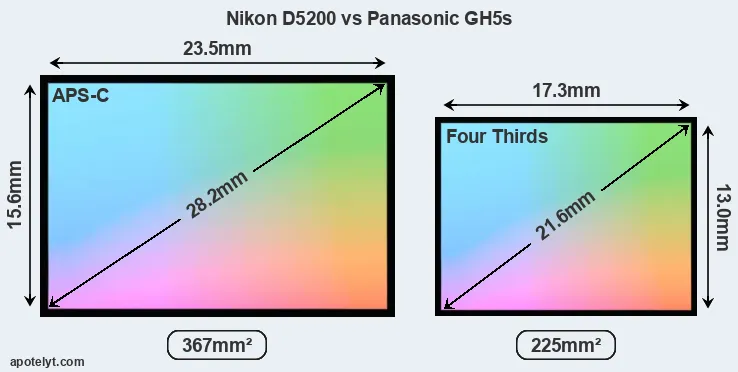

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D5200 features an APS-C sensor and the Panasonic GH5s a Four Thirds sensor. The sensor area in the GH5s is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D5200 has a native 3:2 aspect ratio, while the one in the GH5s offers a 4:3 aspect.
With 24MP, the D5200 offers a higher resolution than the GH5s (9.9MP), but the D5200 has smaller individual pixels (pixel pitch of 3.91μm versus 4.77μm for the GH5s). Moreover, the GH5s is a much more recent model (by 5 years and 2 months) than the D5200, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the GH5s has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5200 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GH5s are 18.4 x 13.5 inches or 46.7 x 34.3 cm for good quality, 14.7 x 10.8 inches or 37.4 x 27.4 cm for very good quality, and 12.3 x 9 inches or 31.2 x 22.9 cm for excellent quality prints.
The Nikon D5200 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-GH5s are ISO 160 to ISO 51200, with the possibility to increase the ISO range to 80-204800.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Panasonic GH5s||Four Thirds||9.9||3680||2700||4K/60p||..||..||..||..|
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|Panasonic GH3||Four Thirds||15.9||4608||3456||1080/60p||22.7||12.4||812||71|
|Panasonic G2||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||493||53|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GH5s provides a better video resolution than the D5200. It can shoot movie footage at 4K/60p, while the Nikon is limited to 1080/60i.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the GH5s has an electronic viewfinder (3680k dots), while the D5200 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the GH5s offers a wider field of view (100%) than the one in the D5200 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the GH5s has a higher magnification (0.76x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D5200 and Panasonic GH5s along with similar information for a selection of comparators.
One difference between the cameras concerns the presence of an on-board flash. The D5200 has one, while the GH5s does not. While the built-in flash of the D5200 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GH5s is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon D5200 and the Panasonic GH5s both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the D5200 and the GH5s write their files to SDXC cards. The GH5s features dual card slots, which can be very useful in case a memory card fails. In contrast, the D5200 only has one slot. The GH5s supports UHS-II cards (on both slots), while the D5200 can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5200 and Panasonic Lumix DC-GH5s and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
It is notable that the GH5s offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D5200 does not provide wifi capability.
Studio photographers will appreciate that the Panasonic GH5s (unlike the D5200) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The GH5s is a recent model that features in the current product line-up of Panasonic. In contrast, the D5200 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D5200 was succeeded by the Nikon D5300. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Panasonic websites.
So how do things add up? Which of the two cameras – the Nikon D5200 or the Panasonic GH5s – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Nikon D5200:
- More detail: Offers more megapixels (24 vs 9.9MP) with a 58% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Less heavy: Is lighter (by 105g or 16 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (500 versus 440) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (70 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in November 2012).
Arguments in favor of the Panasonic Lumix DC-GH5s:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/60i).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.51x).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 921k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 5 years and 2 months of technical progress since the D5200 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the GH5s is the clear winner of the contest (22 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5200 and the Panasonic GH5s place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the D5200 and the GH5s in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D5200||+ +||79/100||4.5/5||4.5/5||4.5/5||Nov 2012||749|
|Panasonic GH5s||..||84/100||4.5/5||5/5||4.5/5||Jan 2018||2,499|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Nikon D3400||+||76/100||4/5||4.5/5||4.5/5||Aug 2016||499|
|Nikon D5500||+||79/100||4.5/5||5/5||4.5/5||Jan 2015||899|
|Nikon D3300||+||77/100||4.5/5||4.5/5||4.5/5||Jan 2014||499|
|Nikon D7100||+ +||85/100||4.5/5||5/5||4.5/5||Feb 2013||1,199|
|Nikon D5300||+ +||79/100||4.5/5||4.5/5||4.5/5||Oct 2013||799|
|Nikon D3200||+ +||73/100||4.5/5||4.5/5||4.5/5||Apr 2012||599|
|Nikon D5100||+ +||76/100||4.5/5||5/5||4.5/5||Apr 2011||749|
|Nikon D5000||+ +||75/100||4/5||5/5||4.5/5||Apr 2009||749|
|Nikon D60||80/100||+ +||4/5||o||4.5/5||Jan 2008||629|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Panasonic FZ300||+ +||..||4.5/5||4.5/5||4.5/5||Jul 2015||599|
|Panasonic GH4||+ +||85/100||5/5||5/5||5/5||Feb 2014||1,499|
|Panasonic GH3||+ +||79/100||4.5/5||5/5||4.5/5||Sep 2012||1,299|
|Panasonic G2||..||72/100||4/5||4/5||4.5/5||Mar 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon SX520 vs Nikon D5200
- Leica M Typ 262 vs Nikon D5200
- Nikon B500 vs Nikon D5200
- Nikon D40 vs Panasonic GH5s
- Nikon D5200 vs Nikon D7200
- Nikon D5200 vs Olympus TG-4
- Nikon D5200 vs Sony A6400
- Olympus E-PL8 vs Panasonic GH5s
- Panasonic FZ1000 II vs Panasonic GH5s
- Panasonic GH5s vs Ricoh GR II
- Panasonic GH5s vs Sony A7S III
- Panasonic GH5s vs Sony NEX-3
Specifications: Nikon D5200 vs Panasonic GH5s
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5200||Panasonic GH5s|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||November 2012||January 2018|
|Launch Price||USD 749||USD 2,499|
|Sensor Specs||Nikon D5200||Panasonic GH5s|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.5 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||366.6 mm2||224.9 mm2|
|Sensor Diagonal||28.2 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||9.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||3680 x 2700 pixels|
|Pixel Pitch||3.91 μm||4.77 μm|
|Pixel Density||6.55 MP/cm2||4.42 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60i Video||4K/60p Video|
|ISO Setting||100 - 6,400 ISO||160 - 51,200 ISO|
|ISO Boost||100 - 25,600 ISO||80 - 204,800 ISO|
|Image Processor||EXPEED 3||Venus 10|
|DXO Sensor Quality (score)||84||..|
|DXO Color Depth (bits)||24.2||..|
|DXO Dynamic Range (EV)||13.9||..|
|DXO Low Light (ISO)||1284||..|
|Screen Specs||Nikon D5200||Panasonic GH5s|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||3680k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||921k dots||1620k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D5200||Panasonic GH5s|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||5 shutter flaps/s||12 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||200 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Dual UHS-II|
|Connectivity Specs||Nikon D5200||Panasonic GH5s|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||mini HDMI||full HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Nikon D5200||Panasonic GH5s|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||500 shots per charge||440 shots per charge|
129 x 98 x 78 mm
(5.1 x 3.9 x 3.1 in)
139 x 98 x 87 mm
(5.5 x 3.9 x 3.4 in)
|Camera Weight||555 g (19.6 oz)||660 g (23.3 oz)|
