Nikon D5100 vs Samsung NX500
The Nikon D5100 and the Samsung NX500 are two digital cameras that were officially introduced, respectively, in April 2011 and February 2015. The D5100 is a DSLR, while the NX500 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Nikon has a resolution of 16.1 megapixels, whereas the Samsung provides 28 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5100 and the Samsung NX500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

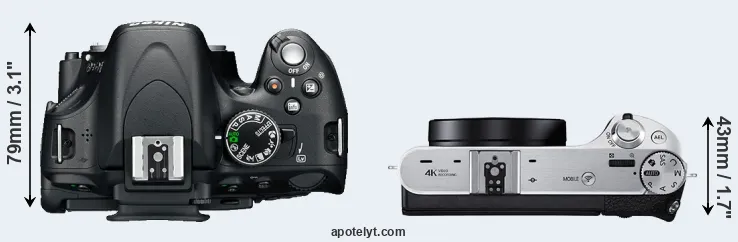

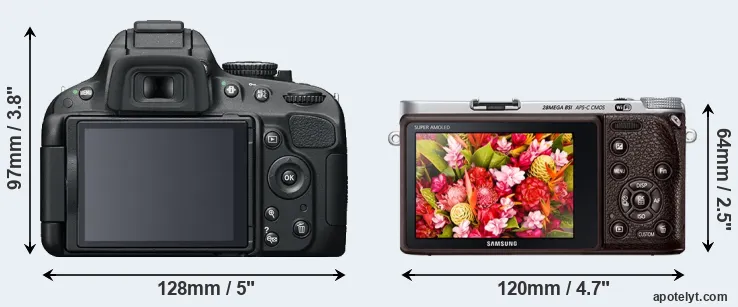

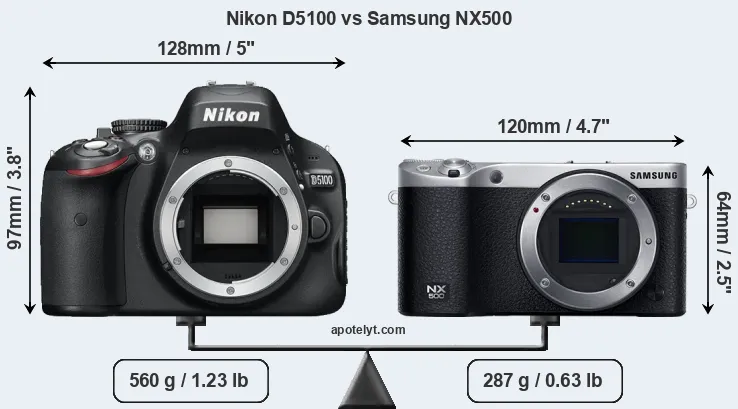

An illustration of the physical size and weight of the Nikon D5100 and the Samsung NX500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX500 is considerably smaller (38 percent) than the Nikon D5100. Moreover, the NX500 is substantially lighter (49 percent) than the D5100. In this context, it is worth noting that neither the D5100 nor the NX500 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the NX500 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Nikon D5100||5.0 in||3.8 in||3.1 in||19.8 oz||660||n||Apr 2011||749|
|Samsung NX500||4.7 in||2.5 in||1.7 in||10.1 oz||370||n||Feb 2015||799|
|Canon T2i||5.1 in||3.9 in||2.4 in||18.7 oz||440||n||Feb 2010||699|
|Nikon D5600||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699|
|Nikon D5500||4.9 in||3.8 in||2.8 in||14.8 oz||820||n||Jan 2015||899|
|Nikon D5300||4.9 in||3.9 in||3.0 in||16.9 oz||600||n||Oct 2013||799|
|Nikon D3200||4.9 in||3.8 in||3.0 in||17.8 oz||540||n||Apr 2012||599|
|Nikon D5200||5.1 in||3.9 in||3.1 in||19.6 oz||500||n||Nov 2012||749|
|Nikon D7000||5.2 in||4.1 in||3.0 in||27.5 oz||1050||Y||Sep 2010||1,499|
|Nikon D3100||4.9 in||3.8 in||3.0 in||17.8 oz||550||n||Aug 2010||599|
|Nikon D5000||5.0 in||4.1 in||3.1 in||20.8 oz||510||n||Apr 2009||749|
|Ricoh GR II||4.6 in||2.5 in||1.4 in||8.9 oz||320||n||Jun 2015||699|
|Sony A5100||4.3 in||2.5 in||1.4 in||10.0 oz||400||n||Aug 2014||549|
|Sony A6000||4.7 in||2.6 in||1.8 in||12.1 oz||360||n||Feb 2014||599|
|Sony NEX-5R||4.4 in||2.3 in||1.5 in||9.7 oz||330||n||Aug 2012||749|
|Sony NEX-5N||4.4 in||2.3 in||1.5 in||9.5 oz||460||n||Aug 2011||699|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D5100 was somewhat cheaper (by 6 percent) than the NX500 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

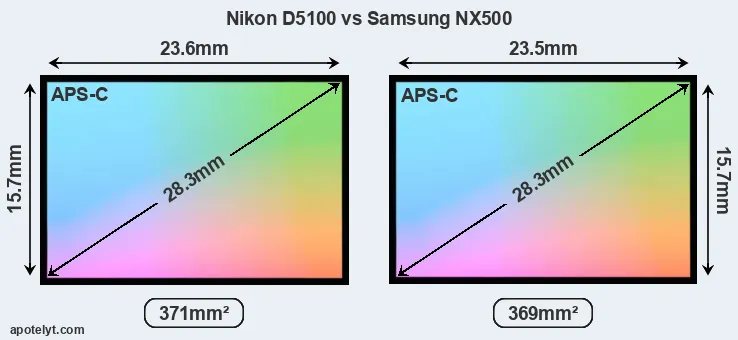

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NX500 is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

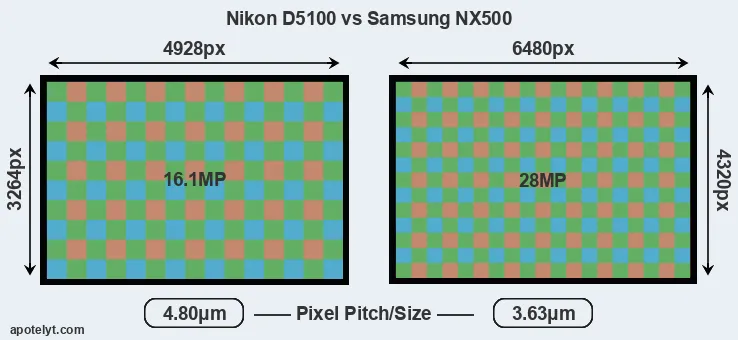

Despite having a slightly smaller sensor, the NX500 offers a higher resolution of 28 megapixels, compared with 16.1 MP of the D5100. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.63μm versus 4.80μm for the D5100). However, it should be noted that the NX500 is much more recent (by 3 years and 10 months) than the D5100, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the NX500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Samsung NX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX500 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Nikon D5100 are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.
The NX500 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Nikon D5100 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Samsung NX500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the NX500 has a markedly higher DXO score than the D5100 (overall score 7 points higher), which will translate into better image quality. The advantage is based on 1.3 bits higher color depth, 0.3 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Ricoh GR II||APS-C||16.1||4928||3264||1080/30p||23.6||13.7||1078||80|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the NX500 provides a better video resolution than the D5100. It can shoot movie footage at 4K/30p, while the Nikon is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the D5100 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NX500 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Nikon D5100, the Samsung NX500, and comparable cameras.
|Ricoh GR II||optional||n||3.0||1230||fixed||n||1/4000s||4.0||Y||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The NX500 has a touchscreen, while the D5100 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The Nikon D5100 and the Samsung NX500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the D5100 and the NX500 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5100 and Samsung NX500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Ricoh GR II||Y||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the D5100 has a microphone port, which is missing on the NX500. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the D5100 and the NX500 have been discontinued, but can regularly be found used on eBay. The D5100 was replaced by the Nikon D5200, while the NX500 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Samsung websites.
So what conclusions can be drawn? Which of the two cameras – the Nikon D5100 or the Samsung NX500 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Nikon D5100:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Longer lasting: Can take more shots (660 versus 370) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in April 2011).
Reasons to prefer the Samsung NX500:
- More detail: Has more megapixels (28 vs 16.1MP), which boosts linear resolution by 32%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores markedly higher (7 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.3 bits more color depth).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1036k vs 921k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 4 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (120x64mm vs 128x97mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 273g or 49 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Reflects 3 years and 10 months of technical progress since the D5100 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the NX500 is the clear winner of the contest (18 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5100 and the Samsung NX500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the D5100 or the NX500 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D5100||+ +||76/100||4.5/5||5/5||4.5/5||Apr 2011||749|
|Samsung NX500||..||81/100||5/5||4.5/5||4.5/5||Feb 2015||799|
|Canon T2i||+ +||77/100||4/5||5/5||4.5/5||Feb 2010||699|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Nikon D5500||+||79/100||4.5/5||5/5||4.5/5||Jan 2015||899|
|Nikon D5300||+ +||79/100||4.5/5||4.5/5||4.5/5||Oct 2013||799|
|Nikon D3200||+ +||73/100||4.5/5||4.5/5||4.5/5||Apr 2012||599|
|Nikon D5200||+ +||79/100||4.5/5||4.5/5||4.5/5||Nov 2012||749|
|Nikon D7000||..||80/100||4.5/5||5/5||4.5/5||Sep 2010||1,499|
|Nikon D3100||+ +||72/100||4.5/5||5/5||4.5/5||Aug 2010||599|
|Nikon D5000||+ +||75/100||4/5||5/5||4.5/5||Apr 2009||749|
|Ricoh GR II||..||..||4.5/5||4.5/5||4.5/5||Jun 2015||699|
|Sony A5100||+||..||4.5/5||4.5/5||5/5||Aug 2014||549|
|Sony A6000||+||80/100||4.5/5||5/5||5/5||Feb 2014||599|
|Sony NEX-5R||..||..||4.5/5||..||4.5/5||Aug 2012||749|
|Sony NEX-5N||+ +||79/100||4.5/5||5/5||4.5/5||Aug 2011||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1200D vs Nikon D5100
- Canon G12 vs Samsung NX500
- Canon M100 vs Nikon D5100
- Fujifilm X-T4 vs Samsung NX500
- Nikon 1 V3 vs Nikon D5100
- Nikon D100 vs Samsung NX500
- Nikon D2Xs vs Samsung NX500
- Nikon D300S vs Samsung NX500
- Nikon D5100 vs Nikon D5200
- Nikon D5100 vs Nikon D60
- Nikon D5100 vs Panasonic LF1
- Samsung NX500 vs Sony A99
Specifications: Nikon D5100 vs Samsung NX500
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5100||Samsung NX500|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Samsung NX mount lenses|
|Launch Date||April 2011||February 2015|
|Launch Price||USD 749||USD 799|
|Sensor Specs||Nikon D5100||Samsung NX500|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||23.6 x 15.7 mm||23.5 x 15.7 mm|
|Sensor Area||370.52 mm2||368.95 mm2|
|Sensor Diagonal||28.3 mm||28.3 mm|
|Sensor Resolution||16.1 Megapixels||28 Megapixels|
|Image Resolution||4928 x 3264 pixels||6480 x 4320 pixels|
|Pixel Pitch||4.80 μm||3.63 μm|
|Pixel Density||4.34 MP/cm2||7.59 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 6,400 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 51,200 ISO|
|Image Processor||EXPEED 2||DRIMe Vs|
|DXO Sensor Quality (score)||80||87|
|DXO Color Depth (bits)||23.5||24.8|
|DXO Dynamic Range (EV)||13.6||13.9|
|DXO Low Light (ISO)||1183||1379|
|Screen Specs||Nikon D5100||Samsung NX500|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||921k dots||1036k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D5100||Samsung NX500|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/6000s|
|Continuous Shooting||4 shutter flaps/s||9 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Nikon D5100||Samsung NX500|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Nikon D5100||Samsung NX500|
|Battery Life (CIPA)||660 shots per charge||370 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
128 x 97 x 79 mm
(5.0 x 3.8 x 3.1 in)
120 x 64 x 43 mm
(4.7 x 2.5 x 1.7 in)
|Camera Weight||560 g (19.8 oz)||287 g (10.1 oz)|
