Nikon D5100 vs Panasonic S5
The Nikon D5100 and the Panasonic Lumix DC-S5 are two digital cameras that were revealed to the public, respectively, in April 2011 and September 2020. The D5100 is a DSLR, while the S5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D5100) and a full frame (S5) sensor. The Nikon has a resolution of 16.1 megapixels, whereas the Panasonic provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5100 and the Panasonic Lumix DC-S5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

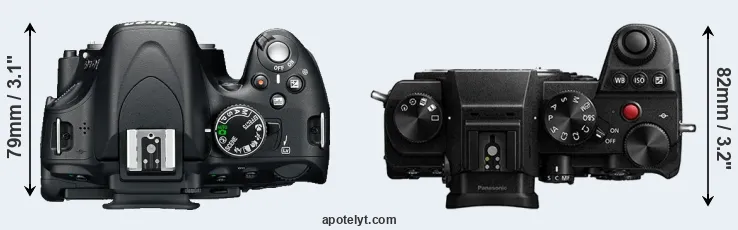

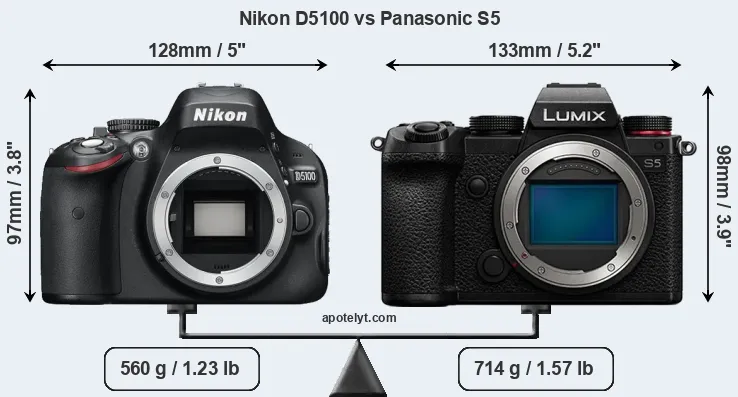

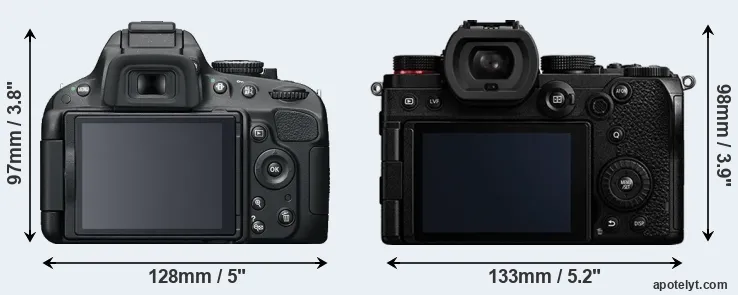

An illustration of the physical size and weight of the Nikon D5100 and the Panasonic S5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S5 is somewhat larger (5 percent) than the Nikon D5100. Moreover, the S5 is markedly heavier (28 percent) than the D5100. It is noteworthy in this context that the S5 is splash and dust-proof, while the D5100 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the D5100 gets 660 shots out of its EN-EL14 battery, while the S5 can take 440 images on a single charge of its DMW-BLK22 power pack. The power pack in the S5 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Nikon D5100||128 mm||97 mm||79 mm||560 g||660||n||Apr 2011||749|
|2.||Panasonic S5||133 mm||98 mm||82 mm||714 g||440||Y||Sep 2020||1,999|
|3.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|4.||Nikon Z6 II||134 mm||101 mm||70 mm||705 g||410||Y||Oct 2020||1,999|
|5.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|6.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|7.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|8.||Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749|
|9.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|10.||Nikon D3100||124 mm||96 mm||75 mm||505 g||550||n||Aug 2010||599|
|11.||Nikon D5000||127 mm||104 mm||80 mm||590 g||510||n||Apr 2009||749|
|12.||Panasonic S1||149 mm||110 mm||97 mm||1017 g||400||Y||Feb 2019||2,499|
|13.||Panasonic S1R||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699|
|14.||Panasonic S1H||151 mm||114 mm||110 mm||1052 g||400||Y||May 2019||3,999|
|15.||Sony A7 III||127 mm||96 mm||74 mm||650 g||610||Y||Feb 2018||1,999|
|16.||Sony NEX-5R||111 mm||59 mm||39 mm||276 g||330||n||Aug 2012||749|
|17.||Sony NEX-5N||111 mm||59 mm||38 mm||269 g||460||n||Aug 2011||699|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D5100 was launched at a markedly lower price (by 63 percent) than the S5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

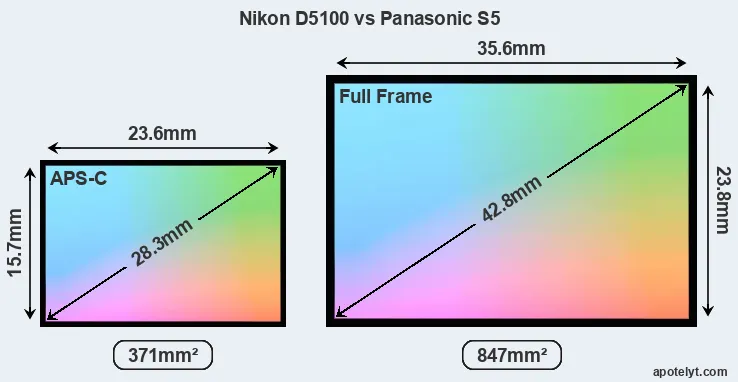

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D5100 features an APS-C sensor and the Panasonic S5 a full frame sensor. The sensor area in the S5 is 128 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

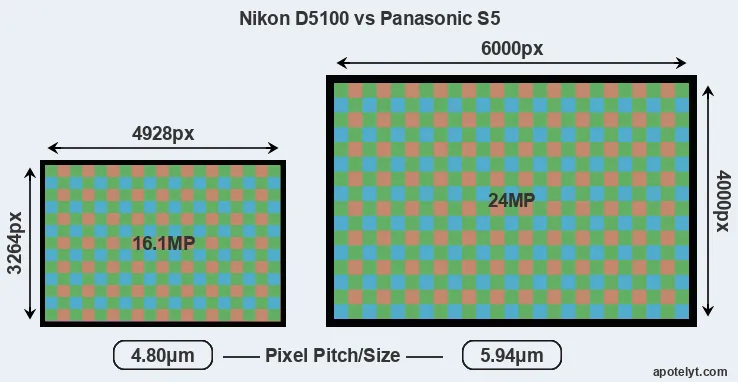

With 24MP, the S5 offers a higher resolution than the D5100 (16.1MP), but the S5 nevertheless has larger individual pixels (pixel pitch of 5.94μm versus 4.80μm for the D5100) due to its larger sensor. Moreover, the S5 is a much more recent model (by 9 years and 5 months) than the D5100, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic S5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D5100 are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.
Unlike the D5100, the S5 has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Nikon D5100 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-S5 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|2.||Panasonic S5||Full Frame||24.0||6000||4000||4K/60p||..||..||..||..|
|4.||Nikon Z6 II||Full Frame||24.3||6048||4024||4K/60p||..||..||..||..|
|12.||Panasonic S1||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95|
|13.||Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|14.||Panasonic S1H||Full Frame||24.0||6000||4000||6K/30p||..||..||..||..|
|15.||Sony A7 III||Full Frame||24.0||6000||4000||4K/30p||25.0||14.7||3730||96|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the S5 provides a better video resolution than the D5100. It can shoot movie footage at 4K/60p, while the Nikon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the S5 has an electronic viewfinder (2360k dots), while the D5100 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the S5 offers a wider field of view (100%) than the one in the D5100 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the S5 has a higher magnification (0.74x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D5100, the Panasonic S5, and comparable cameras.
|4.||Nikon Z6 II||3690||Y||3.2||2100||tilting||Y||1/8000s||14.0||n||Y|
|15.||Sony A7 III||2359||n||3.0||922||tilting||Y||1/8000s||10.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The D5100 has one, while the S5 does not. While the built-in flash of the D5100 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the S5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon D5100 and the Panasonic S5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the D5100 and the S5 write their files to SDXC cards. The S5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D5100 only has one slot. The S5 supports UHS-II cards (on its first slot), while the D5100 can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5100 and Panasonic Lumix DC-S5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Nikon Z6 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|15.||Sony A7 III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
It is notable that the S5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D5100 does not provide wifi capability.
The S5 is a recent model that features in the current product line-up of Panasonic. In contrast, the D5100 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D5100 was succeeded by the Nikon D5200. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Panasonic websites.
So how do things add up? Is the Nikon D5100 better than the Panasonic S5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Nikon D5100:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Less heavy: Is lighter (by 154g or 22 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (660 versus 440) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (63 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in April 2011).
Reasons to prefer the Panasonic Lumix DC-S5:
- More detail: Has more megapixels (24 vs 16.1MP), which boosts linear resolution by 22%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.51x).
- More detailed LCD: Has a higher resolution rear screen (1840k vs 921k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 4 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 9 years and 5 months of technical progress since the D5100 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the S5 is the clear winner of the contest (27 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5100 and the Panasonic S5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D5100 and the S5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D5100||5/5||+ +||76/100||4.5/5||4.5/5||Apr 2011||749|
|2.||Panasonic S5||4.5/5||+ +||88/100||4.5/5||4.5/5||Sep 2020||1,999|
|3.||Canon T2i||..||+ +||77/100||4/5||4.5/5||Feb 2010||699|
|4.||Nikon Z6 II||4.5/5||..||89/100||4.5/5||4.5/5||Oct 2020||1,999|
|5.||Nikon D5600||4/5||..||79/100||4.5/5||4/5||Nov 2016||699|
|6.||Nikon D5300||4/5||+ +||79/100||4.5/5||4.5/5||Oct 2013||799|
|7.||Nikon D3200||5/5||+ +||73/100||4.5/5||4.5/5||Apr 2012||599|
|8.||Nikon D5200||4/5||+ +||79/100||4.5/5||4.5/5||Nov 2012||749|
|9.||Nikon D7000||4/5||..||80/100||4.5/5||4.5/5||Sep 2010||1,499|
|10.||Nikon D3100||5/5||+ +||72/100||4.5/5||4.5/5||Aug 2010||599|
|11.||Nikon D5000||..||+ +||75/100||4/5||4.5/5||Apr 2009||749|
|12.||Panasonic S1||4.5/5||+ +||88/100||4.5/5||4/5||Feb 2019||2,499|
|13.||Panasonic S1R||4.5/5||..||89/100||4.5/5||4.5/5||Feb 2019||3,699|
|14.||Panasonic S1H||..||..||90/100||..||..||May 2019||3,999|
|15.||Sony A7 III||..||+ +||89/100||5/5||5/5||Feb 2018||1,999|
|16.||Sony NEX-5R||..||..||..||4.5/5||4.5/5||Aug 2012||749|
|17.||Sony NEX-5N||3/5||+ +||79/100||4.5/5||4.5/5||Aug 2011||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Nikon D5100 vs Panasonic S5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5100||Panasonic S5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Leica L mount lenses|
|Launch Date||April 2011||September 2020|
|Launch Price||USD 749||USD 1,999|
|Sensor Specs||Nikon D5100||Panasonic S5|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||23.6 x 15.7 mm||35.6 x 23.8 mm|
|Sensor Area||370.52 mm2||847.28 mm2|
|Sensor Diagonal||28.3 mm||42.8 mm|
|Sensor Resolution||16.1 Megapixels||24 Megapixels|
|Image Resolution||4928 x 3264 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.80 μm||5.94 μm|
|Pixel Density||4.34 MP/cm2||2.83 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/60p Video|
|ISO Setting||100 - 6,400 ISO||100 - 51,200 ISO|
|ISO Boost||100 - 25,600 ISO||50 - 204,800 ISO|
|Image Processor||EXPEED 2||Venus|
|DXO Sensor Quality (score)||80||..|
|DXO Color Depth (bits)||23.5||..|
|DXO Dynamic Range (EV)||13.6||..|
|DXO Low Light (ISO)||1183||..|
|Screen Specs||Nikon D5100||Panasonic S5|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||921k dots||1840k dots|
|LCD Attachment||Swivel screen||Fully flexible screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D5100||Panasonic S5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||4 shutter flaps/s||7 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||200 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/8000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Single UHS-II|
|Connectivity Specs||Nikon D5100||Panasonic S5|
|USB Connector||USB 2.0||USB 3.2|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Nikon D5100||Panasonic S5|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||660 shots per charge||440 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
128 x 97 x 79 mm
(5.0 x 3.8 x 3.1 in)
133 x 98 x 82 mm
(5.2 x 3.9 x 3.2 in)
|Camera Weight||560 g (19.8 oz)||714 g (25.2 oz)|
