Nikon D500 vs Olympus E-PM1

The Nikon D500 and the Olympus PEN E-PM1 are two digital cameras that were announced, respectively, in January 2016 and June 2011. The D500 is a DSLR, while the E-PM1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D500) and a Four Thirds (E-PM1) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D500
versus
Olympus E-PM1
Nikon D500   Olympus E-PM1
Digital single lens reflex Mirrorless system camera
Nikon F mount lenses Micro Four Thirds lenses
20.7 MP, APS-C Sensor 12.2 MP, Four Thirds Sensor
4K/30p Video 1080/60i Video
ISO 100-51,200 (50 - 1,640,000) ISO 100-12,800
Optical viewfinder Viewfinder optional
3.2 LCD, 2359k dots 3.0 LCD, 460k dots
Tilting touchscreen Fixed screen (not touch-sensitive)
10 shutter flaps per second 5.5 shutter flaps per second
Lens stabilization onlyIn-body stabilization
Weathersealed bodynot weather sealed
1240 shots per battery charge330 shots per battery charge
147 x 115 x 81 mm, 860 g 110 x 64 x 34 mm, 265 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D500 and the Olympus PEN E-PM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Nikon D500 and the Olympus E-PM1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-PM1 can be obtained in six different colors (black, silver, brown, pink, purple, white), while the D500 is only available in black.

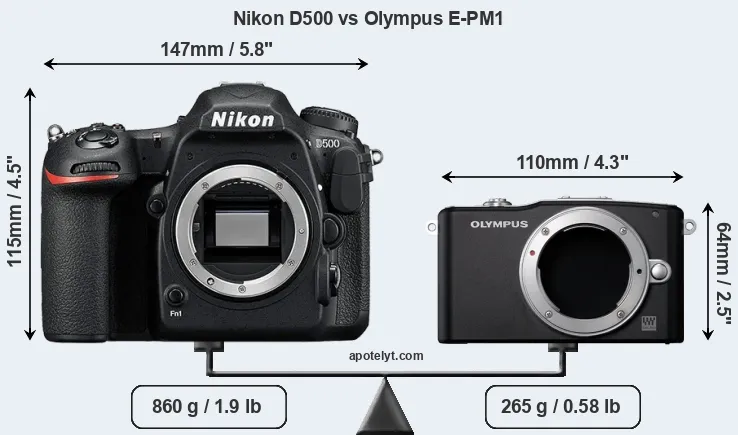

Size Nikon D500 vs Olympus E-PM1

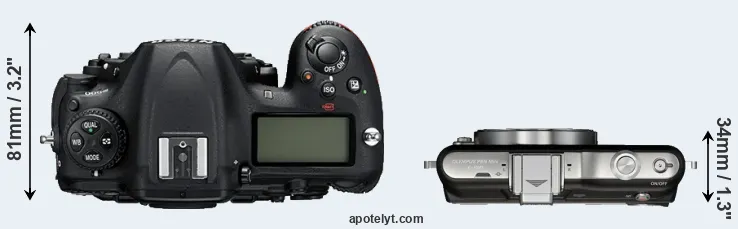

Compare D500 versus E-PM1 top

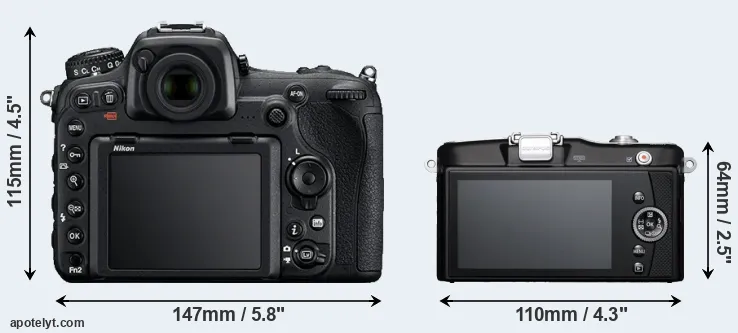

Comparison D500 or E-PM1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PM1 is considerably smaller (58 percent) than the Nikon D500. Moreover, the E-PM1 is substantially lighter (69 percent) than the D500. It is worth mentioning in this context that the D500 is splash and dust resistant, while the E-PM1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D500) and the Micro Four Thirds Lens Catalog (E-PM1). Mirrorless cameras, such as the E-PM1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D500 gets 1240 shots out of its EN-EL15 battery, while the E-PM1 can take 330 images on a single charge of its BLS-5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon D500 147 mm 115 mm 81 mm 860 g 1240 Y Jan 2016 1,999 i
2.

Olympus E-PM1 110 mm 64 mm 34 mm 265 g 330 n Jun 2011 499 i
3.

Nikon D7500 136 mm 104 mm 73 mm 720 g 950 Y Apr 2017 1,299 i
4.

Nikon D5600 124 mm 97 mm 70 mm 465 g 970 n Nov 2016 699 i
5.

Nikon D3400 124 mm 98 mm 76 mm 445 g 1200 n Aug 2016 499 i
6.

Nikon D5500 124 mm 97 mm 70 mm 420 g 820 n Jan 2015 899 i
7.

Nikon D7200 136 mm 107 mm 76 mm 765 g 1110 Y Mar 2015 1,199 i
8.

Nikon D750 141 mm 113 mm 78 mm 750 g 1230 Y Sep 2014 2,299 i
9.

Nikon D7100 136 mm 107 mm 76 mm 765 g 950 Y Feb 2013 1,199 i
10.

Nikon D610 141 mm 113 mm 82 mm 850 g 900 Y Oct 2013 1,999 i
11.

Nikon D600 141 mm 113 mm 82 mm 850 g 900 Y Sep 2012 2,099 i
12.

Nikon D300S 147 mm 115 mm 81 mm 938 g 950 Y Jul 2009 1,799 i
13.

Olympus E-PM2 110 mm 64 mm 34 mm 269 g 360 n Sep 2012 499 i
14.

Olympus E-PL2 114 mm 72 mm 42 mm 362 g 280 n Jan 2011 599 i
15.

Olympus E-PL3 110 mm 64 mm 37 mm 313 g 300 n Jun 2011 599 i
16.

Olympus E-PL1 115 mm 72 mm 42 mm 334 g 290 n Feb 2010 599 i
17.

Panasonic G2 124 mm 84 mm 74 mm 428 g 360 n Mar 2010 599 i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PM1 was launched at a markedly lower price (by 75 percent) than the D500, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Nikon D500 features an APS-C sensor and the Olympus E-PM1 a Four Thirds sensor. The sensor area in the E-PM1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D500 has a native 3:2 aspect ratio, while the one in the E-PM1 offers a 4:3 aspect.

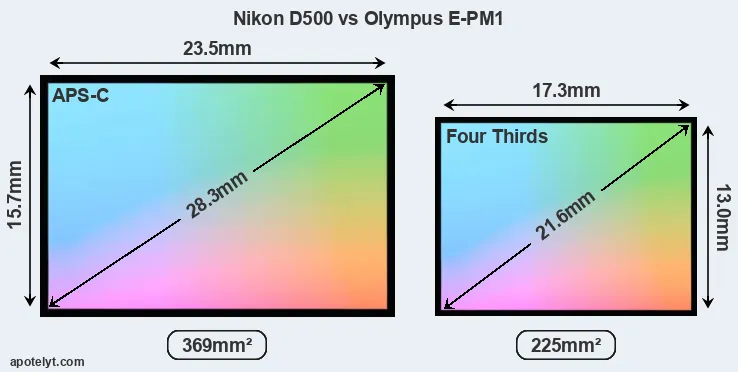

Nikon D500 and Olympus E-PM1 sensor measures

With 20.7MP, the D500 offers a higher resolution than the E-PM1 (12.2MP), but the D500 has marginally smaller individual pixels (pixel pitch of 4.22μm versus 4.29μm for the E-PM1). However, the D500 is a much more recent model (by 4 years and 6 months) than the E-PM1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D500 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Olympus E-PM1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Nikon D500 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-1640000. The corresponding ISO settings for the Olympus PEN E-PM1 are ISO 100 to ISO 12800 (no boost).

D500 versus E-PM1 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the D500 provides substantially higher image quality than the E-PM1, with an overall score that is 31 points higher. This advantage is based on 3 bits higher color depth, 3.7 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Nikon D500 APS-C 20.7 5568 37124K/30p24.014.01324 83
2.

Olympus E-PM1 Four Thirds 12.2 4032 30241080/60i21.010.3499 52
3.

Nikon D7500 APS-C 20.7 5568 37124K/30p24.314.01483 86
4.

Nikon D5600 APS-C 24.0 6000 40001080/60p24.114.01306 84
5.

Nikon D3400 APS-C 24.0 6000 40001080/60p24.813.91192 86
6.

Nikon D5500 APS-C 24.0 6000 40001080/60p24.114.01438 84
7.

Nikon D7200 APS-C 24.0 6000 40001080/60p24.514.61333 87
8.

Nikon D750 Full Frame 24.2 6016 40161080/60p24.814.52956 93
9.

Nikon D7100 APS-C 24.0 6000 40001080/60p24.213.71256 83
10.

Nikon D610 Full Frame 24.2 6016 40161080/30p25.114.42925 94
11.

Nikon D600 Full Frame 24.2 6016 40161080/30p25.114.22980 94
12.

Nikon D300S APS-C 12.2 4288 2848720/24p22.512.2787 70
13.

Olympus E-PM2 Four Thirds 15.9 4608 34561080/30p22.712.2932 72
14.

Olympus E-PL2 Four Thirds 12.2 4032 3024720/30p21.410.2573 55
15.

Olympus E-PL3 Four Thirds 12.2 4032 30241080/60i20.910.3499 52
16.

Olympus E-PL1 Four Thirds 12.2 4032 3024720/30p21.510.1487 54
17.

Panasonic G2 Four Thirds 12.0 4000 3000720/30p21.210.3493 53

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D500 provides a higher video resolution than the E-PM1. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PM1 relies on live view and the rear LCD for framing. That said, the E-PM1 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Nikon D500, the Olympus E-PM1, and comparable cameras.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Nikon D500optical Y 3.2 2359 tilting Y 1/8000s 10.0 n n
2.

Olympus E-PM1optional n 3.0 460 fixed n 1/4000s 5.5 n Y
3.

Nikon D7500optical Y 3.2 922 tilting Y 1/8000s 8.0 Y n
4.

Nikon D5600optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n
5.

Nikon D3400optical n 3.0 921 fixed n 1/4000s 5.0 Y n
6.

Nikon D5500optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n
7.

Nikon D7200optical Y 3.2 1229 fixed n 1/8000s 6.0 Y n
8.

Nikon D750optical Y 3.2 1229 tilting n 1/4000s 6.0 Y n
9.

Nikon D7100optical Y 3.2 1229 fixed n 1/8000s 6.0 Y n
10.

Nikon D610optical Y 3.2 921 fixed n 1/4000s 6.0 Y n
11.

Nikon D600optical Y 3.0 921 fixed n 1/4000s 5.5 Y n
12.

Nikon D300Soptical Y 3.0 920 fixed n 1/8000s 7.0 Y n
13.

Olympus E-PM2optional n 3.0 460 fixed Y 1/4000s 8.0 n Y
14.

Olympus E-PL2optional n 3.0 460 fixed n 1/4000s 3.0 Y Y
15.

Olympus E-PL3optional n 3.0 460 tilting n 1/4000s 5.5 n Y
16.

Olympus E-PL1optional n 2.7 230 fixed n 1/2000s 3.0 Y Y
17.

Panasonic G21440 n 3.0 460 swivel Y 1/4000s 2.6 Y n

One feature that is present on the D500, but is missing on the E-PM1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Nikon D500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D500 writes its imaging data to SDHC or XQD cards, while the E-PM1 uses SDXC cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PM1 only has one slot. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the E-PM1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D500 and Olympus PEN E-PM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Nikon D500YstereomonoYYmini3.0YYY
2.

Olympus E-PM1Ystereomono--mini2.0---
3.

Nikon D7500YstereomonoYYmini2.0Y-Y
4.

Nikon D5600YstereomonoY-mini2.0YYY
5.

Nikon D3400Ymonomono--mini2.0--Y
6.

Nikon D5500YstereomonoY-mini2.0Y--
7.

Nikon D7200YstereomonoYYmini2.0YY-
8.

Nikon D750YstereomonoYYmini2.0Y--
9.

Nikon D7100YstereomonoYYmini2.0---
10.

Nikon D610YmonomonoYYmini2.0---
11.

Nikon D600YmonomonoYYmini2.0---
12.

Nikon D300SYstereomonoY-mini2.0---
13.

Olympus E-PM2Ystereomono--mini2.0---
14.

Olympus E-PL2Ystereo---mini2.0---
15.

Olympus E-PL3Ystereo---mini2.0---
16.

Olympus E-PL1Ystereo---mini2.0---
17.

Panasonic G2Ystereomono--mini2.0---

It is notable that the D500 has a microphone port, which is missing on the E-PM1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Nikon D500 (unlike the E-PM1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The D500 is a recent model that features in the current product line-up of Nikon. In contrast, the E-PM1 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-PM1 was succeeded by the Olympus E-PM2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Nikon D500 and the Olympus E-PM1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Reasons to prefer the Nikon D500:

  • More detail: Offers more megapixels (20.7 vs 12.2MP) with a 33% higher linear resolution.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (31 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (3 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (3.7 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (1.4 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2359k vs 460k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (10 vs 5.5 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Can take more shots (1240 versus 330) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
  • More modern: Reflects 4 years and 6 months of technical progress since the E-PM1 launch.

ilogo

Arguments in favor of the Olympus PEN E-PM1:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • More compact: Is smaller (110x64mm vs 147x115mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 595g or 69 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • More affordable: Was introduced into a lower priced category (75 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in June 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the D500 is the clear winner of the match-up (28 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D500 28:07 E-PM1

How about other alternatives? Do the specifications of the Nikon D500 and the Olympus E-PM1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the D500 or the E-PM1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon D5005/5+ +91/1004.5/55/5 Jan 2016 1,999 i
2.

Olympus E-PM1..86/10071/1004.5/54.5/5 Jun 2011 499 i
3.

Nikon D75004.5/5+ +86/1005/54.5/5 Apr 2017 1,299 i
4.

Nikon D56004/5..79/1004.5/54/5 Nov 2016 699 i
5.

Nikon D34004/5+76/1004/54.5/5 Aug 2016 499 i
6.

Nikon D55005/5+79/1004.5/54.5/5 Jan 2015 899 i
7.

Nikon D72004/5+ +84/1004.5/54.5/5 Mar 2015 1,199 i
8.

Nikon D7505/5+ +90/1004.5/54.5/5 Sep 2014 2,299 i
9.

Nikon D71005/5+ +85/1004.5/54.5/5 Feb 2013 1,199 i
10.

Nikon D6104/5+ +87/1004.5/54.5/5 Oct 2013 1,999 i
11.

Nikon D6004/5+ +87/1005/54.5/5 Sep 2012 2,099 i
12.

Nikon D300S5/5+ +82/1004/54.5/5 Jul 2009 1,799 i
13.

Olympus E-PM23/5..77/1005/54.5/5 Sep 2012 499 i
14.

Olympus E-PL23/583/10071/1004.5/54.5/5 Jan 2011 599 i
15.

Olympus E-PL33/5+ +72/1004.5/54/5 Jun 2011 599 i
16.

Olympus E-PL1..86/10069/1004/54.5/5 Feb 2010 599 i
17.

Panasonic G2....72/1004/54.5/5 Mar 2010 599 i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Nikon D500:
Check Amazon price
Olympus E-PM1:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader

    Specifications: Nikon D500 vs Olympus E-PM1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon D500 Olympus E-PM1
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Nikon F mount lenses Micro Four Thirds lenses
    Launch Date January 2016 June 2011
    Launch Price USD 1,999 USD 499
    Sensor Specs Nikon D500 Olympus E-PM1
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 23.5 x 15.7 mm 17.3 x 13.0 mm
    Sensor Area 368.95 mm2 224.9 mm2
    Sensor Diagonal 28.3 mm 21.6 mm
    Crop Factor 1.5x 2.0x
    Sensor Resolution 20.7 Megapixels 12.2 Megapixels
    Image Resolution 5568 x 3712 pixels 4032 x 3024 pixels
    Pixel Pitch 4.22 μm 4.29 μm
    Pixel Density 5.60 MP/cm2 5.42 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 4K/30p Video 1080/60i Video
    ISO Setting 100 - 51,200 ISO 100 - 12,800 ISO
    ISO Boost 50 - 1,640,000 ISO no Enhancement
    Image Processor EXPEED 5 TruePic VI
    DXO Sensor Quality (score) 83 52
    DXO Color Depth (bits) 24.0 21.0
    DXO Dynamic Range (EV) 14.0 10.3
    DXO Low Light (ISO) 1324 499
    Screen Specs Nikon D500 Olympus E-PM1
    Viewfinder Type Optical viewfinder Viewfinder optional
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.67x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 3.0inch
    LCD Resolution 2359k dots 460k dots
    LCD Attachment Tilting screen Fixed screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Nikon D500 Olympus E-PM1
    Focus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 10 shutter flaps/s 5.5 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC or XQD cards SDXC cards
    Second Storage Option Dual card slots Single card slot
    UHS card support UHS-II no
    Connectivity Specs Nikon D500 Olympus E-PM1
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in no Wifi
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Nikon D500 Olympus E-PM1
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type EN-EL15 BLS-5
    Battery Life (CIPA)1240 shots per charge330 shots per charge
    Body Dimensions 147 x 115 x 81 mm
    (5.8 x 4.5 x 3.2 in)
    110 x 64 x 34 mm
    (4.3 x 2.5 x 1.3 in)
    Camera Weight 860 g (30.3 oz) 265 g (9.3 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon D500 vs Olympus E-PM1

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.


    If you like it, make sure you share it:

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback. I appreciate it.
