Nikon D5 vs Sony A77 II

The Nikon D5 and the Sony Alpha SLT-A77 II are two digital cameras that were announced, respectively, in January 2016 and May 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (D5) and an APS-C (A77 II) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Sony provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D5
versus
Sony A77 II
Nikon D5   Sony A77 II
Digital single lens reflex Digital single lens reflex
Nikon F mount lenses Sony A mount lenses
20.7 MP – Full Frame sensor 24 MP – APS-C sensor
4K/30p Video 1080/60p Video
ISO 100-102,400 (50 - 3,280,000) ISO 100-25,600 (50 - 51,200)
Optical viewfinder Electronic viewfinder (2359k dots)
3.2" LCD – 2359k dots 3.0" LCD – 1229k dots
Fixed touchscreen Fully flexible screen (no touchscreen)
14 shutter flaps per second 12 shutter flaps per second
Lens stabilization onlyIn-body stabilization
Weathersealed bodyWeathersealed body
3780 shots per battery charge480 shots per battery charge
160 x 159 x 92 mm, 1415 g 143 x 104 x 81 mm, 647 g
logo
Check D5 offers at
ebay.com
logo
Check A77 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5 and the Sony Alpha SLT-A77 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Nikon D5 and the Sony A77 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

Size Nikon D5 vs Sony A77 II
Compare D5 versus A77 II top
Comparison D5 or A77 II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A77 II is considerably smaller (42 percent) than the Nikon D5. Moreover, the A77 II is substantially lighter (54 percent) than the D5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the D5 gets 3780 shots out of its Nikon EN-EL18a battery, while the A77 II can take 480 images on a single charge of its Sony NP-FM500H power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the A77 II, Sony provides the VG-C77AM vertical grip as an optional accessory (see here on ebay).

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon D5 160 mm 159 mm 92 mm 1415 g 3780 Y Jan 2016 6,499ebay.com
2.

Sony A77 II 143 mm 104 mm 81 mm 647 g 480 Y May 2014 1,199ebay.com
3.

Canon 1D X Mark II 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999ebay.com
4.

Nikon D6 160 mm 163 mm 92 mm 1270 g 3580 Y Feb 2020 6,499 amazon.com
5.

Nikon D850 146 mm 124 mm 79 mm 1005 g 1840 Y Jul 2017 3,299 amazon.com
6.

Nikon D4S 160 mm 157 mm 91 mm 1350 g 3020 Y Feb 2014 6,499ebay.com
7.

Nikon D750 141 mm 113 mm 78 mm 750 g 1230 Y Sep 2014 2,299ebay.com
8.

Nikon D7100 136 mm 107 mm 76 mm 765 g 950 Y Feb 2013 1,199ebay.com
9.

Nikon D610 141 mm 113 mm 82 mm 850 g 900 Y Oct 2013 1,999ebay.com
10.

Nikon D4 160 mm 157 mm 91 mm 1340 g 2600 Y Jan 2012 5,999ebay.com
11.

Nikon D600 141 mm 113 mm 82 mm 850 g 900 Y Sep 2012 2,099ebay.com
12.

Nikon D3S 160 mm 157 mm 88 mm 1240 g 4200 Y Oct 2009 5,199ebay.com
13.

Nikon D3X 160 mm 157 mm 88 mm 1260 g 4400 Y Dec 2008 7,999ebay.com
14.

Sony A6600 120 mm 67 mm 69 mm 503 g 810 Y Aug 2019 1,399 amazon.com
15.

Sony A68 143 mm 104 mm 81 mm 610 g 540 n Nov 2015 699ebay.com
16.

Sony A58 129 mm 95 mm 78 mm 492 g 690 n Feb 2013 599ebay.com
17.

Sony A77 143 mm 104 mm 81 mm 732 g 470 Y Aug 2011 1,399ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The A77 II was launched at a markedly lower price (by 82 percent) than the D5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Nikon D5 features a full frame sensor and the Sony A77 II an APS-C sensor. The sensor area in the A77 II is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

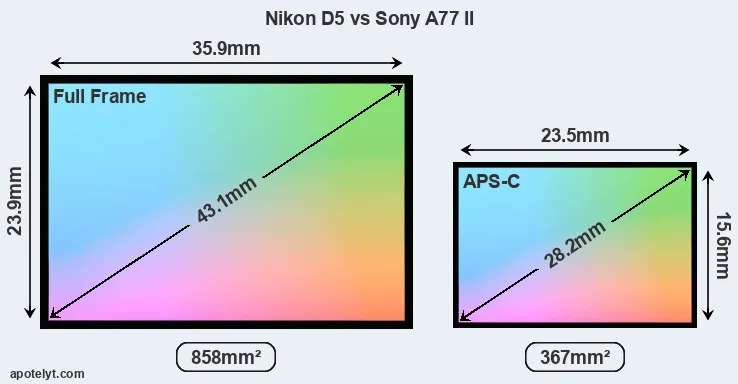

Nikon D5 and Sony A77 II sensor measures

Despite having a smaller sensor, the A77 II offers a higher resolution of 24 megapixels, compared with 20.7 MP of the D5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 6.44μm for the D5). Moreover, it should be noted that the D5 is a somewhat more recent model (by 1 year and 8 months) than the A77 II, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Sony A77 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A77 II for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D5 are 27.9 x 18.6 inches or 71 x 47.1 cm for good quality, 22.4 x 14.8 inches or 56.8 x 37.7 cm for very good quality, and 18.6 x 12.4 inches or 47.3 x 31.4 cm for excellent quality prints.

The Nikon D5 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-3280000. The corresponding ISO settings for the Sony Alpha SLT-A77 II are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

D5 versus A77 II MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the D5 has a notably higher overall DXO score than the A77 II (overall score 6 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.7 bits higher color depth, 1.1 EV of lower dynamic range, and 1.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Nikon D5 Full Frame 20.7 5588 37124K/30p25.112.3234388
2.

Sony A77 II APS-C 24.0 6000 40001080/60p24.413.4101382
3.

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788
4.

Nikon D6 Full Frame 20.7 5568 37124K/30p25.314.3288695
5.

Nikon D850 Full Frame 45.4 8256 55044K/30p26.414.82660100
6.

Nikon D4S Full Frame 16.2 4928 32801080/60p24.413.3307489
7.

Nikon D750 Full Frame 24.2 6016 40161080/60p24.814.5295693
8.

Nikon D7100 APS-C 24.0 6000 40001080/60p24.213.7125683
9.

Nikon D610 Full Frame 24.2 6016 40161080/30p25.114.4292594
10.

Nikon D4 Full Frame 16.2 4928 32801080/30p24.713.1296589
11.

Nikon D600 Full Frame 24.2 6016 40161080/30p25.114.2298094
12.

Nikon D3S Full Frame 12.1 4256 2832720/24p23.512.0325382
13.

Nikon D3X Full Frame 24.4 6048 4032none24.713.7199288
14.

Sony A6600 APS-C 24.0 6000 40004K/30p23.813.4149782
15.

Sony A68 APS-C 24.0 6000 40001080/60i24.113.570179
16.

Sony A58 APS-C 19.8 5456 36321080/60i23.312.575374
17.

Sony A77 APS-C 24.0 6000 40001080/60p24.013.280178
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D5 provides a higher video resolution than the A77 II. It can shoot video footage at 4K/30p, while the Sony is limited to 1080/60p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the A77 II has an electronic viewfinder (2359k dots), while the D5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the A77 II has a higher magnification than the one of the D5 (0.73x vs 0.72x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Nikon D5 and Sony A77 II in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Nikon D5optical Y3.2 / 2359 fixed Y 1/8000s 14.0/s n n
2.

Sony A77 II2359 Y3.0 / 1229 full-flex n 1/8000s 12.0/s Y Y
3.

Canon 1D X Mark IIoptical Y3.2 / 1620 fixed Y 1/8000s 16.0/s n n
4.

Nikon D6optical Y3.2 / 2359 fixed Y 1/8000s 14.0/s n n
5.

Nikon D850optical Y3.2 / 2359 tilting Y 1/8000s 9.0/s n n
6.

Nikon D4Soptical Y3.2 / 921 fixed n 1/8000s 11.0/s n n
7.

Nikon D750optical Y3.2 / 1229 tilting n 1/4000s 6.0/s Y n
8.

Nikon D7100optical Y3.2 / 1229 fixed n 1/8000s 6.0/s Y n
9.

Nikon D610optical Y3.2 / 921 fixed n 1/4000s 6.0/s Y n
10.

Nikon D4optical Y3.2 / 921 fixed n 1/8000s 11.0/s n n
11.

Nikon D600optical Y3.0 / 921 fixed n 1/4000s 5.5/s Y n
12.

Nikon D3Soptical Y3.0 / 921 fixed n 1/8000s 11.0/s n n
13.

Nikon D3Xoptical Y3.0 / 922 fixed n 1/8000s 5.0/s n n
14.

Sony A66002359 n3.0 / 922 tilting Y 1/4000s 11.0/s n Y
15.

Sony A681440 Y2.7 / 460 tilting n 1/4000s 8.0/s Y Y
16.

Sony A581440 n2.7 / 460 tilting n 1/4000s 5.0/s Y Y
17.

Sony A772359 Y3.0 / 921 full-flex n 1/8000s 12.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D5 has a touchscreen, while the A77 II has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The A77 II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D5 does not have a selfie-screen.

The Nikon D5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D5 writes its imaging data to Compact Flash or XQD cards, while the A77 II uses SDXC or Memory Stick PRO Duo cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the A77 II only has one slot.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5 and Sony Alpha SLT-A77 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Nikon D5Ystereo / monoYYmini3.0---
2.

Sony A77 IIYstereo / monoY-mini2.0YY-
3.

Canon 1D X Mark IIYmono / monoYYmini3.0---
4.

Nikon D6Ystereo / monoYYmini3.1Y-Y
5.

Nikon D850Ystereo / monoYYmini3.0YYY
6.

Nikon D4SYmono / monoYYmini2.0---
7.

Nikon D750Ystereo / monoYYmini2.0Y--
8.

Nikon D7100Ystereo / monoYYmini2.0---
9.

Nikon D610Ymono / monoYYmini2.0---
10.

Nikon D4Ymono / monoYYmicro2.0---
11.

Nikon D600Ymono / monoYYmini2.0---
12.

Nikon D3SYstereo / ---mini2.0---
13.

Nikon D3XY- / ---mini2.0---
14.

Sony A6600Ystereo / monoYYYES2.0YYY
15.

Sony A68Ystereo / monoY-micro2.0---
16.

Sony A58Ystereo / monoY-mini2.0---
17.

Sony A77Ystereo / monoY-mini2.0---
padding

It is notable that the D5 has a headphone jack, which is not present on the A77 II This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the D5 and the A77 II have been discontinued, but can regularly be found used on ebay. The D5 was replaced by the Nikon D6, while the A77 II does not have a direct successor. Further information on the features and operation of the D5 and A77 II can be found, respectively, in the Nikon D5 Manual (free pdf) or the online Sony A77 II Manual.

ad

Review summary

So what conclusions can be drawn? Is the Nikon D5 better than the Sony A77 II or vice versa? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Nikon D5:

  • Better image quality: Scores markedly higher (6 points) in the DXO overall assessment.
  • Better low-light sensitivity: Requires less light for good images (1.2 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2359k vs 1229k dots).
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster burst: Shoots at higher frequency (14 vs 12 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (3780 versus 480) on a single battery charge.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More modern: Is somewhat more recent (announced 1 year and 8 months after the A77 II).

ilogo

Reasons to prefer the Sony Alpha SLT-A77 II:

  • More detail: Has more megapixels (24 vs 20.7MP), which boosts linear resolution by 7%.
  • More dynamic range: Captures a broader range of light and dark details (1.1 EV of extra DR).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.72x).
  • More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • More compact: Is smaller (143x104mm vs 160x159mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 768g or 54 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced into a lower priced category (82 percent cheaper at launch).
  • More heavily discounted: Has been on the market for longer (launched in May 2014).

If the number of relative strengths (bullet points above) is taken as a guide, the D5 comes out slightly ahead of the A77 II (15 : 14 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D5 15:14 A77 II

How about other alternatives? Do the specifications of the Nikon D5 and the Sony A77 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the D5 or the A77 II perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon D5....4/589/1004.5/55/5 Jan 2016 6,499ebay.com
2.

Sony A77 II4/5....80/1004.5/55/5 May 2014 1,199ebay.com
3.

Canon 1D X Mark II....4.5/589/1004.5/54.5/5 Feb 2016 5,999ebay.com
4.

Nikon D6....4/5..4.5/54.5/5 Feb 2020 6,499 amazon.com
5.

Nikon D8504.5/5+ +5/589/1004.5/55/5 Jul 2017 3,299 amazon.com
6.

Nikon D4S5/5......4.5/54.5/5 Feb 2014 6,499ebay.com
7.

Nikon D7505/5+ +4/590/1004.5/54.5/5 Sep 2014 2,299ebay.com
8.

Nikon D71005/5+ +..85/1004.5/54.5/5 Feb 2013 1,199ebay.com
9.

Nikon D6104/5+ +..87/1004.5/54.5/5 Oct 2013 1,999ebay.com
10.

Nikon D4........4.5/54.5/5 Jan 2012 5,999ebay.com
11.

Nikon D6004/5+ +..87/1005/54.5/5 Sep 2012 2,099ebay.com
12.

Nikon D3S5/5....89/1004.5/55/5 Oct 2009 5,199ebay.com
13.

Nikon D3X......86/1004/55/5 Dec 2008 7,999ebay.com
14.

Sony A66004/5+4/583/1004.5/54/5 Aug 2019 1,399 amazon.com
15.

Sony A683/5......4/54/5 Nov 2015 699ebay.com
16.

Sony A583/5......4.5/54.5/5 Feb 2013 599ebay.com
17.

Sony A775/591/100..81/100..5/5 Aug 2011 1,399ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check D5 offers at
ebay.com
logo
Check A77 II offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Nikon D5 vs Sony A77 II

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon D5 Sony A77 II
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Nikon F mount lenses Sony A mount lenses
    Launch Date January 2016 May 2014
    Launch Price USD 6,499 USD 1,199
    Sensor Specs Nikon D5 Sony A77 II
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor APS-C Sensor
    Sensor Size 35.9 x 23.9 mm 23.5 x 15.6 mm
    Sensor Area 858.01 mm2 366.6 mm2
    Sensor Diagonal 43.1 mm 28.2 mm
    Crop Factor 1.0x 1.5x
    Sensor Resolution 20.7 Megapixels 24 Megapixels
    Image Resolution 5588 x 3712 pixels 6000 x 4000 pixels
    Pixel Pitch 6.44 μm 3.91 μm
    Pixel Density 2.42 MP/cm2 6.55 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 4K/30p Video 1080/60p Video
    ISO Setting 100 - 102,400 ISO 100 - 25,600 ISO
    ISO Boost 50 - 3,280,000 ISO 50 - 51,200 ISO
    Image Processor EXPEED 5 BIONZ X
    DXO Sensor Quality (score) 88 82
    DXO Color Depth (bits) 25.1 24.4
    DXO Dynamic Range (EV) 12.3 13.4
    DXO Low Light (ISO) 2343 1013
    Screen Specs Nikon D5 Sony A77 II
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.72x 0.73x
    Viewfinder Resolution 2359k dots
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 3.0inch
    LCD Resolution 2359k dots 1229k dots
    LCD Attachment Fixed screen Fully flexible screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Nikon D5 Sony A77 II
    Focus System Phase-detect AF Phase-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 14 shutter flaps/s 12 shutter flaps/s
    Shutter Life Expectancy400 000 actuations150 000 actuations
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash no On-Board Flash Built-in Flash
    Storage Medium CF or XQD cards MS or SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    Connectivity Specs Nikon D5 Sony A77 II
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port no Headphone port
    Wifi Support no Wifi Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Body Specs Nikon D5 Sony A77 II
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Nikon EN-EL18a Sony NP-FM500H
    Battery Life (CIPA)3780 shots per charge480 shots per charge
    Body Dimensions 160 x 159 x 92 mm
    (6.3 x 6.3 x 3.6 in)
    143 x 104 x 81 mm
    (5.6 x 4.1 x 3.2 in)
    Camera Weight 1415 g (49.9 oz) 647 g (22.8 oz)
    logo
    Check D5 offers at
    ebay.com
    logo
    Check A77 II offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon D5 vs Sony A77 II
