Nikon D5 vs Olympus E-PL7

The Nikon D5 and the Olympus PEN E-PL7 are two digital cameras that were announced, respectively, in January 2016 and August 2014. The D5 is a DSLR, while the E-PL7 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (D5) and a Four Thirds (E-PL7) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D5
versus
Olympus E-PL7
Nikon D5   Olympus E-PL7
Digital single lens reflex Mirrorless system camera
Nikon F mount lenses Micro Four Thirds lenses
20.7 MP – Full Frame sensor 15.9 MP – Four Thirds sensor
4K/30p Video 1080/30p Video
ISO 100-102,400 (50 - 3,280,000) ISO 200-25,600
Optical viewfinder Viewfinder optional
3.2" LCD – 2359k dots 3.2" LCD – 1037k dots
Fixed touchscreen Tilting touchscreen
14 shutter flaps per second 8 shutter flaps per second
Lens stabilization onlyIn-body stabilization
Weathersealed bodynot weather sealed
3780 shots per battery charge350 shots per battery charge
160 x 159 x 92 mm, 1415 g 115 x 67 x 38 mm, 357 g
Nikon D5:
Check Ebay offers
Olympus E-PL7:
Check Ebay offers

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5 and the Olympus PEN E-PL7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Nikon D5 and the Olympus E-PL7 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-PL7 can be obtained in two different colors (black, silver), while the D5 is only available in black.

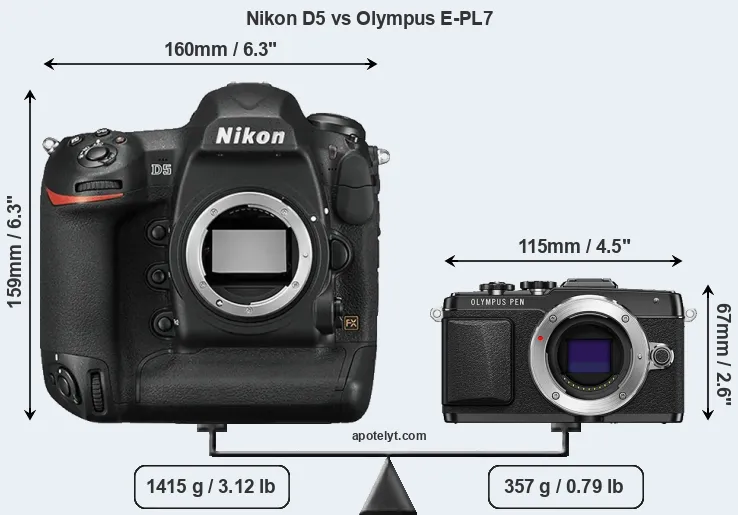

Size Nikon D5 vs Olympus E-PL7

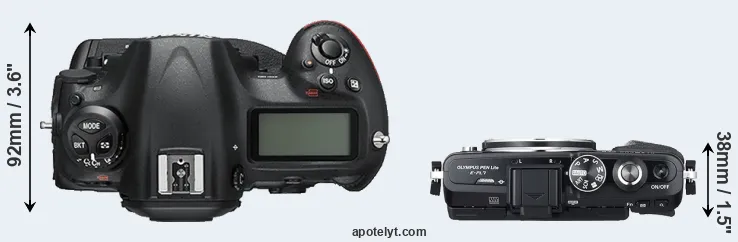

Compare D5 versus E-PL7 top

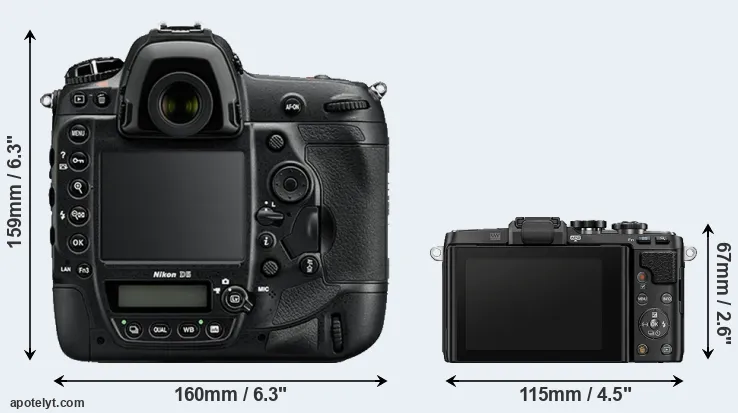

Comparison D5 or E-PL7 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL7 is considerably smaller (70 percent) than the Nikon D5. Moreover, the E-PL7 is substantially lighter (75 percent) than the D5. It is worth mentioning in this context that the D5 is splash and dust resistant, while the E-PL7 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D5) and the Micro Four Thirds Lens Catalog (E-PL7). Mirrorless cameras, such as the E-PL7, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D5 gets 3780 shots out of its EN-EL18a battery, while the E-PL7 can take 350 images on a single charge of its BLS-50 power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon D5 160 mm 159 mm 92 mm 1415 g 3780 Y Jan 2016 6,499i
2.

Olympus E-PL7 115 mm 67 mm 38 mm 357 g 350 n Aug 2014 599i
3.

Canon 1D X Mark II 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999i
4.

Nikon D6 160 mm 163 mm 92 mm 1270 g 3580 Y Feb 2020 6,499 i
5.

Nikon D850 146 mm 124 mm 79 mm 1005 g 1840 Y Jul 2017 3,299 i
6.

Nikon D4S 160 mm 157 mm 91 mm 1350 g 3020 Y Feb 2014 6,499i
7.

Nikon D750 141 mm 113 mm 78 mm 750 g 1230 Y Sep 2014 2,299i
8.

Nikon D610 141 mm 113 mm 82 mm 850 g 900 Y Oct 2013 1,999 i
9.

Nikon D4 160 mm 157 mm 91 mm 1340 g 2600 Y Jan 2012 5,999i
10.

Nikon D600 141 mm 113 mm 82 mm 850 g 900 Y Sep 2012 2,099i
11.

Nikon D3S 160 mm 157 mm 88 mm 1240 g 4200 Y Oct 2009 5,199i
12.

Nikon D3X 160 mm 157 mm 88 mm 1260 g 4400 Y Dec 2008 7,999i
13.

Olympus E-PL8 115 mm 67 mm 38 mm 357 g 350 n Sep 2016 549i
14.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 649i
15.

Olympus E-M10 119 mm 82 mm 46 mm 396 g 320 n Jan 2014 699i
16.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999i
17.

Olympus E-PL6 111 mm 64 mm 38 mm 325 g 360 n May 2013 599i
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PL7 was launched at a markedly lower price (by 91 percent) than the D5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Nikon D5 features a full frame sensor and the Olympus E-PL7 a Four Thirds sensor. The sensor area in the E-PL7 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the D5 has a native 3:2 aspect ratio, while the one in the E-PL7 offers a 4:3 aspect.

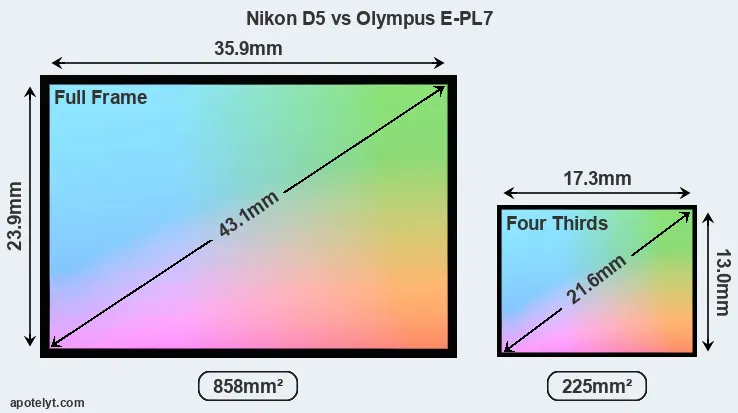

Nikon D5 and Olympus E-PL7 sensor measures

With 20.7MP, the D5 offers a higher resolution than the E-PL7 (15.9MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 3.76μm for the E-PL7) due to its larger sensor. Moreover, the D5 is a somewhat more recent model (by 1 year and 4 months) than the E-PL7, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Nikon D5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5 for good quality output (200 dots per inch) amounts to 27.9 x 18.6 inches or 71 x 47.1 cm, for very good quality (250 dpi) 22.4 x 14.8 inches or 56.8 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.3 x 31.4 cm. The corresponding values for the Olympus E-PL7 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Nikon D5 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-3280000. The corresponding ISO settings for the Olympus PEN E-PL7 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

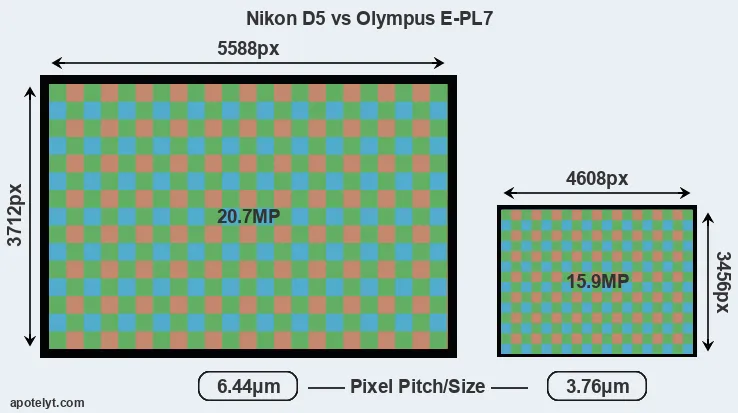

D5 versus E-PL7 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the D5 provides substantially higher image quality than the E-PL7, with an overall score that is 16 points higher. This advantage is based on 2.4 bits higher color depth, 0.1 EV of lower dynamic range, and 1.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Nikon D5 Full Frame 20.7 5588 37124K/30p25.112.3234388
2.

Olympus E-PL7 Four Thirds 15.9 4608 34561080/30p22.712.487372
3.

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788
4.

Nikon D6 Full Frame 20.7 5568 37124K/30p25.314.3288695
5.

Nikon D850 Full Frame 45.4 8256 55044K/30p26.414.82660100
6.

Nikon D4S Full Frame 16.2 4928 32801080/60p24.413.3307489
7.

Nikon D750 Full Frame 24.2 6016 40161080/60p24.814.5295693
8.

Nikon D610 Full Frame 24.2 6016 40161080/30p25.114.4292594
9.

Nikon D4 Full Frame 16.2 4928 32801080/30p24.713.1296589
10.

Nikon D600 Full Frame 24.2 6016 40161080/30p25.114.2298094
11.

Nikon D3S Full Frame 12.1 4256 2832720/24p23.512.0325382
12.

Nikon D3X Full Frame 24.4 6048 4032none24.713.7199288
13.

Olympus E-PL8 Four Thirds 15.9 4608 34561080/30p23.012.6103073
14.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
15.

Olympus E-M10 Four Thirds 15.9 4608 34561080/30p22.812.388472
16.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
17.

Olympus E-PL6 Four Thirds 15.9 4608 34561080/30p22.512.071768
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D5 provides a higher video resolution than the E-PL7. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL7 relies on live view and the rear LCD for framing. That said, the E-PL7 can be equipped with an optional viewfinder – the VF-4. The following table reports on some other key feature differences and similarities of the Nikon D5, the Olympus E-PL7, and comparable cameras.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Nikon D5optical Y3.2 / 2359 fixed Y 1/8000s 14.0/s n n
2.

Olympus E-PL7optional n3.0 / 1037 tilting Y 1/4000s 8.0/s n Y
3.

Canon 1D X Mark IIoptical Y3.2 / 1620 fixed Y 1/8000s 16.0/s n n
4.

Nikon D6optical Y3.2 / 2359 fixed Y 1/8000s 14.0/s n n
5.

Nikon D850optical Y3.2 / 2359 tilting Y 1/8000s 9.0/s n n
6.

Nikon D4Soptical Y3.2 / 921 fixed n 1/8000s 11.0/s n n
7.

Nikon D750optical Y3.2 / 1229 tilting n 1/4000s 6.0/s Y n
8.

Nikon D610optical Y3.2 / 921 fixed n 1/4000s 6.0/s Y n
9.

Nikon D4optical Y3.2 / 921 fixed n 1/8000s 11.0/s n n
10.

Nikon D600optical Y3.0 / 921 fixed n 1/4000s 5.5/s Y n
11.

Nikon D3Soptical Y3.0 / 921 fixed n 1/8000s 11.0/s n n
12.

Nikon D3Xoptical Y3.0 / 922 fixed n 1/8000s 5.0/s n n
13.

Olympus E-PL8optional n3.0 / 1037 tilting Y 1/4000s 8.0/s n Y
14.

Olympus E-M10 II2360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
15.

Olympus E-M101440 n3.0 / 1037 tilting Y 1/4000s 8.0/s Y Y
16.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
17.

Olympus E-PL6optional n3.0 / 460 tilting Y 1/4000s 8.0/s n Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D5, but is missing on the E-PL7 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The E-PL7 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D5 does not have a selfie-screen.

The Nikon D5 and the Olympus E-PL7 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D5 writes its imaging data to Compact Flash or XQD cards, while the E-PL7 uses SDXC cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PL7 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5 and Olympus PEN E-PL7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Nikon D5Ystereo / monoYYmini3.0---
2.

Olympus E-PL7Ystereo / mono--micro2.0Y--
3.

Canon 1D X Mark IIYmono / monoYYmini3.0---
4.

Nikon D6Ystereo / monoYYmini3.1Y-Y
5.

Nikon D850Ystereo / monoYYmini3.0YYY
6.

Nikon D4SYmono / monoYYmini2.0---
7.

Nikon D750Ystereo / monoYYmini2.0Y--
8.

Nikon D610Ymono / monoYYmini2.0---
9.

Nikon D4Ymono / monoYYmicro2.0---
10.

Nikon D600Ymono / monoYYmini2.0---
11.

Nikon D3SYstereo / ---mini2.0---
12.

Nikon D3XY- / ---mini2.0---
13.

Olympus E-PL8Ystereo / mono--micro2.0Y--
14.

Olympus E-M10 IIYstereo / mono--micro2.0Y--
15.

Olympus E-M10Ystereo / mono--micro2.0Y--
16.

Olympus E-P5Ystereo / mono--micro2.0Y--
17.

Olympus E-PL6Ystereo / mono--mini2.0---

It is notable that the D5 has a microphone port, which is missing on the E-PL7. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Nikon D5 (unlike the E-PL7) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D5 and the E-PL7 have been discontinued, but can regularly be found used on eBay. The E-PL7 was replaced by the Olympus E-PL8, while the D5 was followed by the Nikon D6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Nikon D5 or the Olympus E-PL7 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Arguments in favor of the Nikon D5:

  • More detail: Offers more megapixels (20.7 vs 15.9MP) with a 16% higher linear resolution.
  • Better image quality: Scores substantially higher (16 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (2.4 bits more color depth).
  • Better low-light sensitivity: Requires less light for good images (1.4 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2359k vs 1037k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (14 vs 8 flaps/sec) to capture the decisive moment.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (3780 versus 350) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More modern: Is somewhat more recent (announced 1 year and 4 months after the E-PL7).

ilogo

Reasons to prefer the Olympus PEN E-PL7:

  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • More compact: Is smaller (115x67mm vs 160x159mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 1058g or 75 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More affordable: Was introduced into a lower priced category (91 percent cheaper at launch).
  • More heavily discounted: Has been on the market for longer (launched in August 2014).

If the number of relative strengths (bullet points above) is taken as a guide, the D5 is the clear winner of the match-up (20 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D5 20:09 E-PL7

How about other alternatives? Do the specifications of the Nikon D5 and the Olympus E-PL7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D5 and the E-PL7 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon D5....4/589/1004.5/55/5 Jan 2016 6,499i
2.

Olympus E-PL74/5+....5/54/5 Aug 2014 599i
3.

Canon 1D X Mark II....4.5/589/1004.5/54.5/5 Feb 2016 5,999i
4.

Nikon D6....4/5..4.5/54.5/5 Feb 2020 6,499 i
5.

Nikon D8504.5/5+ +5/589/1004.5/55/5 Jul 2017 3,299 i
6.

Nikon D4S5/5......4.5/54.5/5 Feb 2014 6,499i
7.

Nikon D7505/5+ +4/590/1004.5/54.5/5 Sep 2014 2,299i
8.

Nikon D6104/5+ +..87/1004.5/54.5/5 Oct 2013 1,999 i
9.

Nikon D4........4.5/54.5/5 Jan 2012 5,999i
10.

Nikon D6004/5+ +..87/1005/54.5/5 Sep 2012 2,099i
11.

Nikon D3S5/5....89/1004.5/55/5 Oct 2009 5,199i
12.

Nikon D3X......86/1004/55/5 Dec 2008 7,999i
13.

Olympus E-PL8........4.5/54/5 Sep 2016 549i
14.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 649i
15.

Olympus E-M104/5....80/1005/55/5 Jan 2014 699i
16.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999i
17.

Olympus E-PL6............ May 2013 599i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Nikon D5:
Check Ebay offers
Olympus E-PL7:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader

    Specifications: Nikon D5 vs Olympus E-PL7

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon D5 Olympus E-PL7
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Nikon F mount lenses Micro Four Thirds lenses
    Launch Date January 2016 August 2014
    Launch Price USD 6,499 USD 599
    Sensor Specs Nikon D5 Olympus E-PL7
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor Four Thirds Sensor
    Sensor Size 35.9 x 23.9 mm 17.3 x 13.0 mm
    Sensor Area 858.01 mm2 224.9 mm2
    Sensor Diagonal 43.1 mm 21.6 mm
    Crop Factor 1.0x 2.0x
    Sensor Resolution 20.7 Megapixels 15.9 Megapixels
    Image Resolution 5588 x 3712 pixels 4608 x 3456 pixels
    Pixel Pitch 6.44 μm 3.76 μm
    Pixel Density 2.42 MP/cm2 7.08 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 4K/30p Video 1080/30p Video
    ISO Setting 100 - 102,400 ISO 200 - 25,600 ISO
    ISO Boost 50 - 3,280,000 ISO 100 - 25,600 ISO
    Image Processor EXPEED 5 TruePic VII
    DXO Sensor Quality (score) 88 72
    DXO Color Depth (bits) 25.1 22.7
    DXO Dynamic Range (EV) 12.3 12.4
    DXO Low Light (ISO) 2343 873
    Screen Specs Nikon D5 Olympus E-PL7
    Viewfinder Type Optical viewfinder Viewfinder optional
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.72x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 3.0inch
    LCD Resolution 2359k dots 1037k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Nikon D5 Olympus E-PL7
    Focus System Phase-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/4000s
    Continuous Shooting 14 shutter flaps/s 8 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium CF or XQD cards SDXC cards
    Second Storage Option Dual card slots Single card slot
    Connectivity Specs Nikon D5 Olympus E-PL7
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support no Wifi Wifi built-in
    Body Specs Nikon D5 Olympus E-PL7
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type EN-EL18a BLS-50
    Battery Life (CIPA)3780 shots per charge350 shots per charge
    Body Dimensions 160 x 159 x 92 mm
    (6.3 x 6.3 x 3.6 in)
    115 x 67 x 38 mm
    (4.5 x 2.6 x 1.5 in)
    Camera Weight 1415 g (49.9 oz) 357 g (12.6 oz)
    Nikon D5:
    Check Ebay offers
    Olympus E-PL7:
    Check Ebay offers

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon D5 vs Olympus E-PL7
