Nikon D3S vs Olympus E-3

The Nikon D3S and the Olympus E-3 are two professional cameras that were revealed to the public, respectively, in October 2009 and October 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (D3S) and a Four Thirds (E-3) sensor. The Nikon has a resolution of 12.1 megapixels, whereas the Olympus provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D3S		Olympus E-3
Digital single lens reflex		Digital single lens reflex
Nikon F mount lenses		Four Thirds lenses
12.1 MP – Full Frame sensor		10 MP – Four Thirds sensor
720/24p Video		no Video
ISO 200-12,800 (100 - 102,400)		ISO 100-3,200
Optical viewfinder		Optical viewfinder
3.0" LCD – 921k dots		2.5" LCD – 230k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
11 shutter flaps per second		5 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		Weathersealed body
4200 shots per battery charge		750 shots per battery charge
160 x 157 x 88 mm, 1240 g		142 x 116 x 75 mm, 876 g

Check D3S offers at
ebay.com
Check E-3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3S and the Olympus E-3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

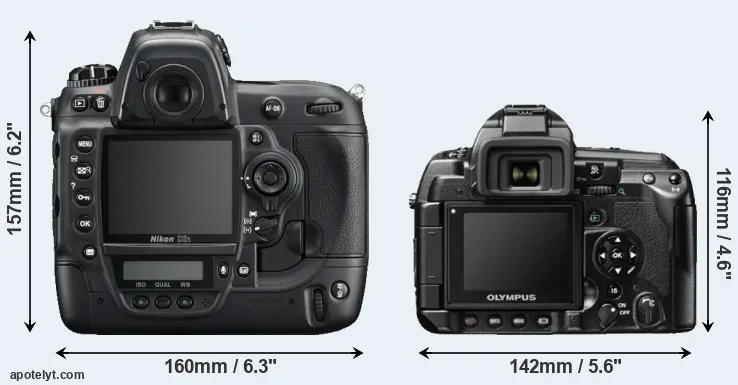

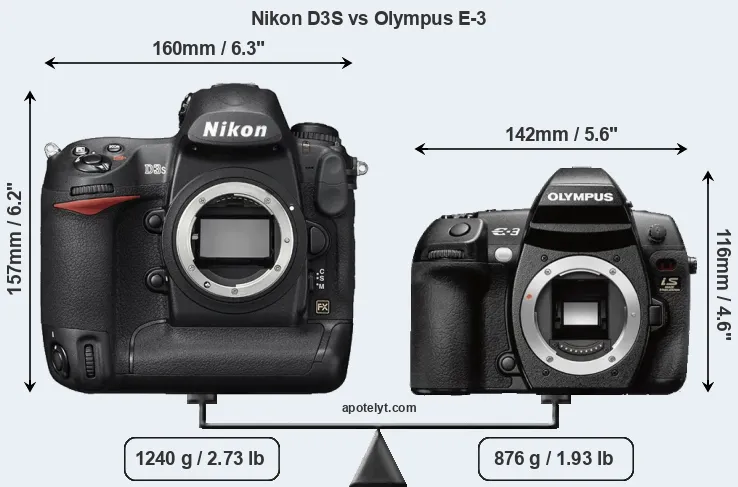

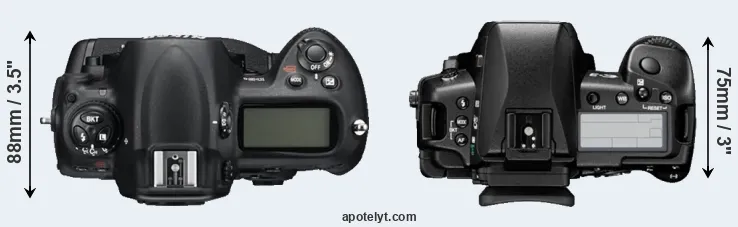

An illustration of the physical size and weight of the Nikon D3S and the Olympus E-3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-3 is considerably smaller (34 percent) than the Nikon D3S. Moreover, the E-3 is markedly lighter (29 percent) than the D3S. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3S) and the Four Thirds Lens Catalog (E-3).

Concerning battery life, the D3S gets 4200 shots out of its Nikon EN-EL4a battery, while the E-3 can take 750 images on a single charge of its Olympus BLM-1 power pack. As can be seen in the images above, the D3S has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the E-3, Olympus provides the HLD-4 vertical grip as an optional accessory (see here on ebay).

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	5,199	ebay.com
2.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	1,699	ebay.com
3.		Canon 1D Mark IV	156 mm	157 mm	80 mm	1230 g	1500	Y	Oct 2009	4,999	ebay.com
4.		Canon 1D Mark III	156 mm	157 mm	80 mm	1155 g	2200	Y	Feb 2007	4,499	ebay.com
5.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	6,499	ebay.com
6.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	6,499	ebay.com
7.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	5,999	ebay.com
8.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	1,799	ebay.com
9.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	7,999	ebay.com
10.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	2,999	ebay.com
11.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	4,999	ebay.com
12.		Nikon D2Xs	158 mm	150 mm	86 mm	1252 g	3800	Y	Jun 2006	4,699	ebay.com
13.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	1,699	ebay.com
14.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	1,299	ebay.com
15.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	699	ebay.com
16.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	799	ebay.com
17.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	1,699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-3 was launched at a markedly lower price (by 67 percent) than the D3S, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D3S features a full frame sensor and the Olympus E-3 a Four Thirds sensor. The sensor area in the E-3 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the D3S has a native 3:2 aspect ratio, while the one in the E-3 offers a 4:3 aspect.

With 12.1MP, the D3S offers a higher resolution than the E-3 (10MP), but the D3S nevertheless has larger individual pixels (pixel pitch of 8.43μm versus 4.74μm for the E-3) due to its larger sensor. Moreover, the D3S is a somewhat more recent model (by 1 year and 11 months) than the E-3, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Nikon D3S implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3S for good quality output (200 dots per inch) amounts to 21.3 x 14.2 inches or 54.1 x 36 cm, for very good quality (250 dpi) 17 x 11.3 inches or 43.2 x 28.8 cm, and for excellent quality (300 dpi) 14.2 x 9.4 inches or 36 x 24 cm. The corresponding values for the Olympus E-3 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Nikon D3S has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 100-102400. The corresponding ISO settings for the Olympus E-3 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the D3S provides substantially higher image quality than the E-3, with an overall score that is 26 points higher. This advantage is based on 1.9 bits higher color depth, 1.5 EV in additional dynamic range, and 2.5 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
2.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
3.		Canon 1D Mark IV	APS-H	16.0	4896	3264	1080/30p	22.8	12.0	1320	74
4.		Canon 1D Mark III	APS-H	10.1	3888	2592	none	22.7	11.7	1078	71
5.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
6.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
7.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
8.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
9.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
10.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
11.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
12.		Nikon D2Xs	APS-C	12.2	4288	2848	none	22.2	10.9	489	59
13.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
14.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
15.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
16.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
17.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D3S indeed provides movie recording capabilities, while the E-3 does not. The highest resolution format that the D3S can use is 720/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The D3S and the E-3 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D3S has a higher magnification than the one of the E-3 (0.70x vs 0.58x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Nikon D3S and Olympus E-3 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
2.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
3.		Canon 1D Mark IV	optical	Y	3.0 / 920	fixed	n	1/8000s	10.0/s	n	n
4.		Canon 1D Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	10.0/s	n	n
5.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
6.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
7.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
8.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
9.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
10.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
11.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
12.		Nikon D2Xs	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	n	n
13.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
14.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
15.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
16.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
17.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-3 and the D3S is in-body image stabilization (IBIS). The E-3 reduces the risk of handshake-induced blur with all attached lenses, while the D3S offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The Nikon D3S has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D3S writes its imaging data to Compact Flash cards, while the E-3 uses Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3S and Olympus E-3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 1D Mark IV	Y	stereo / -	Y	-	mini	2.0	-	-	-
4.		Canon 1D Mark III	Y	- / -	-	-	-	2.0	-	-	-
5.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
6.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
7.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
8.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
10.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-
11.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
12.		Nikon D2Xs	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the D3S and the E-3 have been discontinued, but can regularly be found used on ebay. The E-3 was replaced by the Olympus E-5, while the D3S was followed by the Nikon D4. Further information on the features and operation of the D3S and E-3 can be found, respectively, in the Nikon D3S Manual (free pdf) or the online Olympus E-3 Manual.

Review summary

So how do things add up? Is the Nikon D3S better than the Olympus E-3 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Nikon D3S:

• More detail: Offers more megapixels (12.1 vs 10MP) with a 12% higher linear resolution.
• Better image quality: Scores substantially higher (26 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.9 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.5 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (2.5 stops ISO advantage).
• Broader imaging potential: Can record not only still images but also 720/24p movies.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.58x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
• Faster burst: Shoots at higher frequency (11 vs 5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (4200 versus 750) on a single battery charge.
• More modern: Is somewhat more recent (announced 1 year and 11 months after the E-3).

Reasons to prefer the Olympus E-3:

• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (142x116mm vs 160x157mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 364g or 29 percent) and is thus easier to take along.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (67 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in October 2007).

If the count of individual advantages (bullet points above) is taken as a guide, the D3S is the clear winner of the match-up (14 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D3S and the Olympus E-3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D3S or the E-3. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	5,199	ebay.com
2.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	1,699	ebay.com
3.		Canon 1D Mark IV	5/5	..	..	89/100	..	..	Oct 2009	4,999	ebay.com
4.		Canon 1D Mark III	..	..	..	..	..	..	Feb 2007	4,499	ebay.com
5.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	6,499	ebay.com
6.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	6,499	ebay.com
7.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	5,999	ebay.com
8.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	1,799	ebay.com
9.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	7,999	ebay.com
10.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	2,999	ebay.com
11.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	4,999	ebay.com
12.		Nikon D2Xs	..	..	..	..	..	..	Jun 2006	4,699	ebay.com
13.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	1,699	ebay.com
14.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	1,299	ebay.com
15.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	699	ebay.com
16.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	799	ebay.com
17.		Olympus E-1	..	..	..	+	o	..	Jun 2003	1,699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check D3S offers at
ebay.com
Check E-3 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check D3S offers at
ebay.com
Check E-3 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
