Nikon D3400 vs Olympus E-M5 III
The Nikon D3400 and the Olympus OM-D E-M5 Mark III are two digital cameras that were officially introduced, respectively, in August 2016 and October 2019. The D3400 is a DSLR, while the E-M5 III is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D3400) and a Four Thirds (E-M5 III) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3400 and the Olympus OM-D E-M5 Mark III? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

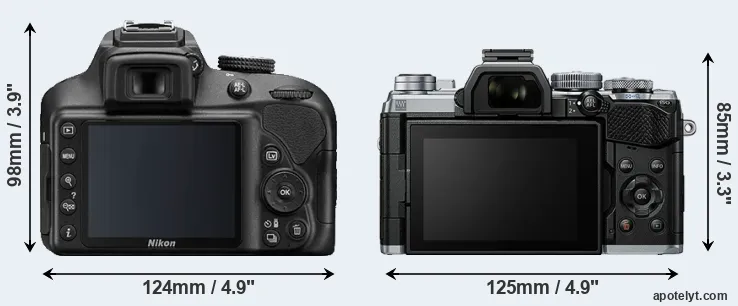

The side-by-side display below illustrates the physical size and weight of the Nikon D3400 and the Olympus E-M5 III. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The D3400 can be obtained in two different colors (black, red), while the E-M5 III is also available in two color-versions, but different ones (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 III is notably smaller (13 percent) than the Nikon D3400. Moreover, the E-M5 III is markedly lighter (7 percent) than the D3400. It is noteworthy in this context that the E-M5 III is splash and dust-proof, while the D3400 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3400) and the Micro Four Thirds Lens Catalog (E-M5 III). Mirrorless cameras, such as the E-M5 III, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the D3400 gets 1200 shots out of its EN-EL14a battery, while the E-M5 III can take 310 images on a single charge of its BLS-50 power pack. The power pack in the E-M5 III can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|2.||Olympus E-M5 III||125 mm||85 mm||50 mm||414 g||310||Y||Oct 2019||1,199|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|6.||Nikon D3500||124 mm||97 mm||70 mm||365 g||1550||n||Aug 2018||429|
|7.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|8.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|9.||Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|10.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|11.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|12.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|13.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|14.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|15.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|16.||Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299|
|17.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D3400 was launched at a markedly lower price (by 58 percent) than the E-M5 III, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D3400 features an APS-C sensor and the Olympus E-M5 III a Four Thirds sensor. The sensor area in the E-M5 III is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D3400 has a native 3:2 aspect ratio, while the one in the E-M5 III offers a 4:3 aspect.
With 24MP, the D3400 offers a higher resolution than the E-M5 III (20.2MP), but the D3400 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 3.34μm for the E-M5 III) due to its larger sensor. However, the E-M5 III is a much more recent model (by 3 years and 2 months) than the D3400, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Nikon D3400 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3400 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M5 III are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The E-M5 III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the D3400, the E-M5 III has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Nikon D3400 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus OM-D E-M5 Mark III are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|2.||Olympus E-M5 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|13.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|14.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|15.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|16.||Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|17.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-M5 III provides a better video resolution than the D3400. It can shoot movie footage at 4K/30p, while the Nikon is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M5 III has an electronic viewfinder (2360k dots), while the D3400 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M5 III offers a wider field of view (100%) than the one in the D3400 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M5 III has a higher magnification (0.68x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Nikon D3400 and Olympus E-M5 III in connection with corresponding information for a sample of similar cameras.
|2.||Olympus E-M5 III||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y|
|14.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The D3400 has one, while the E-M5 III does not. While the built-in flash of the D3400 is not very powerful, it can at times be useful as a fill-in light.The E-M5 III has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D3400 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M5 III is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M5 III has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the D3400 and the E-M5 III write their files to SDXC cards. The E-M5 III supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the D3400 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3400 and Olympus OM-D E-M5 Mark III and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|2.||Olympus E-M5 III||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|14.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
It is notable that the E-M5 III offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D3400 does not provide wifi capability.
The E-M5 III is a recent model that features in the current product line-up of Olympus. In contrast, the D3400 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D3400 was succeeded by the Nikon D3500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So how do things add up? Is there a clear favorite between the Nikon D3400 and the Olympus E-M5 III? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Nikon D3400:
- More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Longer lasting: Can take more shots (1200 versus 310) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (58 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2016).
Reasons to prefer the Olympus OM-D E-M5 Mark III:
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.68x vs 0.57x).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (125x85mm vs 124x98mm) and will fit more readily into a bag.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 3 years and 2 months of technical progress since the D3400 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-M5 III is the clear winner of the contest (23 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D3400 and the Olympus E-M5 III place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D3400 and the E-M5 III in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D3400||4/5||+||76/100||4/5||4.5/5||Aug 2016||499|
|2.||Olympus E-M5 III||5/5||+||82/100||4.5/5||4.5/5||Oct 2019||1,199|
|3.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon 200D||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon M100||3/5||+||..||4/5||3.5/5||Aug 2017||499|
|6.||Nikon D3500||..||..||75/100||4/5||4.5/5||Aug 2018||429|
|7.||Nikon D7500||4.5/5||+ +||86/100||5/5||4.5/5||Apr 2017||1,299|
|8.||Nikon D5600||4/5||..||79/100||4.5/5||4/5||Nov 2016||699|
|9.||Nikon D5500||5/5||+||79/100||4.5/5||4.5/5||Jan 2015||899|
|10.||Nikon D3300||3/5||+||77/100||4.5/5||4.5/5||Jan 2014||499|
|11.||Nikon D5300||4/5||+ +||79/100||4.5/5||4.5/5||Oct 2013||799|
|12.||Nikon D3200||5/5||+ +||73/100||4.5/5||4.5/5||Apr 2012||599|
|13.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|14.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|15.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|16.||Olympus E-M5||4/5||+ +||80/100||4.5/5||5/5||Feb 2012||1,299|
|17.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Nikon D3400 vs Olympus E-M5 III
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D3400||Olympus E-M5 III|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2016||October 2019|
|Launch Price||USD 499||USD 1,199|
|Sensor Specs||Nikon D3400||Olympus E-M5 III|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.5 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||366.6 mm2||224.9 mm2|
|Sensor Diagonal||28.2 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||20.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.91 μm||3.34 μm|
|Pixel Density||6.55 MP/cm2||8.96 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||100 - 25,600 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||64 - 25,600 ISO|
|Image Processor||EXPEED 4||TruePic VIII|
|DXO Sensor Quality (score)||86||..|
|DXO Color Depth (bits)||24.8||..|
|DXO Dynamic Range (EV)||13.9||..|
|DXO Low Light (ISO)||1192||..|
|Screen Specs||Nikon D3400||Olympus E-M5 III|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||921k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D3400||Olympus E-M5 III|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||5 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Nikon D3400||Olympus E-M5 III|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Nikon D3400||Olympus E-M5 III|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||1200 shots per charge||310 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
124 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
125 x 85 x 50 mm
(4.9 x 3.3 x 2.0 in)
|Camera Weight||445 g (15.7 oz)||414 g (14.6 oz)|
