Nikon D3100 vs Sony NEX-5R

The Nikon D3100 and the Sony Alpha NEX-5R are two digital cameras that were revealed to the public, respectively, in August 2010 and August 2012. The D3100 is a DSLR, while the NEX-5R is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Nikon has a resolution of 14.2 megapixels, whereas the Sony provides 16 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D3100		Sony NEX-5R
Digital single lens reflex		Mirrorless system camera
Nikon F mount lenses		Sony E mount lenses
14.2 MP – APS-C sensor		16 MP – APS-C sensor
1080/24p Video		1080/60i Video
ISO 100-3,200 (100 - 12,800)		ISO 100-25,600
Optical viewfinder		Viewfinder optional
3.0" LCD – 230k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		10 shutter flaps per second
550 shots per battery charge		330 shots per battery charge
124 x 96 x 75 mm, 505 g		111 x 59 x 39 mm, 276 g

Check D3100 offers at
ebay.com
Check NEX-5R offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3100 and the Sony Alpha NEX-5R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

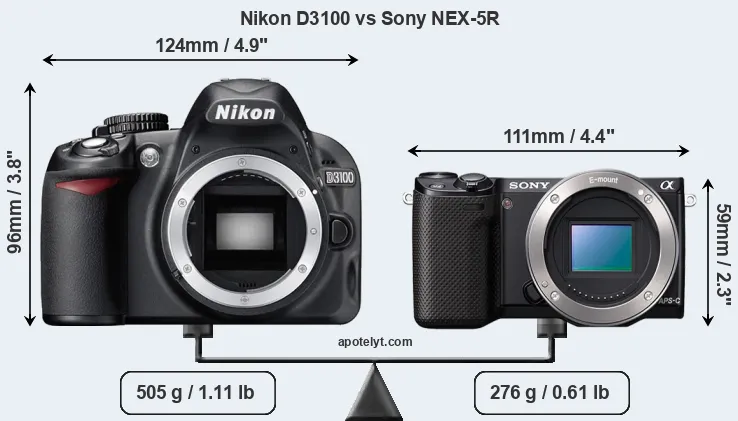

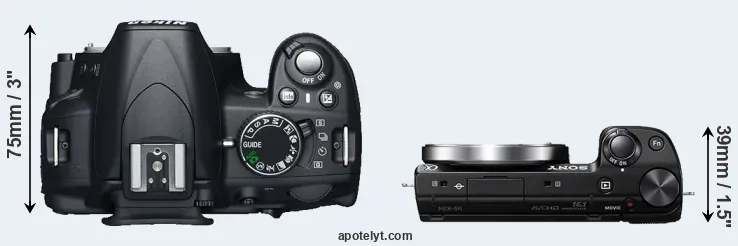

Body comparison

The physical size and weight of the Nikon D3100 and the Sony NEX-5R are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The D3100 can be obtained in two different colors (black, red), while the NEX-5R is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5R is considerably smaller (45 percent) than the Nikon D3100. Moreover, the NEX-5R is substantially lighter (45 percent) than the D3100. In this context, it is worth noting that neither the D3100 nor the NEX-5R are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3100) and the Sony E-Mount Lens Catalog (NEX-5R). Mirrorless cameras, such as the NEX-5R, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D3100 gets 550 shots out of its Nikon EN-EL14 battery, while the NEX-5R can take 330 images on a single charge of its Sony NP-FW50 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	599	ebay.com
2.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	749	ebay.com
3.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	599	ebay.com
4.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	749	ebay.com
5.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	1,499	ebay.com
6.		Nikon D3000	126 mm	97 mm	64 mm	536 g	500	n	Jul 2009	599	ebay.com
7.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	749	ebay.com
8.		Nikon D60	126 mm	94 mm	64 mm	522 g	500	n	Jan 2008	629	ebay.com
9.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	729	ebay.com
10.		Nikon D40	124 mm	94 mm	64 mm	522 g	470	n	Nov 2006	499	ebay.com
11.		Ricoh GR	117 mm	61 mm	35 mm	245 g	290	n	Apr 2013	799	ebay.com
12.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	499	ebay.com
13.		Sony NEX-5T	111 mm	59 mm	39 mm	276 g	330	n	Aug 2013	699	ebay.com
14.		Sony NEX-5N	111 mm	59 mm	38 mm	269 g	460	n	Aug 2011	699	ebay.com
15.		Sony NEX-C3	110 mm	60 mm	33 mm	225 g	400	n	Jun 2011	599	ebay.com
16.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D3100 was launched at a somewhat lower price (by 20 percent) than the NEX-5R, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

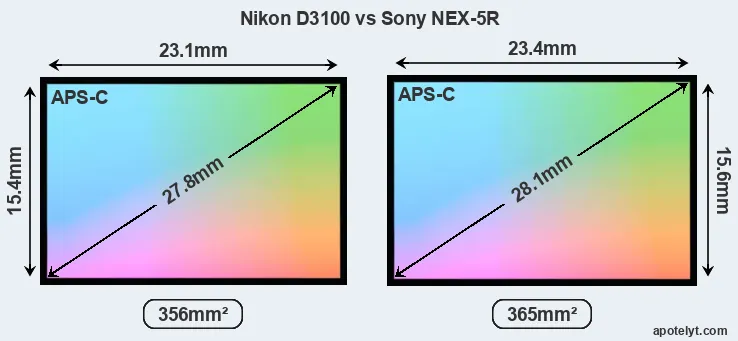

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-5R is 3 percent bigger. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

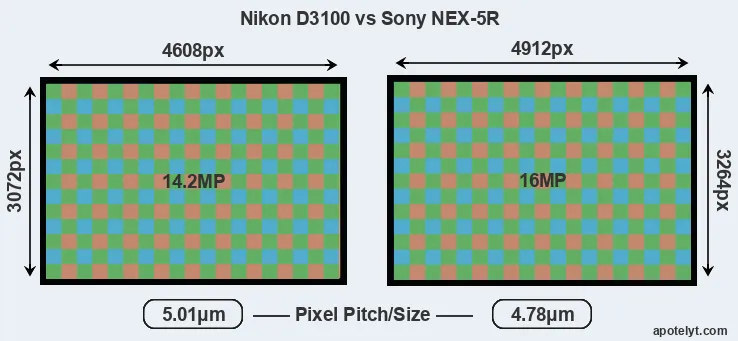

With 16MP, the NEX-5R offers a higher resolution than the D3100 (14.2MP), but the NEX-5R has smaller individual pixels (pixel pitch of 4.78μm versus 5.01μm for the D3100). Yet, the NEX-5R is a much more recent model (by 2 years) than the D3100, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sony NEX-5R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NEX-5R for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.4 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.9 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.6 x 27.6 cm. The corresponding values for the Nikon D3100 are 23 x 15.4 inches or 58.5 x 39 cm for good quality, 18.4 x 12.3 inches or 46.8 x 31.2 cm for very good quality, and 15.4 x 10.2 inches or 39 x 26 cm for excellent quality prints.

The Nikon D3100 has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-12800. The corresponding ISO settings for the Sony Alpha NEX-5R are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the NEX-5R offers substantially better image quality than the D3100 (overall score 11 points higher). The advantage is based on 1.2 bits higher color depth, 1.8 EV in additional dynamic range, and 0 stops of reduced low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
2.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
3.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
4.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
5.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
6.		Nikon D3000	APS-C	10.0	3872	2592	none	22.3	11.1	563	62
7.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
8.		Nikon D60	APS-C	10.0	3872	2592	none	22.5	11.4	562	65
9.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
10.		Nikon D40	APS-C	6.0	3008	2000	none	21.0	11.0	561	56
11.		Ricoh GR	APS-C	16.1	4928	3264	1080/30p	23.6	13.5	972	78
12.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74
13.		Sony NEX-5T	APS-C	16.0	4912	3264	1080/60p	23.6	13.0	1015	78
14.		Sony NEX-5N	APS-C	16.0	4912	3264	1080/60i	23.6	12.7	1079	77
15.		Sony NEX-C3	APS-C	16.0	4912	3264	720/30p	22.7	12.2	1083	73
16.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the NEX-5R provides a faster frame rate than the D3100. It can shoot movie footage at 1080/60i, while the Nikon is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D3100 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-5R relies on live view and the rear LCD for framing. That said, the NEX-5R can be equipped with an optional viewfinder – the FDA-EV1S. The adjacent table lists some of the other core features of the Nikon D3100 and Sony NEX-5R along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
3.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
4.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
5.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
6.		Nikon D3000	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
7.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
8.		Nikon D60	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
9.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Nikon D40	optical	n	2.5 / 230	fixed	n	1/4000s	2.5/s	Y	n
11.		Ricoh GR	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
12.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
13.		Sony NEX-5T	optional	n	3.0 / 922	tilting	Y	1/4000s	10.0/s	n	n
14.		Sony NEX-5N	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
15.		Sony NEX-C3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	n	n
16.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D3100 has one, while the NEX-5R does not. While the built-in flash of the D3100 is not very powerful, it can at times be useful as a fill-in light.

The D3100 writes its imaging data to SDXC cards, while the NEX-5R uses SDXC or Memory Stick PRO Duo cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3100 and Sony Alpha NEX-5R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
2.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
3.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
5.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Nikon D3000	Y	- / -	-	-	-	2.0	-	-	-
7.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
8.		Nikon D60	Y	- / -	-	-	-	2.0	-	-	-
9.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
10.		Nikon D40	Y	- / -	-	-	-	2.0	-	-	-
11.		Ricoh GR	Y	mono / mono	-	-	micro	2.0	-	-	-
12.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-
13.		Sony NEX-5T	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
14.		Sony NEX-5N	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Sony NEX-C3	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the NEX-5R offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D3100 does not provide wifi capability.

Both the D3100 and the NEX-5R have been discontinued, but can regularly be found used on ebay. The D3100 was replaced by the Nikon D3200, while the NEX-5R was followed by the Sony NEX-5T. Further information on the features and operation of the D3100 and NEX-5R can be found, respectively, in the Nikon D3100 Manual (free pdf) or the online Sony NEX-5R Manual.

Review summary

So how do things add up? Which of the two cameras – the Nikon D3100 or the Sony NEX-5R – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Advantages of the Nikon D3100:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Can take more shots (550 versus 330) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced segment (20 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in August 2010).

Arguments in favor of the Sony Alpha NEX-5R:

• More detail: Has more megapixels (16 vs 14.2MP), which boosts linear resolution by 7%.
• Better image quality: Scores substantially higher (11 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.2 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.8 EV of extra DR).
• Better video: Provides higher movie framerates (1080/60i versus 1080/24p).
• More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (111x59mm vs 124x96mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 229g or 45 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More modern: Reflects 2 years of technical progress since the D3100 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the NEX-5R is the clear winner of the contest (15 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D3100 and the Sony NEX-5R place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D3100 and the NEX-5R in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	599	ebay.com
2.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	749	ebay.com
3.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	599	ebay.com
4.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	749	ebay.com
5.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	1,499	ebay.com
6.		Nikon D3000	..	+	..	72/100	4/5	4.5/5	Jul 2009	599	ebay.com
7.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	749	ebay.com
8.		Nikon D60	..	80/100	..	+ +	4/5	4.5/5	Jan 2008	629	ebay.com
9.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	729	ebay.com
10.		Nikon D40	..	81/100	..	+ +	o	4.5/5	Nov 2006	499	ebay.com
11.		Ricoh GR	5/5	..	..	79/100	4.5/5	4.5/5	Apr 2013	799	ebay.com
12.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	499	ebay.com
13.		Sony NEX-5T	..	..	..	..	4.5/5	4.5/5	Aug 2013	699	ebay.com
14.		Sony NEX-5N	3/5	+ +	..	79/100	4.5/5	4.5/5	Aug 2011	699	ebay.com
15.		Sony NEX-C3	3/5	+ +	..	74/100	4.5/5	4/5	Jun 2011	599	ebay.com
16.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
