Nikon D3100 vs Olympus PEN-F
The Nikon D3100 and the Olympus PEN-F are two digital cameras that were revealed to the public, respectively, in August 2010 and January 2016. The D3100 is a DSLR, while the PEN-F is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D3100) and a Four Thirds (PEN-F) sensor. The Nikon has a resolution of 14.2 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3100 and the Olympus PEN-F? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

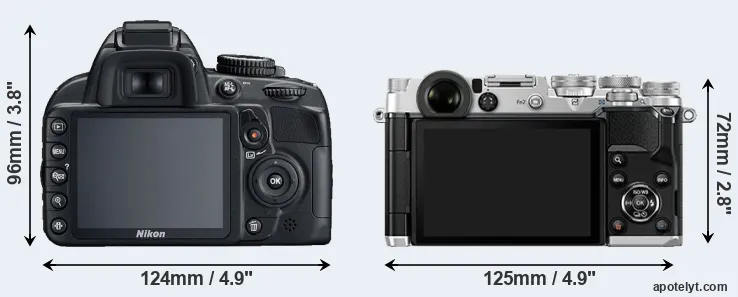

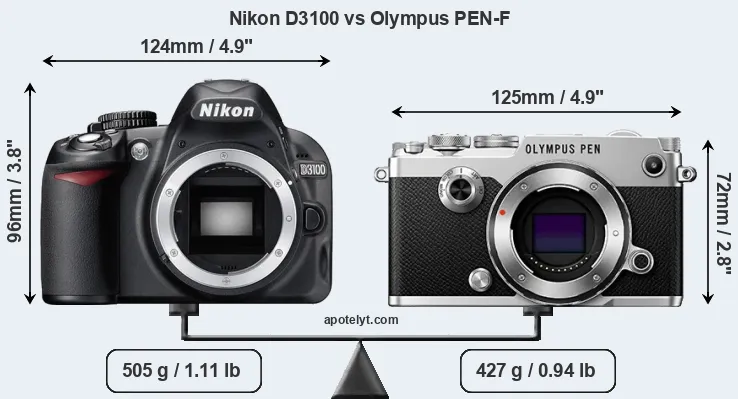

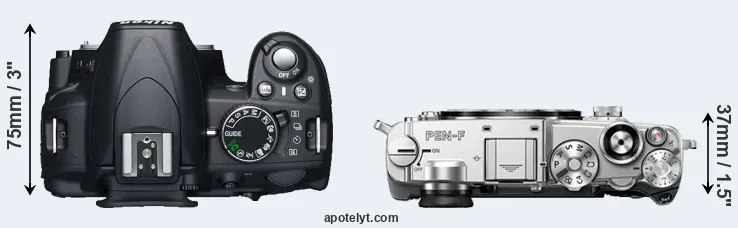

The physical size and weight of the Nikon D3100 and the Olympus PEN-F are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The D3100 can be obtained in two different colors (black, red), while the PEN-F is also available in two color-versions, but different ones (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus PEN-F is notably smaller (24 percent) than the Nikon D3100. Moreover, the PEN-F is markedly lighter (15 percent) than the D3100. In this context, it is worth noting that neither the D3100 nor the PEN-F are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3100) and the Micro Four Thirds Lens Catalog (PEN-F). Mirrorless cameras, such as the PEN-F, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Nikon D3100||124 mm||96 mm||75 mm||505 g||550||n||Aug 2010||599|
|2.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|3.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|4.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|5.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|6.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|7.||Nikon D5100||128 mm||97 mm||79 mm||560 g||660||n||Apr 2011||749|
|8.||Nikon D3000||126 mm||97 mm||64 mm||536 g||500||n||Jul 2009||599|
|9.||Nikon D5000||127 mm||104 mm||80 mm||590 g||510||n||Apr 2009||749|
|10.||Nikon D60||126 mm||94 mm||64 mm||522 g||500||n||Jan 2008||629|
|11.||Nikon D40X||124 mm||94 mm||64 mm||522 g||520||n||Mar 2007||729|
|12.||Nikon D40||124 mm||94 mm||64 mm||522 g||470||n||Nov 2006||499|
|13.||Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|14.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|15.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|16.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|17.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D3100 was launched at a markedly lower price (by 50 percent) than the PEN-F, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

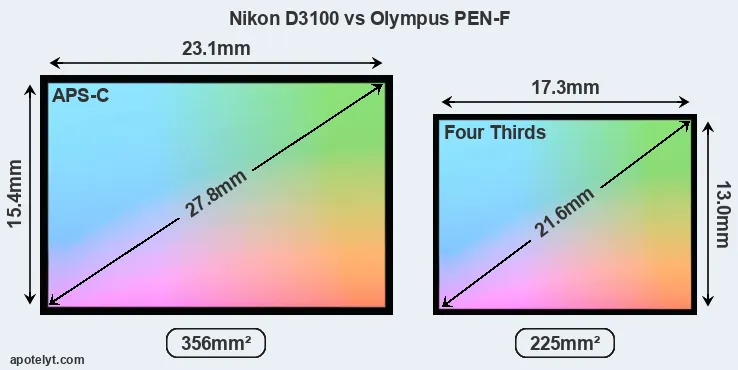

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D3100 features an APS-C sensor and the Olympus PEN-F a Four Thirds sensor. The sensor area in the PEN-F is 37 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D3100 has a native 3:2 aspect ratio, while the one in the PEN-F offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.

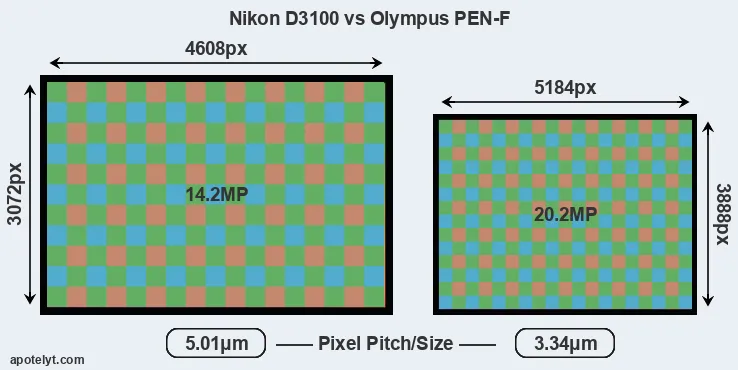

Despite having a smaller sensor, the PEN-F offers a higher resolution of 20.2 megapixels, compared with 14.2 MP of the D3100. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 5.01μm for the D3100). However, it should be noted that the PEN-F is much more recent (by 5 years and 5 months) than the D3100, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the PEN-F has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus PEN-F implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the PEN-F for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Nikon D3100 are 23 x 15.4 inches or 58.5 x 39 cm for good quality, 18.4 x 12.3 inches or 46.8 x 31.2 cm for very good quality, and 15.4 x 10.2 inches or 39 x 26 cm for excellent quality prints.
Unlike the D3100, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Nikon D3100 has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus PEN-F are ISO 80 to ISO 25600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the PEN-F has a markedly higher DXO score than the D3100 (overall score 7 points higher), which will translate into better image quality. The advantage is based on 0.6 bits higher color depth, 1.1 EV in additional dynamic range, and 0 stops of reduced low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|2.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|13.||Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|14.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|15.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|16.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|17.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the PEN-F provides a faster frame rate than the D3100. It can shoot movie footage at 1080/60p, while the Nikon is limited to 1080/24p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the PEN-F has an electronic viewfinder (2360k dots), while the D3100 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the PEN-F offers a wider field of view (100%) than the one in the D3100 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the PEN-F has a higher magnification (0.62x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D3100, the Olympus PEN-F, and comparable cameras.
|13.||Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|14.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|15.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The D3100 has one, while the PEN-F does not. While the built-in flash of the D3100 is not very powerful, it can at times be useful as a fill-in light.The PEN-F has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D3100 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the PEN-F is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus PEN-F has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the D3100 and the PEN-F write their files to SDXC cards. The PEN-F supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the D3100 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3100 and Olympus PEN-F and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|13.||Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|14.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|15.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the PEN-F offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D3100 does not provide wifi capability.
Both the D3100 and the PEN-F have been discontinued, but can regularly be found used on eBay. The D3100 was replaced by the Nikon D3200, while the PEN-F does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what conclusions can be drawn? Is there a clear favorite between the Nikon D3100 and the Olympus PEN-F? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Nikon D3100:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Longer lasting: Can take more shots (550 versus 330) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2010).
Arguments in favor of the Olympus PEN-F:
- More detail: Has more megapixels (20.2 vs 14.2MP), which boosts linear resolution by 17%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores markedly higher (7 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (1.1 EV of extra DR).
- Better video: Provides higher movie framerates (1080/60p versus 1080/24p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.53x).
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (125x72mm vs 124x96mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 78g or 15 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.
- More modern: Reflects 5 years and 5 months of technical progress since the D3100 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the PEN-F is the clear winner of the contest (24 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D3100 and the Olympus PEN-F place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D3100 or the PEN-F. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D3100||5/5||+ +||72/100||4.5/5||4.5/5||Aug 2010||599|
|2.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|3.||Nikon D5600||4/5||..||79/100||4.5/5||4/5||Nov 2016||699|
|4.||Nikon D3400||4/5||+||76/100||4/5||4.5/5||Aug 2016||499|
|5.||Nikon D3300||3/5||+||77/100||4.5/5||4.5/5||Jan 2014||499|
|6.||Nikon D3200||5/5||+ +||73/100||4.5/5||4.5/5||Apr 2012||599|
|7.||Nikon D5100||5/5||+ +||76/100||4.5/5||4.5/5||Apr 2011||749|
|8.||Nikon D3000||..||+||72/100||4/5||4.5/5||Jul 2009||599|
|9.||Nikon D5000||..||+ +||75/100||4/5||4.5/5||Apr 2009||749|
|10.||Nikon D60||..||80/100||+ +||4/5||4.5/5||Jan 2008||629|
|11.||Nikon D40X||..||79/100||+ +||4/5||4/5||Mar 2007||729|
|12.||Nikon D40||..||81/100||+ +||o||4.5/5||Nov 2006||499|
|13.||Olympus E-M1 II||5/5||+ +||85/100||4.5/5||4.5/5||Sep 2016||1,999|
|14.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|15.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|16.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|17.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Nikon D3100 vs Olympus PEN-F
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D3100||Olympus PEN-F|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2010||January 2016|
|Launch Price||USD 599||USD 1,199|
|Sensor Specs||Nikon D3100||Olympus PEN-F|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.1 x 15.4 mm||17.3 x 13.0 mm|
|Sensor Area||355.74 mm2||224.9 mm2|
|Sensor Diagonal||27.8 mm||21.6 mm|
|Sensor Resolution||14.2 Megapixels||20.2 Megapixels|
|Image Resolution||4608 x 3072 pixels||5184 x 3888 pixels|
|Pixel Pitch||5.01 μm||3.34 μm|
|Pixel Density||3.98 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/24p Video||1080/60p Video|
|ISO Setting||100 - 3,200 ISO||80 - 25,600 ISO|
|ISO Boost||100 - 12,800 ISO||no Enhancement|
|Image Processor||EXPEED 2||TruePic VII|
|DXO Sensor Quality (score)||67||74|
|DXO Color Depth (bits)||22.5||23.1|
|DXO Dynamic Range (EV)||11.3||12.4|
|DXO Low Light (ISO)||919||894|
|Screen Specs||Nikon D3100||Olympus PEN-F|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||230k dots||1037k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D3100||Olympus PEN-F|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||3 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-II|
|Connectivity Specs||Nikon D3100||Olympus PEN-F|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Nikon D3100||Olympus PEN-F|
|Battery Life (CIPA)||550 shots per charge||330 shots per charge|
124 x 96 x 75 mm
(4.9 x 3.8 x 3.0 in)
125 x 72 x 37 mm
(4.9 x 2.8 x 1.5 in)
|Camera Weight||505 g (17.8 oz)||427 g (15.1 oz)|
