Nikon D3100 vs Olympus E-PL7

The Nikon D3100 and the Olympus PEN E-PL7 are two digital cameras that were revealed to the public, respectively, in August 2010 and August 2014. The D3100 is a DSLR, while the E-PL7 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D3100) and a Four Thirds (E-PL7) sensor. The Nikon has a resolution of 14.2 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D3100		Olympus E-PL7
Digital single lens reflex		Mirrorless system camera
Nikon F mount lenses		Micro Four Thirds lenses
14.2 MP – APS-C sensor		15.9 MP – Four Thirds sensor
1080/24p Video		1080/30p Video
ISO 100-3,200 (100 - 12,800)		ISO 200-25,600
Optical viewfinder		Viewfinder optional
3.0" LCD – 230k dots		3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
550 shots per battery charge		350 shots per battery charge
124 x 96 x 75 mm, 505 g		115 x 67 x 38 mm, 357 g

Check D3100 offers at
ebay.com
Check E-PL7 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3100 and the Olympus PEN E-PL7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

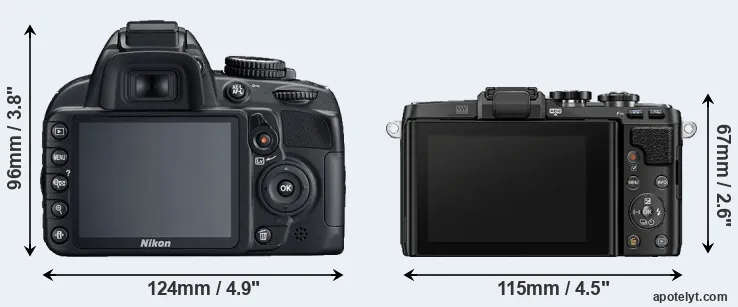

The physical size and weight of the Nikon D3100 and the Olympus E-PL7 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The D3100 can be obtained in two different colors (black, red), while the E-PL7 is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL7 is considerably smaller (35 percent) than the Nikon D3100. Moreover, the E-PL7 is markedly lighter (29 percent) than the D3100. In this context, it is worth noting that neither the D3100 nor the E-PL7 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3100) and the Micro Four Thirds Lens Catalog (E-PL7). Mirrorless cameras, such as the E-PL7, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D3100 gets 550 shots out of its Nikon EN-EL14 battery, while the E-PL7 can take 350 images on a single charge of its Olympus BLS-50 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	599	ebay.com
2.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	599	ebay.com
3.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	599	ebay.com
4.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	749	ebay.com
5.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	1,499	ebay.com
6.		Nikon D3000	126 mm	97 mm	64 mm	536 g	500	n	Jul 2009	599	ebay.com
7.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	749	ebay.com
8.		Nikon D60	126 mm	94 mm	64 mm	522 g	500	n	Jan 2008	629	ebay.com
9.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	729	ebay.com
10.		Nikon D40	124 mm	94 mm	64 mm	522 g	470	n	Nov 2006	499	ebay.com
11.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	549	ebay.com
12.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
13.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
14.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
15.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	599	ebay.com
16.		Sony NEX-5N	111 mm	59 mm	38 mm	269 g	460	n	Aug 2011	699	ebay.com
17.		Sony NEX-C3	110 mm	60 mm	33 mm	225 g	400	n	Jun 2011	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D3100 features an APS-C sensor and the Olympus E-PL7 a Four Thirds sensor. The sensor area in the E-PL7 is 37 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D3100 has a native 3:2 aspect ratio, while the one in the E-PL7 offers a 4:3 aspect.

Despite having a smaller sensor, the E-PL7 offers a higher resolution of 15.9 megapixels, compared with 14.2 MP of the D3100. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 5.01μm for the D3100). However, it should be noted that the E-PL7 is much more recent (by 4 years) than the D3100, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The Nikon D3100 has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus PEN E-PL7 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-PL7 has a markedly higher DXO score than the D3100 (overall score 5 points higher), which will translate into better image quality. The advantage is based on 0.2 bits higher color depth, 1.1 EV in additional dynamic range, and 0.1 stops of reduced low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
2.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
3.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
4.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
5.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
6.		Nikon D3000	APS-C	10.0	3872	2592	none	22.3	11.1	563	62
7.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
8.		Nikon D60	APS-C	10.0	3872	2592	none	22.5	11.4	562	65
9.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
10.		Nikon D40	APS-C	6.0	3008	2000	none	21.0	11.0	561	56
11.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
12.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
13.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
14.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
15.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
16.		Sony NEX-5N	APS-C	16.0	4912	3264	1080/60i	23.6	12.7	1079	77
17.		Sony NEX-C3	APS-C	16.0	4912	3264	720/30p	22.7	12.2	1083	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-PL7 provides a faster frame rate than the D3100. It can shoot movie footage at 1080/30p, while the Nikon is limited to 1080/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D3100 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL7 relies on live view and the rear LCD for framing. That said, the E-PL7 can be equipped with an optional viewfinder – the VF-4. The table below summarizes some of the other core capabilities of the Nikon D3100 and Olympus E-PL7 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
3.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
4.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
5.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
6.		Nikon D3000	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
7.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
8.		Nikon D60	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
9.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Nikon D40	optical	n	2.5 / 230	fixed	n	1/4000s	2.5/s	Y	n
11.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
13.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
14.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
15.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
16.		Sony NEX-5N	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
17.		Sony NEX-C3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D3100 has one, while the E-PL7 does not. While the built-in flash of the D3100 is not very powerful, it can at times be useful as a fill-in light.

The Olympus E-PL7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D3100 and the E-PL7 write their files to SDXC cards. The E-PL7 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D3100 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3100 and Olympus PEN E-PL7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
5.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Nikon D3000	Y	- / -	-	-	-	2.0	-	-	-
7.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
8.		Nikon D60	Y	- / -	-	-	-	2.0	-	-	-
9.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
10.		Nikon D40	Y	- / -	-	-	-	2.0	-	-	-
11.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Sony NEX-5N	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-C3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the E-PL7 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D3100 does not provide wifi capability.

Both the D3100 and the E-PL7 have been discontinued, but can regularly be found used on ebay. The D3100 was replaced by the Nikon D3200, while the E-PL7 was followed by the Olympus E-PL8. Further information on the features and operation of the D3100 and E-PL7 can be found, respectively, in the Nikon D3100 Manual (free pdf) or the online Olympus E-PL7 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Nikon D3100 or the Olympus E-PL7 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Nikon D3100:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Can take more shots (550 versus 350) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More heavily discounted: Has been available for much longer (launched in August 2010).

Reasons to prefer the Olympus PEN E-PL7:

• Better image quality: Scores markedly higher (5 points) in the DXO overall evaluation.
• More dynamic range: Captures a broader range of light and dark details (1.1 EV of extra DR).
• Better video: Provides higher movie framerates (1080/30p versus 1080/24p).
• More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (115x67mm vs 124x96mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 148g or 29 percent) and is thus easier to take along.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 4 years of technical progress since the D3100 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the E-PL7 is the clear winner of the contest (16 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D3100 and the Olympus E-PL7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D3100 and the E-PL7 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	599	ebay.com
2.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	599	ebay.com
3.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	599	ebay.com
4.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	749	ebay.com
5.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	1,499	ebay.com
6.		Nikon D3000	..	+	..	72/100	4/5	4.5/5	Jul 2009	599	ebay.com
7.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	749	ebay.com
8.		Nikon D60	..	80/100	..	+ +	4/5	4.5/5	Jan 2008	629	ebay.com
9.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	729	ebay.com
10.		Nikon D40	..	81/100	..	+ +	o	4.5/5	Nov 2006	499	ebay.com
11.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	549	ebay.com
12.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
13.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
14.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
15.		Olympus E-PL6	..	..	..	..	..	..	May 2013	599	ebay.com
16.		Sony NEX-5N	3/5	+ +	..	79/100	4.5/5	4.5/5	Aug 2011	699	ebay.com
17.		Sony NEX-C3	3/5	+ +	..	74/100	4.5/5	4/5	Jun 2011	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
