Nikon D200 vs Panasonic GM5
The Nikon D200 and the Panasonic Lumix DMC-GM5 are two digital cameras that were revealed to the public, respectively, in November 2005 and September 2014. The D200 is a DSLR, while the GM5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D200) and a Four Thirds (GM5) sensor. The Nikon has a resolution of 10 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D200 and the Panasonic Lumix DMC-GM5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

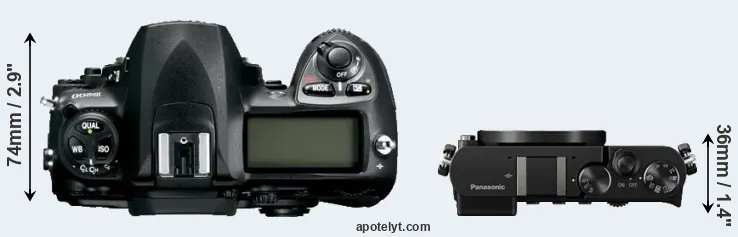

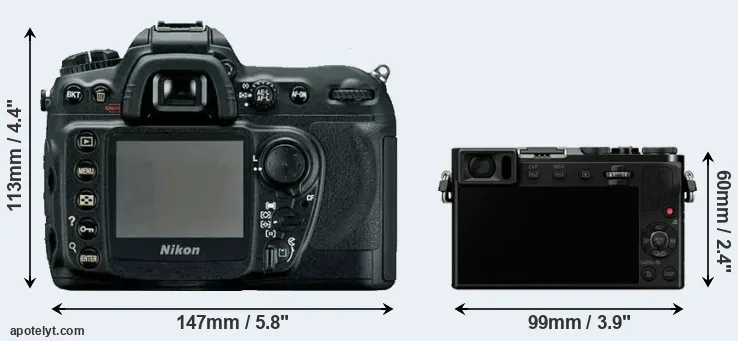

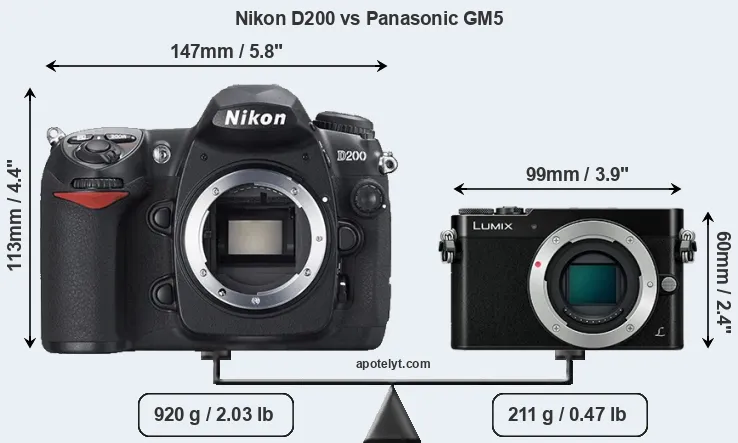

An illustration of the physical size and weight of the Nikon D200 and the Panasonic GM5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The GM5 can be obtained in two different colors (black, silver), while the D200 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM5 is considerably smaller (64 percent) than the Nikon D200. Moreover, the GM5 is substantially lighter (77 percent) than the D200. It is worth mentioning in this context that the D200 is splash and dust resistant, while the GM5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D200) and the Micro Four Thirds Lens Catalog (GM5). Mirrorless cameras, such as the GM5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon D200||147 mm||113 mm||74 mm||920 g||400||Y||Nov 2005||1,699|
|2.||Panasonic GM5||99 mm||60 mm||36 mm||211 g||220||n||Sep 2014||749|
|3.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|4.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|5.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|6.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|7.||Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799|
|8.||Nikon D300||147 mm||114 mm||74 mm||925 g||1000||Y||Aug 2007||1,799|
|9.||Nikon D2Xs||158 mm||150 mm||86 mm||1252 g||3800||Y||Jun 2006||4,699|
|10.||Nikon D80||132 mm||103 mm||77 mm||668 g||600||n||Aug 2006||999|
|11.||Nikon D2X||158 mm||150 mm||86 mm||1252 g||3800||Y||Sep 2004||4,999|
|12.||Nikon D100||144 mm||116 mm||81 mm||780 g||370||n||Feb 2002||1,999|
|13.||Panasonic G7||125 mm||86 mm||77 mm||410 g||350||n||May 2015||649|
|14.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|15.||Panasonic GM1||99 mm||55 mm||30 mm||204 g||230||n||Oct 2013||749|
|16.||Panasonic GX1||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699|
|17.||Panasonic GH2||124 mm||90 mm||76 mm||442 g||330||n||Sep 2010||899|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The GM5 was launched at a markedly lower price (by 56 percent) than the D200, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

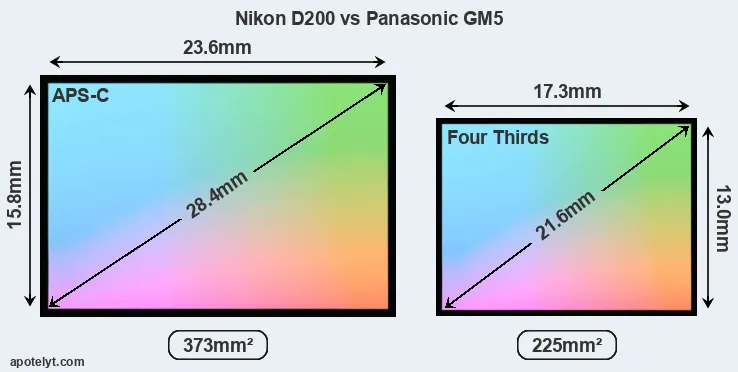

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D200 features an APS-C sensor and the Panasonic GM5 a Four Thirds sensor. The sensor area in the GM5 is 40 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D200 has a native 3:2 aspect ratio, while the one in the GM5 offers a 4:3 aspect.
Despite having a smaller sensor, the GM5 offers a higher resolution of 15.8 megapixels, compared with 10 MP of the D200. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.77μm versus 6.11μm for the D200). However, it should be noted that the GM5 is much more recent (by 8 years and 10 months) than the D200, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Panasonic GM5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GM5 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Nikon D200 are 19.4 x 13 inches or 49.2 x 32.9 cm for good quality, 15.5 x 10.4 inches or 39.3 x 26.3 cm for very good quality, and 12.9 x 8.6 inches or 32.8 x 21.9 cm for excellent quality prints.
The Nikon D200 has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Panasonic Lumix DMC-GM5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Panasonic GM5||Four Thirds||15.8||4592||3448||1080/60p||22.1||11.7||721||66|
|13.||Panasonic G7||Four Thirds||15.8||4592||3448||4K/30p||..||..||..||..|
|14.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|15.||Panasonic GM1||Four Thirds||15.8||4592||3448||1080/60i||22.3||11.7||660||66|
|16.||Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55|
|17.||Panasonic GH2||Four Thirds||15.9||4608||3456||1080/60i||21.2||11.3||655||60|
Many modern cameras cannot only take still pictures, but also record videos. The GM5 indeed provides for movie recording, while the D200 does not. The highest resolution format that the GM5 can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the GM5 has an electronic viewfinder (1166k dots), while the D200 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the GM5 offers a wider field of view (100%) than the one in the D200 (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the D200 has a higher magnification (0.63x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D200 and Panasonic GM5 along with similar information for a selection of comparators.
One difference between the cameras concerns the presence of an on-board flash. The D200 has one, while the GM5 does not. While the built-in flash of the D200 is not very powerful, it can at times be useful as a fill-in light.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GM5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon D200 and the Panasonic GM5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D200 writes its imaging data to Compact Flash cards, while the GM5 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D200 and Panasonic Lumix DMC-GM5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the GM5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D200 does not provide wifi capability.
Studio photographers will appreciate that the Nikon D200 (unlike the GM5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D200 and the GM5 have been discontinued, but can regularly be found used on eBay. The D200 was replaced by the Nikon D300, while the GM5 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Panasonic websites.
So what is the bottom line? Which of the two cameras – the Nikon D200 or the Panasonic GM5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Nikon D200:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/500s) to freeze action.
- Longer lasting: Can take more shots (400 versus 220) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in November 2005).
Advantages of the Panasonic Lumix DMC-GM5:
- More detail: Has more megapixels (15.8 vs 10MP), which boosts linear resolution by 23%.
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (5.8 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (99x60mm vs 147x113mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 709g or 77 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (56 percent cheaper at launch).
- More modern: Reflects 8 years and 10 months of technical progress since the D200 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the GM5 is the clear winner of the contest (15 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D200 and the Panasonic GM5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D200 and the GM5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D200||..||+ +||+ +||o||..||Nov 2005||1,699|
|2.||Panasonic GM5||3.5/5||+||77/100||5/5||4.5/5||Sep 2014||749|
|3.||Canon 30D||..||+ +||+ +||o||..||Feb 2006||1,399|
|4.||Canon 20D||..||..||+ +||..||..||Aug 2004||1,499|
|5.||Nikon D500||5/5||+ +||91/100||4.5/5||5/5||Jan 2016||1,999|
|6.||Nikon D7000||4/5||..||80/100||4.5/5||4.5/5||Sep 2010||1,499|
|7.||Nikon D300S||5/5||+ +||82/100||4/5||4.5/5||Jul 2009||1,799|
|8.||Nikon D300||..||+ +||+ +||5/5||4.5/5||Aug 2007||1,799|
|9.||Nikon D2Xs||..||..||..||..||..||Jun 2006||4,699|
|10.||Nikon D80||..||+||+ +||o||4.5/5||Aug 2006||999|
|11.||Nikon D2X||..||..||+ +||..||..||Sep 2004||4,999|
|12.||Nikon D100||..||..||+ +||o||..||Feb 2002||1,999|
|13.||Panasonic G7||4/5||+ +||80/100||5/5||4.5/5||May 2015||649|
|14.||Panasonic G6||4/5||+ +||..||5/5||4.5/5||Apr 2013||599|
|15.||Panasonic GM1||3/5||+||78/100||5/5||4.5/5||Oct 2013||749|
|16.||Panasonic GX1||3/5||+||77/100||4.5/5||4.5/5||Nov 2011||699|
|17.||Panasonic GH2||5/5||+ +||79/100||4.5/5||5/5||Sep 2010||899|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Nikon D200 vs Panasonic GM5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D200||Panasonic GM5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||November 2005||September 2014|
|Launch Price||USD 1,699||USD 749|
|Sensor Specs||Nikon D200||Panasonic GM5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.8 mm||17.3 x 13.0 mm|
|Sensor Area||372.88 mm2||224.9 mm2|
|Sensor Diagonal||28.4 mm||21.6 mm|
|Sensor Resolution||10 Megapixels||15.8 Megapixels|
|Image Resolution||3872 x 2592 pixels||4592 x 3448 pixels|
|Pixel Pitch||6.11 μm||3.77 μm|
|Pixel Density||2.69 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 1,600 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 3,200 ISO||100 - 25,600 ISO|
|DXO Sensor Quality (score)||64||66|
|DXO Color Depth (bits)||22.3||22.1|
|DXO Dynamic Range (EV)||11.5||11.7|
|DXO Low Light (ISO)||583||721|
|Screen Specs||Nikon D200||Panasonic GM5|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||1166k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D200||Panasonic GM5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/500s|
|Continuous Shooting||5 shutter flaps/s||5.8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Nikon D200||Panasonic GM5|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Nikon D200||Panasonic GM5|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||400 shots per charge||220 shots per charge|
147 x 113 x 74 mm
(5.8 x 4.4 x 2.9 in)
99 x 60 x 36 mm
(3.9 x 2.4 x 1.4 in)
|Camera Weight||920 g (32.5 oz)||211 g (7.4 oz)|
