Nikon D200 vs D5
The Nikon D200 and the Nikon D5 are two digital cameras that were officially introduced, respectively, in November 2005 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D200) and a full frame (D5) sensor. The D200 has a resolution of 10 megapixels, whereas the D5 provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D200 and the Nikon D5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Nikon D200 and the Nikon D5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is considerably larger (53 percent) than the Nikon D200. Moreover, the D5 is substantially heavier (54 percent) than the D200. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the D5) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (D200). You can compare the optics available in the Nikon Lens Catalog.
Concerning battery life, the D200 gets 400 shots out of its EN-EL3e battery, while the D5 can take 3780 images on a single charge of its EN-EL18a power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D200, Nikon provides the MB-D200 vertical grip as an optional accessory (see here on ebay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Nikon D200||147 mm||113 mm||74 mm||920 g||400||Y||Nov 2005||1,699||ebay.com|
|2.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499||ebay.com|
|3.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||ebay.com|
|4.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399||ebay.com|
|5.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499||ebay.com|
|6.||Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499||amazon.com|
|7.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999||amazon.com|
|8.||Nikon D4S||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499||ebay.com|
|9.||Nikon D750||141 mm||113 mm||78 mm||750 g||1230||Y||Sep 2014||2,299||ebay.com|
|10.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999||amazon.com|
|11.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499||ebay.com|
|12.||Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799||ebay.com|
|13.||Nikon D300||147 mm||114 mm||74 mm||925 g||1000||Y||Aug 2007||1,799||ebay.com|
|14.||Nikon D2Xs||158 mm||150 mm||86 mm||1252 g||3800||Y||Jun 2006||4,699||ebay.com|
|15.||Nikon D80||132 mm||103 mm||77 mm||668 g||600||n||Aug 2006||999||ebay.com|
|16.||Nikon D2X||158 mm||150 mm||86 mm||1252 g||3800||Y||Sep 2004||4,999||ebay.com|
|17.||Nikon D100||144 mm||116 mm||81 mm||780 g||370||n||Feb 2002||1,999||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D200 was launched at a markedly lower price (by 74 percent) than the D5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

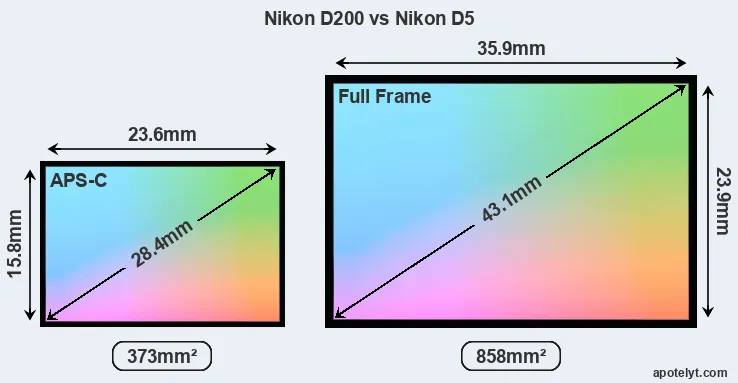

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D200 features an APS-C sensor and the Nikon D5 a full frame sensor. The sensor area in the D5 is 130 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 20.7MP, the D5 offers a higher resolution than the D200 (10MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 6.11μm for the D200) due to its larger sensor. Moreover, the D5 is a much more recent model (by 10 years and 2 months) than the D200, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Nikon D5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5 for good quality output (200 dots per inch) amounts to 27.9 x 18.6 inches or 71 x 47.1 cm, for very good quality (250 dpi) 22.4 x 14.8 inches or 56.8 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.3 x 31.4 cm. The corresponding values for the Nikon D200 are 19.4 x 13 inches or 49.2 x 32.9 cm for good quality, 15.5 x 10.4 inches or 39.3 x 26.3 cm for very good quality, and 12.9 x 8.6 inches or 32.8 x 21.9 cm for excellent quality prints.
The Nikon D200 has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000.
In terms of underlying technology, the D200 is build around a CCD sensor, while the D5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the D5 offers substantially better image quality than the D200 (overall score 24 points higher). The advantage is based on 2.8 bits higher color depth, 0.8 EV in additional dynamic range, and 2 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|3.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|6.||Nikon D6||Full Frame||20.7||5568||3712||4K/30p||25.3||14.3||2886||95|
|8.||Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|9.||Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|10.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D5 indeed provides for movie recording, while the D200 does not. The highest resolution format that the D5 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The D200 and the D5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D5 offers a wider field of view (100%) than the one in the D200 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D5 has a higher magnification (0.72x vs 0.63x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D200 and Nikon D5 along with similar information for a selection of comparators.
|1.||Nikon D200||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||Y||n|
|2.||Nikon D5||optical||Y||3.2 / 2359||fixed||Y||1/8000s||14.0/s||n||n|
|3.||Canon 1D X Mark II||optical||Y||3.2 / 1620||fixed||Y||1/8000s||16.0/s||n||n|
|4.||Canon 30D||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||Y||n|
|5.||Canon 20D||optical||Y||1.8 / 118||fixed||n||1/8000s||5.0/s||Y||n|
|6.||Nikon D6||optical||Y||3.2 / 2359||fixed||Y||1/8000s||14.0/s||n||n|
|7.||Nikon D500||optical||Y||3.2 / 2359||tilting||Y||1/8000s||10.0/s||n||n|
|8.||Nikon D4S||optical||Y||3.2 / 921||fixed||n||1/8000s||11.0/s||n||n|
|9.||Nikon D750||optical||Y||3.2 / 1229||tilting||n||1/4000s||6.0/s||Y||n|
|10.||Nikon D610||optical||Y||3.2 / 921||fixed||n||1/4000s||6.0/s||Y||n|
|11.||Nikon D7000||optical||Y||3.0 / 921||fixed||n||1/8000s||6.0/s||Y||n|
|12.||Nikon D300S||optical||Y||3.0 / 920||fixed||n||1/8000s||7.0/s||Y||n|
|13.||Nikon D300||optical||Y||3.0 / 922||fixed||n||1/8000s||6.0/s||Y||n|
|14.||Nikon D2Xs||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||n||n|
|15.||Nikon D80||optical||n||2.5 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|16.||Nikon D2X||optical||Y||2.5 / 235||fixed||n||1/8000s||5.0/s||n||n|
|17.||Nikon D100||optical||Y||1.8 / 118||fixed||n||1/4000s||3.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The D200 has one, while the D5 does not. While the built-in flash of the D200 is not very powerful, it can at times be useful as a fill-in light.
The Nikon D200 and the Nikon D5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D200 writes its imaging data to Compact Flash cards, while the D5 uses Compact Flash or XQD cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D200 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D200 and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Nikon D200||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Nikon D5||Y||stereo / mono||Y||Y||mini||3.0||-||-||-|
|3.||Canon 1D X Mark II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|4.||Canon 30D||Y||- / -||-||-||-||2.0||-||-||-|
|5.||Canon 20D||Y||- / -||-||-||-||1.1||-||-||-|
|6.||Nikon D6||Y||stereo / mono||Y||Y||mini||3.1||Y||-||Y|
|7.||Nikon D500||Y||stereo / mono||Y||Y||mini||3.0||Y||Y||Y|
|8.||Nikon D4S||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|9.||Nikon D750||Y||stereo / mono||Y||Y||mini||2.0||Y||-||-|
|10.||Nikon D610||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|11.||Nikon D7000||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|12.||Nikon D300S||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|13.||Nikon D300||Y||- / -||-||-||mini||2.0||-||-||-|
|14.||Nikon D2Xs||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Nikon D80||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Nikon D2X||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Nikon D100||Y||- / -||-||-||-||1.1||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the D200 and the D5 have been discontinued, but can regularly be found used on ebay. The D200 was replaced by the Nikon D300, while the D5 was followed by the Nikon D6. Further information on the features and operation of the D200 and D5 can be found, respectively, in the Nikon D200 Manual (free pdf) or the online Nikon D5 Manual.
So what is the bottom line? Which of the two cameras – the Nikon D200 or the Nikon D5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Nikon D200:
- More compact: Is smaller (147x113mm vs 160x159mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 495g or 35 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in November 2005).
Advantages of the Nikon D5:
- More detail: Has more megapixels (20.7 vs 10MP), which boosts linear resolution by 44%.
- Better image quality: Scores substantially higher (24 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.8 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (0.8 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (2 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.63x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (14 vs 5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Gets more shots (3780 versus 400) out of a single battery charge.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 10 years and 2 months of technical progress since the D200 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the D5 is the clear winner of the contest (17 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D200 and the Nikon D5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D200 and the D5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D200||..||+ +||..||+ +||o||..||Nov 2005||1,699||ebay.com|
|2.||Nikon D5||..||..||4/5||89/100||4.5/5||5/5||Jan 2016||6,499||ebay.com|
|3.||Canon 1D X Mark II||..||..||4.5/5||89/100||4.5/5||4.5/5||Feb 2016||5,999||ebay.com|
|4.||Canon 30D||..||+ +||..||+ +||o||..||Feb 2006||1,399||ebay.com|
|5.||Canon 20D||..||..||..||+ +||..||..||Aug 2004||1,499||ebay.com|
|6.||Nikon D6||..||..||4/5||..||4.5/5||4.5/5||Feb 2020||6,499||amazon.com|
|7.||Nikon D500||5/5||+ +||4.7/5||91/100||4.5/5||5/5||Jan 2016||1,999||amazon.com|
|8.||Nikon D4S||5/5||..||..||..||4.5/5||4.5/5||Feb 2014||6,499||ebay.com|
|9.||Nikon D750||5/5||+ +||4/5||90/100||4.5/5||4.5/5||Sep 2014||2,299||ebay.com|
|10.||Nikon D610||4/5||+ +||..||87/100||4.5/5||4.5/5||Oct 2013||1,999||amazon.com|
|11.||Nikon D7000||4/5||..||..||80/100||4.5/5||4.5/5||Sep 2010||1,499||ebay.com|
|12.||Nikon D300S||5/5||+ +||..||82/100||4/5||4.5/5||Jul 2009||1,799||ebay.com|
|13.||Nikon D300||..||+ +||..||+ +||5/5||4.5/5||Aug 2007||1,799||ebay.com|
|14.||Nikon D2Xs||..||..||..||..||..||..||Jun 2006||4,699||ebay.com|
|15.||Nikon D80||..||+||..||+ +||o||4.5/5||Aug 2006||999||ebay.com|
|16.||Nikon D2X||..||..||..||+ +||..||..||Sep 2004||4,999||ebay.com|
|17.||Nikon D100||..||..||..||+ +||o||..||Feb 2002||1,999||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Nikon D200 vs Nikon D5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D200||Nikon D5|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Nikon F mount lenses|
|Launch Date||November 2005||January 2016|
|Launch Price||USD 1,699||USD 6,499|
|Sensor Specs||Nikon D200||Nikon D5|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||23.6 x 15.8 mm||35.9 x 23.9 mm|
|Sensor Area||372.88 mm2||858.01 mm2|
|Sensor Diagonal||28.4 mm||43.1 mm|
|Sensor Resolution||10 Megapixels||20.7 Megapixels|
|Image Resolution||3872 x 2592 pixels||5588 x 3712 pixels|
|Pixel Pitch||6.11 μm||6.44 μm|
|Pixel Density||2.69 MP/cm2||2.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||100 - 102,400 ISO|
|ISO Boost||100 - 3,200 ISO||50 - 3,280,000 ISO|
|DXO Sensor Quality (score)||64||88|
|DXO Color Depth (bits)||22.3||25.1|
|DXO Dynamic Range (EV)||11.5||12.3|
|DXO Low Light (ISO)||583||2343|
|Screen Specs||Nikon D200||Nikon D5|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.2inch|
|LCD Resolution||230k dots||2359k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D200||Nikon D5|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||14 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||400 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||CF cards||CF or XQD cards|
|Single or Dual Card Slots||Single card slot||Dual card slots|
|Connectivity Specs||Nikon D200||Nikon D5|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Nikon D200||Nikon D5|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||400 shots per charge||3780 shots per charge|
147 x 113 x 74 mm
(5.8 x 4.4 x 2.9 in)
160 x 159 x 92 mm
(6.3 x 6.3 x 3.6 in)
|Camera Weight||920 g (32.5 oz)||1415 g (49.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
