Nikon D1X vs D5100
The Nikon D1X and the Nikon D5100 are two digital cameras that were revealed to the public, respectively, in February 2001 and April 2011. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The D1X has a resolution of 5.9 megapixels, whereas the D5100 provides 16.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D1X and the Nikon D5100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

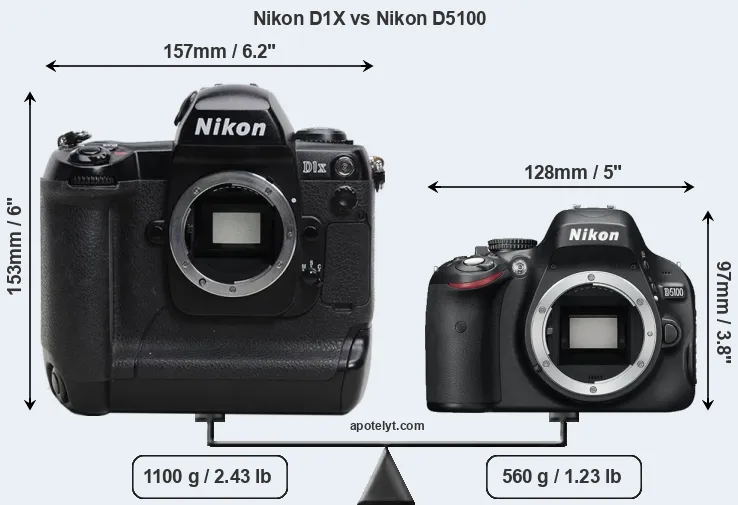

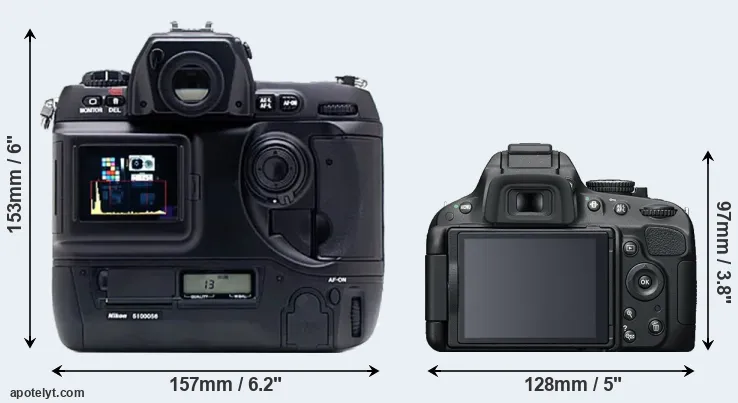

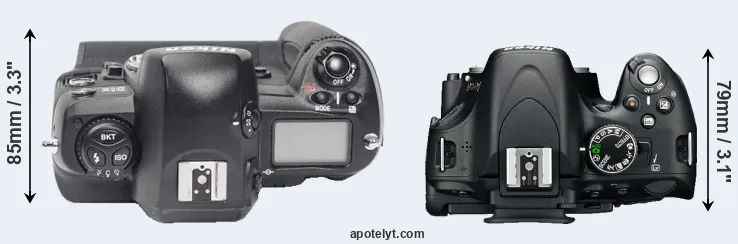

The side-by-side display below illustrates the physical size and weight of the Nikon D1X and the Nikon D5100. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5100 is considerably smaller (48 percent) than the Nikon D1X. Moreover, the D5100 is substantially lighter (49 percent) than the D1X. It is worth mentioning in this context that the D1X is splash and dust resistant, while the D5100 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Nikon Lens Catalog.
Concerning battery life, the D1X gets 1200 shots out of its EN-4 battery, while the D5100 can take 660 images on a single charge of its EN-EL14 power pack. As can be seen in the images above, the D1X has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D5100, there are third party battery grips available as optional accessories (see here on eBay).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Nikon D1X||6.2 in||6.0 in||3.3 in||38.8 oz||1200||Y||Feb 2001||5,999|
|Nikon D5100||5.0 in||3.8 in||3.1 in||19.8 oz||660||n||Apr 2011||749|
|Nikon D5600||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699|
|Nikon D5300||4.9 in||3.9 in||3.0 in||16.9 oz||600||n||Oct 2013||799|
|Nikon D4||6.3 in||6.2 in||3.6 in||47.3 oz||2600||Y||Jan 2012||5,999|
|Nikon D5200||5.1 in||3.9 in||3.1 in||19.6 oz||500||n||Nov 2012||749|
|Nikon D3100||4.9 in||3.8 in||3.0 in||17.8 oz||550||n||Aug 2010||599|
|Nikon D300S||5.8 in||4.5 in||3.2 in||33.1 oz||950||Y||Jul 2009||1,799|
|Nikon D5000||5.0 in||4.1 in||3.1 in||20.8 oz||510||n||Apr 2009||749|
|Nikon D300||5.8 in||4.5 in||2.9 in||32.6 oz||1000||Y||Aug 2007||1,799|
|Nikon D2Xs||6.2 in||5.9 in||3.4 in||44.2 oz||3800||Y||Jun 2006||4,699|
|Nikon D200||5.8 in||4.4 in||2.9 in||32.5 oz||400||Y||Nov 2005||1,699|
|Nikon D2X||6.2 in||5.9 in||3.4 in||44.2 oz||3800||Y||Sep 2004||4,999|
|Nikon D2H||6.2 in||5.9 in||3.4 in||37.7 oz||2900||Y||Jul 2003||3,499|
|Nikon D100||5.7 in||4.6 in||3.2 in||27.5 oz||370||n||Feb 2002||1,999|
|Nikon D1H||6.2 in||6.0 in||3.3 in||38.8 oz||1200||Y||Feb 2001||4,499|
|Nikon D1||6.2 in||6.0 in||3.3 in||38.8 oz||..||Y||Jun 1999||5,499|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D5100 was launched at a markedly lower price (by 88 percent) than the D1X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

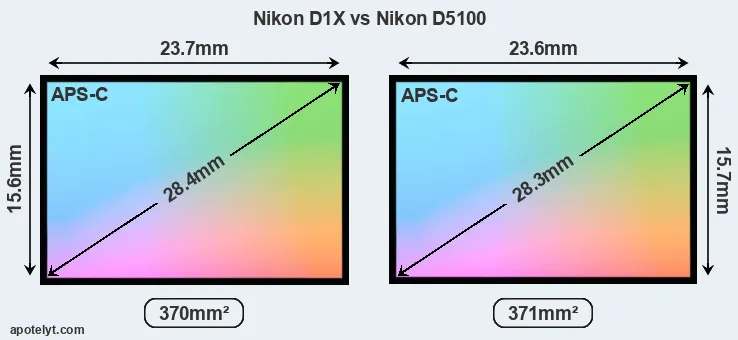

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 16.1MP, the D5100 offers a higher resolution than the D1X (5.9MP), but the D5100 has smaller individual pixels (pixel pitch of 4.80μm versus 7.92μm for the D1X). Yet, the D5100 is a much more recent model (by 10 years and 2 months) than the D1X, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Nikon D5100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5100 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Nikon D1X are 15 x 9.8 inches or 38.2 x 24.9 cm for good quality, 12 x 7.8 inches or 30.6 x 19.9 cm for very good quality, and 10 x 6.5 inches or 25.5 x 16.6 cm for excellent quality prints.
The Nikon D1X has a native sensitivity range from ISO 125 to ISO 800, which can be extended to ISO 125-3200. The corresponding ISO settings for the Nikon D5100 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
Many modern cameras are not only capable of taking still images, but can also record movies. The D5100 indeed provides for movie recording, while the D1X does not. The highest resolution format that the D5100 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The D1X and the D5100 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D1X offers a wider field of view (96%) than the one in the D5100 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D1X has a higher magnification (0.53x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D1X, the Nikon D5100, and comparable cameras.
One feature that is present on the D1X, but is missing on the D5100 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The D5100 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D1X does not have a selfie-screen.
The Nikon D5100 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D1X writes its imaging data to Compact Flash cards, while the D5100 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D1X and Nikon D5100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
Studio photographers will appreciate that the Nikon D1X (unlike the D5100) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D1X and the D5100 have been discontinued, but can regularly be found used on eBay. The D1X was replaced by the Nikon D2X, while the D5100 was followed by the Nikon D5200. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon website.
So what is the bottom line? Is there a clear favorite between the Nikon D1X and the Nikon D5100? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Nikon D1X:
- More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.51x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/4000s) to freeze action.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1200 versus 660) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in February 2001).
Reasons to prefer the Nikon D5100:
- More detail: Has more megapixels (16.1 vs 5.9MP), which boosts linear resolution by 65%.
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 120k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (4 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (128x97mm vs 157x153mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 540g or 49 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
- More modern: Reflects 10 years and 2 months of technical progress since the D1X launch.
If the number of relative strengths (bullet points above) is taken as a guide, the D5100 is the clear winner of the contest (13 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D1X and the Nikon D5100 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D1X or the D5100. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D1X||..||+ +||..||o||..||Feb 2001||5,999|
|Nikon D5100||+ +||76/100||4.5/5||5/5||4.5/5||Apr 2011||749|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Nikon D5300||+ +||79/100||4.5/5||4.5/5||4.5/5||Oct 2013||799|
|Nikon D4||..||..||4.5/5||..||4.5/5||Jan 2012||5,999|
|Nikon D5200||+ +||79/100||4.5/5||4.5/5||4.5/5||Nov 2012||749|
|Nikon D3100||+ +||72/100||4.5/5||5/5||4.5/5||Aug 2010||599|
|Nikon D300S||+ +||82/100||4/5||5/5||4.5/5||Jul 2009||1,799|
|Nikon D5000||+ +||75/100||4/5||5/5||4.5/5||Apr 2009||749|
|Nikon D300||+ +||+ +||5/5||o||4.5/5||Aug 2007||1,799|
|Nikon D2Xs||..||..||..||o||..||Jun 2006||4,699|
|Nikon D200||+ +||+ +||o||5/5||..||Nov 2005||1,699|
|Nikon D2X||..||+ +||..||o||..||Sep 2004||4,999|
|Nikon D2H||..||+ +||..||o||..||Jul 2003||3,499|
|Nikon D100||..||+ +||o||o||..||Feb 2002||1,999|
|Nikon D1H||..||+ +||..||o||..||Feb 2001||4,499|
|Nikon D1||..||+ +||..||..||..||Jun 1999||5,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon S120 vs Nikon D5100
- Hasselblad X1D vs Nikon D5100
- Leica T vs Nikon D1X
- Nikon A1000 vs Nikon D5100
- Nikon D1X vs Olympus E-PL9
- Nikon D1X vs Panasonic GF6
- Nikon D1X vs Panasonic S1
- Nikon D1X vs Panasonic TZ95
- Nikon D1X vs Panasonic ZS80
- Nikon D5100 vs Olympus E-M10 III
- Nikon D5100 vs Panasonic LX7
- Nikon D5100 vs Panasonic ZS200
Specifications: Nikon D1X vs Nikon D5100
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D1X||Nikon D5100|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Nikon F mount lenses|
|Launch Date||February 2001||April 2011|
|Launch Price||USD 5,999||USD 749|
|Sensor Specs||Nikon D1X||Nikon D5100|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||23.7 x 15.6 mm||23.6 x 15.7 mm|
|Sensor Area||369.72 mm2||370.52 mm2|
|Sensor Diagonal||28.4 mm||28.3 mm|
|Sensor Resolution||5.9 Megapixels||16.1 Megapixels|
|Image Resolution||3008 x 1960 pixels||4928 x 3264 pixels|
|Pixel Pitch||7.92 μm||4.80 μm|
|Pixel Density||1.59 MP/cm2||4.34 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||125 - 800 ISO||100 - 6,400 ISO|
|ISO Boost||125 - 3,200 ISO||100 - 25,600 ISO|
|DXO Sensor Quality (score)||..||80|
|DXO Color Depth (bits)||..||23.5|
|DXO Dynamic Range (EV)||..||13.6|
|DXO Low Light (ISO)||..||1183|
|Screen Specs||Nikon D1X||Nikon D5100|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.0inch||3.0inch|
|LCD Resolution||120k dots||921k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Nikon D1X||Nikon D5100|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||4 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Nikon D1X||Nikon D5100|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||Firewire||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Nikon D1X||Nikon D5100|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1200 shots per charge||660 shots per charge|
157 x 153 x 85 mm
(6.2 x 6.0 x 3.3 in)
128 x 97 x 79 mm
(5.0 x 3.8 x 3.1 in)
|Camera Weight||1100 g (38.8 oz)||560 g (19.8 oz)|
