Nikon B700 vs D5

The Nikon Coolpix B700 and the Nikon D5 are two digital cameras that were officially introduced, respectively, in February 2016 and January 2016. The B700 is a fixed lens compact, while the D5 is a DSLR. The cameras are based on a 1/2.3-inch (B700) and a full frame (D5) sensor. The B700 has a resolution of 20.2 megapixels, whereas the D5 provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon B700		Nikon D5
Fixed lens compact camera		Digital single lens reflex
24-1440mm f/3.3-6.5		Nikon F mount lenses
20.2 MP – 1/2.3" sensor		20.7 MP – Full Frame sensor
4K/30p Video		4K/30p Video
ISO 100-3,200		ISO 100-102,400 (50 - 3,280,000)
Electronic viewfinder (921k dots)		Optical viewfinder
3.0" LCD – 921k dots		3.2" LCD – 2359k dots
Swivel screen (not touch-sensitive)		Fixed touchscreen
5 shutter flaps per second		14 shutter flaps per second
not weather sealed		Weathersealed body
350 shots per battery charge		3780 shots per battery charge
125 x 85 x 107 mm, 565 g		160 x 159 x 92 mm, 1415 g

Check B700 offers at
ebay.com
Check D5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon Coolpix B700 and the Nikon D5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Nikon B700 and the Nikon D5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The B700 can be obtained in two different colors (black, red), while the D5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is considerably larger (139 percent) than the Nikon B700. It is noteworthy in this context that the D5 is splash and dust-proof, while the B700 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the B700 has a lens built in, whereas the D5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the B700 gets 350 shots out of its Nikon EN-EL23 battery, while the D5 can take 3780 images on a single charge of its Nikon EN-EL18a power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the B700 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon B700	125 mm	85 mm	107 mm	565 g	350	n	Feb 2016	499	ebay.com
2.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	6,499	ebay.com
3.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	549	amazon.com
4.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
5.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	5,999	ebay.com
6.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
7.		Fujifilm X100F	127 mm	75 mm	52 mm	469 g	390	n	Jan 2017	1,299	ebay.com
8.		Kodak AZ901	139 mm	104 mm	119 mm	777 g	400	n	Jan 2016	499	amazon.com
9.		Nikon D6	160 mm	163 mm	92 mm	1270 g	3580	Y	Feb 2020	6,499	amazon.com
10.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	ebay.com
11.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	499	ebay.com
12.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	6,499	ebay.com
13.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	5,999	ebay.com
14.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	7,999	ebay.com
15.		Panasonic TZ90	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	449	ebay.com
16.		Panasonic FZ82	130 mm	94 mm	119 mm	616 g	330	n	Jan 2017	399	amazon.com
17.		Sony HX350	130 mm	93 mm	103 mm	652 g	300	n	Dec 2016	449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The B700 was launched at a lower price than the D5, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Nikon B700 features a 1/2.3-inch sensor and the Nikon D5 a full frame sensor. The sensor area in the D5 is 2964 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.0. The sensor in the B700 has a native 4:3 aspect ratio, while the one in the D5 offers a 3:2 aspect.

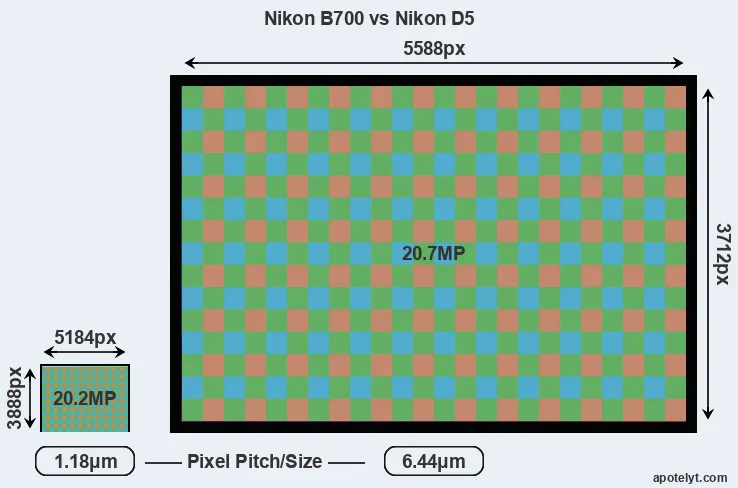

With 20.7MP, the D5 offers a higher resolution than the B700 (20.2MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 1.18μm for the B700) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the B700 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Nikon Coolpix B700 has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000.

In terms of underlying technology, the B700 is build around a BSI-CMOS sensor, while the D5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon B700	1/2.3	20.2	5184	3888	4K/30p	20.4	11.8	818	48
2.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
3.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
4.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
5.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
6.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
7.		Fujifilm X100F	APS-C	24.0	6000	4000	1080/60p	23.9	13.2	1704	81
8.		Kodak AZ901	1/2.3	20.2	5184	3888	1080/30p	20.3	11.7	806	48
9.		Nikon D6	Full Frame	20.7	5568	3712	4K/30p	25.3	14.3	2886	95
10.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
11.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
12.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
13.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
14.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
15.		Panasonic TZ90	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
16.		Panasonic FZ82	1/2.3	18.0	4896	3672	4K/30p	20.5	11.9	900	49
17.		Sony HX350	1/2.3	19.9	5152	3864	1080/60p	20.5	11.9	896	49
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the B700 has an electronic viewfinder (921k dots), while the D5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Nikon B700 and Nikon D5 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon B700	921	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	Y
2.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
3.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
4.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
5.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
6.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
7.		Fujifilm X100F	2360	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
8.		Kodak AZ901	202	n	3.0 / 920	swivel	n	1/2000s	5.0/s	Y	Y
9.		Nikon D6	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
10.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
11.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
12.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
13.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
14.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
15.		Panasonic TZ90	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
16.		Panasonic FZ82	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
17.		Sony HX350	202	n	3.0 / 922	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The B700 has one, while the D5 does not. While the built-in flash of the B700 is not very powerful, it can at times be useful as a fill-in light.

The Nikon B700 and the Nikon D5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The B700 writes its imaging data to SDXC cards, while the D5 uses Compact Flash or XQD cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the B700 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon Coolpix B700 and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon B700	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
3.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
6.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
7.		Fujifilm X100F	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Kodak AZ901	-	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Nikon D6	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
10.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
12.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
13.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
14.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
15.		Panasonic TZ90	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Panasonic FZ82	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Sony HX350	-	stereo / mono	-	-	micro	2.0	-	-	-

It is notable that the B700 offers wifi support, while the D5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Nikon D5 (unlike the B700) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the B700 and the D5 have been discontinued, but can regularly be found used on ebay. The D5 was replaced by the Nikon D6, while the B700 does not have a direct successor. Further information on the features and operation of the B700 and D5 can be found, respectively, in the Nikon B700 Manual (free pdf) or the online Nikon D5 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Nikon B700 and the Nikon D5? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Nikon Coolpix B700:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Ready to shoot: Comes with a built-in lens, while the D5 requires a separate lens.
• More compact: Is smaller (125x85mm vs 160x159mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the D5).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.

Reasons to prefer the Nikon D5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2359k vs 921k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (14 vs 5 flaps/sec) to capture the decisive moment.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Gets more shots (3780 versus 350) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.

If the count of relative strengths (bullet points above) is taken as a measure, the D5 is the clear winner of the contest (22 : 14 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon B700 and the Nikon D5 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the B700 and the D5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon B700	..	+	..	..	4/5	4/5	Feb 2016	499	ebay.com
2.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	6,499	ebay.com
3.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	549	amazon.com
4.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
5.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	5,999	ebay.com
6.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
7.		Fujifilm X100F	5/5	+	3.9/5	83/100	4.5/5	4.5/5	Jan 2017	1,299	ebay.com
8.		Kodak AZ901	..	..	..	..	3.5/5	3/5	Jan 2016	499	amazon.com
9.		Nikon D6	..	..	4/5	..	4.5/5	4.5/5	Feb 2020	6,499	amazon.com
10.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	ebay.com
11.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	499	ebay.com
12.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	6,499	ebay.com
13.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	5,999	ebay.com
14.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	7,999	ebay.com
15.		Panasonic TZ90	..	+ +	4/5	..	4/5	4/5	Apr 2017	449	ebay.com
16.		Panasonic FZ82	..	+ +	..	..	4.5/5	4.5/5	Jan 2017	399	amazon.com
17.		Sony HX350	..	..	..	..	..	4/5	Dec 2016	449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check B700 offers at
ebay.com
Check D5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check B700 offers at
ebay.com
Check D5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
