Nikon 1 V2 vs Olympus E-PL6

The Nikon 1 V2 and the Olympus PEN E-PL6 are two digital cameras that were revealed to the public, respectively, in October 2012 and May 2013. Both the V2 and the E-PL6 are mirrorless interchangeable lens cameras that are based on an one-inch (V2) and a Four Thirds (E-PL6) sensor. The Nikon has a resolution of 14.2 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon 1 V2		Olympus E-PL6
Mirrorless system camera		Mirrorless system camera
Nikon 1 mount lenses		Micro Four Thirds lenses
14.2 MP – 1" sensor		15.9 MP – Four Thirds sensor
1080/60p Video		1080/30p Video
ISO 160-12,800		ISO 200-25,600
Electronic viewfinder (1440k dots)		Viewfinder optional
3.0" LCD – 921k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
15 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
310 shots per battery charge		360 shots per battery charge
109 x 82 x 46 mm, 278 g		111 x 64 x 38 mm, 325 g

Check V2 offers at
ebay.com
Check E-PL6 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon 1 V2 and the Olympus PEN E-PL6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

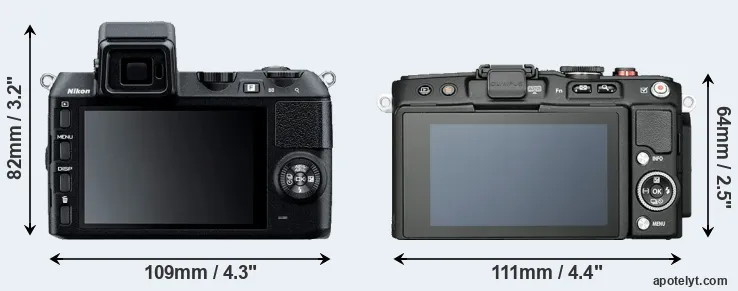

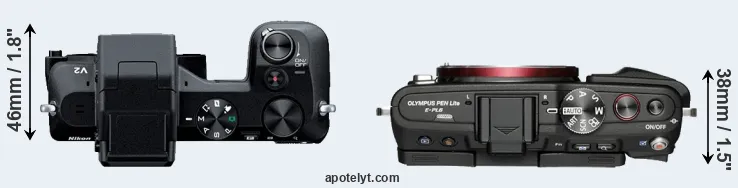

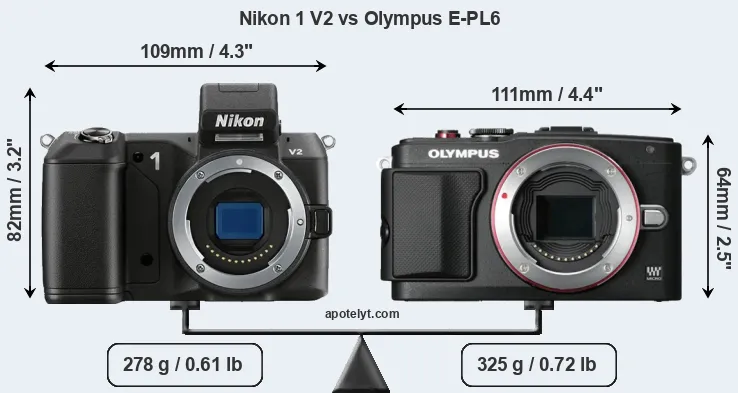

An illustration of the physical size and weight of the Nikon 1 V2 and the Olympus E-PL6 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The V2 can be obtained in two different colors (black, white), while the E-PL6 is available in four color-versions (black, silver, red, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL6 is notably smaller (21 percent) than the Nikon 1 V2. However, the E-PL6 is markedly heavier (17 percent) than the V2. In this context, it is worth noting that neither the V2 nor the E-PL6 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon 1 V2	109 mm	82 mm	46 mm	278 g	310	n	Oct 2012	799	ebay.com
2.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	599	ebay.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	799	ebay.com
4.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	699	ebay.com
5.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	799	ebay.com
6.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	549	ebay.com
7.		Nikon 1 V1	113 mm	76 mm	44 mm	383 g	350	n	Sep 2011	799	ebay.com
8.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
9.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
10.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	599	ebay.com
11.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	599	ebay.com
12.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	499	ebay.com
13.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	499	ebay.com
14.		Panasonic GF5	108 mm	67 mm	37 mm	267 g	360	n	Apr 2012	499	ebay.com
15.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	699	ebay.com
16.		Ricoh GR	117 mm	61 mm	35 mm	245 g	290	n	Apr 2013	799	ebay.com
17.		Sony RX100 II	102 mm	58 mm	38 mm	281 g	350	n	Jun 2013	749	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL6 was launched at a somewhat lower price (by 25 percent) than the V2, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

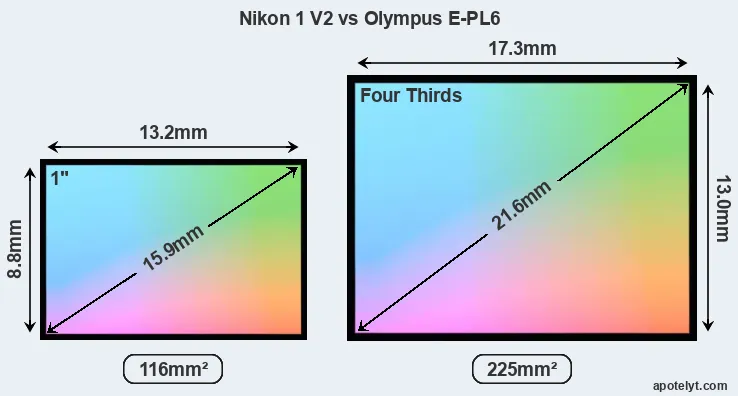

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Nikon 1 V2 features an one-inch sensor and the Olympus E-PL6 a Four Thirds sensor. The sensor area in the E-PL6 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the V2 has a native 3:2 aspect ratio, while the one in the E-PL6 offers a 4:3 aspect.

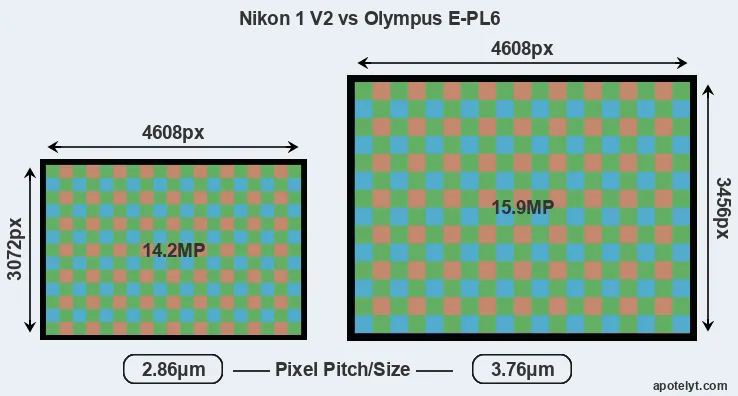

With 15.9MP, the E-PL6 offers a higher resolution than the V2 (14.2MP), but the E-PL6 nevertheless has larger individual pixels (pixel pitch of 3.76μm versus 2.86μm for the V2) due to its larger sensor. Moreover, the E-PL6 is a somewhat more recent model (by 6 months) than the V2, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The V2 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Nikon 1 V2 has a native sensitivity range from ISO 160 to ISO 12800. The corresponding ISO settings for the Olympus PEN E-PL6 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon 1 V2	1-inch	14.2	4608	3072	1080/60p	20.2	10.8	403	50
2.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
5.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
6.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
7.		Nikon 1 V1	1-inch	10.0	3872	2592	1080/60i	21.3	11.0	346	54
8.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
9.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
10.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
11.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
12.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
13.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
14.		Panasonic GF5	Four Thirds	12.0	4000	3000	1080/60i	20.5	10.0	573	50
15.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
16.		Ricoh GR	APS-C	16.1	4928	3264	1080/30p	23.6	13.5	972	78
17.		Sony RX100 II	1-inch	20.0	5472	3648	1080/60p	22.5	12.4	483	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the V2 provides a higher frame rate than the E-PL6. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the V2 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL6 relies on live view and the rear LCD for framing. That said, the E-PL6 can be equipped with an optional viewfinder – the VF-3. The following table reports on some other key feature differences and similarities of the Nikon 1 V2, the Olympus E-PL6, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon 1 V2	1440	n	3.0 / 921	fixed	n	1/4000s	15.0/s	Y	n
2.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
5.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
6.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
7.		Nikon 1 V1	1440	n	3.0 / 921	fixed	n	1/4000s	10.0/s	n	n
8.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
9.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
10.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
13.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
14.		Panasonic GF5	none	n	3.0 / 920	fixed	Y	1/4000s	4.0/s	Y	n
15.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
16.		Ricoh GR	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
17.		Sony RX100 II	optional	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The V2 has one, while the E-PL6 does not. While the built-in flash of the V2 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the V2 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon 1 V2 and the Olympus E-PL6 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the V2 and the E-PL6 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon 1 V2 and Olympus PEN E-PL6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon 1 V2	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
6.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Nikon 1 V1	-	stereo / mono	-	-	mini	2.0	-	-	-
8.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
14.		Panasonic GF5	-	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Ricoh GR	Y	mono / mono	-	-	micro	2.0	-	-	-
17.		Sony RX100 II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the E-PL6 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The V2 does not feature such an accessory-socket.

Both the V2 and the E-PL6 have been discontinued, but can regularly be found used on ebay. The V2 was replaced by the Nikon 1 V3, while the E-PL6 was followed by the Olympus E-PL7. Further information on the features and operation of the V2 and E-PL6 can be found, respectively, in the Nikon 1 V2 Manual (free pdf) or the online Olympus E-PL6 Manual.

Review summary

So what is the bottom line? Is the Nikon 1 V2 better than the Olympus E-PL6 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Nikon 1 V2:

• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 460k dots).
• Faster burst: Shoots at higher frequency (15 vs 8 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Less heavy: Is lighter (by 47g or 14 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More heavily discounted: Has been on the market for longer (launched in October 2012).

Arguments in favor of the Olympus PEN E-PL6:

• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (111x64mm vs 109x82mm) and will fit more readily into a bag.
• Longer lasting: Gets more shots (360 versus 310) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More affordable: Was released into a lower priced segment (25 percent cheaper at launch).
• More modern: Was introduced somewhat (6 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the E-PL6 is the clear winner of the contest (13 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon 1 V2 and the Olympus E-PL6 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the V2 and the E-PL6 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon 1 V2	3/5	..	..	..	4.5/5	4/5	Oct 2012	799	ebay.com
2.		Olympus E-PL6	..	..	..	..	..	..	May 2013	599	ebay.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	799	ebay.com
4.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	699	ebay.com
5.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	799	ebay.com
6.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	549	ebay.com
7.		Nikon 1 V1	..	+	..	69/100	4.5/5	4/5	Sep 2011	799	ebay.com
8.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
9.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
10.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	599	ebay.com
11.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
12.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	499	ebay.com
13.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	499	ebay.com
14.		Panasonic GF5	3/5	..	..	..	4.5/5	4.5/5	Apr 2012	499	ebay.com
15.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	699	ebay.com
16.		Ricoh GR	5/5	..	..	79/100	4.5/5	4.5/5	Apr 2013	799	ebay.com
17.		Sony RX100 II	5/5	+ +	..	79/100	4.5/5	4.5/5	Jun 2013	749	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
