Nikon 1 J5 vs Olympus E-M5 III
The Nikon 1 J5 and the Olympus OM-D E-M5 Mark III are two digital cameras that were revealed to the public, respectively, in April 2015 and October 2019. Both the J5 and the E-M5 III are mirrorless interchangeable lens cameras that are based on an one-inch (J5) and a Four Thirds (E-M5 III) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon 1 J5 and the Olympus OM-D E-M5 Mark III? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

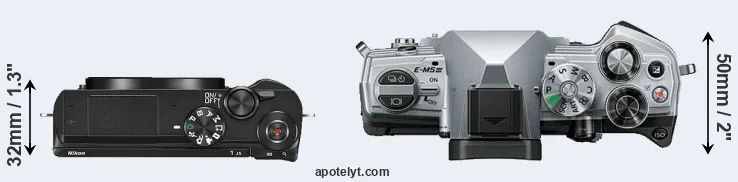

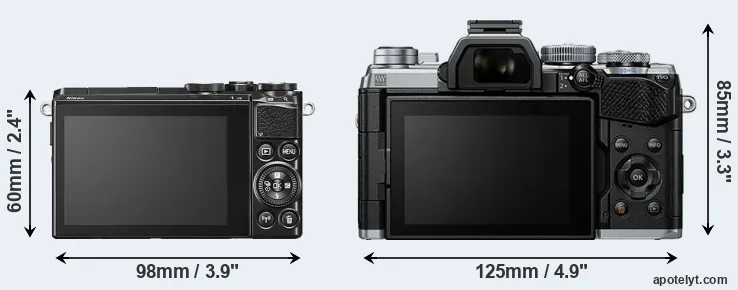

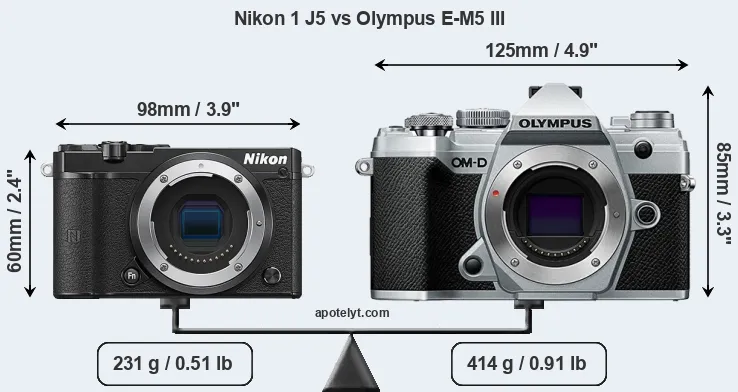

An illustration of the physical size and weight of the Nikon 1 J5 and the Olympus E-M5 III is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The J5 can be obtained in three different colors (black, silver, white), while the E-M5 III is available in two color-versions (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 III is considerably larger (81 percent) than the Nikon 1 J5. Moreover, the E-M5 III is substantially heavier (79 percent) than the J5. It is noteworthy in this context that the E-M5 III is splash and dust-proof, while the J5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the E-M5 III can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Nikon 1 J5||98 mm||60 mm||32 mm||231 g||250||n||Apr 2015||399|
|2.||Olympus E-M5 III||125 mm||85 mm||50 mm||414 g||310||Y||Oct 2019||1,199|
|3.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|4.||Canon G9 X||98 mm||58 mm||31 mm||209 g||220||n||Oct 2015||529|
|5.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|6.||Nikon 1 V3||111 mm||65 mm||33 mm||381 g||310||n||Mar 2014||799|
|7.||Nikon 1 J4||100 mm||60 mm||29 mm||232 g||300||n||Apr 2014||549|
|8.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|9.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|10.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|11.||Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299|
|12.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|13.||Panasonic FZ1000||137 mm||99 mm||131 mm||831 g||360||n||Jun 2014||899|
|14.||Sony RX100 V||102 mm||58 mm||41 mm||299 g||220||n||Oct 2016||999|
|15.||Sony RX100 IV||102 mm||58 mm||41 mm||298 g||280||n||Jun 2015||999|
|16.||Sony A5000||110 mm||63 mm||36 mm||269 g||420||n||Jan 2014||449|
|17.||Sony RX100 III||102 mm||58 mm||41 mm||290 g||320||n||May 2014||799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The J5 was launched at a markedly lower price (by 67 percent) than the E-M5 III, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

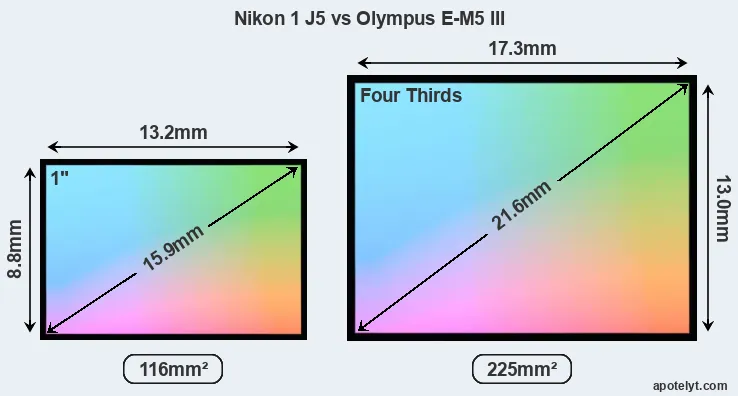

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon 1 J5 features an one-inch sensor and the Olympus E-M5 III a Four Thirds sensor. The sensor area in the E-M5 III is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the J5 has a native 3:2 aspect ratio, while the one in the E-M5 III offers a 4:3 aspect.

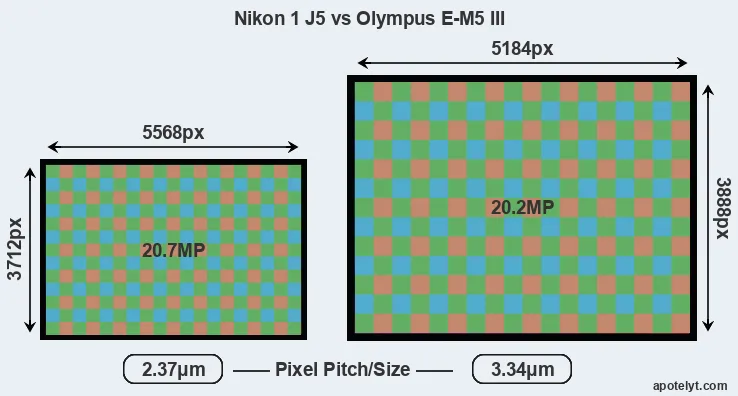

Despite having a smaller sensor, the Nikon 1 J5 offers a higher resolution of 20.7 megapixels, compared with 20.2 MP of the Olympus E-M5 III. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.37μm versus 3.34μm for the E-M5 III). Moreover, it should be noted that the E-M5 III is much more recent (by 4 years and 6 months) than the J5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
Unlike the J5, the E-M5 III has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Nikon 1 J5 has a native sensitivity range from ISO 160 to ISO 12800. The corresponding ISO settings for the Olympus OM-D E-M5 Mark III are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Nikon 1 J5||1-inch||20.7||5568||3712||4K/15p||21.1||12.0||479||65|
|2.||Olympus E-M5 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|3.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|4.||Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63|
|5.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|6.||Nikon 1 V3||1-inch||18.2||5232||3488||1080/60p||20.8||10.7||384||52|
|7.||Nikon 1 J4||1-inch||18.2||5232||3488||1080/60p||20.8||10.7||426||53|
|8.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|9.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|10.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|11.||Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|12.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|14.||Sony RX100 V||1-inch||20.0||5472||3648||4K/30p||22.8||12.4||586||70|
|15.||Sony RX100 IV||1-inch||20.0||5472||3648||4K/30p||22.8||12.6||591||70|
|17.||Sony RX100 III||1-inch||20.0||5472||3648||1080/60p||22.4||12.3||495||67|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-M5 III provides a faster frame rate than the J5. It can shoot movie footage at 4K/30p, while the Nikon is limited to 4K/15p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M5 III has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the J5 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Nikon 1 J5, the Olympus E-M5 III, and comparable cameras.
|1.||Nikon 1 J5||none||n||3.0||1037||tilting||Y||1/4000s||60.0||Y||n|
|2.||Olympus E-M5 III||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y|
|3.||Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y|
|4.||Canon G9 X||none||n||3.0||1040||fixed||Y||1/2000s||6.0||Y||Y|
|5.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
|6.||Nikon 1 V3||optional||n||3.0||1037||tilting||Y||1/4000s||60.0||Y||n|
|7.||Nikon 1 J4||none||n||3.0||1037||Fixed||Y||1/4000s||60.0||Y||n|
|9.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|14.||Sony RX100 V||2359||n||3.0||1229||tilting||n||1/2000s||24.0||Y||Y|
|15.||Sony RX100 IV||2359||n||3.0||1228||tilting||n||1/2000s||16.0||Y||Y|
|17.||Sony RX100 III||1440||n||3.0||1229||tilting||n||1/2000s||10.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The J5 has one, while the E-M5 III does not. While the built-in flash of the J5 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon 1 J5 and the Olympus E-M5 III both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the J5 and the E-M5 III write their files to SDXC cards. The E-M5 III supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the J5 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon 1 J5 and Olympus OM-D E-M5 Mark III and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Nikon 1 J5||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|2.||Olympus E-M5 III||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|3.||Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon G9 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|5.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|6.||Nikon 1 V3||-||stereo||mono||Y||-||mini||2.0||Y||-||-|
|7.||Nikon 1 J4||-||stereo||mono||-||-||mini||2.0||Y||-||-|
|9.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|14.||Sony RX100 V||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|15.||Sony RX100 IV||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|17.||Sony RX100 III||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the E-M5 III has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The J5 does not feature such a mic input.
The E-M5 III is a recent model that features in the current product line-up of Olympus. In contrast, the J5 has been discontinued (but can be found pre-owned on eBay). There has not been a direct replacement model for the J5 from Nikon. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So how do things add up? Is the Nikon 1 J5 better than the Olympus E-M5 III or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Nikon 1 J5:
- Faster burst: Shoots at higher frequency (60 vs 10 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (98x60mm vs 125x85mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 183g or 44 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (67 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in April 2015).
Arguments in favor of the Olympus OM-D E-M5 Mark III:
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher movie framerates (4K/30p versus 4K/15p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Gets more shots (310 versus 250) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 4 years and 6 months of technical progress since the J5 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the E-M5 III is the clear winner of the contest (18 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon 1 J5 and the Olympus E-M5 III place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the J5 or the E-M5 III perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon 1 J5||..||..||..||4.5/5||4.5/5||Apr 2015||399|
|2.||Olympus E-M5 III||5/5||+||82/100||4.5/5||4.5/5||Oct 2019||1,199|
|3.||Canon G9 X Mark II||4/5||..||75/100||4.5/5||4.5/5||Jan 2017||529|
|4.||Canon G9 X||3.5/5||+ +||..||4.5/5||4.5/5||Oct 2015||529|
|5.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|6.||Nikon 1 V3||3/5||..||76/100||4.5/5||4/5||Mar 2014||799|
|7.||Nikon 1 J4||3/5||..||..||4.5/5||4/5||Apr 2014||549|
|8.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|9.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|10.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|11.||Olympus E-M5||4/5||+ +||80/100||4.5/5||5/5||Feb 2012||1,299|
|12.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|13.||Panasonic FZ1000||4/5||+ +||82/100||4.5/5||4.5/5||Jun 2014||899|
|14.||Sony RX100 V||4.5/5||+ +||83/100||4/5||4.5/5||Oct 2016||999|
|15.||Sony RX100 IV||4.5/5||+ +||85/100||4/5||4.5/5||Jun 2015||999|
|16.||Sony A5000||3/5||+||..||4.5/5||4.5/5||Jan 2014||449|
|17.||Sony RX100 III||5/5||+ +||82/100||4.5/5||5/5||May 2014||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Nikon 1 J5 vs Olympus E-M5 III
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon 1 J5||Olympus E-M5 III|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Nikon 1 mount lenses||Micro Four Thirds lenses|
|Launch Date||April 2015||October 2019|
|Launch Price||USD 399||USD 1,199|
|Sensor Specs||Nikon 1 J5||Olympus E-M5 III|
|Sensor Format||1" Sensor||Four Thirds Sensor|
|Sensor Size||13.2 x 8.8 mm||17.3 x 13.0 mm|
|Sensor Area||116.16 mm2||224.9 mm2|
|Sensor Diagonal||15.9 mm||21.6 mm|
|Sensor Resolution||20.7 Megapixels||20.2 Megapixels|
|Image Resolution||5568 x 3712 pixels||5184 x 3888 pixels|
|Pixel Pitch||2.37 μm||3.34 μm|
|Pixel Density||17.79 MP/cm2||8.96 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||4K/15p Video||4K/30p Video|
|ISO Setting||160 - 12,800 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||64 - 25,600 ISO|
|Image Processor||EXPEED 5||TruePic VIII|
|DXO Sensor Quality (score)||65||..|
|DXO Color Depth (bits)||21.1||..|
|DXO Dynamic Range (EV)||12.0||..|
|DXO Low Light (ISO)||479||..|
|Screen Specs||Nikon 1 J5||Olympus E-M5 III|
|Viewfinder Type||no viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1037k dots||1040k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Nikon 1 J5||Olympus E-M5 III|
|Focus System||On-Sensor Phase-detect||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||60 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||up to 1/32000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Nikon 1 J5||Olympus E-M5 III|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Nikon 1 J5||Olympus E-M5 III|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||250 shots per charge||310 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
98 x 60 x 32 mm
(3.9 x 2.4 x 1.3 in)
125 x 85 x 50 mm
(4.9 x 3.3 x 2.0 in)
|Camera Weight||231 g (8.1 oz)||414 g (14.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
