Nikon 1 J4 vs Olympus E-M5

The Nikon 1 J4 and the Olympus OM-D E-M5 are two digital cameras that were officially introduced, respectively, in April 2014 and February 2012. Both the J4 and the E-M5 are mirrorless interchangeable lens cameras that are based on an one-inch (J4) and a Four Thirds (E-M5) sensor. The Nikon has a resolution of 18.2 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon 1 J4
versus
Olympus E-M5
Nikon 1 J4   Olympus E-M5
Mirrorless system camera Mirrorless system camera
Nikon 1 mount lenses Micro Four Thirds lenses
18.2 MP – 1" sensor 15.9 MP – Four Thirds sensor
1080/60p Video 1080/60i Video
ISO 160-12,800 ISO 200-25,600
No viewfinder, LCD framing Electronic viewfinder (1440k dots)
3.0" LCD – 1037k dots 3.0" LCD – 610k dots
no rear screen Tilting touchscreen
60 shutter flaps per second 9 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
300 shots per battery charge360 shots per battery charge
100 x 60 x 29 mm, 232 g 122 x 89 x 43 mm, 425 g
logo
Check J4 offers at
ebay.com
logo
Check E-M5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon 1 J4 and the Olympus OM-D E-M5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

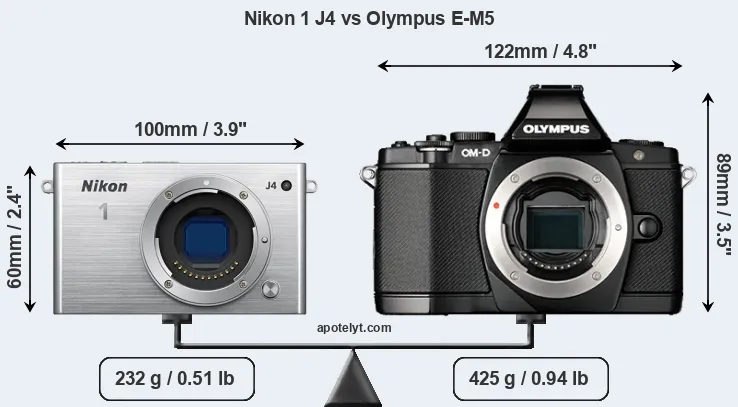

The side-by-side display below illustrates the physical size and weight of the Nikon 1 J4 and the Olympus E-M5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The J4 can be obtained in four different colors (black, silver, orange, white), while the E-M5 is available in two color-versions (black, silver).

Size Nikon 1 J4 vs Olympus E-M5
Compare J4 versus E-M5 top
Comparison J4 or E-M5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 is considerably larger (81 percent) than the Nikon 1 J4. Moreover, the E-M5 is substantially heavier (83 percent) than the J4. It is noteworthy in this context that the E-M5 is splash and dust-proof, while the J4 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon 1 J4 100 mm 60 mm 29 mm 232 g 300 n Apr 2014 549ebay.com
2.

Olympus E-M5 122 mm 89 mm 43 mm 425 g 360 Y Feb 2012 1,299ebay.com
3.

Canon G9 X Mark II 98 mm 58 mm 31 mm 206 g 235 n Jan 2017 529ebay.com
4.

Canon G9 X 98 mm 58 mm 31 mm 209 g 220 n Oct 2015 529ebay.com
5.

Canon SL1 117 mm 91 mm 69 mm 407 g 380 n Mar 2013 549ebay.com
6.

Nikon P900 140 mm 103 mm 137 mm 899 g 360 n Mar 2015 599ebay.com
7.

Nikon 1 J5 98 mm 60 mm 32 mm 231 g 250 n Apr 2015 399ebay.com
8.

Nikon 1 V3 111 mm 65 mm 33 mm 381 g 310 n Mar 2014 799ebay.com
9.

Nikon 1 V2 109 mm 82 mm 46 mm 278 g 310 n Oct 2012 799ebay.com
10.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
11.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
12.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
13.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999ebay.com
14.

Panasonic GF7 107 mm 65 mm 33 mm 266 g 230 n Jan 2015 499ebay.com
15.

Panasonic FZ1000 137 mm 99 mm 131 mm 831 g 360 n Jun 2014 899ebay.com
16.

Panasonic G6 122 mm 85 mm 71 mm 390 g 340 n Apr 2013 599ebay.com
17.

Panasonic GX7 123 mm 71 mm 55 mm 402 g 350 n Aug 2013 999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The J4 was launched at a markedly lower price (by 58 percent) than the E-M5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon 1 J4 features an one-inch sensor and the Olympus E-M5 a Four Thirds sensor. The sensor area in the E-M5 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the J4 has a native 3:2 aspect ratio, while the one in the E-M5 offers a 4:3 aspect.

Nikon 1 J4 and Olympus E-M5 sensor measures

Despite having a smaller sensor, the Nikon 1 J4 offers a higher resolution of 18.2 megapixels, compared with 15.9 MP of the Olympus E-M5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.52μm versus 3.76μm for the E-M5). However, it should be noted that the J4 is much more recent (by 2 years and 2 months) than the E-M5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the J4 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon 1 J4 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the J4 for good quality output (200 dots per inch) amounts to 26.2 x 17.4 inches or 66.4 x 44.3 cm, for very good quality (250 dpi) 20.9 x 14 inches or 53.2 x 35.4 cm, and for excellent quality (300 dpi) 17.4 x 11.6 inches or 44.3 x 29.5 cm. The corresponding values for the Olympus E-M5 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The J4 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Nikon 1 J4 has a native sensitivity range from ISO 160 to ISO 12800. The corresponding ISO settings for the Olympus OM-D E-M5 are ISO 200 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

J4 versus E-M5 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the E-M5 offers substantially better image quality than the J4 (overall score 18 points higher). The advantage is based on 2 bits higher color depth, 1.6 EV in additional dynamic range, and 1 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Nikon 1 J4 1-inch 18.2 5232 34881080/60p20.810.742653
2.

Olympus E-M5 Four Thirds 15.9 4608 34561080/60i22.812.382671
3.

Canon G9 X Mark II 1-inch 20.0 5472 36481080/60p21.912.552265
4.

Canon G9 X 1-inch 20.0 5472 36481080/60p21.512.349563
5.

Canon SL1 APS-C 17.9 5184 34561080/30p21.811.384363
6.

Nikon P900 1/2.3 15.9 4608 34561080/60p20.211.672747
7.

Nikon 1 J5 1-inch 20.7 5568 37124K/15p21.112.047965
8.

Nikon 1 V3 1-inch 18.2 5232 34881080/60p20.810.738452
9.

Nikon 1 V2 1-inch 14.2 4608 30721080/60p20.210.840350
10.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
11.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
12.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
13.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
14.

Panasonic GF7 Four Thirds 15.8 4592 34481080/60p22.712.387470
15.

Panasonic FZ1000 1-inch 20.0 5472 36484K/30p22.111.751764
16.

Panasonic G6 Four Thirds 15.9 4608 34561080/60p21.311.563961
17.

Panasonic GX7 Four Thirds 15.8 4592 34481080/60p22.612.271870
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the J4 provides a higher frame rate than the E-M5. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/60i.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M5 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the J4 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Nikon 1 J4, the Olympus E-M5, and comparable cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Nikon 1 J4none n3.0 / 1037 Fixed Y 1/4000s 60.0/s Y n
2.

Olympus E-M51440 n3.0 / 610 tilting Y 1/4000s 9.0/s n Y
3.

Canon G9 X Mark IInone n3.0 / 1040 fixed Y 1/2000s 8.2/s Y Y
4.

Canon G9 Xnone n3.0 / 1040 fixed Y 1/2000s 6.0/s Y Y
5.

Canon SL1optical n3.0 / 1040 fixed Y 1/4000s 4.9/s Y n
6.

Nikon P900921 n3.0 / 921 swivel n 1/4000s 7.0/s Y Y
7.

Nikon 1 J5none n3.0 / 1037 tilting Y 1/4000s 60.0/s Y n
8.

Nikon 1 V3optional n3.0 / 1037 tilting Y 1/4000s 60.0/s Y n
9.

Nikon 1 V21440 n3.0 / 921 fixed n 1/4000s 15.0/s Y n
10.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
11.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
12.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
13.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
14.

Panasonic GF7none n3.0 / 1040 tilting Y 1/500s 5.8/s Y n
15.

Panasonic FZ10002359 n3.0 / 921 swivel n 1/4000s 12.0/s Y Y
16.

Panasonic G61440 n3.0 / 1036 swivel Y 1/4000s 7.0/s Y n
17.

Panasonic GX72760 n3.0 / 1040 tilting Y 1/8000s 5.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One difference between the cameras concerns the presence of an on-board flash. The J4 has one, while the E-M5 does not. While the built-in flash of the J4 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the J4 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The J4 writes its imaging data to micro SDXC cards, while the E-M5 uses SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon 1 J4 and Olympus OM-D E-M5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Nikon 1 J4-stereo / mono--mini2.0Y--
2.

Olympus E-M5Ystereo / mono--mini2.0---
3.

Canon G9 X Mark II-stereo / mono--micro2.0YYY
4.

Canon G9 X-stereo / mono--micro2.0YY-
5.

Canon SL1Ymono / monoY-mini2.0---
6.

Nikon P900-stereo / mono--micro2.0YY-
7.

Nikon 1 J5-stereo / mono--micro2.0YY-
8.

Nikon 1 V3-stereo / monoY-mini2.0Y--
9.

Nikon 1 V2-stereo / mono--mini2.0---
10.

Olympus PEN-FYstereo / mono--micro2.0Y--
11.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
12.

Olympus E-M1Ystereo / monoY-micro2.0Y--
13.

Olympus E-P5Ystereo / mono--micro2.0Y--
14.

Panasonic GF7-stereo / mono--micro2.0YY-
15.

Panasonic FZ1000Ystereo / monoY-micro2.0YY-
16.

Panasonic G6Ystereo / monoY-mini2.0YY-
17.

Panasonic GX7Ystereo / mono--mini2.0YY-
padding

It is notable that the J4 offers wifi support, while the E-M5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the J4 and the E-M5 have been discontinued, but can regularly be found used on ebay. The E-M5 was replaced by the Olympus E-M5 II, while the J4 was followed by the Nikon 1 J5. Further information on the features and operation of the J4 and E-M5 can be found, respectively, in the Nikon 1 J4 Manual (free pdf) or the online Olympus E-M5 Manual.

ad

Review summary

So what conclusions can be drawn? Which of the two cameras – the Nikon 1 J4 or the Olympus E-M5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

ilogo

Reasons to prefer the Nikon 1 J4:

  • More detail: Offers more megapixels (18.2 vs 15.9MP) with a 9% higher linear resolution.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 610k dots).
  • Faster burst: Shoots at higher frequency (60 vs 9 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (100x60mm vs 122x89mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 193g or 45 percent) and hence easier to carry around.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More affordable: Was introduced into a lower priced category (58 percent cheaper at launch).
  • More modern: Reflects 2 years and 2 months of technical progress since the E-M5 launch.

ilogo

Arguments in favor of the Olympus OM-D E-M5:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Scores substantially higher (18 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (1.6 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1 stops ISO advantage).
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • Longer lasting: Gets more shots (360 versus 300) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • More heavily discounted: Has been around for much longer (launched in February 2012).

If the count of individual advantages (bullet points above) is taken as a guide, the J4 emerges as the winner of the contest (13 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

J4 13:11 E-M5

How about other alternatives? Do the specifications of the Nikon 1 J4 and the Olympus E-M5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the J4 and the E-M5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon 1 J43/5......4.5/54/5 Apr 2014 549ebay.com
2.

Olympus E-M54/5+ +..80/1004.5/55/5 Feb 2012 1,299ebay.com
3.

Canon G9 X Mark II4/5..4/575/1004.5/54.5/5 Jan 2017 529ebay.com
4.

Canon G9 X3.5/5+ +....4.5/54.5/5 Oct 2015 529ebay.com
5.

Canon SL14/5+..78/1004/54/5 Mar 2013 549ebay.com
6.

Nikon P900......77/1004/54/5 Mar 2015 599ebay.com
7.

Nikon 1 J5........4.5/54.5/5 Apr 2015 399ebay.com
8.

Nikon 1 V33/5....76/1004.5/54/5 Mar 2014 799ebay.com
9.

Nikon 1 V23/5......4.5/54/5 Oct 2012 799ebay.com
10.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
11.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
12.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
13.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999ebay.com
14.

Panasonic GF74/5+....4.5/54.5/5 Jan 2015 499ebay.com
15.

Panasonic FZ10004/5+ +..82/1004.5/54.5/5 Jun 2014 899ebay.com
16.

Panasonic G64/5+ +....5/54.5/5 Apr 2013 599ebay.com
17.

Panasonic GX74/5+..79/1005/55/5 Aug 2013 999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check J4 offers at
ebay.com
logo
Check E-M5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Nikon 1 J4 vs Olympus E-M5

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon 1 J4 Olympus E-M5
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Nikon 1 mount lenses Micro Four Thirds lenses
    Launch Date April 2014 February 2012
    Launch Price USD 549 USD 1,299
    Sensor Specs Nikon 1 J4 Olympus E-M5
    Sensor Technology CMOS CMOS
    Sensor Format 1" Sensor Four Thirds Sensor
    Sensor Size 13.2 x 8.8 mm 17.3 x 13.0 mm
    Sensor Area 116.16 mm2 224.9 mm2
    Sensor Diagonal 15.9 mm 21.6 mm
    Crop Factor 2.7x 2.0x
    Sensor Resolution 18.2 Megapixels 15.9 Megapixels
    Image Resolution 5232 x 3488 pixels 4608 x 3456 pixels
    Pixel Pitch 2.52 μm 3.76 μm
    Pixel Density 15.71 MP/cm2 7.08 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 1080/60p Video 1080/60i Video
    ISO Setting 160 - 12,800 ISO 200 - 25,600 ISO
    Image Processor EXPEED 4 TruePic VI
    DXO Sensor Quality (score) 53 71
    DXO Color Depth (bits) 20.8 22.8
    DXO Dynamic Range (EV) 10.7 12.3
    DXO Low Light (ISO) 426 826
    Screen Specs Nikon 1 J4 Olympus E-M5
    Viewfinder Type no viewfinder Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.58x
    Viewfinder Resolution 1440k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1037k dots 610k dots
    LCD Attachment Tilting screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Nikon 1 J4 Olympus E-M5
    Focus System On-Sensor Phase-detect Contrast-detect AF
    Continuous Shooting 60 shutter flaps/s 9 shutter flaps/s
    Electronic Shutterup to 1/16000sno E-Shutter
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium mSDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Nikon 1 J4 Olympus E-M5
    External Flash no Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Wifi Support Wifi built-in no Wifi
    Body Specs Nikon 1 J4 Olympus E-M5
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Nikon EN-EL22 Olympus BLN-1
    Battery Life (CIPA)300 shots per charge360 shots per charge
    Body Dimensions 100 x 60 x 29 mm
    (3.9 x 2.4 x 1.1 in)
    122 x 89 x 43 mm
    (4.8 x 3.5 x 1.7 in)
    Camera Weight 232 g (8.2 oz) 425 g (15.0 oz)
    logo
    Check J4 offers at
    ebay.com
    logo
    Check E-M5 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon 1 J4 vs Olympus E-M5
