Nikon 1 J4 vs J5
The Nikon 1 J4 and the Nikon 1 J5 are two digital cameras that were announced, respectively, in April 2014 and April 2015. Both the J4 and the J5 are mirrorless interchangeable lens cameras that are equipped with an one-inch sensor. The J4 has a resolution of 18.2 megapixels, whereas the J5 provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon 1 J4 and the Nikon 1 J5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

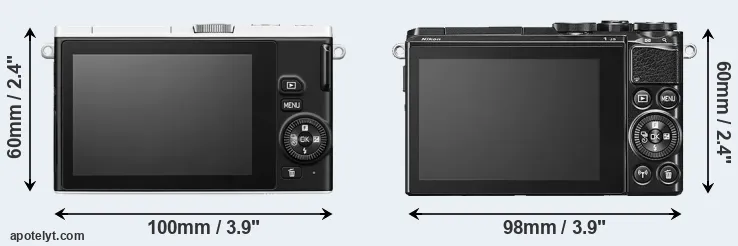

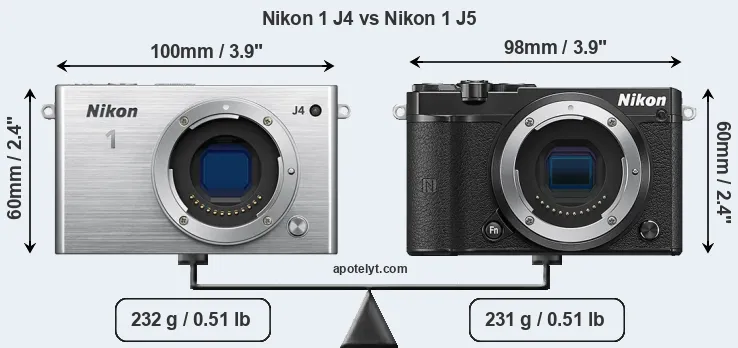

The physical size and weight of the Nikon 1 J4 and the Nikon 1 J5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The J4 can be obtained in four different colors (black, silver, orange, white), while the J5 is available in three color-versions (black, silver, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon 1 J5 is somewhat smaller (2 percent) than the Nikon 1 J4. Moreover, the J5 is slightly lighter (0 percent) than the J4. In this context, it is worth noting that neither the J4 nor the J5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon 1 J4||100 mm||60 mm||29 mm||232 g||300||n||Apr 2014||549||ebay.com|
|2.||Nikon 1 J5||98 mm||60 mm||32 mm||231 g||250||n||Apr 2015||399||ebay.com|
|3.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529||amazon.com|
|4.||Canon G9 X||98 mm||58 mm||31 mm||209 g||220||n||Oct 2015||529||ebay.com|
|5.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|6.||Nikon P900||140 mm||103 mm||137 mm||899 g||360||n||Mar 2015||599||ebay.com|
|7.||Nikon 1 V3||111 mm||65 mm||33 mm||381 g||310||n||Mar 2014||799||ebay.com|
|8.||Nikon 1 V2||109 mm||82 mm||46 mm||278 g||310||n||Oct 2012||799||ebay.com|
|9.||Panasonic GF7||107 mm||65 mm||33 mm||266 g||230||n||Jan 2015||499||ebay.com|
|10.||Panasonic FZ1000||137 mm||99 mm||131 mm||831 g||360||n||Jun 2014||899||ebay.com|
|11.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599||ebay.com|
|12.||Sony RX100 IV||102 mm||58 mm||41 mm||298 g||280||n||Jun 2015||999||ebay.com|
|13.||Sony A5000||110 mm||63 mm||36 mm||269 g||420||n||Jan 2014||449||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The J5 was launched at a markedly lower price (by 27 percent) than the J4, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an one-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 2.7. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the J5 uses a more advanced image processing engine (EXPEED 5) than the J4 (EXPEED 4), with benefits for noise reduction, color accuracy, and processing speed.
While the two cameras under review share the same sensor size, the J5 offers a higher resolution of 20.7 megapixels, compared with 18.2 MP of the J4. This megapixels advantage translates into a 6 percent gain in linear resolution. On the other hand, these sensor specs imply that the J5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.37μm versus 2.52μm for the J4). However, it should be noted that the J5 is a somewhat more recent model (by 11 months) than the J4, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Nikon 1 J5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the J5 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Nikon 1 J4 are 26.2 x 17.4 inches or 66.4 x 44.3 cm for good quality, 20.9 x 14 inches or 53.2 x 35.4 cm for very good quality, and 17.4 x 11.6 inches or 44.3 x 29.5 cm for excellent quality prints.
The Nikon 1 J4 has a native sensitivity range from ISO 160 to ISO 12800. The Nikon 1 J5 offers exactly the same ISO settings.
In terms of underlying technology, the J4 is build around a CMOS sensor, while the J5 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the J5 offers substantially better image quality than the J4 (overall score 12 points higher). The advantage is based on 0.3 bits higher color depth, 1.3 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|1.||Nikon 1 J4||1-inch||18.2||5232||3488||1080/60p||20.8||10.7||426||53|
|2.||Nikon 1 J5||1-inch||20.7||5568||3712||4K/15p||21.1||12.0||479||65|
|3.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|4.||Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63|
|7.||Nikon 1 V3||1-inch||18.2||5232||3488||1080/60p||20.8||10.7||384||52|
|8.||Nikon 1 V2||1-inch||14.2||4608||3072||1080/60p||20.2||10.8||403||50|
|9.||Panasonic GF7||Four Thirds||15.8||4592||3448||1080/60p||22.7||12.3||874||70|
|11.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|12.||Sony RX100 IV||1-inch||20.0||5472||3648||4K/30p||22.8||12.6||591||70|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the J5 provides a better video resolution than the J4. It can shoot movie footage at 4K/15p, while the J4 is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. The J4 and the J5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Nikon 1 J4 and Nikon 1 J5 along with similar information for a selection of comparators.
|1.||Nikon 1 J4||none||n||3.0 / 1037||Fixed||Y||1/4000s||60.0/s||Y||n|
|2.||Nikon 1 J5||none||n||3.0 / 1037||tilting||Y||1/4000s||60.0/s||Y||n|
|3.||Canon G9 X Mark II||none||n||3.0 / 1040||fixed||Y||1/2000s||8.2/s||Y||Y|
|4.||Canon G9 X||none||n||3.0 / 1040||fixed||Y||1/2000s||6.0/s||Y||Y|
|5.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|6.||Nikon P900||921||n||3.0 / 921||swivel||n||1/4000s||7.0/s||Y||Y|
|7.||Nikon 1 V3||optional||n||3.0 / 1037||tilting||Y||1/4000s||60.0/s||Y||n|
|8.||Nikon 1 V2||1440||n||3.0 / 921||fixed||n||1/4000s||15.0/s||Y||n|
|9.||Panasonic GF7||none||n||3.0 / 1040||tilting||Y||1/500s||5.8/s||Y||n|
|10.||Panasonic FZ1000||2359||n||3.0 / 921||swivel||n||1/4000s||12.0/s||Y||Y|
|11.||Panasonic G6||1440||n||3.0 / 1036||swivel||Y||1/4000s||7.0/s||Y||n|
|12.||Sony RX100 IV||2359||n||3.0 / 1228||tilting||n||1/2000s||16.0/s||Y||Y|
|13.||Sony A5000||none||n||3.0 / 461||tilting||n||1/4000s||3.5/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon 1 J5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The J4 writes its imaging data to micro SDXC cards, while the J5 uses SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon 1 J4 and Nikon 1 J5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Nikon 1 J4||-||stereo / mono||-||-||mini||2.0||Y||-||-|
|2.||Nikon 1 J5||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|3.||Canon G9 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon G9 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|5.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|6.||Nikon P900||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|7.||Nikon 1 V3||-||stereo / mono||Y||-||mini||2.0||Y||-||-|
|8.||Nikon 1 V2||-||stereo / mono||-||-||mini||2.0||-||-||-|
|9.||Panasonic GF7||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|10.||Panasonic FZ1000||Y||stereo / mono||Y||-||micro||2.0||Y||Y||-|
|11.||Panasonic G6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|12.||Sony RX100 IV||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|13.||Sony A5000||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
Both the J4 and the J5 have been discontinued, but can regularly be found used on ebay. The J4 was replaced by the Nikon 1 J5, while the J5 does not have a direct successor. Further information on the features and operation of the J4 and J5 can be found, respectively, in the Nikon 1 J4 Manual (free pdf) or the online Nikon 1 J5 Manual.
So what conclusions can be drawn? Is the Nikon 1 J4 better than the Nikon 1 J5 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Nikon 1 J4:
- Longer lasting: Can take more shots (300 versus 250) on a single battery charge.
- More heavily discounted: Has been on the market for longer (launched in April 2014).
Arguments in favor of the Nikon 1 J5:
- More detail: Has more megapixels (20.7 vs 18.2MP), which boosts linear resolution by 6%.
- Better image quality: Scores substantially higher (12 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
- Better jpgs: Has a more modern image processing engine (EXPEED 5 vs EXPEED 4).
- Better video: Provides higher definition movie capture (4K/15p vs 1080/60p).
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (27 percent cheaper at launch).
- More modern: Was introduced somewhat (11 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the J5 is the clear winner of the contest (10 : 2 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon 1 J4 and the Nikon 1 J5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the J4 or the J5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon 1 J4||3/5||..||..||..||4.5/5||4/5||Apr 2014||549||ebay.com|
|2.||Nikon 1 J5||..||..||..||..||4.5/5||4.5/5||Apr 2015||399||ebay.com|
|3.||Canon G9 X Mark II||4/5||..||4/5||75/100||4.5/5||4.5/5||Jan 2017||529||amazon.com|
|4.||Canon G9 X||3.5/5||+ +||..||..||4.5/5||4.5/5||Oct 2015||529||ebay.com|
|5.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|6.||Nikon P900||..||..||..||77/100||4/5||4/5||Mar 2015||599||ebay.com|
|7.||Nikon 1 V3||3/5||..||..||76/100||4.5/5||4/5||Mar 2014||799||ebay.com|
|8.||Nikon 1 V2||3/5||..||..||..||4.5/5||4/5||Oct 2012||799||ebay.com|
|9.||Panasonic GF7||4/5||+||..||..||4.5/5||4.5/5||Jan 2015||499||ebay.com|
|10.||Panasonic FZ1000||4/5||+ +||..||82/100||4.5/5||4.5/5||Jun 2014||899||ebay.com|
|11.||Panasonic G6||4/5||+ +||..||..||5/5||4.5/5||Apr 2013||599||ebay.com|
|12.||Sony RX100 IV||4.5/5||+ +||..||85/100||4/5||4.5/5||Jun 2015||999||ebay.com|
|13.||Sony A5000||3/5||+||..||..||4.5/5||4.5/5||Jan 2014||449||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Nikon 1 J4 vs Nikon 1 J5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon 1 J4||Nikon 1 J5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Nikon 1 mount lenses||Nikon 1 mount lenses|
|Launch Date||April 2014||April 2015|
|Launch Price||USD 549||USD 399|
|Sensor Specs||Nikon 1 J4||Nikon 1 J5|
|Sensor Format||1" Sensor||1" Sensor|
|Sensor Size||13.2 x 8.8 mm||13.2 x 8.8 mm|
|Sensor Area||116.16 mm2||116.16 mm2|
|Sensor Diagonal||15.9 mm||15.9 mm|
|Sensor Resolution||18.2 Megapixels||20.7 Megapixels|
|Image Resolution||5232 x 3488 pixels||5568 x 3712 pixels|
|Pixel Pitch||2.52 μm||2.37 μm|
|Pixel Density||15.71 MP/cm2||17.79 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/60p Video||4K/15p Video|
|ISO Setting||160 - 12,800 ISO||160 - 12,800 ISO|
|Image Processor||EXPEED 4||EXPEED 5|
|DXO Sensor Quality (score)||53||65|
|DXO Color Depth (bits)||20.8||21.1|
|DXO Dynamic Range (EV)||10.7||12.0|
|DXO Low Light (ISO)||426||479|
|Screen Specs||Nikon 1 J4||Nikon 1 J5|
|Viewfinder Type||no viewfinder||no viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1037k dots||1037k dots|
|LCD Attachment||Tilting screen|
|Shooting Specs||Nikon 1 J4||Nikon 1 J5|
|Focus System||On-Sensor Phase-detect||On-Sensor Phase-detect|
|Continuous Shooting||60 shutter flaps/s||60 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||mSDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Nikon 1 J4||Nikon 1 J5|
|External Flash||no Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Nikon 1 J4||Nikon 1 J5|
|Battery Life (CIPA)||300 shots per charge||250 shots per charge|
100 x 60 x 29 mm
(3.9 x 2.4 x 1.1 in)
98 x 60 x 32 mm
(3.9 x 2.4 x 1.3 in)
|Camera Weight||232 g (8.2 oz)||231 g (8.1 oz)|
