Leica X-U Typ 113 vs Nikon D3500
The Leica X-U (Typ 113) and the Nikon D3500 are two digital cameras that were revealed to the public, respectively, in January 2016 and August 2018. The X-U Typ 113 is a fixed lens compact, while the D3500 is a DSLR. Both cameras are equipped with an APS-C sensor. The Leica has a resolution of 16.1 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica X-U (Typ 113) and the Nikon D3500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Leica X-U Typ 113 and the Nikon D3500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3500 is notably larger (9 percent) than the Leica X-U Typ 113. It is worth mentioning in this context that the X-U Typ 113 is splash and dust resistant, while the D3500 does not feature any corresponding weather-sealing. More than that, the X-U Typ 113 is water-proof up to 3m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X-U Typ 113 has a lens built in, whereas the D3500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D3500 and their specifications in the Nikon Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Leica X-U Typ 113||140 mm||79 mm||88 mm||635 g||450||Y||Jan 2016||2,950||ebay.com|
|2.||Nikon D3500||124 mm||97 mm||70 mm||415 g||1550||n||Aug 2018||429||amazon.com|
|3.||Canon G1 X Mark III||115 mm||78 mm||51 mm||399 g||200||Y||Oct 2017||1,299||amazon.com|
|4.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999||amazon.com|
|5.||Leica CL||131 mm||78 mm||45 mm||403 g||220||n||Nov 2017||2,795||amazon.com|
|6.||Leica M Typ 262||139 mm||80 mm||42 mm||680 g||..||Y||Nov 2015||5,195||ebay.com|
|7.||Leica Q Typ 116||130 mm||80 mm||93 mm||640 g||300||n||Jun 2015||4,249||ebay.com|
|8.||Leica X Vario||133 mm||73 mm||95 mm||680 g||450||n||Jun 2013||2,850||ebay.com|
|9.||Leica V-LUX 2||124 mm||80 mm||95 mm||520 g||410||n||Sep 2010||849||ebay.com|
|10.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389||amazon.com|
|11.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|12.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499||ebay.com|
|13.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499||ebay.com|
|14.||Nikon Df||144 mm||110 mm||67 mm||760 g||1400||Y||Nov 2013||2,749||ebay.com|
|15.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799||ebay.com|
|16.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599||ebay.com|
|17.||Panasonic FZ300||132 mm||92 mm||117 mm||691 g||380||Y||Jul 2015||599||amazon.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D3500 is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

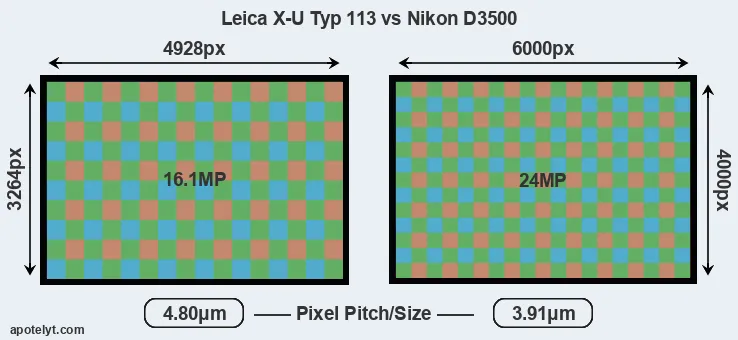

Despite having a slightly smaller sensor, the D3500 offers a higher resolution of 24 megapixels, compared with 16.1 MP of the X-U Typ 113. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 4.80μm for the X-U Typ 113). However, it should be noted that the D3500 is much more recent (by 2 years and 7 months) than the X-U Typ 113, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the D3500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D3500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3500 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Leica X-U Typ 113 are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.
The Leica X-U (Typ 113) has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Nikon D3500 are ISO 100 to ISO 25600 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|1.||Leica X-U Typ 113||APS-C||16.1||4928||3264||1080/30p||23.8||13.0||1614||80|
|3.||Canon G1 X Mark III||APS-C||24.0||6000||4000||1080/60p||23.8||13.2||1649||81|
|4.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|6.||Leica M Typ 262||Full Frame||23.7||5952||3976||none||24.8||13.7||2478||90|
|7.||Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85|
|8.||Leica X Vario||APS-C||16.1||4928||3272||1080/30p||23.4||12.7||1320||78|
|9.||Leica V-LUX 2||1/2.3||14.0||4320||3240||1080/60i||19.4||10.7||321||39|
|14.||Nikon Df||Full Frame||16.2||4928||3280||none||24.6||13.1||3279||89|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the D3500 provides a faster frame rate than the X-U Typ 113. It can shoot movie footage at 1080/60p, while the Leica is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D3500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X-U Typ 113 relies on live view and the rear LCD for framing. That said, the X-U Typ 113 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Leica X-U Typ 113 and Nikon D3500 in connection with corresponding information for a sample of similar cameras.
|1.||Leica X-U Typ 113||optional||n||3.0 / 920||fixed||n||1/2000s||5.0/s||Y||n|
|2.||Nikon D3500||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|3.||Canon G1 X Mark III||2360||n||3.0 / 1040||swivel||Y||1/2000s||9.0/s||Y||Y|
|4.||Canon G3 X||optional||n||3.2 / 1620||tilting||Y||1/2000s||5.9/s||Y||Y|
|5.||Leica CL||2360||Y||3.0 / 1040||fixed||Y||1/8000s||10.0/s||n||n|
|6.||Leica M Typ 262||optical||n||3.0 / 921||fixed||n||1/4000s||3.0/s||n||n|
|7.||Leica Q Typ 116||3680||n||3.0 / 1040||fixed||Y||1/2000s||10.0/s||n||Y|
|8.||Leica X Vario||optional||n||3.0 / 920||fixed||n||1/2000s||5.0/s||Y||n|
|9.||Leica V-LUX 2||202||n||3.0 / 460||swivel||n||1/2000s||11.0/s||Y||Y|
|10.||Nikon W300||none||n||3.0 / 921||fixed||n||1/4000s||7.0/s||Y||Y|
|11.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|13.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|14.||Nikon Df||optical||Y||3.2 / 921||fixed||n||1/4000s||5.5/s||n||n|
|15.||Nikon D5300||optical||n||3.2 / 1037||swivel||n||1/4000s||5.0/s||Y||n|
|16.||Nikon D3200||optical||n||3.0 / 921||fixed||n||1/4000s||4.0/s||Y||n|
|17.||Panasonic FZ300||1440||n||3.0 / 1040||swivel||Y||1/4000s||12.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
Concerning the storage of imaging data, both the X-U Typ 113 and the D3500 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica X-U (Typ 113) and Nikon D3500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica X-U Typ 113||Y||stereo / mono||-||-||-||2.0||-||-||-|
|2.||Nikon D3500||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|3.||Canon G1 X Mark III||Y||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon G3 X||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|5.||Leica CL||Y||stereo / mono||-||-||-||-||Y||-||-|
|6.||Leica M Typ 262||Y||- / -||-||-||-||2.0||-||-||-|
|7.||Leica Q Typ 116||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|8.||Leica X Vario||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|9.||Leica V-LUX 2||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|10.||Nikon W300||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|11.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|12.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|13.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|14.||Nikon Df||Y||- / -||-||-||mini||2.0||-||-||-|
|15.||Nikon D5300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|16.||Nikon D3200||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|17.||Panasonic FZ300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
The D3500 is a recent model that features in the current product line-up of Nikon. In contrast, the X-U Typ 113 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the X-U Typ 113 from Leica. Further information on the features and operation of the X-U Typ 113 and D3500 can be found, respectively, in the Leica X-U Typ 113 Manual (free pdf) or the online Nikon D3500 Manual.
So what conclusions can be drawn? Is the Leica X-U Typ 113 better than the Nikon D3500 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Leica X-U (Typ 113):
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Ready to shoot: Comes with a built-in lens, while the D3500 requires a separate lens.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 3m).
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More heavily discounted: Has been available for much longer (launched in January 2016).
Advantages of the Nikon D3500:
- More detail: Has more megapixels (24 vs 16.1MP), which boosts linear resolution by 22%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Makes it possible to change lenses and thus to use specialty optics.
- Longer lasting: Gets more shots (1550 versus 450) out of a single battery charge.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Reflects 2 years and 7 months of technical progress since the X-U Typ 113 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the D3500 emerges as the winner of the match-up (9 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica X-U Typ 113 and the Nikon D3500 place the cameras among the top in their class? Find out in the latest Best Prime Lens Compact Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the X-U Typ 113 and the D3500 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica X-U Typ 113||3.5/5||..||..||..||..||3.5/5||Jan 2016||2,950||ebay.com|
|2.||Nikon D3500||4/5||..||4/5||75/100||4/5||4.5/5||Aug 2018||429||amazon.com|
|3.||Canon G1 X Mark III||5/5||+||4/5||79/100||4.5/5||4.5/5||Oct 2017||1,299||amazon.com|
|4.||Canon G3 X||3.5/5||+||..||..||4.5/5||4/5||Jun 2015||999||amazon.com|
|5.||Leica CL||..||..||4.2/5||..||..||4/5||Nov 2017||2,795||amazon.com|
|6.||Leica M Typ 262||..||..||..||..||..||..||Nov 2015||5,195||ebay.com|
|7.||Leica Q Typ 116||5/5||..||..||80/100||4.5/5||4.5/5||Jun 2015||4,249||ebay.com|
|8.||Leica X Vario||3/5||..||..||..||4/5||4/5||Jun 2013||2,850||ebay.com|
|9.||Leica V-LUX 2||..||..||..||..||..||..||Sep 2010||849||ebay.com|
|10.||Nikon W300||..||+||..||..||4/5||4/5||May 2017||389||amazon.com|
|11.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|12.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499||ebay.com|
|13.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499||ebay.com|
|14.||Nikon Df||4/5||..||..||81/100||4/5||4/5||Nov 2013||2,749||ebay.com|
|15.||Nikon D5300||4/5||+ +||..||79/100||4.5/5||4.5/5||Oct 2013||799||ebay.com|
|16.||Nikon D3200||5/5||+ +||..||73/100||4.5/5||4.5/5||Apr 2012||599||ebay.com|
|17.||Panasonic FZ300||..||+ +||..||..||4.5/5||4.5/5||Jul 2015||599||amazon.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon G7 X Mark III vs Nikon D3500
- Canon SL3 vs Nikon D3500
- Fujifilm X-M1 vs Leica X-U Typ 113
- Kodak AZ901 vs Nikon D3500
- Leica X-U Typ 113 vs Nikon 1 J5
- Leica X-U Typ 113 vs Nikon B500
- Leica X-U Typ 113 vs Nikon D3100
- Leica X-U Typ 113 vs Sony RX1R
- Leica X-U Typ 113 vs Sony RX1R II
- Nikon D3500 vs Nikon D70
- Nikon D3500 vs Olympus E-M1
- Nikon D3500 vs Panasonic G10
Specifications: Leica X-U Typ 113 vs Nikon D3500
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica X-U Typ 113||Nikon D3500|
|Camera Type||Fixed lens compact camera||Digital single lens reflex|
|Camera Lens||35mm f/1.7||Nikon F mount lenses|
|Launch Date||January 2016||August 2018|
|Launch Price||USD 2,950||USD 429|
|Sensor Specs||Leica X-U Typ 113||Nikon D3500|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||23.6 x 15.7 mm||23.5 x 15.6 mm|
|Sensor Area||370.52 mm2||366.6 mm2|
|Sensor Diagonal||28.3 mm||28.2 mm|
|Sensor Resolution||16.1 Megapixels||24 Megapixels|
|Image Resolution||4928 x 3264 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.80 μm||3.91 μm|
|Pixel Density||4.34 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 12,500 ISO||100 - 25,600 ISO|
|Screen Specs||Leica X-U Typ 113||Nikon D3500|
|Viewfinder Type||Viewfinder optional||Optical viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Leica X-U Typ 113||Nikon D3500|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||5 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Leica X-U Typ 113||Nikon D3500|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Leica X-U Typ 113||Nikon D3500|
|Environmental Sealing||Waterproof body (3m)||not weather sealed|
|Battery Life (CIPA)||450 shots per charge||1550 shots per charge|
140 x 79 x 88 mm
(5.5 x 3.1 x 3.5 in)
124 x 97 x 70 mm
(4.9 x 3.8 x 2.8 in)
|Camera Weight||635 g (22.4 oz)||415 g (14.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
