Leica X Typ 113 vs Olympus TG-5

The Leica X (Typ 113) and the Olympus Tough TG-5 are two digital cameras that were revealed to the public, respectively, in September 2014 and May 2017. Both the X Typ 113 and the TG-5 are fixed lens compact cameras that are based on an APS-C (X Typ 113) and a 1/2.3-inch (TG-5) sensor. The Leica has a resolution of 16.1 megapixels, whereas the Olympus provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica X Typ 113		Olympus TG-5
Fixed lens compact camera		Fixed lens compact camera
35mm f/1.7		25-100mm f/2.0-4.9
16.1 MP – APS-C sensor		12 MP – 1/2.3" sensor
1080/30p Video		4K/30p Video
ISO 100-12,500		ISO 100-12,800
Viewfinder optional		No viewfinder, LCD framing
3.0" LCD – 920k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		20 shutter flaps per second
no shake reduction		In-body stabilization
not weather sealed		Waterproof body (15m)
350 shots per battery charge		340 shots per battery charge
133 x 73 x 78 mm, 486 g		113 x 66 x 32 mm, 250 g

Check X Typ 113 offers at
ebay.com
Check TG-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica X (Typ 113) and the Olympus Tough TG-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Leica X Typ 113 and the Olympus TG-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The X Typ 113 can be obtained in three different colors (black, brown, white), while the TG-5 is available in two color-versions (black, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-5 is notably smaller (23 percent) than the Leica X Typ 113. Moreover, the TG-5 is substantially lighter (49 percent) than the X Typ 113. It is noteworthy in this context that the TG-5 is splash and dust-proof, while the X Typ 113 does not feature any corresponding weather-sealing. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.

Concerning battery life, the X Typ 113 gets 350 shots out of its Leica BP-DC8 battery, while the TG-5 can take 340 images on a single charge of its Olympus LI-92B power pack. The power pack in the TG-5 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	2,295	ebay.com
2.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	449	ebay.com
3.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
4.		Fujifilm X100T	127 mm	74 mm	52 mm	440 g	330	n	Sep 2014	1,299	ebay.com
5.		Fujifilm X100S	127 mm	74 mm	54 mm	445 g	330	n	Jan 2013	1,299	ebay.com
6.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	2,795	ebay.com
7.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	1,950	ebay.com
8.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	1,195	ebay.com
9.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	2,850	ebay.com
10.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	1,995	ebay.com
11.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	849	ebay.com
12.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	449	ebay.com
13.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	379	ebay.com
14.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	499	ebay.com
15.		OM System TG-7	114 mm	66 mm	33 mm	249 g	330	Y	Sep 2023	549	amazon.com
16.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	699	ebay.com
17.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	2,799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TG-5 was launched at a markedly lower price (by 80 percent) than the X Typ 113, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica X Typ 113 features an APS-C sensor and the Olympus TG-5 a 1/2.3-inch sensor. The sensor area in the TG-5 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 5.6. The sensor in the X Typ 113 has a native 3:2 aspect ratio, while the one in the TG-5 offers a 4:3 aspect.

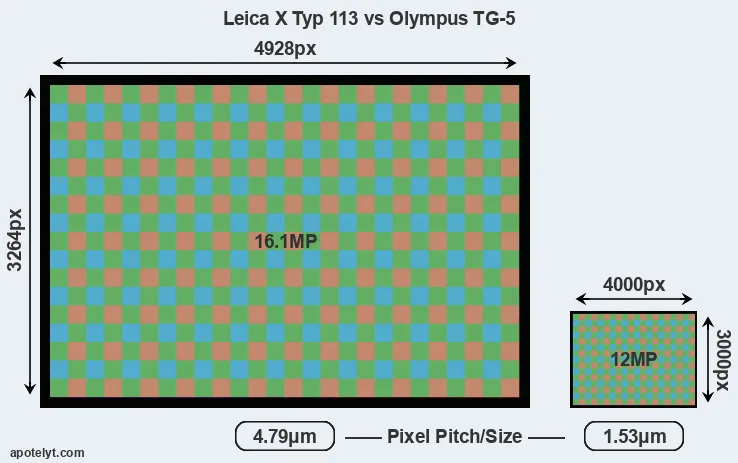

With 16.1MP, the X Typ 113 offers a higher resolution than the TG-5 (12MP), but the X Typ 113 nevertheless has larger individual pixels (pixel pitch of 4.79μm versus 1.53μm for the TG-5) due to its larger sensor. However, the TG-5 is a much more recent model (by 2 years and 8 months) than the X Typ 113, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Leica X Typ 113 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X Typ 113 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Leica X (Typ 113) has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Olympus Tough TG-5 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the X Typ 113 is build around a CMOS sensor, while the TG-5 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
2.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
3.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
4.		Fujifilm X100T	APS-C	16.0	4896	3264	1080/60p	23.6	12.8	1483	78
5.		Fujifilm X100S	APS-C	16.0	4896	3264	1080/60p	23.3	12.5	1329	75
6.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
7.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
8.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
9.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
10.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
11.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
12.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
13.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
14.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
15.		OM System TG-7	1/2.3	12.0	4000	3000	4K/30p	20.9	12.7	1553	54
16.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
17.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the TG-5 provides a better video resolution than the X Typ 113. It can shoot movie footage at 4K/30p, while the Leica is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The X Typ 113 and the TG-5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the X Typ 113 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The following table reports on some other key feature differences and similarities of the Leica X Typ 113, the Olympus TG-5, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
2.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
3.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
4.		Fujifilm X100T	2360	n	3.0 / 1040	fixed	n	1/4000s	6.0/s	Y	n
5.		Fujifilm X100S	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
6.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
7.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
8.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
9.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
10.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
11.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
12.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
13.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
14.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
15.		OM System TG-7	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
16.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
17.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Olympus TG-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The TG-5 is equipped with a zoom lens, while the X Typ 113 comes with a built-in prime. The TG-5 has a 25-100mm f/2.0-4.9 optic and the X Typ 113 offers a 35mm f/1.7 (focal lengths in full frame equivalent terms). Hence, the Olympus provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Leica. The X Typ 113 offers the faster maximum aperture.

Concerning the storage of imaging data, both the X Typ 113 and the TG-5 write their files to SDXC cards. The TG-5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the X Typ 113 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica X (Typ 113) and Olympus Tough TG-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Fujifilm X100T	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
5.		Fujifilm X100S	Y	stereo / mono	-	-	micro	2.0	-	-	-
6.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
7.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
8.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
11.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
15.		OM System TG-7	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the X Typ 113 has a hotshoe, while the TG-5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the X Typ 113 and the TG-5 have been discontinued, but can regularly be found used on ebay. The TG-5 was replaced by the Olympus TG-6, while the X Typ 113 does not have a direct successor. Further information on the features and operation of the X Typ 113 and TG-5 can be found, respectively, in the Leica X Typ 113 Manual (free pdf) or the online Olympus TG-5 Manual.

Review summary

So how do things add up? Is the Leica X Typ 113 better than the Olympus TG-5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Leica X (Typ 113):

• More detail: Offers more megapixels (16.1 vs 12MP) with a 18% higher linear resolution.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
• Better light gathering: Has a lens with a wider maximum aperture (f/1.7 vs f/2.0).
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been available for much longer (launched in September 2014).

Arguments in favor of the Olympus Tough TG-5:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More compact: Is smaller (113x66mm vs 133x73mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 236g or 49 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (80 percent cheaper at launch).
• More modern: Reflects 2 years and 8 months of technical progress since the X Typ 113 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the TG-5 is the clear winner of the contest (15 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica X Typ 113 and the Olympus TG-5 place the cameras among the top in their class? Find out in the latest Best Prime Lens Compact Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X Typ 113 or the TG-5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	2,295	ebay.com
2.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	449	ebay.com
3.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
4.		Fujifilm X100T	5/5	+	..	81/100	4.5/5	5/5	Sep 2014	1,299	ebay.com
5.		Fujifilm X100S	5/5	+ +	..	81/100	4.5/5	5/5	Jan 2013	1,299	ebay.com
6.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	2,795	ebay.com
7.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	1,950	ebay.com
8.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	1,195	ebay.com
9.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	2,850	ebay.com
10.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	1,995	ebay.com
11.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	849	ebay.com
12.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	449	ebay.com
13.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	379	ebay.com
14.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	499	ebay.com
15.		OM System TG-7	4/5	..	4.5/5	..	4/5	4/5	Sep 2023	549	amazon.com
16.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	699	ebay.com
17.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	2,799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check X Typ 113 offers at
ebay.com
Check TG-5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check X Typ 113 offers at
ebay.com
Check TG-5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
