Leica V-LUX Typ 114 vs Olympus E-PL2
The Leica V-LUX (Typ 114) and the Olympus PEN E-PL2 are two digital cameras that were revealed to the public, respectively, in September 2014 and January 2011. The V-LUX Typ 114 is a fixed lens compact, while the E-PL2 is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (V-LUX Typ 114) and a Four Thirds (E-PL2) sensor. The Leica has a resolution of 20 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Leica V-LUX Typ 114||Olympus E-PL2|
|Fixed lens compact camera||Mirrorless system camera|
|25-400mm f/2.8-4.0||Micro Four Thirds lenses|
|20 MP, 1" Sensor||12.2 MP, Four Thirds Sensor|
|4K/30p Video||720/30p Video|
|ISO 125-12,800 (80 - 25,600)||ISO 200-6,400|
|Electronic viewfinder (2359k dots)||Viewfinder optional|
|3.0 LCD, 921k dots||3.0 LCD, 460k dots|
|Swivel screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|12 shutter flaps per second||3 shutter flaps per second|
|Lens-based stabilization||In-body stabilization|
|360 shots per battery charge||280 shots per battery charge|
|137 x 99 x 131 mm, 830 g||114 x 72 x 42 mm, 362 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica V-LUX (Typ 114) and the Olympus PEN E-PL2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

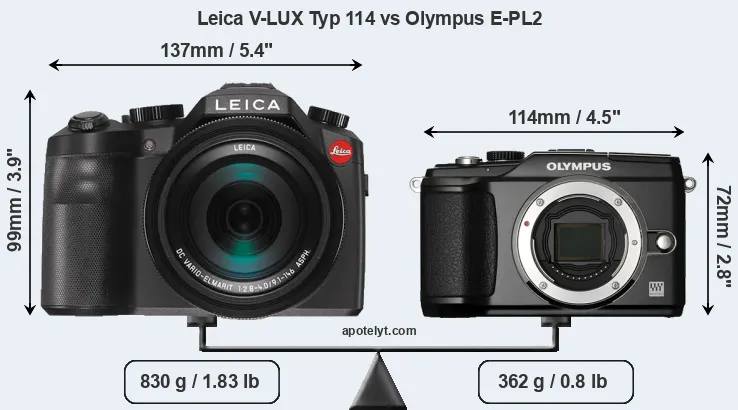

An illustration of the physical size and weight of the Leica V-LUX Typ 114 and the Olympus E-PL2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL2 can be obtained in four different colors (black, silver, red, white), while the V-LUX Typ 114 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL2 is considerably smaller (39 percent) than the Leica V-LUX Typ 114. In this context, it is worth noting that neither the V-LUX Typ 114 nor the E-PL2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the V-LUX Typ 114 has a lens built in, whereas the E-PL2 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL2 and their specifications in the Micro Four Thirds Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Leica V-LUX Typ 114||5.4 in||3.9 in||5.2 in||29.3 oz||360||n||Sep 2014||1,349|
|Olympus E-PL2||4.5 in||2.8 in||1.7 in||12.8 oz||280||n||Jan 2011||599|
|Leica V-LUX 5||5.4 in||3.8 in||5.2 in||28.6 oz||350||n||Jul 2019||1,249|
|Leica Q Typ 116||5.1 in||3.1 in||3.7 in||22.6 oz||300||n||Jun 2015||4,249|
|Leica D-LUX Typ 109||4.6 in||2.6 in||2.2 in||14.3 oz||300||n||Sep 2014||1,195|
|Leica X Vario||5.2 in||2.9 in||3.7 in||24.0 oz||450||n||Jun 2013||2,850|
|Leica V-LUX 4||4.9 in||3.4 in||4.3 in||20.7 oz||540||n||Sep 2012||949|
|Olympus E-P3||4.8 in||2.7 in||1.3 in||13.0 oz||330||n||Jun 2011||799|
|Olympus E-PL3||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599|
|Olympus E-PL1||4.5 in||2.8 in||1.7 in||11.8 oz||290||n||Feb 2010||599|
|Olympus E-P2||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Nov 2009||799|
|Panasonic FZ2500||5.4 in||4.0 in||5.3 in||32.3 oz||350||n||Sep 2016||1,199|
|Panasonic FZ1000||5.4 in||3.9 in||5.2 in||29.3 oz||360||n||Jun 2014||899|
|Panasonic G10||4.9 in||3.3 in||2.9 in||13.7 oz||380||n||Mar 2010||499|
|Sony RX100 VI||4.0 in||2.3 in||1.7 in||10.6 oz||240||n||Jun 2018||1,199|
|Sony RX10 II||5.1 in||3.5 in||4.0 in||28.7 oz||400||Y||Jun 2015||1,299|
|Sony RX10||5.1 in||3.5 in||4.0 in||28.7 oz||420||Y||Oct 2013||1,299|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica V-LUX Typ 114 features an one-inch sensor and the Olympus E-PL2 a Four Thirds sensor. The sensor area in the E-PL2 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the V-LUX Typ 114 has a native 3:2 aspect ratio, while the one in the E-PL2 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
Despite having a smaller sensor, the Leica V-LUX Typ 114 offers a higher resolution of 20 megapixels, compared with 12.2 MP of the Olympus E-PL2. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 4.29μm for the E-PL2). However, it should be noted that the V-LUX Typ 114 is much more recent (by 3 years and 8 months) than the E-PL2, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Leica V-LUX Typ 114 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the V-LUX Typ 114 for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-PL2 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Leica V-LUX (Typ 114) has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 80-25600. The corresponding ISO settings for the Olympus PEN E-PL2 are ISO 200 to ISO 6400 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Leica V-LUX Typ 114||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|Leica V-LUX 5||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85|
|Leica D-LUX Typ 109||Four Thirds||12.7||4112||3088||4K/30p||..||..||..||..|
|Leica X Vario||APS-C||16.1||4928||3272||1080/30p||23.4||12.7||1320||78|
|Leica V-LUX 4||1/2.3||12.0||4000||3000||1080/60p||..||..||..||..|
|Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|Sony RX100 VI||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|Sony RX10 II||1-inch||20.0||5472||3648||4K/30p||23.0||12.6||531||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the V-LUX Typ 114 provides a higher video resolution than the E-PL2. It can shoot video footage at 4K/30p, while the Olympus is limited to 720/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the V-LUX Typ 114 has an electronic viewfinder (2359k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL2 relies on live view and the rear LCD for framing. That said, the E-PL2 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Leica V-LUX Typ 114 and Olympus E-PL2 in connection with corresponding information for a sample of similar cameras.
|Leica V-LUX Typ 114||2359||n||3.0||921||swivel||n||1/4000s||12.0||Y||Y|
|Leica V-LUX 5||2360||n||3.0||1240||swivel||Y||1/4000s||12.0||Y||Y|
|Leica Q Typ 116||3680||n||3.0||1040||fixed||Y||1/2000s||10.0||n||Y|
|Leica D-LUX Typ 109||2764||n||3.0||921||fixed||n||1/4000s||11.0||n||Y|
|Leica X Vario||optional||n||3.0||920||fixed||n||1/2000s||5.0||Y||n|
|Leica V-LUX 4||1312||n||3.0||460||swivel||n||1/4000s||12.0||Y||Y|
|Sony RX100 VI||2359||n||3.0||1229||tilting||Y||1/2000s||24.0||Y||Y|
|Sony RX10 II||2359||Y||3.0||1229||tilting||n||1/3200s||14.0||Y||Y|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the V-LUX Typ 114 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Leica V-LUX Typ 114 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The V-LUX Typ 114 writes its imaging data to SDXC cards, while the E-PL2 uses SDHC cards. The V-LUX Typ 114 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL2 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica V-LUX (Typ 114) and Olympus PEN E-PL2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Leica V-LUX Typ 114||Y||stereo||mono||Y||-||micro||2.0||Y||Y||-|
|Leica V-LUX 5||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|Leica Q Typ 116||Y||stereo||mono||-||-||micro||2.0||Y||Y||-|
|Leica D-LUX Typ 109||Y||stereo||mono||-||-||micro||2.0||Y||Y||-|
|Leica X Vario||Y||stereo||mono||-||-||mini||2.0||-||-||-|
|Leica V-LUX 4||Y||stereo||mono||Y||-||mini||2.0||-||-||-|
|Sony RX100 VI||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|Sony RX10 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the V-LUX Typ 114 has a microphone port, which is missing on the E-PL2. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the V-LUX Typ 114 and the E-PL2 have been discontinued, but can regularly be found used on eBay. The E-PL2 was replaced by the Olympus E-PL3, while the V-LUX Typ 114 was followed by the Leica V-LUX 5. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Olympus websites.
So what is the bottom line? Is there a clear favorite between the Leica V-LUX Typ 114 and the Olympus E-PL2? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Leica V-LUX (Typ 114):
- More detail: Offers more megapixels (20 vs 12.2MP) with a 30% higher linear resolution.
- Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 460k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (12 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Has a lens built-in, whereas the E-PL2 requires a separate lens.
- Longer lasting: Can take more shots (360 versus 280) on a single battery charge.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Reflects 3 years and 8 months of technical progress since the E-PL2 launch.
Advantages of the Olympus PEN E-PL2:
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- More compact: Is smaller (114x72mm vs 137x99mm) and will fit more readily into a bag.
- More heavily discounted: Has been around for much longer (launched in January 2011).
If the number of relative strengths (bullet points above) is taken as a guide, the V-LUX Typ 114 is the clear winner of the match-up (17 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica V-LUX Typ 114 and the Olympus E-PL2 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the V-LUX Typ 114 or the E-PL2. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Leica V-LUX Typ 114||..||..||..||..||5/5||Sep 2014||1,349|
|Olympus E-PL2||83/100||71/100||4.5/5||4.5/5||4.5/5||Jan 2011||599|
|Leica V-LUX 5||..||..||4/5||..||4/5||Jul 2019||1,249|
|Leica Q Typ 116||..||80/100||4.5/5||..||4.5/5||Jun 2015||4,249|
|Leica D-LUX Typ 109||..||..||4.5/5||..||4.5/5||Sep 2014||1,195|
|Leica X Vario||..||..||4/5||4/5||4/5||Jun 2013||2,850|
|Leica V-LUX 4||..||..||..||..||..||Sep 2012||949|
|Olympus E-P3||83/100||74/100||4.5/5||4.5/5||4.5/5||Jun 2011||799|
|Olympus E-PL3||+ +||72/100||4.5/5||..||4/5||Jun 2011||599|
|Olympus E-PL1||86/100||69/100||4/5||4.5/5||4.5/5||Feb 2010||599|
|Olympus E-P2||+||69/100||4/5||4.5/5||4.5/5||Nov 2009||799|
|Panasonic FZ2500||+||82/100||4.5/5||4.5/5||5/5||Sep 2016||1,199|
|Panasonic FZ1000||+ +||82/100||4.5/5||4.5/5||4.5/5||Jun 2014||899|
|Panasonic G10||..||70/100||4/5||..||4/5||Mar 2010||499|
|Sony RX100 VI||+ +||83/100||4/5||..||4.5/5||Jun 2018||1,199|
|Sony RX10 II||+ +||82/100||4.5/5||4.5/5||4/5||Jun 2015||1,299|
|Sony RX10||+||80/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon SX510 vs Leica V-LUX Typ 114
- Canon SX530 vs Olympus E-PL2
- Canon XSi vs Leica V-LUX Typ 114
- Leica V-LUX Typ 114 vs Nikon D5
- Leica V-LUX Typ 114 vs Nikon D6
- Leica V-LUX Typ 114 vs Nikon D7200
- Leica V-LUX Typ 114 vs Nikon D810
- Leica V-LUX Typ 114 vs Nikon Z50
- Leica V-LUX Typ 114 vs Panasonic GX1
- Leica V-LUX Typ 114 vs Panasonic L10
- Nikon D810 vs Olympus E-PL2
- Olympus E-PL2 vs Pentax 645Z
Specifications: Leica V-LUX Typ 114 vs Olympus E-PL2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica V-LUX Typ 114||Olympus E-PL2|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||25-400mm f/2.8-4.0||Micro Four Thirds lenses|
|Launch Date||September 2014||January 2011|
|Launch Price||USD 1,349||USD 599|
|Sensor Specs||Leica V-LUX Typ 114||Olympus E-PL2|
|Sensor Format||1" Sensor||Four Thirds Sensor|
|Sensor Size||13.2 x 8.8 mm||17.3 x 13.0 mm|
|Sensor Area||116.16 mm2||224.9 mm2|
|Sensor Diagonal||15.9 mm||21.6 mm|
|Sensor Resolution||20 Megapixels||12.2 Megapixels|
|Image Resolution||5472 x 3648 pixels||4032 x 3024 pixels|
|Pixel Pitch||2.41 μm||4.29 μm|
|Pixel Density||17.18 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||720/30p Video|
|ISO Setting||125 - 12,800 ISO||200 - 6,400 ISO|
|ISO Boost||80 - 25,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||..||55|
|DXO Color Depth (bits)||..||21.4|
|DXO Dynamic Range (EV)||..||10.2|
|DXO Low Light (ISO)||..||573|
|Screen Specs||Leica V-LUX Typ 114||Olympus E-PL2|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2359k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||921k dots||460k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Leica V-LUX Typ 114||Olympus E-PL2|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||12 shutter flaps/s||3 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Leica V-LUX Typ 114||Olympus E-PL2|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Leica V-LUX Typ 114||Olympus E-PL2|
|Battery Life (CIPA)||360 shots per charge||280 shots per charge|
137 x 99 x 131 mm
(5.4 x 3.9 x 5.2 in)
114 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
|Camera Weight||830 g (29.3 oz)||362 g (12.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
