Leica V-LUX Typ 114 vs Nikon D5200

The Leica V-LUX (Typ 114) and the Nikon D5200 are two digital cameras that were announced, respectively, in September 2014 and November 2012. The V-LUX Typ 114 is a fixed lens compact, while the D5200 is a DSLR. The cameras are based on an one-inch (V-LUX Typ 114) and an APS-C (D5200) sensor. The Leica has a resolution of 20 megapixels, whereas the Nikon provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica V-LUX Typ 114		Nikon D5200
Fixed lens compact camera		Digital single lens reflex
25-400mm f/2.8-4.0		Nikon F mount lenses
20 MP – 1" sensor		24 MP – APS-C sensor
4K/30p Video		1080/60i Video
ISO 125-12,800 (80 - 25,600)		ISO 100-6,400 (100 - 25,600)
Electronic viewfinder (2359k dots)		Optical viewfinder
3.0" LCD – 921k dots		3.0" LCD – 921k dots
Swivel screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
12 shutter flaps per second		5 shutter flaps per second
360 shots per battery charge		500 shots per battery charge
137 x 99 x 131 mm, 830 g		129 x 98 x 78 mm, 555 g

Check V-LUX Typ 114 offers at
ebay.com
Check D5200 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica V-LUX (Typ 114) and the Nikon D5200? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

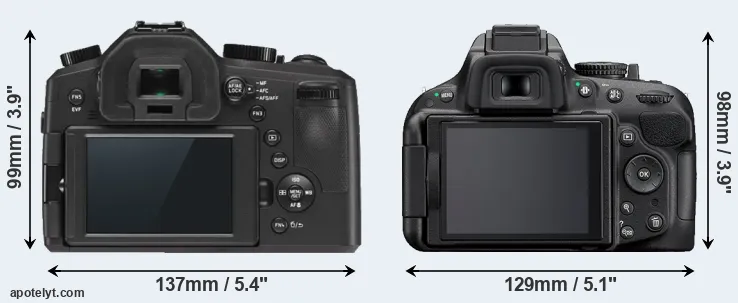

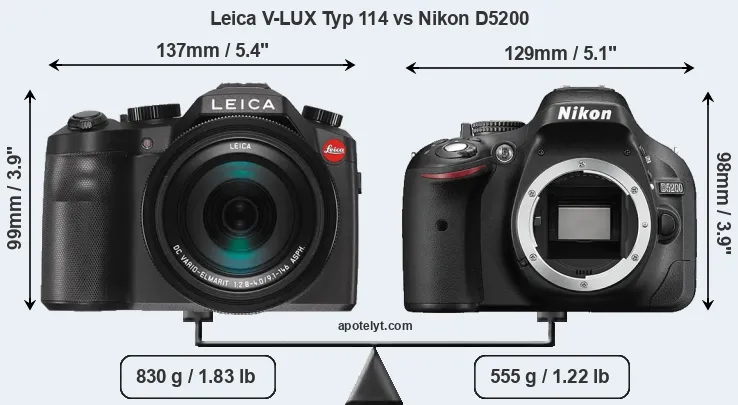

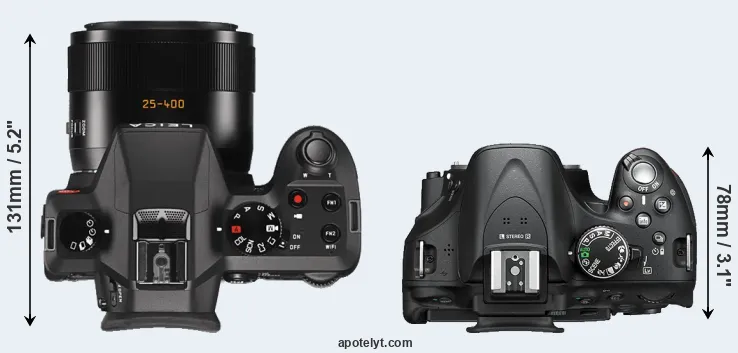

The physical size and weight of the Leica V-LUX Typ 114 and the Nikon D5200 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The D5200 can be obtained in two different colors (black, red), while the V-LUX Typ 114 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5200 is notably smaller (7 percent) than the Leica V-LUX Typ 114. In this context, it is worth noting that neither the V-LUX Typ 114 nor the D5200 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the V-LUX Typ 114 has a lens built in, whereas the D5200 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5200 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the V-LUX Typ 114 gets 360 shots out of its Leica BP-DC12 battery, while the D5200 can take 500 images on a single charge of its Nikon EN-EL14 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica V-LUX Typ 114	137 mm	99 mm	131 mm	830 g	360	n	Sep 2014	1,349	ebay.com
2.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	749	ebay.com
3.		Leica V-LUX 5	136 mm	97 mm	131 mm	812 g	350	n	Jul 2019	1,249	amazon.com
4.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	4,249	ebay.com
5.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	1,195	ebay.com
6.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	2,850	ebay.com
7.		Leica V-LUX 4	125 mm	87 mm	110 mm	588 g	540	n	Sep 2012	949	ebay.com
8.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	ebay.com
9.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	499	ebay.com
10.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	799	ebay.com
11.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	599	ebay.com
12.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	749	ebay.com
13.		Panasonic FZ2500	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	1,199	amazon.com
14.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	899	ebay.com
15.		Sony RX100 VI	102 mm	58 mm	43 mm	301 g	240	n	Jun 2018	1,199	ebay.com
16.		Sony RX10 II	129 mm	88 mm	102 mm	813 g	400	Y	Jun 2015	1,299	ebay.com
17.		Sony RX10	129 mm	88 mm	102 mm	813 g	420	Y	Oct 2013	1,299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

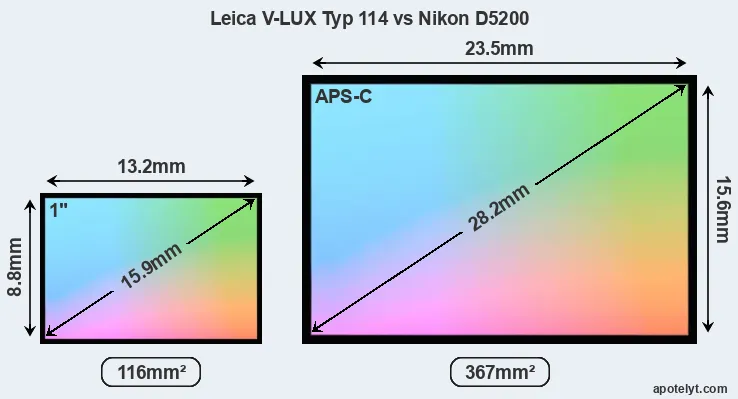

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica V-LUX Typ 114 features an one-inch sensor and the Nikon D5200 an APS-C sensor. The sensor area in the D5200 is 216 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

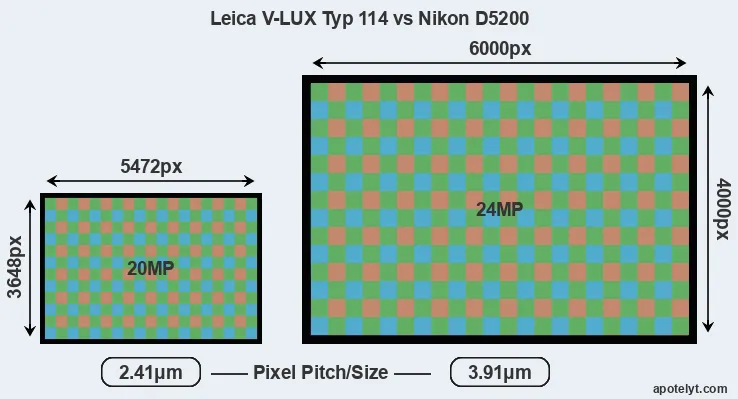

With 24MP, the D5200 offers a higher resolution than the V-LUX Typ 114 (20MP), but the D5200 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 2.41μm for the V-LUX Typ 114) due to its larger sensor. However, the V-LUX Typ 114 is a somewhat more recent model (by 1 year and 10 months) than the D5200, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Nikon D5200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5200 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Leica V-LUX Typ 114 are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The Leica V-LUX (Typ 114) has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 80-25600. The corresponding ISO settings for the Nikon D5200 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica V-LUX Typ 114	1-inch	20.0	5472	3648	4K/30p	21.6	11.7	127	60
2.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
3.		Leica V-LUX 5	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	584	65
4.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
5.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
6.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
7.		Leica V-LUX 4	1/2.3	12.0	4000	3000	1080/60p	19.8	11.1	501	43
8.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
9.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
10.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
11.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
12.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
13.		Panasonic FZ2500	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
14.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
15.		Sony RX100 VI	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	478	64
16.		Sony RX10 II	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	531	70
17.		Sony RX10	1-inch	20.0	5472	3648	1080/60p	22.9	12.6	474	69
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the V-LUX Typ 114 provides a higher video resolution than the D5200. It can shoot video footage at 4K/30p, while the Nikon is limited to 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the V-LUX Typ 114 has an electronic viewfinder (2359k dots), while the D5200 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the V-LUX Typ 114 offers a wider field of view (100%) than the one in the D5200 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the V-LUX Typ 114 has a higher magnification (0.70x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Leica V-LUX Typ 114, the Nikon D5200, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica V-LUX Typ 114	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
2.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
3.		Leica V-LUX 5	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
4.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
5.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
6.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
7.		Leica V-LUX 4	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
8.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
9.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
10.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
11.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
12.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
13.		Panasonic FZ2500	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
14.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
15.		Sony RX100 VI	2359	n	3.0 / 1229	tilting	Y	1/2000s	24.0/s	Y	Y
16.		Sony RX10 II	2359	Y	3.0 / 1229	tilting	n	1/3200s	14.0/s	Y	Y
17.		Sony RX10	1440	Y	3.0 / 1229	tilting	n	1/3200s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the V-LUX Typ 114 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica V-LUX Typ 114 and the Nikon D5200 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the V-LUX Typ 114 and the D5200 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica V-LUX (Typ 114) and Nikon D5200 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica V-LUX Typ 114	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
2.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Leica V-LUX 5	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
4.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Leica V-LUX 4	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
11.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
13.		Panasonic FZ2500	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
14.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
15.		Sony RX100 VI	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
16.		Sony RX10 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
17.		Sony RX10	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the V-LUX Typ 114 offers wifi support, while the D5200 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the V-LUX Typ 114 and the D5200 have been discontinued, but can regularly be found used on ebay. The D5200 was replaced by the Nikon D5300, while the V-LUX Typ 114 was followed by the Leica V-LUX 5. Further information on the features and operation of the V-LUX Typ 114 and D5200 can be found, respectively, in the Leica V-LUX Typ 114 Manual (free pdf) or the online Nikon D5200 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Leica V-LUX Typ 114 and the Nikon D5200? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Leica V-LUX (Typ 114):

• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.51x).
• Faster burst: Shoots at higher frequency (12 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Ready to shoot: Comes with a built-in lens, while the D5200 requires a separate lens.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Is somewhat more recent (announced 1 year and 10 months after the D5200).

Reasons to prefer the Nikon D5200:

• More detail: Has more megapixels (24 vs 20MP), which boosts linear resolution by 10%.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (500 versus 360) out of a single battery charge.
• More heavily discounted: Has been on the market for longer (launched in November 2012).

If the count of relative strengths (bullet points above) is taken as a measure, the V-LUX Typ 114 emerges as the winner of the contest (12 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica V-LUX Typ 114 and the Nikon D5200 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the V-LUX Typ 114 or the D5200. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica V-LUX Typ 114	..	..	..	..	..	5/5	Sep 2014	1,349	ebay.com
2.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	749	ebay.com
3.		Leica V-LUX 5	..	..	..	..	4/5	4/5	Jul 2019	1,249	amazon.com
4.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	4,249	ebay.com
5.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	1,195	ebay.com
6.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	2,850	ebay.com
7.		Leica V-LUX 4	..	..	..	..	..	..	Sep 2012	949	ebay.com
8.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	ebay.com
9.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	499	ebay.com
10.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	799	ebay.com
11.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	599	ebay.com
12.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	749	ebay.com
13.		Panasonic FZ2500	..	+	..	82/100	4.5/5	5/5	Sep 2016	1,199	amazon.com
14.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	899	ebay.com
15.		Sony RX100 VI	4.5/5	+ +	..	83/100	4/5	4.5/5	Jun 2018	1,199	ebay.com
16.		Sony RX10 II	5/5	+ +	..	82/100	4.5/5	4/5	Jun 2015	1,299	ebay.com
17.		Sony RX10	5/5	+	..	80/100	4.5/5	4.5/5	Oct 2013	1,299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
