Leica TL2 vs Zeiss ZX1
The Leica TL2 and the Zeiss ZX1 are two digital cameras that were revealed to the public, respectively, in July 2017 and September 2018. The TL2 is a mirrorless interchangeable lens camera, while the ZX1 is a fixed lens compact. The cameras are based on an APS-C (TL2) and a full frame (ZX1) sensor. The Leica has a resolution of 24.1 megapixels, whereas the Zeiss provides 37.4 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica TL2 and the Zeiss ZX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

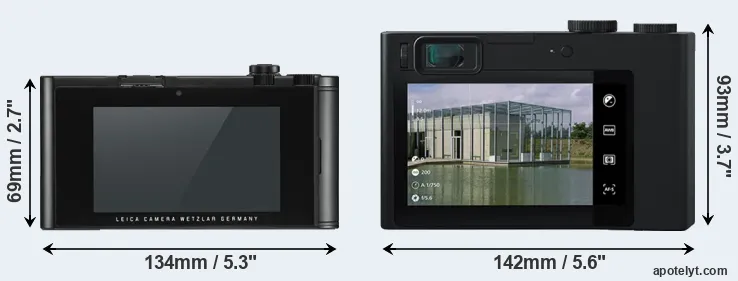

The physical size and weight of the Leica TL2 and the Zeiss ZX1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The TL2 can be obtained in two different colors (black, silver), while the ZX1 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Zeiss ZX1 is considerably larger (43 percent) than the Leica TL2. In this context, it is worth noting that neither the TL2 nor the ZX1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the ZX1 has a lens built in, whereas the TL2 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The power pack in the TL2 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Leica TL2||134 mm||69 mm||33 mm||399 g||250||n||Jul 2017||1,950||amazon.com|
|2.||Zeiss ZX1||142 mm||93 mm||46 mm||800 g||250||n||Sep 2018||5,999||amazon.com|
|3.||Fujifilm X-T100||121 mm||83 mm||47 mm||448 g||430||n||May 2018||599||ebay.com|
|4.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899||ebay.com|
|5.||Fujifilm X-A3||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399||ebay.com|
|6.||Leica Q2||130 mm||80 mm||92 mm||718 g||370||Y||Mar 2019||4,995||amazon.com|
|7.||Leica C-LUX||113 mm||67 mm||46 mm||340 g||370||n||Jun 2018||1,049||amazon.com|
|8.||Leica CL||131 mm||78 mm||45 mm||403 g||220||n||Nov 2017||2,795||amazon.com|
|9.||Leica M10||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595||ebay.com|
|10.||Leica TL||134 mm||69 mm||33 mm||384 g||400||n||Nov 2016||1,695||ebay.com|
|11.||Leica Q Typ 116||130 mm||80 mm||93 mm||640 g||300||n||Jun 2015||4,249||ebay.com|
|12.||Leica T||134 mm||69 mm||33 mm||384 g||400||n||Apr 2014||1,850||ebay.com|
|13.||Nikon D3500||124 mm||97 mm||70 mm||415 g||1550||n||Aug 2018||429||amazon.com|
|14.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|15.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499||ebay.com|
|16.||Panasonic FZ1000||137 mm||99 mm||131 mm||831 g||360||n||Jun 2014||899||ebay.com|
|17.||Sony RX1R II||113 mm||65 mm||72 mm||507 g||220||n||Oct 2015||3,299||amazon.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica TL2 features an APS-C sensor and the Zeiss ZX1 a full frame sensor. The sensor area in the ZX1 is 133 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 37.4MP, the ZX1 offers a higher resolution than the TL2 (24.1MP), but the ZX1 nevertheless has larger individual pixels (pixel pitch of 4.81μm versus 3.92μm for the TL2) due to its larger sensor. Moreover, the ZX1 is a somewhat more recent model (by 1 year and 2 months) than the TL2, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the TL2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Zeiss ZX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the ZX1 for good quality output (200 dots per inch) amounts to 37.4 x 25 inches or 95.1 x 63.4 cm, for very good quality (250 dpi) 30 x 20 inches or 76.1 x 50.7 cm, and for excellent quality (300 dpi) 25 x 16.6 inches or 63.4 x 42.3 cm. The corresponding values for the Leica TL2 are 30.1 x 20.1 inches or 76.4 x 51 cm for good quality, 24.1 x 16.1 inches or 61.1 x 40.8 cm for very good quality, and 20 x 13.4 inches or 50.9 x 34 cm for excellent quality prints.
The Leica TL2 has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Zeiss ZX1 are ISO 80 to ISO 51200 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Zeiss ZX1||Full Frame||37.4||7488||4992||4K/30p||25.2||14.1||2759||94|
|6.||Leica Q2||Full Frame||46.7||8368||5584||4K/30p||26.4||13.5||2491||96|
|9.||Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|11.||Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85|
|17.||Sony RX1R II||Full Frame||42.2||7952||5304||1080/60p||25.8||13.9||3204||97|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).
Beyond body and sensor, cameras can and do differ across a range of features. For example, the ZX1 has an electronic viewfinder (6221k dots), which can be very helpful when shooting in bright sunlight. In contrast, the TL2 relies on live view and the rear LCD for framing. That said, the TL2 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The adjacent table lists some of the other core features of the Leica TL2 and Zeiss ZX1 along with similar information for a selection of comparators.
|1.||Leica TL2||optional||n||3.7 / 1230||fixed||Y||1/4000s||7.0/s||n||n|
|2.||Zeiss ZX1||6221||n||4.3 / 2765||fixed||Y||1/1000s||3.0/s||n||n|
|3.||Fujifilm X-T100||2360||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|4.||Fujifilm X-T20||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||n|
|5.||Fujifilm X-A3||none||n||3.0 / 1040||tilting||Y||1/4000s||6.0/s||Y||n|
|6.||Leica Q2||3680||n||3.0 / 1040||fixed||Y||1/2000s||20.0/s||n||Y|
|7.||Leica C-LUX||2330||n||3.0 / 1240||fixed||Y||1/2000s||10.0/s||Y||Y|
|8.||Leica CL||2360||Y||3.0 / 1040||fixed||Y||1/8000s||10.0/s||n||n|
|9.||Leica M10||optical||n||3.0 / 1037||fixed||n||1/4000s||5.0/s||n||n|
|10.||Leica TL||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0/s||Y||n|
|11.||Leica Q Typ 116||3680||n||3.0 / 1040||fixed||Y||1/2000s||10.0/s||n||Y|
|12.||Leica T||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0/s||Y||n|
|13.||Nikon D3500||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|14.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|15.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|16.||Panasonic FZ1000||2359||n||3.0 / 921||swivel||n||1/4000s||12.0/s||Y||Y|
|17.||Sony RX1R II||2360||n||3.0 / 1229||tilting||n||1/4000s||5.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the ZX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The TL2 writes its imaging data to SDXC cards, while the ZX1 uses an internal SSD.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica TL2 and Zeiss ZX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica TL2||Y||stereo / mono||-||-||micro||3.0||Y||-||-|
|2.||Zeiss ZX1||Y||stereo / mono||-||-||-||3.1||Y||Y||Y|
|3.||Fujifilm X-T100||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Fujifilm X-T20||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|5.||Fujifilm X-A3||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|6.||Leica Q2||Y||stereo / mono||-||-||-||-||Y||-||Y|
|7.||Leica C-LUX||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|8.||Leica CL||Y||stereo / mono||-||-||-||-||Y||-||-|
|9.||Leica M10||Y||- / -||-||-||-||-||Y||-||-|
|10.||Leica TL||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|11.||Leica Q Typ 116||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|12.||Leica T||Y||stereo / mono||-||-||-||2.0||Y||-||-|
|13.||Nikon D3500||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|14.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|15.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|16.||Panasonic FZ1000||Y||stereo / mono||Y||-||micro||2.0||Y||Y||-|
|17.||Sony RX1R II||Y||stereo / mono||Y||-||micro||2.0||Y||Y||-|
Both the TL2 and the ZX1 are recent models that are part of the current product line-up. The TL2 replaced the earlier Leica TL, while the ZX1 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Zeiss websites.
So what conclusions can be drawn? Is the Leica TL2 better than the Zeiss ZX1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Leica TL2:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- More compact: Is smaller (134x69mm vs 142x93mm) and thus needs less room in the bag.
- Easier travel charging: Can be conveniently charged via its USB port.
Arguments in favor of the Zeiss ZX1:
- More detail: Has more megapixels (37.4 vs 24.1MP), which boosts linear resolution by 24%.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (4.3" vs 3.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2765k vs 1230k dots).
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Ready to shoot: Has an integrated lens, whereas the TL2 necessitates an extra lens.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
If the count of individual advantages (bullet points above) is taken as a guide, the ZX1 is the clear winner of the contest (13 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica TL2 and the Zeiss ZX1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the TL2 or the ZX1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica TL2||3.5/5||..||3/5||..||4/5||4/5||Jul 2017||1,950||amazon.com|
|2.||Zeiss ZX1||3/5||..||..||83/100||4/5||4/5||Sep 2018||5,999||amazon.com|
|3.||Fujifilm X-T100||4/5||+||4.5/5||79/100||4/5||4.5/5||May 2018||599||ebay.com|
|4.||Fujifilm X-T20||5/5||+ +||5/5||82/100||5/5||4.5/5||Jan 2017||899||ebay.com|
|5.||Fujifilm X-A3||..||..||..||74/100||4.5/5||4/5||Aug 2016||399||ebay.com|
|6.||Leica Q2||..||..||4.5/5||84/100||4.5/5||4/5||Mar 2019||4,995||amazon.com|
|7.||Leica C-LUX||..||..||3.5/5||..||4.5/5||4/5||Jun 2018||1,049||amazon.com|
|8.||Leica CL||..||..||4.2/5||..||..||4/5||Nov 2017||2,795||amazon.com|
|9.||Leica M10||4.5/5||..||..||..||4/5||4.5/5||Jan 2017||6,595||ebay.com|
|10.||Leica TL||..||..||..||..||..||4/5||Nov 2016||1,695||ebay.com|
|11.||Leica Q Typ 116||5/5||..||..||80/100||4.5/5||4.5/5||Jun 2015||4,249||ebay.com|
|12.||Leica T||3/5||..||..||..||4/5||4/5||Apr 2014||1,850||ebay.com|
|13.||Nikon D3500||4/5||..||4/5||75/100||4/5||4.5/5||Aug 2018||429||amazon.com|
|14.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|15.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499||ebay.com|
|16.||Panasonic FZ1000||4/5||+ +||..||82/100||4.5/5||4.5/5||Jun 2014||899||ebay.com|
|17.||Sony RX1R II||5/5||..||..||82/100||..||4.5/5||Oct 2015||3,299||amazon.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Leica TL2 vs Zeiss ZX1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica TL2||Zeiss ZX1|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Leica T mount lenses||35mm f/2.8|
|Launch Date||July 2017||September 2018|
|Launch Price||USD 1,950||USD 5,999|
|Sensor Specs||Leica TL2||Zeiss ZX1|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||23.6 x 15.7 mm||36.0 x 24.0 mm|
|Sensor Area||370.52 mm2||864 mm2|
|Sensor Diagonal||28.3 mm||43.3 mm|
|Sensor Resolution||24.1 Megapixels||37.4 Megapixels|
|Image Resolution||6014 x 4014 pixels||7488 x 4992 pixels|
|Pixel Pitch||3.92 μm||4.81 μm|
|Pixel Density||6.52 MP/cm2||4.33 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||100 - 50,000 ISO||80 - 51,200 ISO|
|Screen Specs||Leica TL2||Zeiss ZX1|
|Viewfinder Type||Viewfinder optional||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||6221k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.7inch||4.3inch|
|LCD Resolution||1230k dots||2765k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Leica TL2||Zeiss ZX1|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Continuous Shooting||7 shutter flaps/s||3 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/8000s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SSD cards|
|Second Storage Option||Single card slot||Single SSD|
|Connectivity Specs||Leica TL2||Zeiss ZX1|
|USB Connector||USB 3.0||USB 3.1|
|HDMI Port||micro HDMI||no HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Leica TL2||Zeiss ZX1|
|Battery Life (CIPA)||250 shots per charge||250 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
134 x 69 x 33 mm
(5.3 x 2.7 x 1.3 in)
142 x 93 x 46 mm
(5.6 x 3.7 x 1.8 in)
|Camera Weight||399 g (14.1 oz)||800 g (28.2 oz)|
