Leica TL2 vs Nikon D40
The Leica TL2 and the Nikon D40 are two digital cameras that were officially introduced, respectively, in July 2017 and November 2006. The TL2 is a mirrorless interchangeable lens camera, while the D40 is a DSLR. Both cameras are equipped with an APS-C sensor. The Leica has a resolution of 24.1 megapixels, whereas the Nikon provides 6 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica TL2 and the Nikon D40? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

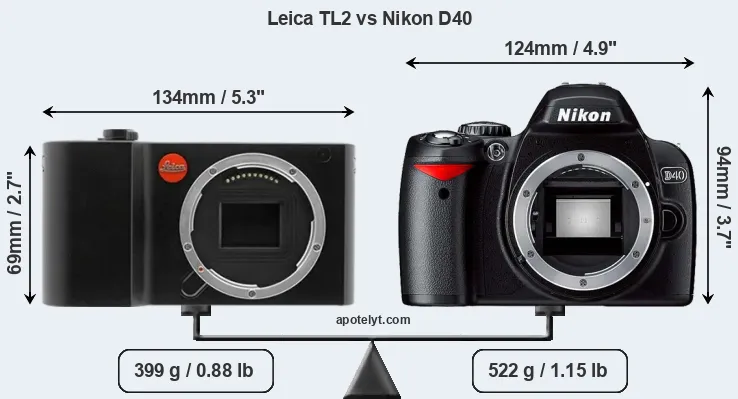

An illustration of the physical size and weight of the Leica TL2 and the Nikon D40 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The TL2 can be obtained in two different colors (black, silver), while the D40 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D40 is notably larger (26 percent) than the Leica TL2. Moreover, the D40 is markedly heavier (31 percent) than the TL2. In this context, it is worth noting that neither the TL2 nor the D40 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the TL2 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Leica TL2||134 mm||69 mm||33 mm||399 g||250||n||Jul 2017||1,950||amazon.com|
|2.||Nikon D40||124 mm||94 mm||64 mm||522 g||470||n||Nov 2006||499||ebay.com|
|3.||Fujifilm X-T100||121 mm||83 mm||47 mm||448 g||430||n||May 2018||599||ebay.com|
|4.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899||ebay.com|
|5.||Fujifilm X-A3||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399||ebay.com|
|6.||Leica C-LUX||113 mm||67 mm||46 mm||340 g||370||n||Jun 2018||1,049||amazon.com|
|7.||Leica CL||131 mm||78 mm||45 mm||403 g||220||n||Nov 2017||2,795||amazon.com|
|8.||Leica TL||134 mm||69 mm||33 mm||384 g||400||n||Nov 2016||1,695||ebay.com|
|9.||Leica T||134 mm||69 mm||33 mm||384 g||400||n||Apr 2014||1,850||ebay.com|
|10.||Nikon D3500||124 mm||97 mm||70 mm||415 g||1550||n||Aug 2018||429||amazon.com|
|11.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|12.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499||ebay.com|
|13.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499||ebay.com|
|14.||Nikon D3100||124 mm||96 mm||75 mm||505 g||550||n||Aug 2010||599||ebay.com|
|15.||Nikon D40X||124 mm||94 mm||64 mm||522 g||520||n||Mar 2007||729||ebay.com|
|16.||Nikon D50||133 mm||102 mm||76 mm||620 g||400||n||Apr 2005||749||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D40 was launched at a markedly lower price (by 74 percent) than the TL2, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 24.1MP, the TL2 offers a higher resolution than the D40 (6MP), but the TL2 has smaller individual pixels (pixel pitch of 3.92μm versus 7.85μm for the D40). However, the TL2 is a much more recent model (by 10 years and 7 months) than the D40, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the TL2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica TL2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TL2 for good quality output (200 dots per inch) amounts to 30.1 x 20.1 inches or 76.4 x 51 cm, for very good quality (250 dpi) 24.1 x 16.1 inches or 61.1 x 40.8 cm, and for excellent quality (300 dpi) 20 x 13.4 inches or 50.9 x 34 cm. The corresponding values for the Nikon D40 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.
The Leica TL2 has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Nikon D40 are ISO 200 to ISO 1600, with the possibility to increase the ISO range to 200-3200.
In terms of underlying technology, the TL2 is build around a CMOS sensor, while the D40 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The TL2 indeed provides movie recording capabilities, while the D40 does not. The highest resolution format that the TL2 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the D40 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TL2 relies on live view and the rear LCD for framing. That said, the TL2 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Leica TL2 and Nikon D40 in connection with corresponding information for a sample of similar cameras.
|1.||Leica TL2||optional||n||3.7 / 1230||fixed||Y||1/4000s||7.0/s||n||n|
|2.||Nikon D40||optical||n||2.5 / 230||fixed||n||1/4000s||2.5/s||Y||n|
|3.||Fujifilm X-T100||2360||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|4.||Fujifilm X-T20||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||n|
|5.||Fujifilm X-A3||none||n||3.0 / 1040||tilting||Y||1/4000s||6.0/s||Y||n|
|6.||Leica C-LUX||2330||n||3.0 / 1240||fixed||Y||1/2000s||10.0/s||Y||Y|
|7.||Leica CL||2360||Y||3.0 / 1040||fixed||Y||1/8000s||10.0/s||n||n|
|8.||Leica TL||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0/s||Y||n|
|9.||Leica T||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0/s||Y||n|
|10.||Nikon D3500||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|11.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|13.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|14.||Nikon D3100||optical||n||3.0 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|15.||Nikon D40X||optical||n||2.5 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|16.||Nikon D50||optical||n||2.0 / 130||fixed||n||1/4000s||2.5/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The TL2 has a touchscreen, while the D40 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The TL2 writes its imaging data to SDXC cards, while the D40 uses SDHC cards. The TL2 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the D40 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica TL2 and Nikon D40 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica TL2||Y||stereo / mono||-||-||micro||3.0||Y||-||-|
|2.||Nikon D40||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Fujifilm X-T100||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Fujifilm X-T20||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|5.||Fujifilm X-A3||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|6.||Leica C-LUX||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|7.||Leica CL||Y||stereo / mono||-||-||-||-||Y||-||-|
|8.||Leica TL||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|9.||Leica T||Y||stereo / mono||-||-||-||2.0||Y||-||-|
|10.||Nikon D3500||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|11.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|12.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|13.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|14.||Nikon D3100||Y||mono / mono||-||-||mini||2.0||-||-||-|
|15.||Nikon D40X||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Nikon D50||Y||- / -||-||-||-||2.0||-||-||-|
It is notable that the TL2 offers wifi support, while the D40 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The TL2 is a recent model that features in the current product line-up of Leica. In contrast, the D40 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the D40 was succeeded by the Nikon D40X. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Nikon websites.
So what is the bottom line? Which of the two cameras – the Leica TL2 or the Nikon D40 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Leica TL2:
- More detail: Offers more megapixels (24.1 vs 6MP) with a 100% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Broader imaging potential: Can record not only still images but also 4K/30p movies.
- Larger screen: Has a bigger rear LCD (3.7" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1230k vs 230k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (7 vs 2.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (134x69mm vs 124x94mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 123g or 24 percent) and hence easier to carry around.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Reflects 10 years and 7 months of technical progress since the D40 launch.
Advantages of the Nikon D40:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Gets more shots (470 versus 250) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in November 2006).
If the count of relative strengths (bullet points above) is taken as a measure, the TL2 is the clear winner of the match-up (16 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica TL2 and the Nikon D40 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the TL2 and the D40 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica TL2||3.5/5||..||3/5||..||4/5||4/5||Jul 2017||1,950||amazon.com|
|2.||Nikon D40||..||81/100||..||+ +||o||4.5/5||Nov 2006||499||ebay.com|
|3.||Fujifilm X-T100||4/5||+||4.5/5||79/100||4/5||4.5/5||May 2018||599||ebay.com|
|4.||Fujifilm X-T20||5/5||+ +||5/5||82/100||5/5||4.5/5||Jan 2017||899||ebay.com|
|5.||Fujifilm X-A3||..||..||..||74/100||4.5/5||4/5||Aug 2016||399||ebay.com|
|6.||Leica C-LUX||..||..||3.5/5||..||4.5/5||4/5||Jun 2018||1,049||amazon.com|
|7.||Leica CL||..||..||4.2/5||..||..||4/5||Nov 2017||2,795||amazon.com|
|8.||Leica TL||..||..||..||..||..||4/5||Nov 2016||1,695||ebay.com|
|9.||Leica T||3/5||..||..||..||4/5||4/5||Apr 2014||1,850||ebay.com|
|10.||Nikon D3500||4/5||..||4/5||75/100||4/5||4.5/5||Aug 2018||429||amazon.com|
|11.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|12.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499||ebay.com|
|13.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499||ebay.com|
|14.||Nikon D3100||5/5||+ +||..||72/100||4.5/5||4.5/5||Aug 2010||599||ebay.com|
|15.||Nikon D40X||..||79/100||..||+ +||4/5||4/5||Mar 2007||729||ebay.com|
|16.||Nikon D50||..||78/100||..||+ +||4/5||4.5/5||Apr 2005||749||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Leica TL2 vs Nikon D40
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica TL2||Nikon D40|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Leica T mount lenses||Nikon F mount lenses|
|Launch Date||July 2017||November 2006|
|Launch Price||USD 1,950||USD 499|
|Sensor Specs||Leica TL2||Nikon D40|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||23.6 x 15.7 mm||23.7 x 15.6 mm|
|Sensor Area||370.52 mm2||369.72 mm2|
|Sensor Diagonal||28.3 mm||28.4 mm|
|Sensor Resolution||24.1 Megapixels||6 Megapixels|
|Image Resolution||6014 x 4014 pixels||3008 x 2000 pixels|
|Pixel Pitch||3.92 μm||7.85 μm|
|Pixel Density||6.52 MP/cm2||1.63 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||no Video|
|ISO Setting||100 - 50,000 ISO||200 - 1,600 ISO|
|ISO Boost||no Enhancement||200 - 3,200 ISO|
|DXO Sensor Quality (score)||..||56|
|DXO Color Depth (bits)||..||21.0|
|DXO Dynamic Range (EV)||..||11.0|
|DXO Low Light (ISO)||..||561|
|Screen Specs||Leica TL2||Nikon D40|
|Viewfinder Type||Viewfinder optional||Optical viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View|
|Rear LCD Size||3.7inch||2.5inch|
|LCD Resolution||1230k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica TL2||Nikon D40|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Continuous Shooting||7 shutter flaps/s||2.5 shutter flaps/s|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-II||no|
|Connectivity Specs||Leica TL2||Nikon D40|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||micro HDMI||no HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Leica TL2||Nikon D40|
|Battery Life (CIPA)||250 shots per charge||470 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
134 x 69 x 33 mm
(5.3 x 2.7 x 1.3 in)
124 x 94 x 64 mm
(4.9 x 3.7 x 2.5 in)
|Camera Weight||399 g (14.1 oz)||522 g (18.4 oz)|
