Leica TL vs Olympus TG-5
The Leica TL and the Olympus Tough TG-5 are two digital cameras that were officially introduced, respectively, in November 2016 and May 2017. The TL is a mirrorless interchangeable lens camera, while the TG-5 is a fixed lens compact. The cameras are based on an APS-C (TL) and a 1/2.3-inch (TG-5) sensor. The Leica has a resolution of 16.1 megapixels, whereas the Olympus provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica TL and the Olympus Tough TG-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

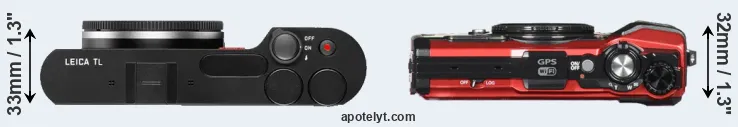

The side-by-side display below illustrates the physical size and weight of the Leica TL and the Olympus TG-5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The TL can be obtained in three different colors (black, silver, titanium), while the TG-5 is available in two color-versions (black, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-5 is notably smaller (19 percent) than the Leica TL. It is noteworthy in this context that the TG-5 is splash and dust-proof, while the TL does not feature any corresponding weather-sealing. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the TL is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Leica TL||134 mm||69 mm||33 mm||384 g||400||n||Nov 2016||1,695|
|2.||Olympus TG-5||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449|
|3.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|4.||Fujifilm X70||113 mm||64 mm||44 mm||340 g||330||n||Jan 2016||799|
|5.||Fujifilm X-A10||117 mm||67 mm||40 mm||331 g||410||n||Dec 2016||399|
|6.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699|
|7.||Fujifilm X-A2||117 mm||67 mm||40 mm||350 g||410||n||Jan 2015||399|
|8.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|9.||Fujifilm X-Pro1||140 mm||82 mm||43 mm||450 g||300||n||Jan 2012||1,699|
|10.||Leica CL||131 mm||78 mm||45 mm||403 g||220||n||Nov 2017||2,795|
|11.||Leica TL2||134 mm||69 mm||33 mm||399 g||250||n||Jul 2017||1,950|
|12.||Leica T||134 mm||69 mm||33 mm||384 g||400||n||Apr 2014||1,850|
|13.||Leica X2||124 mm||69 mm||52 mm||345 g||450||n||May 2012||1,995|
|14.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389|
|15.||Olympus TG-6||113 mm||66 mm||32 mm||253 g||340||Y||May 2019||449|
|16.||Olympus TG-4||112 mm||66 mm||31 mm||247 g||380||Y||Apr 2015||379|
|17.||Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TG-5 was launched at a lower price than the TL, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Leica TL features an APS-C sensor and the Olympus TG-5 a 1/2.3-inch sensor. The sensor area in the TG-5 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 5.6. The sensor in the TL has a native 3:2 aspect ratio, while the one in the TG-5 offers a 4:3 aspect.
With 16.1MP, the TL offers a higher resolution than the TG-5 (12MP), but the TL nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 1.53μm for the TG-5) due to its larger sensor. However, the TG-5 is a somewhat more recent model (by 6 months) than the TL, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the TL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica TL implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TL for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Leica TL has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Olympus Tough TG-5 are ISO 100 to ISO 12800 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the TG-5 provides a better video resolution than the TL. It can shoot movie footage at 4K/30p, while the Leica is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The TL and the TG-5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the TL can be equipped with an optional viewfinder – the Visoflex (Typ 020). The following table reports on some other key feature differences and similarities of the Leica TL, the Olympus TG-5, and comparable cameras.
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The TL has a touchscreen, while the TG-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Olympus TG-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the TL and the TG-5 write their files to SDXC cards. The TG-5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the TL cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica TL and Olympus Tough TG-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the TL has a hotshoe, while the TG-5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the TL and the TG-5 have been discontinued, but can regularly be found used on eBay. The TL was replaced by the Leica TL2, while the TG-5 was followed by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Olympus websites.
So how do things add up? Which of the two cameras – the Leica TL or the Olympus TG-5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Leica TL:
- More detail: Offers more megapixels (16.1 vs 12MP) with a 18% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1230k vs 460k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Longer lasting: Can take more shots (400 versus 340) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More heavily discounted: Has been on the market for longer (launched in November 2016).
Arguments in favor of the Olympus Tough TG-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Has an integrated lens, whereas the TL necessitates an extra lens.
- More compact: Is smaller (113x66mm vs 134x69mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the TL).
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Was introduced somewhat (6 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the TL emerges as the winner of the contest (16 : 14 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica TL and the Olympus TG-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the TL or the TG-5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica TL||..||..||..||..||4/5||Nov 2016||1,695|
|2.||Olympus TG-5||..||+ +||..||4/5||4/5||May 2017||449|
|3.||Canon SX730||..||+||..||4/5||4/5||Apr 2017||399|
|4.||Fujifilm X70||4.5/5||..||76/100||4.5/5||4.5/5||Jan 2016||799|
|5.||Fujifilm X-A10||..||..||..||4/5||4/5||Dec 2016||399|
|6.||Fujifilm X-E2S||4.5/5||..||77/100||4.5/5||4.5/5||Jan 2016||699|
|7.||Fujifilm X-A2||4/5||..||..||4.5/5||4.5/5||Jan 2015||399|
|8.||Fujifilm X-T10||4.5/5||+ +||80/100||5/5||5/5||May 2015||799|
|9.||Fujifilm X-Pro1||5/5||+ +||79/100||4.5/5||4.5/5||Jan 2012||1,699|
|10.||Leica CL||..||..||..||..||4/5||Nov 2017||2,795|
|11.||Leica TL2||3.5/5||..||..||4/5||4/5||Jul 2017||1,950|
|12.||Leica T||3/5||..||..||4/5||4/5||Apr 2014||1,850|
|13.||Leica X2||3/5||..||..||3/5||4/5||May 2012||1,995|
|14.||Nikon W300||..||+||..||4/5||4/5||May 2017||389|
|15.||Olympus TG-6||..||+ +||76/100||4/5||4/5||May 2019||449|
|16.||Olympus TG-4||..||+||79/100||4/5||4/5||Apr 2015||379|
|17.||Olympus XZ-1||4/5||..||74/100||4.5/5||4.5/5||Jan 2011||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Leica TL vs Olympus TG-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica TL||Olympus TG-5|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Leica T mount lenses||25-100mm f/2.0-4.9|
|Launch Date||November 2016||May 2017|
|Launch Price||USD 1,695||USD 449|
|Sensor Specs||Leica TL||Olympus TG-5|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||23.6 x 15.7 mm||6.17 x 4.55 mm|
|Sensor Area||370.52 mm2||28.0735 mm2|
|Sensor Diagonal||28.3 mm||7.7 mm|
|Sensor Resolution||16.1 Megapixels||12 Megapixels|
|Image Resolution||4928 x 3264 pixels||4000 x 3000 pixels|
|Pixel Pitch||4.80 μm||1.53 μm|
|Pixel Density||4.34 MP/cm2||42.74 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 12,500 ISO||100 - 12,800 ISO|
|Screen Specs||Leica TL||Olympus TG-5|
|Viewfinder Type||Viewfinder optional||no viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.7inch||3.0inch|
|LCD Resolution||1230k dots||460k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica TL||Olympus TG-5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/2000s|
|Continuous Shooting||5 shutter flaps/s||20 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Leica TL||Olympus TG-5|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Leica TL||Olympus TG-5|
|Environmental Sealing||not weather sealed||Waterproof body (15m)|
|Battery Life (CIPA)||400 shots per charge||340 shots per charge|
|In-Camera Charging||USB charging||USB charging|
134 x 69 x 33 mm
(5.3 x 2.7 x 1.3 in)
113 x 66 x 32 mm
(4.4 x 2.6 x 1.3 in)
|Camera Weight||384 g (13.5 oz)||250 g (8.8 oz)|
