Leica TL vs Nikon D5200
The Leica TL and the Nikon D5200 are two digital cameras that were officially introduced, respectively, in November 2016 and November 2012. The TL is a mirrorless interchangeable lens camera, while the D5200 is a DSLR. Both cameras are equipped with an APS-C sensor. The Leica has a resolution of 16.1 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica TL and the Nikon D5200? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

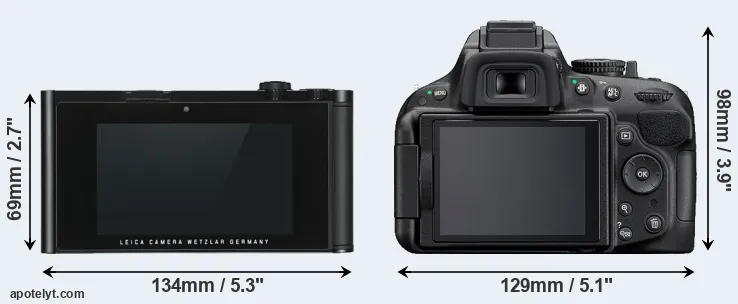

The side-by-side display below illustrates the physical size and weight of the Leica TL and the Nikon D5200. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The TL can be obtained in three different colors (black, silver, titanium), while the D5200 is available in two color-versions (black, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5200 is notably larger (37 percent) than the Leica TL. Moreover, the D5200 is substantially heavier (45 percent) than the TL. In this context, it is worth noting that neither the TL nor the D5200 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the TL can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Leica TL||134 mm||69 mm||33 mm||384 g||400||n||Nov 2016||1,695|
|2.||Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749|
|3.||Fujifilm X70||113 mm||64 mm||44 mm||340 g||330||n||Jan 2016||799|
|4.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699|
|5.||Fujifilm X-A2||117 mm||67 mm||40 mm||350 g||410||n||Jan 2015||399|
|6.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|7.||Fujifilm X-Pro1||140 mm||82 mm||43 mm||450 g||300||n||Jan 2012||1,699|
|8.||Leica CL||131 mm||78 mm||45 mm||403 g||220||n||Nov 2017||2,795|
|9.||Leica TL2||134 mm||69 mm||33 mm||399 g||250||n||Jul 2017||1,950|
|10.||Leica T||134 mm||69 mm||33 mm||384 g||400||n||Apr 2014||1,850|
|11.||Leica X2||124 mm||69 mm||52 mm||345 g||450||n||May 2012||1,995|
|12.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|13.||Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|14.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|15.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|16.||Nikon D5100||128 mm||97 mm||79 mm||560 g||660||n||Apr 2011||749|
|17.||Panasonic G7||125 mm||86 mm||77 mm||410 g||350||n||May 2015||649|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D5200 was launched at a markedly lower price (by 56 percent) than the TL, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D5200 is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.

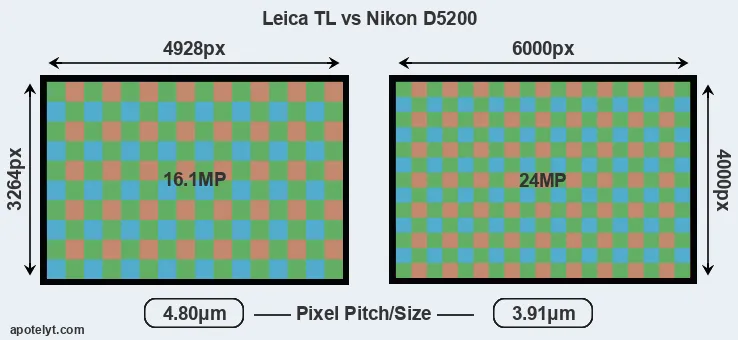

Despite having a slightly smaller sensor, the D5200 offers a higher resolution of 24 megapixels, compared with 16.1 MP of the TL. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 4.80μm for the TL). Moreover, it should be noted that the TL is much more recent (by 4 years) than the D5200, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the TL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5200 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Leica TL are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.
The Leica TL has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Nikon D5200 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|17.||Panasonic G7||Four Thirds||15.8||4592||3448||4K/30p||..||..||..||..|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D5200 provides a faster frame rate than the TL. It can shoot movie footage at 1080/60i, while the Leica is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the D5200 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TL relies on live view and the rear LCD for framing. That said, the TL can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Leica TL and Nikon D5200 in connection with corresponding information for a sample of similar cameras.
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The TL has a touchscreen, while the D5200 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The D5200 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the TL does not have a selfie-screen.
The Nikon D5200 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the TL and the D5200 write their files to SDXC cards. The D5200 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the TL cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica TL and Nikon D5200 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the TL offers wifi support, while the D5200 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the TL and the D5200 have been discontinued, but can regularly be found used on eBay. The D5200 was replaced by the Nikon D5300, while the TL was followed by the Leica TL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Nikon websites.
So how do things add up? Is the Leica TL better than the Nikon D5200 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Leica TL:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1230k vs 921k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More compact: Is smaller (134x69mm vs 129x98mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 171g or 31 percent) and hence easier to carry around.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Reflects 4 years of technical progress since the D5200 launch.
Advantages of the Nikon D5200:
- More detail: Has more megapixels (24 vs 16.1MP), which boosts linear resolution by 22%.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (500 versus 400) out of a single battery charge.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (56 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in November 2012).
If the count of individual advantages (bullet points above) is taken as a guide, the D5200 comes out slightly ahead of the TL (12 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica TL and the Nikon D5200 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the TL and the D5200 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica TL||..||..||..||..||4/5||Nov 2016||1,695|
|2.||Nikon D5200||4/5||+ +||79/100||4.5/5||4.5/5||Nov 2012||749|
|3.||Fujifilm X70||4.5/5||..||76/100||4.5/5||4.5/5||Jan 2016||799|
|4.||Fujifilm X-E2S||4.5/5||..||77/100||4.5/5||4.5/5||Jan 2016||699|
|5.||Fujifilm X-A2||4/5||..||..||4.5/5||4.5/5||Jan 2015||399|
|6.||Fujifilm X-T10||4.5/5||+ +||80/100||5/5||5/5||May 2015||799|
|7.||Fujifilm X-Pro1||5/5||+ +||79/100||4.5/5||4.5/5||Jan 2012||1,699|
|8.||Leica CL||..||..||..||..||4/5||Nov 2017||2,795|
|9.||Leica TL2||3.5/5||..||..||4/5||4/5||Jul 2017||1,950|
|10.||Leica T||3/5||..||..||4/5||4/5||Apr 2014||1,850|
|11.||Leica X2||3/5||..||..||3/5||4/5||May 2012||1,995|
|12.||Nikon D5600||4/5||..||79/100||4.5/5||4/5||Nov 2016||699|
|13.||Nikon D5500||5/5||+||79/100||4.5/5||4.5/5||Jan 2015||899|
|14.||Nikon D5300||4/5||+ +||79/100||4.5/5||4.5/5||Oct 2013||799|
|15.||Nikon D3200||5/5||+ +||73/100||4.5/5||4.5/5||Apr 2012||599|
|16.||Nikon D5100||5/5||+ +||76/100||4.5/5||4.5/5||Apr 2011||749|
|17.||Panasonic G7||4/5||+ +||80/100||5/5||4.5/5||May 2015||649|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Leica TL vs Nikon D5200
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica TL||Nikon D5200|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Leica T mount lenses||Nikon F mount lenses|
|Launch Date||November 2016||November 2012|
|Launch Price||USD 1,695||USD 749|
|Sensor Specs||Leica TL||Nikon D5200|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||23.6 x 15.7 mm||23.5 x 15.6 mm|
|Sensor Area||370.52 mm2||366.6 mm2|
|Sensor Diagonal||28.3 mm||28.2 mm|
|Sensor Resolution||16.1 Megapixels||24 Megapixels|
|Image Resolution||4928 x 3264 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.80 μm||3.91 μm|
|Pixel Density||4.34 MP/cm2||6.55 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60i Video|
|ISO Setting||100 - 12,500 ISO||100 - 6,400 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|DXO Sensor Quality (score)||..||84|
|DXO Color Depth (bits)||..||24.2|
|DXO Dynamic Range (EV)||..||13.9|
|DXO Low Light (ISO)||..||1284|
|Screen Specs||Leica TL||Nikon D5200|
|Viewfinder Type||Viewfinder optional||Optical viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.7inch||3.0inch|
|LCD Resolution||1230k dots||921k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica TL||Nikon D5200|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Leica TL||Nikon D5200|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Leica TL||Nikon D5200|
|Battery Life (CIPA)||400 shots per charge||500 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
134 x 69 x 33 mm
(5.3 x 2.7 x 1.3 in)
129 x 98 x 78 mm
(5.1 x 3.9 x 3.1 in)
|Camera Weight||384 g (13.5 oz)||555 g (19.6 oz)|
