Leica TL vs X Typ 113

The Leica TL and the Leica X (Typ 113) are two digital cameras that were revealed to the public, respectively, in November 2016 and September 2014. The TL is a mirrorless interchangeable lens camera, while the X Typ 113 is a fixed lens compact. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 16.1 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica TL		Leica X Typ 113
Mirrorless system camera		Fixed lens compact camera
Leica T mount lenses		35mm f/1.7
16.1 MP – APS-C sensor		16.1 MP – APS-C sensor
1080/30p Video		1080/30p Video
ISO 100-12,500		ISO 100-12,500
Viewfinder optional		Viewfinder optional
3.7" LCD – 1230k dots		3.0" LCD – 920k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
5 shutter flaps per second		5 shutter flaps per second
400 shots per battery charge		350 shots per battery charge
134 x 69 x 33 mm, 384 g		133 x 73 x 78 mm, 486 g

Check TL offers at
ebay.com
Check X Typ 113 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica TL and the Leica X (Typ 113)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Leica TL and the Leica X Typ 113. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The TL can be obtained in three different colors (black, silver, titanium), while the X Typ 113 is also available in three color-versions, but different ones (black, brown, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica X Typ 113 is somewhat larger (5 percent) than the Leica TL. In this context, it is worth noting that neither the TL nor the X Typ 113 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X Typ 113 has a lens built in, whereas the TL is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the TL gets 400 shots out of its Leica BP-DC13 battery, while the X Typ 113 can take 350 images on a single charge of its Leica BP-DC8 power pack. The power pack in the TL can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	1,695	ebay.com
2.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	2,295	ebay.com
3.		Fujifilm X70	113 mm	64 mm	44 mm	340 g	330	n	Jan 2016	799	ebay.com
4.		Fujifilm X-A10	117 mm	67 mm	40 mm	331 g	410	n	Dec 2016	399	ebay.com
5.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	699	ebay.com
6.		Fujifilm X-A2	117 mm	67 mm	40 mm	350 g	410	n	Jan 2015	399	ebay.com
7.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	799	ebay.com
8.		Fujifilm X100T	127 mm	74 mm	52 mm	440 g	330	n	Sep 2014	1,299	ebay.com
9.		Fujifilm X100S	127 mm	74 mm	54 mm	445 g	330	n	Jan 2013	1,299	ebay.com
10.		Fujifilm X-Pro1	140 mm	82 mm	43 mm	450 g	300	n	Jan 2012	1,699	ebay.com
11.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	2,795	ebay.com
12.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	1,950	ebay.com
13.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	1,850	ebay.com
14.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	1,995	ebay.com
15.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	2,799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

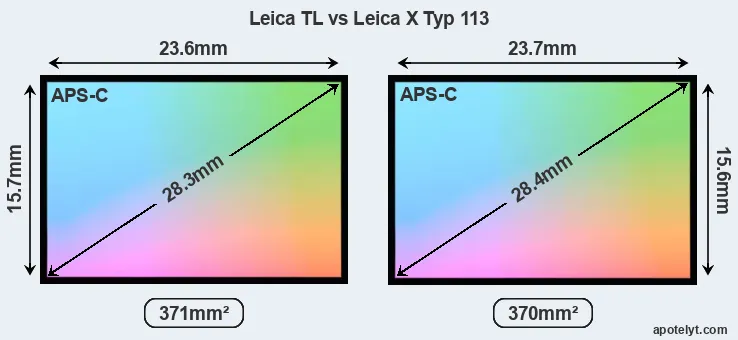

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

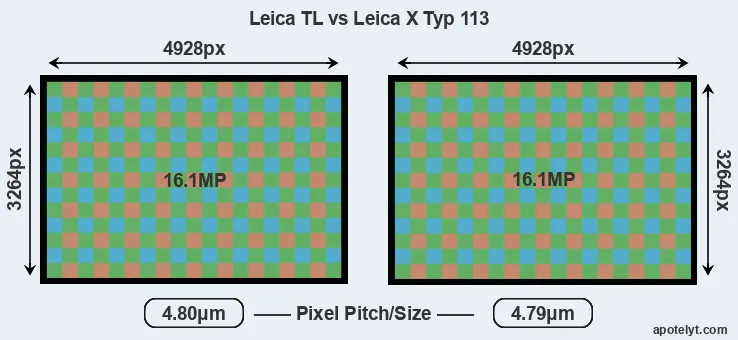

Even though the TL has a slightly larger sensor, both cameras offer the same resolution of 16.1 megapixels. This implies that the TL has a lower pixel density and larger individual pixels (with a pixel pitch of 4.80μm versus 4.79μm for the X Typ 113), which gives it a potential advantage in terms of light gathering capacity. In addition, the TL is much more recent (by 2 years and 1 month) than the X Typ 113, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the TL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Leica TL has a native sensitivity range from ISO 100 to ISO 12500. The Leica X (Typ 113) offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
2.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
3.		Fujifilm X70	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
4.		Fujifilm X-A10	APS-C	16.0	4896	3264	1080/30p	23.9	13.2	1691	81
5.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
6.		Fujifilm X-A2	APS-C	16.0	4896	3264	1080/30p	23.6	12.8	1515	79
7.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
8.		Fujifilm X100T	APS-C	16.0	4896	3264	1080/60p	23.6	12.8	1483	78
9.		Fujifilm X100S	APS-C	16.0	4896	3264	1080/60p	23.3	12.5	1329	75
10.		Fujifilm X-Pro1	APS-C	16.0	4896	3264	1080/24p	23.1	12.3	1238	74
11.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
12.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
13.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
14.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
15.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The TL and the X Typ 113 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the Visoflex (Typ 020) for the TL and the Visoflex (Typ 020) for the X Typ 113 – are available as accessories. The adjacent table lists some of the other core features of the Leica TL and Leica X Typ 113 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
2.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
3.		Fujifilm X70	optional	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
4.		Fujifilm X-A10	none	n	3.0 / 1040	tilting	n	1/4000s	6.0/s	Y	n
5.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
6.		Fujifilm X-A2	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
7.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
8.		Fujifilm X100T	2360	n	3.0 / 1040	fixed	n	1/4000s	6.0/s	Y	n
9.		Fujifilm X100S	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
10.		Fujifilm X-Pro1	1440	n	3.0 / 1230	fixed	n	1/4000s	6.0/s	n	n
11.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
12.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
13.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
14.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
15.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The TL has a touchscreen, while the X Typ 113 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the TL and the X Typ 113 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica TL and Leica X (Typ 113) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Fujifilm X70	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
4.		Fujifilm X-A10	-	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Fujifilm X-A2	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Fujifilm X100T	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Fujifilm X100S	Y	stereo / mono	-	-	micro	2.0	-	-	-
10.		Fujifilm X-Pro1	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
12.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
13.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
14.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
15.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the TL offers wifi support, while the X Typ 113 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the TL and the X Typ 113 have been discontinued, but can regularly be found used on ebay. The TL was replaced by the Leica TL2, while the X Typ 113 does not have a direct successor. Further information on the features and operation of the TL and X Typ 113 can be found, respectively, in the Leica TL Manual (free pdf) or the online Leica X Typ 113 Manual.

Review summary

So what conclusions can be drawn? Is the Leica TL better than the Leica X Typ 113 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Leica TL:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 920k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (400 versus 350) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More modern: Reflects 2 years and 1 month of technical progress since the X Typ 113 launch.

Advantages of the Leica X (Typ 113):

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Ready to shoot: Has an integrated lens, whereas the TL necessitates an extra lens.
• More heavily discounted: Has been around for much longer (launched in September 2014).

If the number of relative strengths (bullet points above) is taken as a guide, the TL is the clear winner of the match-up (10 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica TL and the Leica X Typ 113 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the TL or the X Typ 113. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica TL	..	..	..	..	..	4/5	Nov 2016	1,695	ebay.com
2.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	2,295	ebay.com
3.		Fujifilm X70	4.5/5	..	..	76/100	4.5/5	4.5/5	Jan 2016	799	ebay.com
4.		Fujifilm X-A10	..	..	..	..	4/5	4/5	Dec 2016	399	ebay.com
5.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	699	ebay.com
6.		Fujifilm X-A2	4/5	..	..	..	4.5/5	4.5/5	Jan 2015	399	ebay.com
7.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	799	ebay.com
8.		Fujifilm X100T	5/5	+	..	81/100	4.5/5	5/5	Sep 2014	1,299	ebay.com
9.		Fujifilm X100S	5/5	+ +	..	81/100	4.5/5	5/5	Jan 2013	1,299	ebay.com
10.		Fujifilm X-Pro1	5/5	+ +	..	79/100	4.5/5	4.5/5	Jan 2012	1,699	ebay.com
11.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	2,795	ebay.com
12.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	1,950	ebay.com
13.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	1,850	ebay.com
14.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	1,995	ebay.com
15.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	2,799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check TL offers at
ebay.com
Check X Typ 113 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check TL offers at
ebay.com
Check X Typ 113 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
