Leica SL vs Olympus E-M1 II

The Leica SL (Typ 601) and the Olympus OM-D E-M1 Mark II are two enthusiast cameras that were announced, respectively, in October 2015 and September 2016. Both the Leica SL and the E-M1 II are mirrorless interchangeable lens cameras that are based on a full frame (Leica SL) and a Four Thirds (E-M1 II) sensor. The Leica has a resolution of 24 megapixels, whereas the Olympus provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Leica SL
versus
Olympus E-M1 II
Leica SL   Olympus E-M1 II
Mirrorless system camera Mirrorless system camera
Leica L mount lenses Micro Four Thirds lenses
24 MP – Full Frame sensor 20.2 MP – Four Thirds sensor
4K/30p Video 4K/30p Video
ISO 50-50,000 ISO 200-25,600
Electronic viewfinder (4400k dots) Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots 3.0" LCD – 1037k dots
Fixed touchscreen Swivel touchscreen
11 shutter flaps per second 18 shutter flaps per second
Lens stabilization onlyIn-body stabilization
Weathersealed bodyWeathersealed body
400 shots per battery charge440 shots per battery charge
147 x 104 x 39 mm, 847 g 134 x 91 x 67 mm, 574 g
logo
Check Leica SL offers at
ebay.com
logo
Check E-M1 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica SL (Typ 601) and the Olympus OM-D E-M1 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Leica SL and the Olympus E-M1 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

Size Leica SL vs Olympus E-M1 II

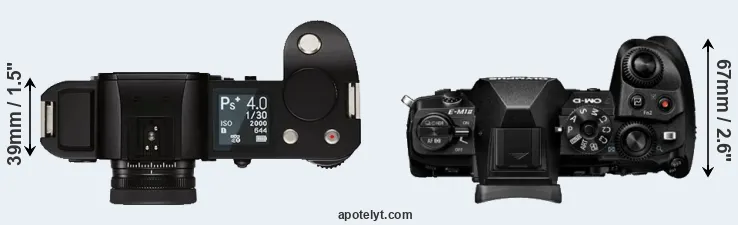

Compare Leica SL versus E-M1 II top
Comparison Leica SL or E-M1 II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1 II is notably smaller (20 percent) than the Leica SL. Moreover, the E-M1 II is markedly lighter (32 percent) than the Leica SL. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the Leica SL gets 400 shots out of its Leica BP-SCL4 battery, while the E-M1 II can take 440 images on a single charge of its Olympus BLH-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Leica SL 147 mm 104 mm 39 mm 847 g 400 Y Oct 2015 7,450ebay.com
2.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 Y Sep 2016 1,999ebay.com
3.

Canon 1D X Mark II 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999ebay.com
4.

Canon 80D 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 1,199ebay.com
5.

Canon 5DS 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
6.

Leica SL2-S 146 mm 107 mm 83 mm 931 g 510 Y Dec 2020 4,895 amazon.com
7.

Leica SL2 146 mm 107 mm 42 mm 953 g 370 Y Nov 2019 5,999 amazon.com
8.

Leica M10 139 mm 80 mm 39 mm 660 g 210 Y Jan 2017 6,595ebay.com
9.

Leica M Typ 240 139 mm 80 mm 42 mm 680 g 500 Y Sep 2012 6,950ebay.com
10.

Nikon D5 160 mm 159 mm 92 mm 1415 g 3780 Y Jan 2016 6,499ebay.com
11.

Nikon D500 147 mm 115 mm 81 mm 860 g 1240 Y Jan 2016 1,999ebay.com
12.

Nikon D750 141 mm 113 mm 78 mm 750 g 1230 Y Sep 2014 2,299ebay.com
13.

Olympus E-M1 III 134 mm 91 mm 69 mm 580 g 420 Y Feb 2020 1,799ebay.com
14.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
15.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
16.

Panasonic GH5 139 mm 98 mm 87 mm 725 g 410 Y Jan 2017 1,999ebay.com
17.

Panasonic G85 128 mm 89 mm 74 mm 505 g 330 Y Sep 2016 899ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-M1 II was launched at a markedly lower price (by 73 percent) than the Leica SL, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica SL features a full frame sensor and the Olympus E-M1 II a Four Thirds sensor. The sensor area in the E-M1 II is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the Leica SL has a native 3:2 aspect ratio, while the one in the E-M1 II offers a 4:3 aspect.

Leica SL and Olympus E-M1 II sensor measures

With 24MP, the Leica SL offers a higher resolution than the E-M1 II (20.2MP), but the Leica SL nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 3.34μm for the E-M1 II) due to its larger sensor. However, the E-M1 II is a somewhat more recent model (by 11 months) than the Leica SL, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Leica SL implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Leica SL for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M1 II are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The E-M1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the Leica SL, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Leica SL (Typ 601) has a native sensitivity range from ISO 50 to ISO 50000. The corresponding ISO settings for the Olympus OM-D E-M1 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Leica SL versus E-M1 II MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the Leica SL has a notably higher overall DXO score than the E-M1 II (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 1.3 bits higher color depth, 0.6 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Leica SL Full Frame 24.0 6000 40004K/30p25.013.4182188
2.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
3.

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788
4.

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579
5.

Canon 5DS Full Frame 50.3 8688 57921080/30p24.712.4238187
6.

Leica SL2-S Full Frame 24.0 6000 40004K/60p25.214.1350495
7.

Leica SL2 Full Frame 46.7 8368 55844K/60p25.314.3286695
8.

Leica M10 Full Frame 23.8 5952 3992none24.413.2213386
9.

Leica M Typ 240 Full Frame 23.7 5952 39761080/25p24.013.3186084
10.

Nikon D5 Full Frame 20.7 5588 37124K/30p25.112.3234388
11.

Nikon D500 APS-C 20.7 5568 37124K/30p24.014.0132483
12.

Nikon D750 Full Frame 24.2 6016 40161080/60p24.814.5295693
13.

Olympus E-M1 III Four Thirds 20.2 5184 38884K/30p23.313.1135676
14.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
15.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
16.

Panasonic GH5 Four Thirds 20.2 5184 38884K/60p23.913.080777
17.

Panasonic G85 Four Thirds 15.8 4592 34484K/30p22.812.565671
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).

ad

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the Leica SL offers a substantially higher resolution than the one in the E-M1 II (4400k vs 2360k dots). The adjacent table lists some of the other core features of the Leica SL and Olympus E-M1 II along with similar information for a selection of comparators.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Leica SL4400 Y3.0 / 1040 fixed Y 1/8000s 11.0/s n n
2.

Olympus E-M1 II2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
3.

Canon 1D X Mark IIoptical Y3.2 / 1620 fixed Y 1/8000s 16.0/s n n
4.

Canon 80Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
5.

Canon 5DSoptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
6.

Leica SL2-S5760 Y3.2 / 2100 fixed Y 1/8000s 20.0/s n Y
7.

Leica SL25760 Y3.2 / 2100 fixed Y 1/8000s 10.0/s n Y
8.

Leica M10optical n3.0 / 1037 fixed n 1/4000s 5.0/s n n
9.

Leica M Typ 240optical n3.0 / 920 fixed n 1/4000s 3.0/s n n
10.

Nikon D5optical Y3.2 / 2359 fixed Y 1/8000s 14.0/s n n
11.

Nikon D500optical Y3.2 / 2359 tilting Y 1/8000s 10.0/s n n
12.

Nikon D750optical Y3.2 / 1229 tilting n 1/4000s 6.0/s Y n
13.

Olympus E-M1 III2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
14.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
15.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
16.

Panasonic GH53680 n3.2 / 1620 swivel Y 1/8000s 12.0/s n Y
17.

Panasonic G852360 n3.0 / 1040 swivel Y 1/4000s 9.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One feature that is present on the Leica SL, but is missing on the E-M1 II is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The E-M1 II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the Leica SL does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica SL and the Olympus E-M1 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the Leica SL and the E-M1 II write their files to SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Both the Leica SL and the E-M1 II support UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s) on the first slot and UHS-I cards (104 MB/s) on the second one.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica SL (Typ 601) and Olympus OM-D E-M1 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Leica SLYstereo / monoYYfull3.0Y--
2.

Olympus E-M1 IIYstereo / monoYYmicro3.0Y--
3.

Canon 1D X Mark IIYmono / monoYYmini3.0---
4.

Canon 80DYstereo / monoYYmini2.0YY-
5.

Canon 5DSYmono / monoY-mini3.0---
6.

Leica SL2-SYstereo / monoYYfull3.2Y-Y
7.

Leica SL2Ystereo / monoYYfull3.1Y-Y
8.

Leica M10Y- / -----Y--
9.

Leica M Typ 240Ystereo / mono---2.0---
10.

Nikon D5Ystereo / monoYYmini3.0---
11.

Nikon D500Ystereo / monoYYmini3.0YYY
12.

Nikon D750Ystereo / monoYYmini2.0Y--
13.

Olympus E-M1 IIIYstereo / monoYYmicro3.1Y-Y
14.

Olympus PEN-FYstereo / mono--micro2.0Y--
15.

Olympus E-M1Ystereo / monoY-micro2.0Y--
16.

Panasonic GH5Ystereo / monoYYfull3.1Y-Y
17.

Panasonic G85Ystereo / monoY-micro2.0Y--
padding

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Travel and landscape photographers will find it useful that the Leica SL has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the Leica SL and the E-M1 II have been discontinued, but can regularly be found used on ebay. The Leica SL was replaced by the Leica SL2, while the E-M1 II was followed by the Olympus E-M1 III. Further information on the features and operation of the Leica SL and E-M1 II can be found, respectively, in the Leica SL Manual (free pdf) or the online Olympus E-M1 II Manual.

ad

Review summary

So what is the bottom line? Is the Leica SL better than the Olympus E-M1 II or vice versa? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Leica SL (Typ 601):

  • More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
  • Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (1.3 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (0.6 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
  • More detailed viewfinder: Has higher resolution electronic viewfinder (4400k vs 2360k dots).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.80x vs 0.74x).
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Easier geotagging: Features an internal GPS sensor to log localization data.
  • More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
  • More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
  • More heavily discounted: Has been on the market for longer (launched in October 2015).

ilogo

Arguments in favor of the Olympus OM-D E-M1 Mark II:

  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (18 vs 11 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (134x91mm vs 147x104mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 273g or 32 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More affordable: Was introduced into a lower priced category (73 percent cheaper at launch).
  • More modern: Was introduced somewhat (11 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the Leica SL emerges as the winner of the contest (12 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

Leica SL 12:10 E-M1 II

How about other alternatives? Do the specifications of the Leica SL and the Olympus E-M1 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the Leica SL and the E-M1 II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Leica SL4/5..4/584/1004.5/54/5 Oct 2015 7,450ebay.com
2.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 1,999ebay.com
3.

Canon 1D X Mark II....4.5/589/1004.5/54.5/5 Feb 2016 5,999ebay.com
4.

Canon 80D4/5+ +4.5/584/1004.5/54.5/5 Feb 2016 1,199ebay.com
5.

Canon 5DS..+..83/1004.5/54.5/5 Feb 2015 3,699ebay.com
6.

Leica SL2-S4/5..4/5..4.5/54.5/5 Dec 2020 4,895 amazon.com
7.

Leica SL24/5..4.5/5..4.5/54/5 Nov 2019 5,999 amazon.com
8.

Leica M104.5/5......4/54.5/5 Jan 2017 6,595ebay.com
9.

Leica M Typ 2404/5......4/5.. Sep 2012 6,950ebay.com
10.

Nikon D5....4/589/1004.5/55/5 Jan 2016 6,499ebay.com
11.

Nikon D5005/5+ +4.7/591/1004.5/55/5 Jan 2016 1,999ebay.com
12.

Nikon D7505/5+ +4/590/1004.5/54.5/5 Sep 2014 2,299ebay.com
13.

Olympus E-M1 III5/5..5/583/1004.5/54/5 Feb 2020 1,799ebay.com
14.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
15.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
16.

Panasonic GH54.5/5+ +..85/1004.5/55/5 Jan 2017 1,999ebay.com
17.

Panasonic G85..+ +..84/1005/54.5/5 Sep 2016 899ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check Leica SL offers at
ebay.com
logo
Check E-M1 II offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Leica SL vs Olympus E-M1 II

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Leica SL Olympus E-M1 II
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Leica L mount lenses Micro Four Thirds lenses
    Launch Date October 2015 September 2016
    Launch Price USD 7,450 USD 1,999
    Sensor Specs Leica SL Olympus E-M1 II
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor Four Thirds Sensor
    Sensor Size 36.0 x 24.0 mm 17.3 x 13.0 mm
    Sensor Area 864 mm2 224.9 mm2
    Sensor Diagonal 43.3 mm 21.6 mm
    Crop Factor 1.0x 2.0x
    Sensor Resolution 24 Megapixels 20.2 Megapixels
    Image Resolution 6000 x 4000 pixels 5184 x 3888 pixels
    Pixel Pitch 6.00 μm 3.34 μm
    Pixel Density 2.78 MP/cm2 8.96 MP/cm2
    Moiré control no AA filter no AA filter
    Movie Capability 4K/30p Video 4K/30p Video
    ISO Setting 50 - 50,000 ISO 200 - 25,600 ISO
    ISO Boost no Enhancement 64 - 25,600 ISO
    Image Processor Maestro II TruePic VIII
    DXO Sensor Quality (score) 88 80
    DXO Color Depth (bits) 25.0 23.7
    DXO Dynamic Range (EV) 13.4 12.8
    DXO Low Light (ISO) 1821 1312
    Screen Specs Leica SL Olympus E-M1 II
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.80x 0.74x
    Viewfinder Resolution 4400k dots 2360k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1037k dots
    LCD Attachment Fixed screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Leica SL Olympus E-M1 II
    Focus System Contrast-detect AF On-Sensor Phase-detect
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 11 shutter flaps/s 18 shutter flaps/s
    Electronic Shutterup to 1/16000sup to 1/32000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Dual card slots Dual card slots
    UHS card support Single UHS-II Single UHS-II
    Connectivity Specs Leica SL Olympus E-M1 II
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 3.0 USB 3.0
    HDMI Port full HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Geotagging GPS built-in no internal GPS
    Body Specs Leica SL Olympus E-M1 II
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Leica BP-SCL4 Olympus BLH-1
    Battery Life (CIPA)400 shots per charge440 shots per charge
    Body Dimensions 147 x 104 x 39 mm
    (5.8 x 4.1 x 1.5 in)
    134 x 91 x 67 mm
    (5.3 x 3.6 x 2.6 in)
    Camera Weight 847 g (29.9 oz) 574 g (20.2 oz)
    logo
    Check Leica SL offers at
    ebay.com
    logo
    Check E-M1 II offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Leica SL vs Olympus E-M1 II
