Leica S2 vs Nikon D800E
The Leica S2 and the Nikon D800E are two professional cameras that were officially introduced, respectively, in September 2008 and February 2012. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a medium format (S2) and a full frame (D800E) sensor. The Leica has a resolution of 37.5 megapixels, whereas the Nikon provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica S2 and the Nikon D800E? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

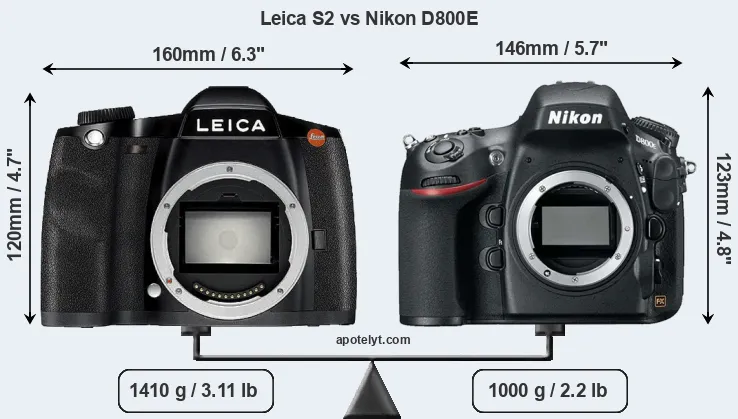

The side-by-side display below illustrates the physical size and weight of the Leica S2 and the Nikon D800E. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D800E is notably smaller (6 percent) than the Leica S2. Moreover, the D800E is markedly lighter (29 percent) than the S2. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Leica S2||160 mm||120 mm||80 mm||1410 g||..||Y||Sep 2008||22,995||ebay.com|
|2.||Nikon D800E||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||3,299||ebay.com|
|3.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999||ebay.com|
|4.||Leica S3||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2018||18,995||amazon.com|
|5.||Leica S-E Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2014||16,900||ebay.com|
|6.||Leica S Typ 007||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2014||24,490||ebay.com|
|7.||Leica S Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2012||21,950||ebay.com|
|8.||Leica S1||339 mm||214 mm||119 mm||2500 g||..||n||Aug 1996||21,490||ebay.com|
|9.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299||amazon.com|
|10.||Nikon D810||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299||ebay.com|
|11.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999||ebay.com|
|12.||Nikon D800||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||2,999||ebay.com|
|13.||Nikon D3S||160 mm||157 mm||88 mm||1240 g||4200||Y||Oct 2009||5,199||ebay.com|
|14.||Nikon D3X||160 mm||157 mm||88 mm||1260 g||4400||Y||Dec 2008||7,999||ebay.com|
|15.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999||ebay.com|
|16.||Nikon D3||160 mm||157 mm||88 mm||1300 g||4300||Y||Aug 2007||4,999||ebay.com|
|17.||Pentax 645D||156 mm||117 mm||119 mm||1480 g||800||Y||Mar 2010||9,995||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D800E was launched at a markedly lower price (by 86 percent) than the S2, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Leica S2 features a medium format sensor and the Nikon D800E a full frame sensor. The sensor area in the D800E is 36 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.8 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 37.5MP, the S2 offers a slightly higher resolution than the D800E (36.2MP), but the S2 nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 4.88μm for the D800E) due to its larger sensor. However, the D800E is a much more recent model (by 3 years and 4 months) than the S2, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The Leica S2 has a native sensitivity range from ISO 80 to ISO 1250. The corresponding ISO settings for the Nikon D800E are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 50-25600.
In terms of underlying technology, the S2 is build around a CCD sensor, while the D800E uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|1.||Leica S2||Medium Format||37.5||7500||5000||none||23.9||12.5||2224||82|
|2.||Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
|3.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|4.||Leica S3||Medium Format||64.0||9800||6533||4K/24p||25.6||14.4||3143||98|
|5.||Leica S-E Typ 006||Medium Format||37.5||7500||5000||none||25.1||13.7||2763||93|
|6.||Leica S Typ 007||Medium Format||37.5||7500||5000||4K/24p||25.1||13.7||2763||93|
|7.||Leica S Typ 006||Medium Format||37.5||7500||5000||none||23.9||12.2||824||76|
|8.||Leica S1||Medium Format||26.4||5140||5140||none||..||..||..||..|
|9.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|10.||Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|11.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|12.||Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|13.||Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|14.||Nikon D3X||Full Frame||24.4||6048||4032||none||24.7||13.7||1992||88|
|15.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|16.||Nikon D3||Full Frame||12.1||4256||2832||none||23.5||12.2||2290||81|
|17.||Pentax 645D||Medium Format||39.5||7264||5440||none||24.6||12.6||1262||82|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The D800E indeed provides for movie recording, while the S2 does not. The highest resolution format that the D800E can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The S2 and the D800E are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D800E offers a wider field of view (100%) than the one in the S2 (96%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the S2 has a higher magnification (0.86x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Leica S2, the Nikon D800E, and comparable cameras.
|1.||Leica S2||optical||Y||3.0 / 460||fixed||n||1/4000s||1.5/s||n||n|
|2.||Nikon D800E||optical||Y||3.2 / 921||fixed||n||1/8000s||4.0/s||Y||n|
|3.||Canon 1Ds Mark III||optical||Y||3.0 / 230||fixed||n||1/8000s||5.0/s||n||n|
|4.||Leica S3||optical||Y||3.0 / 922||fixed||n||1/4000s||3.0/s||n||n|
|5.||Leica S-E Typ 006||optical||Y||3.0 / 922||fixed||n||1/4000s||1.5/s||n||n|
|6.||Leica S Typ 007||optical||Y||3.0 / 922||fixed||n||1/4000s||3.5/s||n||n|
|7.||Leica S Typ 006||optical||Y||3.0 / 922||fixed||n||1/4000s||1.5/s||n||n|
|8.||Leica S1||optical||n||none / none||none||n||..||0.01/s||n||n|
|9.||Nikon D850||optical||Y||3.2 / 2359||tilting||Y||1/8000s||9.0/s||n||n|
|10.||Nikon D810||optical||Y||3.2 / 1229||fixed||n||1/8000s||5.0/s||Y||n|
|11.||Nikon D610||optical||Y||3.2 / 921||fixed||n||1/4000s||6.0/s||Y||n|
|12.||Nikon D800||optical||Y||3.2 / 921||fixed||n||1/8000s||4.0/s||Y||n|
|13.||Nikon D3S||optical||Y||3.0 / 921||fixed||n||1/8000s||11.0/s||n||n|
|14.||Nikon D3X||optical||Y||3.0 / 922||fixed||n||1/8000s||5.0/s||n||n|
|15.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0/s||Y||n|
|16.||Nikon D3||optical||Y||3.0 / 922||fixed||n||1/8000s||11.0/s||n||n|
|17.||Pentax 645D||optical||Y||3.0 / 921||fixed||n||1/4000s||1.1/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The D800E has one, while the S2 does not. While the built-in flash of the D800E is not very powerful, it can at times be useful as a fill-in light.
The Nikon D800E has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The S2 writes its imaging data to Compact Flash or SDHC cards, while the D800E uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The D800E supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the S2 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica S2 and Nikon D800E and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica S2||Y||- / -||-||-||mini||2.0||-||-||-|
|2.||Nikon D800E||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|3.||Canon 1Ds Mark III||Y||mono / -||-||-||-||2.0||-||-||-|
|4.||Leica S3||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|5.||Leica S-E Typ 006||Y||- / -||-||-||mini||2.0||-||-||-|
|6.||Leica S Typ 007||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|7.||Leica S Typ 006||Y||- / -||-||-||mini||2.0||-||-||-|
|8.||Leica S1||-||- / -||-||-||-||-||-||-||-|
|9.||Nikon D850||Y||stereo / mono||Y||Y||mini||3.0||Y||Y||Y|
|10.||Nikon D810||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|11.||Nikon D610||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|12.||Nikon D800||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|13.||Nikon D3S||Y||stereo / -||-||-||mini||2.0||-||-||-|
|14.||Nikon D3X||Y||- / -||-||-||mini||2.0||-||-||-|
|15.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
|16.||Nikon D3||Y||- / -||-||-||mini||2.0||-||-||-|
|17.||Pentax 645D||Y||stereo / -||-||-||-||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the S2 and the D800E have been discontinued, but can regularly be found used on ebay. The S2 was replaced by the Leica S Typ 006, while the D800E was followed by the Nikon D810. Further information on the features and operation of the S2 and D800E can be found, respectively, in the Leica S2 Manual (free pdf) or the online Nikon D800E Manual.
So how do things add up? Which of the two cameras – the Leica S2 or the Nikon D800E – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Leica S2:
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.86x vs 0.70x).
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More heavily discounted: Has been available for much longer (launched in September 2008).
Arguments in favor of the Nikon D800E:
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 460k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (4 vs 1.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Less heavy: Has a lower weight (by 410g or 29 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (86 percent cheaper at launch).
- More modern: Reflects 3 years and 4 months of technical progress since the S2 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the D800E is the clear winner of the contest (13 : 3 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica S2 and the Nikon D800E place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the S2 or the D800E perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica S2||..||..||..||..||..||..||Sep 2008||22,995||ebay.com|
|2.||Nikon D800E||..||..||..||84/100||5/5||5/5||Feb 2012||3,299||ebay.com|
|3.||Canon 1Ds Mark III||..||..||..||+ +||4.5/5||..||Aug 2007||7,999||ebay.com|
|4.||Leica S3||..||..||..||..||..||..||Sep 2018||18,995||amazon.com|
|5.||Leica S-E Typ 006||..||..||..||..||..||..||Sep 2014||16,900||ebay.com|
|6.||Leica S Typ 007||4/5||..||..||..||..||..||Sep 2014||24,490||ebay.com|
|7.||Leica S Typ 006||..||..||..||..||..||..||Sep 2012||21,950||ebay.com|
|8.||Leica S1||..||..||..||..||..||..||Aug 1996||21,490||ebay.com|
|9.||Nikon D850||4.5/5||+ +||5/5||89/100||4.5/5||5/5||Jul 2017||3,299||amazon.com|
|10.||Nikon D810||5/5||..||5/5||86/100||5/5||4.5/5||Jun 2014||3,299||ebay.com|
|11.||Nikon D610||4/5||+ +||..||87/100||4.5/5||4.5/5||Oct 2013||1,999||ebay.com|
|12.||Nikon D800||5/5||+ +||..||82/100||5/5||5/5||Feb 2012||2,999||ebay.com|
|13.||Nikon D3S||5/5||..||..||89/100||4.5/5||5/5||Oct 2009||5,199||ebay.com|
|14.||Nikon D3X||..||..||..||86/100||4/5||5/5||Dec 2008||7,999||ebay.com|
|15.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999||ebay.com|
|16.||Nikon D3||..||..||..||+ +||5/5||4.5/5||Aug 2007||4,999||ebay.com|
|17.||Pentax 645D||5/5||..||..||..||..||..||Mar 2010||9,995||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Leica S2 vs Nikon D800E
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica S2||Nikon D800E|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Leica S mount lenses||Nikon F mount lenses|
|Launch Date||September 2008||February 2012|
|Launch Price||USD 22,995||USD 3,299|
|Sensor Specs||Leica S2||Nikon D800E|
|Sensor Format||Medium Format Sensor||Full Frame Sensor|
|Sensor Size||45.0 x 30.0 mm||35.9 x 24.0 mm|
|Sensor Area||1350 mm2||861.6 mm2|
|Sensor Diagonal||54.1 mm||43.2 mm|
|Sensor Resolution||37.5 Megapixels||36.2 Megapixels|
|Image Resolution||7500 x 5000 pixels||7360 x 4912 pixels|
|Pixel Pitch||6.00 μm||4.88 μm|
|Pixel Density||2.78 MP/cm2||4.20 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||80 - 1,250 ISO||100 - 6,400 ISO|
|ISO Boost||no Enhancement||50 - 25,600 ISO|
|DXO Sensor Quality (score)||..||96|
|DXO Color Depth (bits)||..||25.6|
|DXO Dynamic Range (EV)||..||14.3|
|DXO Low Light (ISO)||..||2979|
|Screen Specs||Leica S2||Nikon D800E|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||460k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Leica S2||Nikon D800E|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||1.5 shutter flaps/s||4 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF or SDHC cards||CF or SDXC cards|
|Single or Dual Card Slots||Dual card slots||Dual card slots|
|UHS card support||no||UHS-I|
|Connectivity Specs||Leica S2||Nikon D800E|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Leica S2||Nikon D800E|
|Environmental Sealing||Weathersealed body||Weathersealed body|
160 x 120 x 80 mm
(6.3 x 4.7 x 3.1 in)
146 x 123 x 82 mm
(5.7 x 4.8 x 3.2 in)
|Camera Weight||1410 g (49.7 oz)||1000 g (35.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
