Leica S2 vs Nikon D5
The Leica S2 and the Nikon D5 are two professional cameras that were officially introduced, respectively, in September 2008 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a medium format (S2) and a full frame (D5) sensor. The Leica has a resolution of 37.5 megapixels, whereas the Nikon provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica S2 and the Nikon D5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

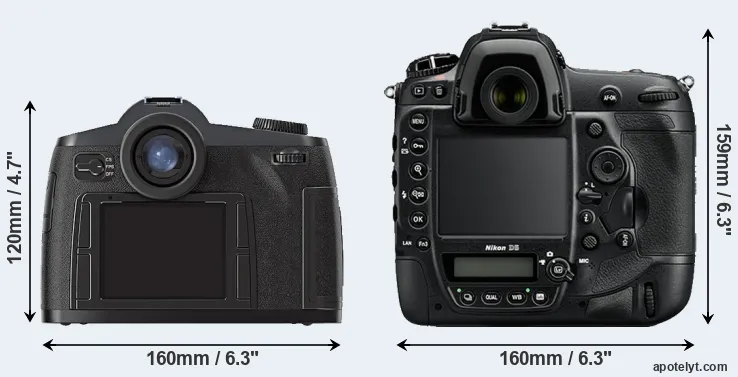

The physical size and weight of the Leica S2 and the Nikon D5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is notably larger (33 percent) than the Leica S2. Moreover, the D5 is slightly heavier (0 percent) than the S2. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the S2, Leica provides the Multi-Function Handgrip S vertical grip as an optional accessory (see here on ebay).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Leica S2||160 mm||120 mm||80 mm||1410 g||..||Y||Sep 2008||22,995||ebay.com|
|2.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499||ebay.com|
|3.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||ebay.com|
|4.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999||ebay.com|
|5.||Leica S3||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2018||18,995||amazon.com|
|6.||Leica S-E Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2014||16,900||ebay.com|
|7.||Leica S Typ 007||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2014||24,490||ebay.com|
|8.||Leica S Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2012||21,950||ebay.com|
|9.||Leica S1||339 mm||214 mm||119 mm||2500 g||..||n||Aug 1996||21,490||ebay.com|
|10.||Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499||amazon.com|
|11.||Nikon D4S||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499||ebay.com|
|12.||Nikon D750||141 mm||113 mm||78 mm||750 g||1230||Y||Sep 2014||2,299||ebay.com|
|13.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999||amazon.com|
|14.||Nikon D3S||160 mm||157 mm||88 mm||1240 g||4200||Y||Oct 2009||5,199||ebay.com|
|15.||Nikon D3X||160 mm||157 mm||88 mm||1260 g||4400||Y||Dec 2008||7,999||ebay.com|
|16.||Nikon D3||160 mm||157 mm||88 mm||1300 g||4300||Y||Aug 2007||4,999||ebay.com|
|17.||Pentax 645D||156 mm||117 mm||119 mm||1480 g||800||Y||Mar 2010||9,995||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D5 was launched at a markedly lower price (by 72 percent) than the S2, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica S2 features a medium format sensor and the Nikon D5 a full frame sensor. The sensor area in the D5 is 36 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.8 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 37.5MP, the S2 offers a higher resolution than the D5 (20.7MP), but the S2 has smaller individual pixels (pixel pitch of 6.00μm versus 6.44μm for the D5). Moreover, the D5 is a much more recent model (by 7 years and 3 months) than the S2, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the S2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica S2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S2 for good quality output (200 dots per inch) amounts to 37.5 x 25 inches or 95.3 x 63.5 cm, for very good quality (250 dpi) 30 x 20 inches or 76.2 x 50.8 cm, and for excellent quality (300 dpi) 25 x 16.7 inches or 63.5 x 42.3 cm. The corresponding values for the Nikon D5 are 27.9 x 18.6 inches or 71 x 47.1 cm for good quality, 22.4 x 14.8 inches or 56.8 x 37.7 cm for very good quality, and 18.6 x 12.4 inches or 47.3 x 31.4 cm for excellent quality prints.
The Leica S2 has a native sensitivity range from ISO 80 to ISO 1250. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000.
In terms of underlying technology, the S2 is build around a CCD sensor, while the D5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|1.||Leica S2||Medium Format||37.5||7500||5000||none||23.9||12.5||2224||82|
|2.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|3.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|4.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|5.||Leica S3||Medium Format||64.0||9800||6533||4K/24p||25.6||14.4||3143||98|
|6.||Leica S-E Typ 006||Medium Format||37.5||7500||5000||none||25.1||13.7||2763||93|
|7.||Leica S Typ 007||Medium Format||37.5||7500||5000||4K/24p||25.1||13.7||2763||93|
|8.||Leica S Typ 006||Medium Format||37.5||7500||5000||none||23.9||12.2||824||76|
|9.||Leica S1||Medium Format||26.4||5140||5140||none||..||..||..||..|
|10.||Nikon D6||Full Frame||20.7||5568||3712||4K/30p||25.3||14.3||2886||95|
|11.||Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|12.||Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|13.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|14.||Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|15.||Nikon D3X||Full Frame||24.4||6048||4032||none||24.7||13.7||1992||88|
|16.||Nikon D3||Full Frame||12.1||4256||2832||none||23.5||12.2||2290||81|
|17.||Pentax 645D||Medium Format||39.5||7264||5440||none||24.6||12.6||1262||82|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The D5 indeed provides for movie recording, while the S2 does not. The highest resolution format that the D5 can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The S2 and the D5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D5 offers a wider field of view (100%) than the one in the S2 (96%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the S2 has a higher magnification (0.86x vs 0.72x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Leica S2, the Nikon D5, and comparable cameras.
|1.||Leica S2||optical||Y||3.0 / 460||fixed||n||1/4000s||1.5/s||n||n|
|2.||Nikon D5||optical||Y||3.2 / 2359||fixed||Y||1/8000s||14.0/s||n||n|
|3.||Canon 1D X Mark II||optical||Y||3.2 / 1620||fixed||Y||1/8000s||16.0/s||n||n|
|4.||Canon 1Ds Mark III||optical||Y||3.0 / 230||fixed||n||1/8000s||5.0/s||n||n|
|5.||Leica S3||optical||Y||3.0 / 922||fixed||n||1/4000s||3.0/s||n||n|
|6.||Leica S-E Typ 006||optical||Y||3.0 / 922||fixed||n||1/4000s||1.5/s||n||n|
|7.||Leica S Typ 007||optical||Y||3.0 / 922||fixed||n||1/4000s||3.5/s||n||n|
|8.||Leica S Typ 006||optical||Y||3.0 / 922||fixed||n||1/4000s||1.5/s||n||n|
|9.||Leica S1||optical||n||none / none||none||n||..||0.01/s||n||n|
|10.||Nikon D6||optical||Y||3.2 / 2359||fixed||Y||1/8000s||14.0/s||n||n|
|11.||Nikon D4S||optical||Y||3.2 / 921||fixed||n||1/8000s||11.0/s||n||n|
|12.||Nikon D750||optical||Y||3.2 / 1229||tilting||n||1/4000s||6.0/s||Y||n|
|13.||Nikon D610||optical||Y||3.2 / 921||fixed||n||1/4000s||6.0/s||Y||n|
|14.||Nikon D3S||optical||Y||3.0 / 921||fixed||n||1/8000s||11.0/s||n||n|
|15.||Nikon D3X||optical||Y||3.0 / 922||fixed||n||1/8000s||5.0/s||n||n|
|16.||Nikon D3||optical||Y||3.0 / 922||fixed||n||1/8000s||11.0/s||n||n|
|17.||Pentax 645D||optical||Y||3.0 / 921||fixed||n||1/4000s||1.1/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D5 has a touchscreen, while the S2 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Nikon D5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The S2 writes its imaging data to Compact Flash or SDHC cards, while the D5 uses Compact Flash or XQD cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica S2 and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica S2||Y||- / -||-||-||mini||2.0||-||-||-|
|2.||Nikon D5||Y||stereo / mono||Y||Y||mini||3.0||-||-||-|
|3.||Canon 1D X Mark II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|4.||Canon 1Ds Mark III||Y||mono / -||-||-||-||2.0||-||-||-|
|5.||Leica S3||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|6.||Leica S-E Typ 006||Y||- / -||-||-||mini||2.0||-||-||-|
|7.||Leica S Typ 007||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|8.||Leica S Typ 006||Y||- / -||-||-||mini||2.0||-||-||-|
|9.||Leica S1||-||- / -||-||-||-||-||-||-||-|
|10.||Nikon D6||Y||stereo / mono||Y||Y||mini||3.1||Y||-||Y|
|11.||Nikon D4S||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|12.||Nikon D750||Y||stereo / mono||Y||Y||mini||2.0||Y||-||-|
|13.||Nikon D610||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|14.||Nikon D3S||Y||stereo / -||-||-||mini||2.0||-||-||-|
|15.||Nikon D3X||Y||- / -||-||-||mini||2.0||-||-||-|
|16.||Nikon D3||Y||- / -||-||-||mini||2.0||-||-||-|
|17.||Pentax 645D||Y||stereo / -||-||-||-||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the S2 and the D5 have been discontinued, but can regularly be found used on ebay. The S2 was replaced by the Leica S Typ 006, while the D5 was followed by the Nikon D6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Nikon websites.
So what is the bottom line? Is there a clear favorite between the Leica S2 and the Nikon D5? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Leica S2:
- More detail: Offers more megapixels (37.5 vs 20.7MP) with a 34% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.86x vs 0.72x).
- More compact: Is smaller (160x120mm vs 160x159mm) and thus needs less room in the bag.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More heavily discounted: Has been available for much longer (launched in September 2008).
Arguments in favor of the Nikon D5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 460k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (14 vs 1.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- More affordable: Was introduced into a lower priced category (72 percent cheaper at launch).
- More modern: Reflects 7 years and 3 months of technical progress since the S2 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the D5 is the clear winner of the contest (13 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica S2 and the Nikon D5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the S2 or the D5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica S2||..||..||..||..||..||..||Sep 2008||22,995||ebay.com|
|2.||Nikon D5||..||..||4/5||89/100||4.5/5||5/5||Jan 2016||6,499||ebay.com|
|3.||Canon 1D X Mark II||..||..||4.5/5||89/100||4.5/5||4.5/5||Feb 2016||5,999||ebay.com|
|4.||Canon 1Ds Mark III||..||..||..||+ +||4.5/5||..||Aug 2007||7,999||ebay.com|
|5.||Leica S3||..||..||..||..||..||..||Sep 2018||18,995||amazon.com|
|6.||Leica S-E Typ 006||..||..||..||..||..||..||Sep 2014||16,900||ebay.com|
|7.||Leica S Typ 007||4/5||..||..||..||..||..||Sep 2014||24,490||ebay.com|
|8.||Leica S Typ 006||..||..||..||..||..||..||Sep 2012||21,950||ebay.com|
|9.||Leica S1||..||..||..||..||..||..||Aug 1996||21,490||ebay.com|
|10.||Nikon D6||..||..||4/5||..||4.5/5||4.5/5||Feb 2020||6,499||amazon.com|
|11.||Nikon D4S||5/5||..||..||..||4.5/5||4.5/5||Feb 2014||6,499||ebay.com|
|12.||Nikon D750||5/5||+ +||4/5||90/100||4.5/5||4.5/5||Sep 2014||2,299||ebay.com|
|13.||Nikon D610||4/5||+ +||..||87/100||4.5/5||4.5/5||Oct 2013||1,999||amazon.com|
|14.||Nikon D3S||5/5||..||..||89/100||4.5/5||5/5||Oct 2009||5,199||ebay.com|
|15.||Nikon D3X||..||..||..||86/100||4/5||5/5||Dec 2008||7,999||ebay.com|
|16.||Nikon D3||..||..||..||+ +||5/5||4.5/5||Aug 2007||4,999||ebay.com|
|17.||Pentax 645D||5/5||..||..||..||..||..||Mar 2010||9,995||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Leica S2 vs Nikon D5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica S2||Nikon D5|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Leica S mount lenses||Nikon F mount lenses|
|Launch Date||September 2008||January 2016|
|Launch Price||USD 22,995||USD 6,499|
|Sensor Specs||Leica S2||Nikon D5|
|Sensor Format||Medium Format Sensor||Full Frame Sensor|
|Sensor Size||45.0 x 30.0 mm||35.9 x 23.9 mm|
|Sensor Area||1350 mm2||858.01 mm2|
|Sensor Diagonal||54.1 mm||43.1 mm|
|Sensor Resolution||37.5 Megapixels||20.7 Megapixels|
|Image Resolution||7500 x 5000 pixels||5588 x 3712 pixels|
|Pixel Pitch||6.00 μm||6.44 μm|
|Pixel Density||2.78 MP/cm2||2.42 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||80 - 1,250 ISO||100 - 102,400 ISO|
|ISO Boost||no Enhancement||50 - 3,280,000 ISO|
|DXO Sensor Quality (score)||..||88|
|DXO Color Depth (bits)||..||25.1|
|DXO Dynamic Range (EV)||..||12.3|
|DXO Low Light (ISO)||..||2343|
|Screen Specs||Leica S2||Nikon D5|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||460k dots||2359k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Leica S2||Nikon D5|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||1.5 shutter flaps/s||14 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SDHC cards||CF or XQD cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Leica S2||Nikon D5|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Leica S2||Nikon D5|
|Environmental Sealing||Weathersealed body||Weathersealed body|
160 x 120 x 80 mm
(6.3 x 4.7 x 3.1 in)
160 x 159 x 92 mm
(6.3 x 6.3 x 3.6 in)
|Camera Weight||1410 g (49.7 oz)||1415 g (49.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
