Leica S Typ 006 vs Olympus E-520
The Leica S (Typ 006) and the Olympus E-520 are two digital cameras that were revealed to the public, respectively, in September 2012 and May 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a medium format (S Typ 006) and a Four Thirds (E-520) sensor. The Leica has a resolution of 37.5 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Leica S Typ 006||Olympus E-520|
|Digital single lens reflex||Digital single lens reflex|
|Leica S mount lenses||Four Thirds lenses|
|37.5 MP, Medium Format Sensor||10 MP, Four Thirds Sensor|
|no Video||no Video|
|ISO 100-1,600||ISO 100-1,600|
|Optical viewfinder||Optical viewfinder|
|3.0 LCD, 922k dots||2.7 LCD, 215k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|1.5 shutter flaps per second||3.5 shutter flaps per second|
|no shake reduction||In-body stabilization|
|Weathersealed body||not weather sealed|
|160 x 120 x 80 mm, 1260 g||136 x 92 x 68 mm, 535 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica S (Typ 006) and the Olympus E-520? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Leica S Typ 006 and the Olympus E-520 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-520 is considerably smaller (35 percent) than the Leica S Typ 006. Moreover, the E-520 is substantially lighter (58 percent) than the S Typ 006. It is worth mentioning in this context that the S Typ 006 is splash and dust resistant, while the E-520 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Leica S Typ 006||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2012||21,950|
|Olympus E-520||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon 70D||5.5 in||4.1 in||3.1 in||26.6 oz||920||Y||Jul 2013||1,199|
|Leica S3||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2018||18,995|
|Leica SL||5.8 in||4.1 in||1.5 in||29.9 oz||400||Y||Oct 2015||7,450|
|Leica S-E Typ 006||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2014||16,900|
|Leica S Typ 007||6.3 in||4.7 in||3.1 in||44.4 oz||..||Y||Sep 2014||24,490|
|Leica M Typ 240||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Sep 2012||6,950|
|Leica S2||6.3 in||4.7 in||3.1 in||49.7 oz||..||Y||Sep 2008||22,995|
|Nikon D4||6.3 in||6.2 in||3.6 in||47.3 oz||2600||Y||Jan 2012||5,999|
|Olympus E-600||5.1 in||3.7 in||2.4 in||18.9 oz||500||n||Aug 2009||449|
|Olympus E-620||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699|
|Olympus E-420||5.1 in||3.6 in||2.1 in||15.5 oz||500||n||Mar 2008||599|
|Olympus E-410||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699|
|Olympus E-510||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799|
|Pentax 645D||6.1 in||4.6 in||4.7 in||52.2 oz||800||Y||Mar 2010||9,995|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-520 was launched at a markedly lower price (by 97 percent) than the S Typ 006, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica S Typ 006 features a medium format sensor and the Olympus E-520 a Four Thirds sensor. The sensor area in the E-520 is 83 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.8 and 2.0. The sensor in the S Typ 006 has a native 3:2 aspect ratio, while the one in the E-520 offers a 4:3 aspect.

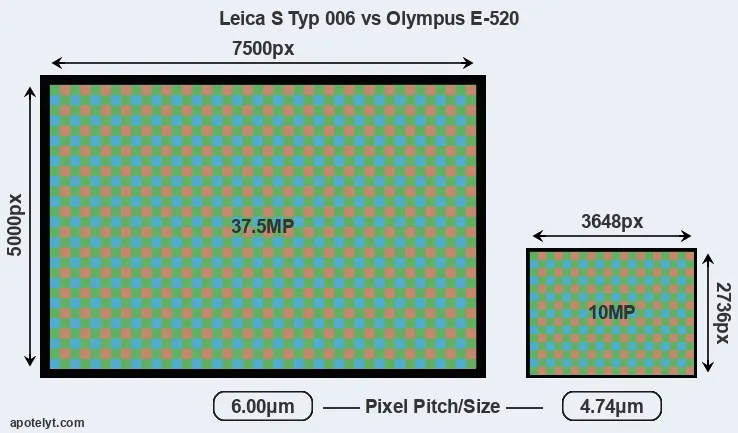

With 37.5MP, the S Typ 006 offers a higher resolution than the E-520 (10MP), but the S Typ 006 nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 4.74μm for the E-520) due to its larger sensor. Moreover, the S Typ 006 is a much more recent model (by 4 years and 4 months) than the E-520, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the S Typ 006 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica S Typ 006 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S Typ 006 for good quality output (200 dots per inch) amounts to 37.5 x 25 inches or 95.3 x 63.5 cm, for very good quality (250 dpi) 30 x 20 inches or 76.2 x 50.8 cm, and for excellent quality (300 dpi) 25 x 16.7 inches or 63.5 x 42.3 cm. The corresponding values for the Olympus E-520 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Leica S (Typ 006) has a native sensitivity range from ISO 100 to ISO 1600. The Olympus E-520 offers exactly the same ISO settings.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the S Typ 006 provides substantially higher image quality than the E-520, with an overall score that is 21 points higher. This advantage is based on 2.5 bits higher color depth, 1.8 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Leica S Typ 006||Medium Format||37.5||7500||5000||none||23.9||12.2||824||76|
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Leica S3||Medium Format||64.0||9800||6533||4K/24p||..||..||..||..|
|Leica SL||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88|
|Leica S-E Typ 006||Medium Format||37.5||7500||5000||none||..||..||..||..|
|Leica S Typ 007||Medium Format||37.5||7500||5000||4K/24p||..||..||..||..|
|Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
|Leica S2||Medium Format||37.5||7500||5000||none||..||..||..||..|
|Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|Pentax 645D||Medium Format||39.5||7264||5440||none||24.6||12.6||1262||82|
Beyond body and sensor, cameras can and do differ across a range of features. The S Typ 006 and the E-520 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the S Typ 006 offers a wider field of view (98%) than the one in the E-520 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the S Typ 006 has a higher magnification (0.87x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Leica S Typ 006 and Olympus E-520 along with similar information for a selection of comparators.
|Leica S Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Leica S-E Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
|Leica S Typ 007||optical||Y||3.0||922||fixed||n||1/4000s||3.5||n||n|
|Leica M Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
One feature that is present on the S Typ 006, but is missing on the E-520 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The S Typ 006 writes its imaging data to Compact Flash or SDXC cards, while the E-520 uses Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica S (Typ 006) and Olympus E-520 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Leica S Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Leica S-E Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
|Leica S Typ 007||Y||stereo||mono||Y||Y||mini||3.0||Y||-||-|
|Leica M Typ 240||Y||stereo||mono||-||-||-||2.0||-||-||-|
Studio photographers will appreciate that the Leica S Typ 006 (unlike the E-520) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the S Typ 006 and the E-520 have been discontinued, but can regularly be found used on eBay. The S Typ 006 was replaced by the Leica S Typ 007, while the E-520 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Olympus websites.
So what is the bottom line? Which of the two cameras – the Leica S Typ 006 or the Olympus E-520 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Leica S (Typ 006):
- More detail: Offers more megapixels (37.5 vs 10MP) with a 98% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (21 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.5 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.8 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.6 stops ISO advantage).
- More complete view: Has a viewfinder with a larger field of view (98% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.87x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (922k vs 215k dots).
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Reflects 4 years and 4 months of technical progress since the E-520 launch.
Arguments in favor of the Olympus E-520:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Faster burst: Shoots at higher frequency (3.5 vs 1.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (136x92mm vs 160x120mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 725g or 58 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (97 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in May 2008).
If the count of individual advantages (bullet points above) is taken as a guide, the S Typ 006 is the clear winner of the match-up (15 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica S Typ 006 and the Olympus E-520 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the S Typ 006 or the E-520 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Leica S Typ 006||..||..||..||..||..||Sep 2012||21,950|
|Olympus E-520||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 70D||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199|
|Leica S3||..||..||..||..||..||Sep 2018||18,995|
|Leica SL||..||84/100||4.5/5||4/5||4/5||Oct 2015||7,450|
|Leica S-E Typ 006||..||..||..||..||..||Sep 2014||16,900|
|Leica S Typ 007||..||..||..||..||..||Sep 2014||24,490|
|Leica M Typ 240||..||..||4/5||..||..||Sep 2012||6,950|
|Leica S2||..||..||..||..||..||Sep 2008||22,995|
|Nikon D4||..||..||4.5/5||..||4.5/5||Jan 2012||5,999|
|Olympus E-600||..||..||..||..||4.5/5||Aug 2009||449|
|Olympus E-620||88/100||72/100||4.5/5||o||5/5||Feb 2009||699|
|Olympus E-420||85/100||+ +||4/5||o||4.5/5||Mar 2008||599|
|Olympus E-410||86/100||+ +||4/5||o||4.5/5||Mar 2007||699|
|Olympus E-510||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799|
|Pentax 645D||..||..||..||4.5/5||..||Mar 2010||9,995|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 800D vs Olympus E-520
- Canon T4i vs Leica S Typ 006
- Leica Digilux 3 vs Leica S Typ 006
- Leica Q Typ 116 vs Leica S Typ 006
- Leica S Typ 006 vs Leica TL
- Leica S Typ 006 vs Olympus E-500
- Leica S Typ 006 vs Olympus E-600
- Leica S Typ 006 vs Panasonic ZS80
- Leica S Typ 006 vs Sony A3000
- Leica S Typ 006 vs Sony A6500
- Leica S Typ 006 vs Sony NEX-3N
- Nikon D5300 vs Olympus E-520
Specifications: Leica S Typ 006 vs Olympus E-520
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica S Typ 006||Olympus E-520|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Leica S mount lenses||Four Thirds lenses|
|Launch Date||September 2012||May 2008|
|Launch Price||USD 21,950||USD 699|
|Sensor Specs||Leica S Typ 006||Olympus E-520|
|Sensor Format||Medium Format Sensor||Four Thirds Sensor|
|Sensor Size||45.0 x 30.0 mm||17.3 x 13.0 mm|
|Sensor Area||1350 mm2||224.9 mm2|
|Sensor Diagonal||54.1 mm||21.6 mm|
|Sensor Resolution||37.5 Megapixels||10 Megapixels|
|Image Resolution||7500 x 5000 pixels||3648 x 2736 pixels|
|Pixel Pitch||6.00 μm||4.74 μm|
|Pixel Density||2.78 MP/cm2||4.44 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||100 - 1,600 ISO||100 - 1,600 ISO|
|DXO Sensor Quality (score)||76||55|
|DXO Color Depth (bits)||23.9||21.4|
|DXO Dynamic Range (EV)||12.2||10.4|
|DXO Low Light (ISO)||824||548|
|Screen Specs||Leica S Typ 006||Olympus E-520|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||98%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||922k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Leica S Typ 006||Olympus E-520|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||1.5 shutter flaps/s||3.5 shutter flaps/s|
|Image Stabilization||no shake reduction||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SDXC cards||CF or XD cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Leica S Typ 006||Olympus E-520|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Leica S Typ 006||Olympus E-520|
|Environmental Sealing||Weathersealed body||not weather sealed|
160 x 120 x 80 mm
(6.3 x 4.7 x 3.1 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||1260 g (44.4 oz)||535 g (18.9 oz)|
