Leica M10-P vs Olympus E-510
The Leica M10-P and the Olympus E-510 are two digital cameras that were announced, respectively, in August 2018 and March 2007. The M10-P is a rangefinder-style mirrorless camera, while the E-510 is a DSLR. The cameras are based on a full frame (M10-P) and a Four Thirds (E-510) sensor. The Leica has a resolution of 23.8 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Leica M10-P||Olympus E-510|
|Rangefinder camera||Digital single lens reflex|
|Leica M mount lenses||Four Thirds lenses|
|23.8 MP, Full Frame Sensor||10 MP, Four Thirds Sensor|
|no Video||no Video|
|ISO 100-50000||ISO 100-1600|
|Optical viewfinder||Optical viewfinder|
|3.0" LCD, 1037k dots||2.5" LCD, 215k dots|
|Fixed touchscreen||Fixed screen (not touch-sensitive)|
|5 shutter flaps per second||3 shutter flaps per second|
|No shake reduction||In-body stabilization|
|Weathersealed body||Not weather sealed|
|210 shots per battery charge||750 shots per battery charge|
|139 x 80 x 39 mm, 660 g||136 x 92 x 68 mm, 538 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M10-P and the Olympus E-510? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

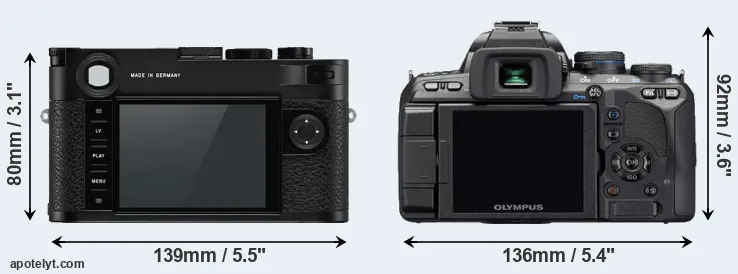

The side-by-side display below illustrates the physical size and weight of the Leica M10-P and the Olympus E-510. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The M10-P can be obtained in two different colors (black, silver), while the E-510 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-510 is notably larger (13 percent) than the Leica M10-P. However, the E-510 is markedly lighter (18 percent) than the M10-P. It is worth mentioning in this context that the M10-P is splash and dust resistant, while the E-510 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Leica M Lens Catalog (M10-P) and the Four Thirds Lens Catalog (E-510).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Leica M10-P»||5.5 in||3.1 in||1.5 in||23.3 oz||210||Y||Aug 2018||7,995||Leica M10-P|
|Olympus E-510«||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799||Olympus E-510|
|Canon 6D Mark II« »||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999||Canon 6D Mark II|
|Leica Q2« »||5.1 in||3.1 in||3.6 in||25.3 oz||370||Y||Mar 2019||4,995||Leica Q2|
|Leica M-E Typ 240« »||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Jun 2019||3,999||Leica M-E Typ 240|
|Leica M10« »||5.5 in||3.1 in||1.5 in||23.3 oz||210||Y||Jan 2017||6,595||Leica M10|
|Leica TL2« »||5.3 in||2.7 in||1.3 in||14.1 oz||250||n||Jul 2017||1,950||Leica TL2|
|Leica M Typ 262« »||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Nov 2015||5,195||Leica M Typ 262|
|Leica Q Typ 116« »||5.1 in||3.1 in||3.7 in||22.6 oz||300||n||Jun 2015||4,249||Leica Q Typ 116|
|Leica SL« »||5.8 in||4.1 in||1.5 in||29.9 oz||400||Y||Oct 2015||7,450||Leica SL|
|Leica M Typ 240« »||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Sep 2012||6,950||Leica M Typ 240|
|Leica M9« »||5.5 in||3.1 in||1.5 in||20.6 oz||..||n||Sep 2009||7,999||Leica M9|
|Olympus E-620« »||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699||Olympus E-620|
|Olympus E-520« »||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699||Olympus E-520|
|Olympus E-410« »||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699||Olympus E-410|
|Olympus E-400« »||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Sep 2006||699||Olympus E-400|
|Olympus E-500« »||5.1 in||3.7 in||2.6 in||16.9 oz||750||n||Sep 2005||599||Olympus E-500|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-510 was launched at a markedly lower price (by 90 percent) than the M10-P, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica M10-P features a full frame sensor and the Olympus E-510 a Four Thirds sensor. The sensor area in the E-510 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the M10-P has a native 3:2 aspect ratio, while the one in the E-510 offers a 4:3 aspect.
With 23.8MP, the M10-P offers a higher resolution than the E-510 (10MP), but the M10-P nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 4.74μm for the E-510) due to its larger sensor. Moreover, the M10-P is a much more recent model (by 11 years and 5 months) than the E-510, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the M10-P has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica M10-P implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10-P for good quality output (200 dots per inch) amounts to 29.8 x 20 inch or 75.6 x 50.7 cm, for very good quality (250 dpi) 23.8 x 16 inch or 60.5 x 40.6 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inch or 50.4 x 33.8 cm. The corresponding values for the Olympus E-510 are 18.2 x 13.7 inch or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inch or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inch or 30.9 x 23.2 cm for excellent quality prints.
The Leica M10-P has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Olympus E-510 are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Leica M10-P||Full Frame||23.8||5952||3992||none||..||..||..||..||Leica M10-P|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52||Olympus E-510|
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85||Canon 6D Mark II|
|Leica Q2||Full Frame||46.7||8368||5584||4K/30p||26.4||13.5||2491||96||Leica Q2|
|Leica M-E Typ 240||Full Frame||23.7||5952||3976||1080/25p||..||..||..||..||Leica M-E Typ 240|
|Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86||Leica M10|
|Leica TL2||APS-C||24.1||6014||4014||4K/30p||..||..||..||..||Leica TL2|
|Leica M Typ 262||Full Frame||23.7||5952||3976||none||..||..||..||..||Leica M Typ 262|
|Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85||Leica Q Typ 116|
|Leica SL||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88||Leica SL|
|Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84||Leica M Typ 240|
|Leica M9||Full Frame||18.1||5212||3472||none||22.5||11.7||884||69||Leica M9|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55||Olympus E-620|
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55||Olympus E-520|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51||Olympus E-410|
|Olympus E-400||Four Thirds||10.0||3648||2736||none||..||..||..||..||Olympus E-400|
|Olympus E-500||Four Thirds||8.0||3264||2448||none||..||..||..||..||Olympus E-500|
Apart from body and sensor, cameras can and do differ across a variety of features. The M10-P and the E-510 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the M10-P offers a wider field of view (100%) than the one in the E-510 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the M10-P has a higher magnification (0.73x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Leica M10-P, the Olympus E-510, and comparable cameras.
|Leica M10-P||optical||n||3.0||1037||fixed||Y||1/4000s||5.0||n||n||Leica M10-P|
|Olympus E-510||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||Y||Olympus E-510|
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n||Canon 6D Mark II|
|Leica Q2||3680||n||3.0||1040||fixed||Y||1/2000s||20.0||n||Y||Leica Q2|
|Leica M-E Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n||Leica M-E Typ 240|
|Leica M10||optical||n||3.0||1037||fixed||n||1/4000s||5.0||n||n||Leica M10|
|Leica TL2||optional||n||3.7||1230||fixed||Y||1/4000s||7.0||n||n||Leica TL2|
|Leica M Typ 262||optical||n||3.0||921||fixed||n||1/4000s||3.0||n||n||Leica M Typ 262|
|Leica Q Typ 116||3680||n||3.0||1040||fixed||Y||1/2000s||10.0||n||Y||Leica Q Typ 116|
|Leica SL||4400||Y||3.0||1040||fixed||Y||1/8000s||11.0||n||n||Leica SL|
|Leica M Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n||Leica M Typ 240|
|Leica M9||optical||n||2.5||230||fixed||n||1/4000s||2.0||n||n||Leica M9|
|Olympus E-620||optical||n||2.7||230||swivel||n||1/4000s||4.0||Y||Y||Olympus E-620|
|Olympus E-520||optical||n||2.7||215||fixed||n||1/4000s||3.5||Y||Y||Olympus E-520|
|Olympus E-410||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||n||Olympus E-410|
|Olympus E-400||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||n||Olympus E-400|
|Olympus E-500||optical||n||2.5||215||fixed||n||1/4000s||2.5||Y||n||Olympus E-500|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M10-P has a touchscreen, while the E-510 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Leica M10-P has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The M10-P writes its imaging data to SDXC cards, while the E-510 uses Compact Flash or xD Picture cards. The E-510 features dual card slots, which can be very useful in case a memory card fails. In contrast, the M10-P only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M10-P and Olympus E-510 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Leica M10-P||Y||none||none||-||-||none||none||Y||-||-||Leica M10-P|
|Olympus E-510||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-510|
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 6D Mark II|
|Leica Q2||Y||stereo||mono||-||-||none||none||Y||-||Y||Leica Q2|
|Leica M-E Typ 240||Y||mono||none||-||-||none||2.0||-||-||-||Leica M-E Typ 240|
|Leica M10||Y||none||none||-||-||none||none||Y||-||-||Leica M10|
|Leica TL2||Y||stereo||mono||-||-||micro||3.0||Y||-||-||Leica TL2|
|Leica M Typ 262||Y||none||none||-||-||none||2.0||-||-||-||Leica M Typ 262|
|Leica Q Typ 116||Y||stereo||mono||-||-||micro||2.0||Y||Y||-||Leica Q Typ 116|
|Leica SL||Y||stereo||mono||Y||Y||full||3.0||Y||-||-||Leica SL|
|Leica M Typ 240||Y||stereo||mono||-||-||none||2.0||-||-||-||Leica M Typ 240|
|Leica M9||Y||none||none||-||-||none||2.0||-||-||-||Leica M9|
|Olympus E-620||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-620|
|Olympus E-520||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-520|
|Olympus E-410||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-410|
|Olympus E-400||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-400|
|Olympus E-500||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-500|
It is notable that the M10-P offers wifi support, while the E-510 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The M10-P is a recent model that features in the current product line-up of Leica. In contrast, the E-510 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-510 was succeeded by the Olympus E-520. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Olympus websites.
So what is the bottom line? Is the Leica M10-P better than the Olympus E-510 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Leica M10-P:
- More detail: Offers more megapixels (23.8 vs 10MP) with a 57% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.46x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 215k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (139x80mm vs 136x92mm) and thus needs less room in the bag.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Reflects 11 years and 5 months of technical progress since the E-510 launch.
Reasons to prefer the Olympus E-510:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Less heavy: Has a lower weight (by 122g or 18 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (750 versus 210) out of a single battery charge.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (90 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in March 2007).
If the number of relative strengths (bullet points above) is taken as a guide, the M10-P is the clear winner of the match-up (18 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the M10-P or the E-510 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 200D vs Olympus E-510
- Canon 350D vs Olympus E-510
- Canon 750D vs Leica M10-P
- Leica M10-P vs Leica S3
- Leica M10-P vs Leica TL
- Leica M10-P vs Nikon D810
- Leica M10-P vs Olympus E-M1
- Leica M10-P vs Olympus XZ-1
- Leica M10-P vs Panasonic G90
- Leica M10-P vs Panasonic GF3
- Leica M10-P vs Panasonic LX10
- Olympus E-510 vs Panasonic S1R
Specifications: Leica M10-P vs Olympus E-510
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica M10-P||Olympus E-510|
|Camera Type||Rangefinder camera||Digital single lens reflex|
|Camera Lens||Leica M mount lenses||Four Thirds lenses|
|Launch Date||August 2018||March 2007|
|Launch Price||USD 7995||USD 799|
|Sensor Specs||Leica M10-P||Olympus E-510|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||35.8 x 23.9 mm||17.3 x 13.0 mm|
|Sensor Area||855.62 mm2||224.9 mm2|
|Sensor Diagonal||43 mm||21.6 mm|
|Sensor Resolution||23.8 Megapixels||10 Megapixels|
|Image Resolution||5952 x 3992 pixels||3648 x 2736 pixels|
|Pixel Pitch||6.00 μm||4.74 μm|
|Pixel Density||2.78 MP/cm2||4.44 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||100-50000 ISO||100-1600 ISO|
|Image Processor||Maestro II||TruePic III|
|DXO Sensor Quality (score)||..||52|
|DXO Color Depth (bits)||..||21.2|
|DXO Dynamic Range (EV)||..||10.0|
|DXO Low Light (ISO)||..||442|
|Screen Specs||Leica M10-P||Olympus E-510|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||2.5 inch|
|LCD Resolution||1037k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica M10-P||Olympus E-510|
|Focus System||Manual Focus||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||No Peaking Feature|
|Continuous Shooting||5 shutter flaps/s||3 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||No shake reduction||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Leica M10-P||Olympus E-510|
|USB Connector||USB no||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Leica M10-P||Olympus E-510|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Life (CIPA)||210 shots per charge||750 shots per charge|
139 x 80 x 39 mm
(5.5 x 3.1 x 1.5 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||660 g (23.3 oz)||538 g (19.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
