Leica D-LUX Typ 109 vs Olympus E-PL8

The Leica D-LUX (Typ 109) and the Olympus PEN E-PL8 are two digital cameras that were revealed to the public, respectively, in September 2014 and September 2016. The D-LUX Typ 109 is a fixed lens compact, while the E-PL8 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The Leica has a resolution of 12.7 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica D-LUX Typ 109		Olympus E-PL8
Fixed lens compact camera		Mirrorless system camera
24-75mm f/1.7-2.8		Micro Four Thirds lenses
12.7 MP – Four Thirds sensor		15.9 MP – Four Thirds sensor
4K/30p Video		1080/30p Video
ISO 200-12,500 (100 - 25,600)		ISO 200-6,400 (100 - 25,600)
Electronic viewfinder (2764k dots)		Viewfinder optional
3.0" LCD – 921k dots		3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
11 shutter flaps per second		8 shutter flaps per second
Lens-based stabilization		In-body stabilization
300 shots per battery charge		350 shots per battery charge
118 x 66 x 55 mm, 405 g		115 x 67 x 38 mm, 357 g

Check D-LUX Typ 109 offers at
ebay.com
Check E-PL8 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica D-LUX (Typ 109) and the Olympus PEN E-PL8? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Leica D-LUX Typ 109 and the Olympus E-PL8. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The D-LUX Typ 109 can be obtained in two different colors (black, grey), while the E-PL8 is available in three color-versions (black, brown, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL8 is somewhat smaller (1 percent) than the Leica D-LUX Typ 109. In this context, it is worth noting that neither the D-LUX Typ 109 nor the E-PL8 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX Typ 109 has a lens built in, whereas the E-PL8 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL8 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the D-LUX Typ 109 gets 300 shots out of its Leica BP-DC15 battery, while the E-PL8 can take 350 images on a single charge of its Olympus BLS-50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	1,195	ebay.com
2.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	549	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
4.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	599	ebay.com
5.		Fujifilm X100T	127 mm	74 mm	52 mm	440 g	330	n	Sep 2014	1,299	ebay.com
6.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	599	ebay.com
7.		Fujifilm X100S	127 mm	74 mm	54 mm	445 g	330	n	Jan 2013	1,299	ebay.com
8.		Leica D-LUX 7	115 mm	66 mm	65 mm	392 g	300	n	Nov 2018	1,195	ebay.com
9.		Leica V-LUX Typ 114	137 mm	99 mm	131 mm	830 g	360	n	Sep 2014	1,349	ebay.com
10.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	2,295	ebay.com
11.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	699	ebay.com
12.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	599	ebay.com
13.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	649	ebay.com
14.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
15.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	599	ebay.com
16.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	599	ebay.com
17.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

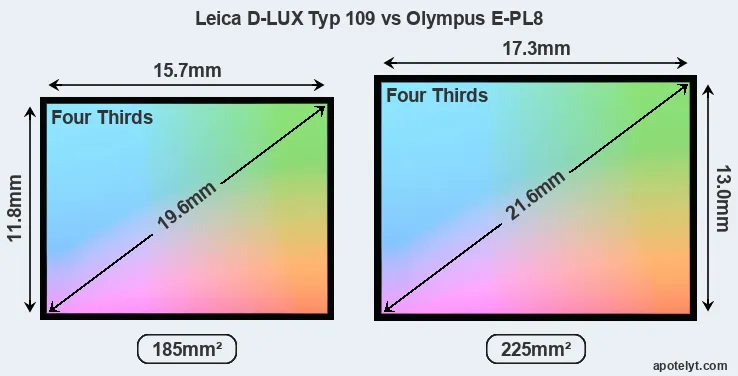

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor, but their sensors differ slightly in size. The sensor area in the E-PL8 is 22 percent bigger. They nevertheless have the same format factor of 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3. The D-LUX Typ 109 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

With 15.9MP, the E-PL8 offers a higher resolution than the D-LUX Typ 109 (12.7MP), but the E-PL8 has marginally smaller individual pixels (pixel pitch of 3.76μm versus 3.82μm for the D-LUX Typ 109). Yet, the E-PL8 is a much more recent model (by 2 years) than the D-LUX Typ 109, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Olympus E-PL8 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL8 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Leica D-LUX Typ 109 are 20.6 x 15.4 inches or 52.2 x 39.2 cm for good quality, 16.4 x 12.4 inches or 41.8 x 31.4 cm for very good quality, and 13.7 x 10.3 inches or 34.8 x 26.1 cm for excellent quality prints.

The Leica D-LUX (Typ 109) has a native sensitivity range from ISO 200 to ISO 12500, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-PL8 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
2.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
5.		Fujifilm X100T	APS-C	16.0	4896	3264	1080/60p	23.6	12.8	1483	78
6.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
7.		Fujifilm X100S	APS-C	16.0	4896	3264	1080/60p	23.3	12.5	1329	75
8.		Leica D-LUX 7	Four Thirds	16.8	4736	3552	4K/30p	22.9	12.8	1002	72
9.		Leica V-LUX Typ 114	1-inch	20.0	5472	3648	4K/30p	21.6	11.7	127	60
10.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
11.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
12.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
13.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
14.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
15.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
16.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
17.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D-LUX Typ 109 provides a higher video resolution than the E-PL8. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D-LUX Typ 109 has an electronic viewfinder (2764k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL8 relies on live view and the rear LCD for framing. That said, the E-PL8 can be equipped with an optional viewfinder – the VF-4. The following table reports on some other key feature differences and similarities of the Leica D-LUX Typ 109, the Olympus E-PL8, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
2.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
5.		Fujifilm X100T	2360	n	3.0 / 1040	fixed	n	1/4000s	6.0/s	Y	n
6.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
7.		Fujifilm X100S	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
8.		Leica D-LUX 7	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
9.		Leica V-LUX Typ 114	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
10.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
11.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
12.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
13.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
14.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
15.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
16.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
17.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-PL8 has a touchscreen, while the D-LUX Typ 109 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the D-LUX Typ 109 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica D-LUX Typ 109 and the Olympus E-PL8 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D-LUX Typ 109 and the E-PL8 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica D-LUX (Typ 109) and Olympus PEN E-PL8 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm X100T	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
7.		Fujifilm X100S	Y	stereo / mono	-	-	micro	2.0	-	-	-
8.		Leica D-LUX 7	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
9.		Leica V-LUX Typ 114	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
10.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

Both the D-LUX Typ 109 and the E-PL8 have been discontinued, but can regularly be found used on ebay. The D-LUX Typ 109 was replaced by the Leica D-LUX 7, while the E-PL8 was followed by the Olympus E-PL9. Further information on the features and operation of the D-LUX Typ 109 and E-PL8 can be found, respectively, in the Leica D-LUX Typ 109 Manual (free pdf) or the online Olympus E-PL8 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Leica D-LUX Typ 109 and the Olympus E-PL8? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Leica D-LUX (Typ 109):

• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Faster burst: Shoots at higher frequency (11 vs 8 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Ready to shoot: Has a lens built-in, whereas the E-PL8 requires a separate lens.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been available for much longer (launched in September 2014).

Reasons to prefer the Olympus PEN E-PL8:

• More detail: Has more megapixels (15.9 vs 12.7MP), which boosts linear resolution by 12%.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 921k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (350 versus 300) out of a single battery charge.
• More modern: Reflects 2 years of technical progress since the D-LUX Typ 109 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the D-LUX Typ 109 comes out slightly ahead of the E-PL8 (9 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica D-LUX Typ 109 and the Olympus E-PL8 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D-LUX Typ 109 or the E-PL8. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	1,195	ebay.com
2.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	549	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
4.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	599	ebay.com
5.		Fujifilm X100T	5/5	+	..	81/100	4.5/5	5/5	Sep 2014	1,299	ebay.com
6.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	599	ebay.com
7.		Fujifilm X100S	5/5	+ +	..	81/100	4.5/5	5/5	Jan 2013	1,299	ebay.com
8.		Leica D-LUX 7	..	..	..	..	..	4.5/5	Nov 2018	1,195	ebay.com
9.		Leica V-LUX Typ 114	..	..	..	..	..	5/5	Sep 2014	1,349	ebay.com
10.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	2,295	ebay.com
11.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	699	ebay.com
12.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	599	ebay.com
13.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	649	ebay.com
14.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
15.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	599	ebay.com
16.		Olympus E-PL6	..	..	..	..	..	..	May 2013	599	ebay.com
17.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check D-LUX Typ 109 offers at
ebay.com
Check E-PL8 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check D-LUX Typ 109 offers at
ebay.com
Check E-PL8 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
