Leica D-LUX Typ 109 vs Olympus E-M1

The Leica D-LUX (Typ 109) and the Olympus OM-D E-M1 are two enthusiast cameras that were officially introduced, respectively, in September 2014 and September 2013. The D-LUX Typ 109 is a fixed lens compact, while the E-M1 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The Leica has a resolution of 12.7 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Leica D-LUX Typ 109
versus
Olympus E-M1
Leica D-LUX Typ 109   Olympus E-M1
Fixed lens compact camera Mirrorless system camera
24-75mm f/1.7-2.8 Micro Four Thirds lenses
12.7 MP – Four Thirds sensor 15.9 MP – Four Thirds sensor
4K/30p Video 1080/30p Video
ISO 200-12,500 (100 - 25,600) ISO 200-25,600
Electronic viewfinder (2764k dots) Electronic viewfinder (2360k dots)
3.0" LCD – 921k dots 3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive) Tilting touchscreen
11 shutter flaps per second 10 shutter flaps per second
Lens-based stabilizationIn-body stabilization
not weather sealedWeathersealed body
300 shots per battery charge350 shots per battery charge
118 x 66 x 55 mm, 405 g 130 x 94 x 63 mm, 497 g
logo
Check D-LUX Typ 109 offers at
ebay.com
logo
Check E-M1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica D-LUX (Typ 109) and the Olympus OM-D E-M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Leica D-LUX Typ 109 and the Olympus E-M1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The D-LUX Typ 109 can be obtained in two different colors (black, grey), while the E-M1 is also available in two color-versions, but different ones (black, silver).

Size Leica D-LUX Typ 109 vs Olympus E-M1
Compare D-LUX Typ 109 versus E-M1 top

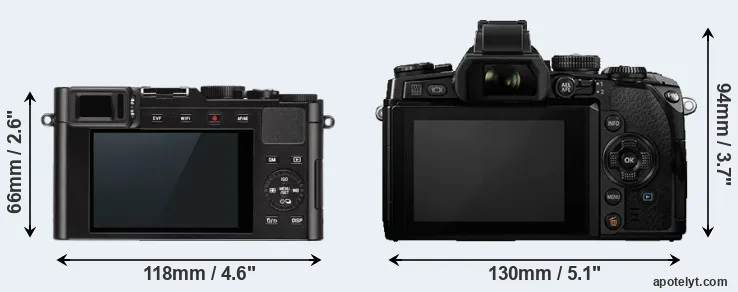

Comparison D-LUX Typ 109 or E-M1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1 is considerably larger (57 percent) than the Leica D-LUX Typ 109. It is noteworthy in this context that the E-M1 is splash and dust-proof, while the D-LUX Typ 109 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX Typ 109 has a lens built in, whereas the E-M1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the D-LUX Typ 109 gets 300 shots out of its Leica BP-DC15 battery, while the E-M1 can take 350 images on a single charge of its Olympus BLN-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Leica D-LUX Typ 109 118 mm 66 mm 55 mm 405 g 300 n Sep 2014 1,195ebay.com
2.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
3.

Canon G16 109 mm 76 mm 40 mm 356 g 360 n Aug 2013 549ebay.com
4.

Fujifilm X30 119 mm 72 mm 60 mm 423 g 470 n Aug 2014 599ebay.com
5.

Fujifilm X100T 127 mm 74 mm 52 mm 440 g 330 n Sep 2014 1,299ebay.com
6.

Fujifilm X20 117 mm 70 mm 57 mm 353 g 270 n Jan 2013 599ebay.com
7.

Fujifilm X100S 127 mm 74 mm 54 mm 445 g 330 n Jan 2013 1,299ebay.com
8.

Leica D-LUX 7 115 mm 66 mm 65 mm 392 g 300 n Nov 2018 1,195ebay.com
9.

Leica V-LUX Typ 114 137 mm 99 mm 131 mm 830 g 360 n Sep 2014 1,349ebay.com
10.

Leica X Typ 113 133 mm 73 mm 78 mm 486 g 350 n Sep 2014 2,295ebay.com
11.

Leica D-LUX 6 111 mm 68 mm 46 mm 298 g 330 n Sep 2012 699ebay.com
12.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 Y Sep 2016 1,999ebay.com
13.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
14.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
15.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999ebay.com
16.

Olympus E-M5 122 mm 89 mm 43 mm 425 g 360 Y Feb 2012 1,299ebay.com
17.

Panasonic LX100 115 mm 66 mm 55 mm 393 g 300 n Sep 2014 899ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D-LUX Typ 109 was launched at a lower price than the E-M1, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor, but their sensors differ slightly in size. The sensor area in the E-M1 is 22 percent bigger. They nevertheless have the same format factor of 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3. The D-LUX Typ 109 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

Leica D-LUX Typ 109 and Olympus E-M1 sensor measures

With 15.9MP, the E-M1 offers a higher resolution than the D-LUX Typ 109 (12.7MP), but the E-M1 has marginally smaller individual pixels (pixel pitch of 3.76μm versus 3.82μm for the D-LUX Typ 109). It is noteworthy in this context that the D-LUX Typ 109 is a somewhat more recent model (by 1 year) than the E-M1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the E-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus E-M1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Leica D-LUX Typ 109 are 20.6 x 15.4 inches or 52.2 x 39.2 cm for good quality, 16.4 x 12.4 inches or 41.8 x 31.4 cm for very good quality, and 13.7 x 10.3 inches or 34.8 x 26.1 cm for excellent quality prints.

The E-M1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Leica D-LUX (Typ 109) has a native sensitivity range from ISO 200 to ISO 12500, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus OM-D E-M1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

D-LUX Typ 109 versus E-M1 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Leica D-LUX Typ 109 Four Thirds 12.7 4112 30884K/30p22.412.160767
2.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
3.

Canon G16 1/1.7 12.0 4000 30001080/60p21.011.723054
4.

Fujifilm X30 2/3 12.0 4000 30001080/60p20.411.2-31249
5.

Fujifilm X100T APS-C 16.0 4896 32641080/60p23.612.8148378
6.

Fujifilm X20 2/3 12.0 4000 30001080/60p20.110.9-46246
7.

Fujifilm X100S APS-C 16.0 4896 32641080/60p23.312.5132975
8.

Leica D-LUX 7 Four Thirds 16.8 4736 35524K/30p22.912.8100272
9.

Leica V-LUX Typ 114 1-inch 20.0 5472 36484K/30p21.611.712760
10.

Leica X Typ 113 APS-C 16.1 4928 32641080/30p23.612.8149178
11.

Leica D-LUX 6 1/1.7 10.0 3648 27361080/60p19.810.8-30343
12.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
13.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
14.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
15.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
16.

Olympus E-M5 Four Thirds 15.9 4608 34561080/60i22.812.382671
17.

Panasonic LX100 Four Thirds 12.7 4112 30884K/30p22.312.555367
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D-LUX Typ 109 provides a higher video resolution than the E-M1. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the D-LUX Typ 109 offers a higher resolution than the one in the E-M1 (2764k vs 2360k dots). The adjacent table lists some of the other core features of the Leica D-LUX Typ 109 and Olympus E-M1 along with similar information for a selection of comparators.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Leica D-LUX Typ 1092764 n3.0 / 921 fixed n 1/4000s 11.0/s n Y
2.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
3.

Canon G16optical n3.0 / 922 fixed n 1/4000s 2.2/s Y Y
4.

Fujifilm X302360 n3.0 / 920 tilting n 1/4000s 12.0/s Y Y
5.

Fujifilm X100T2360 n3.0 / 1040 fixed n 1/4000s 6.0/s Y n
6.

Fujifilm X20optical n2.8 / 460 fixed n 1/4000s 12.0/s Y Y
7.

Fujifilm X100S2360 n2.8 / 460 fixed n 1/4000s 6.0/s Y n
8.

Leica D-LUX 72764 n3.0 / 1240 fixed Y 1/4000s 11.0/s n Y
9.

Leica V-LUX Typ 1142359 n3.0 / 921 swivel n 1/4000s 12.0/s Y Y
10.

Leica X Typ 113optional n3.0 / 920 fixed n 1/2000s 5.0/s Y n
11.

Leica D-LUX 6optional n3.0 / 920 fixed n 1/4000s 11.0/s Y Y
12.

Olympus E-M1 II2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
13.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
14.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
15.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
16.

Olympus E-M51440 n3.0 / 610 tilting Y 1/4000s 9.0/s n Y
17.

Panasonic LX1002764 n3.0 / 921 fixed n 1/4000s 11.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M1 has a touchscreen, while the D-LUX Typ 109 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica D-LUX Typ 109 and the Olympus E-M1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D-LUX Typ 109 and the E-M1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica D-LUX (Typ 109) and Olympus OM-D E-M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Leica D-LUX Typ 109Ystereo / mono--micro2.0YY-
2.

Olympus E-M1Ystereo / monoY-micro2.0Y--
3.

Canon G16Ystereo / mono--mini2.0Y--
4.

Fujifilm X30Ystereo / mono--micro2.0Y--
5.

Fujifilm X100TYstereo / monoY-micro2.0Y--
6.

Fujifilm X20Ystereo / mono--micro2.0---
7.

Fujifilm X100SYstereo / mono--micro2.0---
8.

Leica D-LUX 7Ystereo / mono--micro2.0Y-Y
9.

Leica V-LUX Typ 114Ystereo / monoY-micro2.0YY-
10.

Leica X Typ 113Ystereo / mono--mini2.0---
11.

Leica D-LUX 6Ystereo / mono--mini2.0---
12.

Olympus E-M1 IIYstereo / monoYYmicro3.0Y--
13.

Olympus PEN-FYstereo / mono--micro2.0Y--
14.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
15.

Olympus E-P5Ystereo / mono--micro2.0Y--
16.

Olympus E-M5Ystereo / mono--mini2.0---
17.

Panasonic LX100Ystereo / mono--micro2.0YY-
padding

It is notable that the E-M1 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The D-LUX Typ 109 does not feature such a mic input.

Studio photographers will appreciate that the Olympus E-M1 (unlike the D-LUX Typ 109) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D-LUX Typ 109 and the E-M1 have been discontinued, but can regularly be found used on ebay. The E-M1 was replaced by the Olympus E-M1 II, while the D-LUX Typ 109 was followed by the Leica D-LUX 7. Further information on the features and operation of the D-LUX Typ 109 and E-M1 can be found, respectively, in the Leica D-LUX Typ 109 Manual (free pdf) or the online Olympus E-M1 Manual.

ad

Review summary

So how do things add up? Is there a clear favorite between the Leica D-LUX Typ 109 and the Olympus E-M1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Leica D-LUX (Typ 109):

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
  • More detailed viewfinder: Has higher resolution electronic viewfinder (2764k vs 2360k dots).
  • Ready to shoot: Has a lens built-in, whereas the E-M1 requires a separate lens.
  • More compact: Is smaller (118x66mm vs 130x94mm) and thus needs less room in the bag.
  • Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-M1).
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More modern: Is somewhat more recent (announced 1 year after the E-M1).

ilogo

Arguments in favor of the Olympus OM-D E-M1:

  • More detail: Has more megapixels (15.9 vs 12.7MP), which boosts linear resolution by 12%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.70x).
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 921k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
  • Longer lasting: Gets more shots (350 versus 300) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More heavily discounted: Has been on the market for longer (launched in September 2013).

If the count of relative strengths (bullet points above) is taken as a measure, the E-M1 emerges as the winner of the match-up (14 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D-LUX Typ 109 11:14 E-M1

How about other alternatives? Do the specifications of the Leica D-LUX Typ 109 and the Olympus E-M1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D-LUX Typ 109 and the E-M1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Leica D-LUX Typ 109........4.5/54.5/5 Sep 2014 1,195ebay.com
2.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
3.

Canon G164/5+....4.5/54.5/5 Aug 2013 549ebay.com
4.

Fujifilm X304/5....76/1004.5/54.5/5 Aug 2014 599ebay.com
5.

Fujifilm X100T5/5+..81/1004.5/55/5 Sep 2014 1,299ebay.com
6.

Fujifilm X204/5+ +..77/1004.5/55/5 Jan 2013 599ebay.com
7.

Fujifilm X100S5/5+ +..81/1004.5/55/5 Jan 2013 1,299ebay.com
8.

Leica D-LUX 7..........4.5/5 Nov 2018 1,195ebay.com
9.

Leica V-LUX Typ 114..........5/5 Sep 2014 1,349ebay.com
10.

Leica X Typ 1133.5/5......3.5/54/5 Sep 2014 2,295ebay.com
11.

Leica D-LUX 6........4/54/5 Sep 2012 699ebay.com
12.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 1,999ebay.com
13.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
14.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
15.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999ebay.com
16.

Olympus E-M54/5+ +..80/1004.5/55/5 Feb 2012 1,299ebay.com
17.

Panasonic LX1005/5+ +..85/1005/55/5 Sep 2014 899ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check D-LUX Typ 109 offers at
ebay.com
logo
Check E-M1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Leica D-LUX Typ 109 vs Olympus E-M1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Leica D-LUX Typ 109 Olympus E-M1
    Camera Type Fixed lens compact camera Mirrorless system camera
    Camera Lens 24-75mm f/1.7-2.8 Micro Four Thirds lenses
    Launch Date September 2014 September 2013
    Launch Price USD 1,195 USD 1,399
    Sensor Specs Leica D-LUX Typ 109 Olympus E-M1
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Four Thirds Sensor
    Sensor Size 15.7 x 11.8 mm 17.3 x 13.0 mm
    Sensor Area 185.26 mm2 224.9 mm2
    Sensor Diagonal 19.6 mm 21.6 mm
    Crop Factor 2.0x 2.0x
    Sensor Resolution 12.7 Megapixels 15.9 Megapixels
    Image Resolution 4112 x 3088 pixels 4608 x 3456 pixels
    Pixel Pitch 3.82 μm 3.76 μm
    Pixel Density 6.85 MP/cm2 7.08 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 4K/30p Video 1080/30p Video
    ISO Setting 200 - 12,500 ISO 200 - 25,600 ISO
    ISO Boost 100 - 25,600 ISO 100 - 25,600 ISO
    DXO Sensor Quality (score) .. 73
    DXO Color Depth (bits) .. 23.0
    DXO Dynamic Range (EV) .. 12.7
    DXO Low Light (ISO) .. 757
    Screen Specs Leica D-LUX Typ 109 Olympus E-M1
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.70x 0.74x
    Viewfinder Resolution 2764k dots 2360k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 921k dots 1037k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Leica D-LUX Typ 109 Olympus E-M1
    Focus System Contrast-detect AF On-Sensor Phase-detect
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 11 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterup to 1/16000sYES
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationLens-based stabilizationIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Leica D-LUX Typ 109 Olympus E-M1
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 2.0
    HDMI Port micro HDMI micro HDMI
    Microphone Port no MIC socket External MIC port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in no NFC
    Body Specs Leica D-LUX Typ 109 Olympus E-M1
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Leica BP-DC15 Olympus BLN-1
    Battery Life (CIPA)300 shots per charge350 shots per charge
    Body Dimensions 118 x 66 x 55 mm
    (4.6 x 2.6 x 2.2 in)
    130 x 94 x 63 mm
    (5.1 x 3.7 x 2.5 in)
    Camera Weight 405 g (14.3 oz) 497 g (17.5 oz)
    logo
    Check D-LUX Typ 109 offers at
    ebay.com
    logo
    Check E-M1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Leica D-LUX Typ 109 vs Olympus E-M1
