Leica D-LUX 6 vs Olympus E-5

The Leica D-LUX 6 and the Olympus E-5 are two digital cameras that were officially introduced, respectively, in September 2012 and September 2010. The D-LUX 6 is a fixed lens compact, while the E-5 is a DSLR. The cameras are based on a 1/1.7-inch (D-LUX 6) and a Four Thirds (E-5) sensor. The Leica has a resolution of 10 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica D-LUX 6		Olympus E-5
Fixed lens compact camera		Digital single lens reflex
24-90mm f/1.4-2.3		Four Thirds lenses
10 MP – 1/1.7" sensor		12.2 MP – Four Thirds sensor
1080/60p Video		720/30p Video
ISO 80-6,400 (80 - 12,800)		ISO 100-6,400
Viewfinder optional		Optical viewfinder
3.0" LCD – 920k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
11 shutter flaps per second		5 shutter flaps per second
Lens-based stabilization		In-body stabilization
not weather sealed		Weathersealed body
330 shots per battery charge		750 shots per battery charge
111 x 68 x 46 mm, 298 g		142 x 117 x 75 mm, 873 g

Check D-LUX 6 offers at
ebay.com
Check E-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica D-LUX 6 and the Olympus E-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

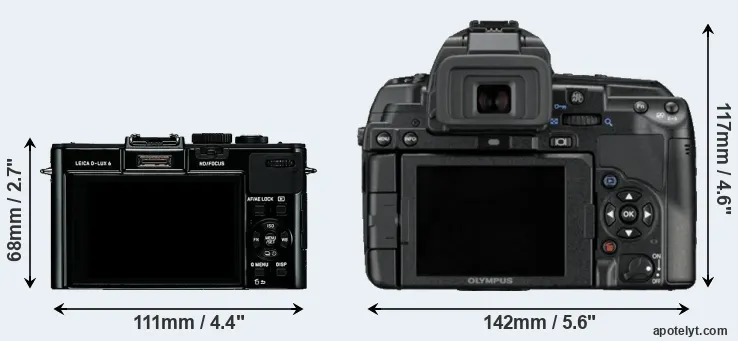

The side-by-side display below illustrates the physical size and weight of the Leica D-LUX 6 and the Olympus E-5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The D-LUX 6 can be obtained in three different colors (black, silver, white), while the E-5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-5 is considerably larger (120 percent) than the Leica D-LUX 6. It is noteworthy in this context that the E-5 is splash and dust-proof, while the D-LUX 6 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX 6 has a lens built in, whereas the E-5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-5 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the D-LUX 6 gets 330 shots out of its Leica BP-DC10 battery, while the E-5 can take 750 images on a single charge of its Olympus BLM-5 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	699	ebay.com
2.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	1,699	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
4.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	599	ebay.com
5.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	599	ebay.com
6.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	1,195	ebay.com
7.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	1,995	ebay.com
8.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	699	ebay.com
9.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	1,299	ebay.com
10.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	699	ebay.com
11.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	1,699	ebay.com
12.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	799	ebay.com
13.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	1,699	ebay.com
14.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	599	ebay.com
15.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	499	ebay.com
16.		Ricoh GR	117 mm	61 mm	35 mm	245 g	290	n	Apr 2013	799	ebay.com
17.		Sony RX100 II	102 mm	58 mm	38 mm	281 g	350	n	Jun 2013	749	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D-LUX 6 was launched at a lower price than the E-5, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica D-LUX 6 features a 1/1.7-inch sensor and the Olympus E-5 a Four Thirds sensor. The sensor area in the E-5 is 436 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.65 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3. The D-LUX 6 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

With 12.2MP, the E-5 offers a higher resolution than the D-LUX 6 (10MP), but the E-5 nevertheless has larger individual pixels (pixel pitch of 4.29μm versus 2.05μm for the D-LUX 6) due to its larger sensor. However, the D-LUX 6 is a much more recent model (by 2 years) than the E-5, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Olympus E-5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-5 for good quality output (200 dots per inch) amounts to 20.2 x 15.1 inches or 51.2 x 38.4 cm, for very good quality (250 dpi) 16.1 x 12.1 inches or 41 x 30.7 cm, and for excellent quality (300 dpi) 13.4 x 10.1 inches or 34.1 x 25.6 cm. The corresponding values for the Leica D-LUX 6 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Leica D-LUX 6 has a native sensitivity range from ISO 80 to ISO 6400, which can be extended to ISO 80-12800. The corresponding ISO settings for the Olympus E-5 are ISO 100 to ISO 6400 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
2.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
5.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
6.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
7.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
8.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
9.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
10.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
11.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
12.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
13.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
14.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
15.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
16.		Ricoh GR	APS-C	16.1	4928	3264	1080/30p	23.6	13.5	972	78
17.		Sony RX100 II	1-inch	20.0	5472	3648	1080/60p	22.5	12.4	483	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the D-LUX 6 provides a higher video resolution than the E-5. It can shoot video footage at 1080/60p, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the D-LUX 6 relies on live view and the rear LCD for framing. That said, the D-LUX 6 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The adjacent table lists some of the other core features of the Leica D-LUX 6 and Olympus E-5 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
2.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
5.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
6.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
7.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
8.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
9.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
10.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
11.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
12.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
13.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
14.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
15.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
16.		Ricoh GR	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
17.		Sony RX100 II	optional	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the E-5, but is missing on the D-LUX 6 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Leica D-LUX 6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D-LUX 6 writes its imaging data to SDXC cards, while the E-5 uses Compact Flash or xD Picture cards. The E-5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D-LUX 6 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica D-LUX 6 and Olympus E-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
5.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
8.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
11.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
14.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Ricoh GR	Y	mono / mono	-	-	micro	2.0	-	-	-
17.		Sony RX100 II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

Studio photographers will appreciate that the Olympus E-5 (unlike the D-LUX 6) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D-LUX 6 and the E-5 have been discontinued, but can regularly be found used on ebay. The D-LUX 6 was replaced by the Leica D-LUX Typ 109, while the E-5 does not have a direct successor. Further information on the features and operation of the D-LUX 6 and E-5 can be found, respectively, in the Leica D-LUX 6 Manual (free pdf) or the online Olympus E-5 Manual.

Review summary

So how do things add up? Which of the two cameras – the Leica D-LUX 6 or the Olympus E-5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Leica D-LUX 6:

• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Faster burst: Shoots at higher frequency (11 vs 5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with a built-in lens, while the E-5 requires a separate lens.
• More compact: Is smaller (111x68mm vs 142x117mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-5).
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 2 years of technical progress since the E-5 launch.

Advantages of the Olympus E-5:

• More detail: Has more megapixels (12.2 vs 10MP), which boosts linear resolution by 11%.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (750 versus 330) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in September 2010).

If the count of relative strengths (bullet points above) is taken as a measure, the E-5 is the clear winner of the contest (16 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica D-LUX 6 and the Olympus E-5 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D-LUX 6 or the E-5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	699	ebay.com
2.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	1,699	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
4.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	599	ebay.com
5.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	599	ebay.com
6.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	1,195	ebay.com
7.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	1,995	ebay.com
8.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	699	ebay.com
9.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	1,299	ebay.com
10.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	699	ebay.com
11.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	1,699	ebay.com
12.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	799	ebay.com
13.		Olympus E-1	..	..	..	+	o	..	Jun 2003	1,699	ebay.com
14.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	599	ebay.com
15.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	499	ebay.com
16.		Ricoh GR	5/5	..	..	79/100	4.5/5	4.5/5	Apr 2013	799	ebay.com
17.		Sony RX100 II	5/5	+ +	..	79/100	4.5/5	4.5/5	Jun 2013	749	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
