Leica D-LUX 5 vs Nikon 1 J5

The Leica D-LUX 5 and the Nikon 1 J5 are two digital cameras that were officially introduced, respectively, in September 2010 and April 2015. The D-LUX 5 is a fixed lens compact, while the J5 is a mirrorless interchangeable lens camera. The cameras are based on a 1/1.7-inch (D-LUX 5) and an one-inch (J5) sensor. The Leica has a resolution of 10 megapixels, whereas the Nikon provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica D-LUX 5		Nikon 1 J5
Fixed lens compact camera		Mirrorless system camera
24-90mm f/2.0-3.3		Nikon 1 mount lenses
10 MP – 1/1.7" sensor		20.7 MP – 1" sensor
720/60p Video		4K/15p Video
ISO 80-3,200 (80 - 12,800)		ISO 160-12,800
Viewfinder optional		No viewfinder, LCD framing
3.0" LCD – 460k dots		3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
2.5 shutter flaps per second		60 shutter flaps per second
400 shots per battery charge		250 shots per battery charge
110 x 65 x 43 mm, 271 g		98 x 60 x 32 mm, 231 g

Check D-LUX 5 offers at
ebay.com
Check J5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica D-LUX 5 and the Nikon 1 J5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

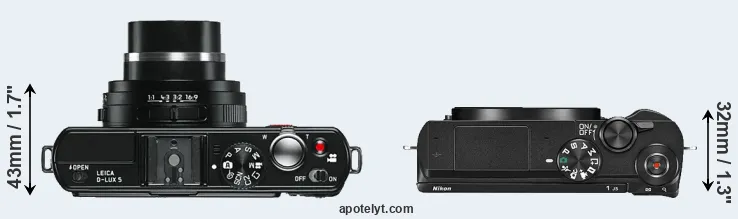

The physical size and weight of the Leica D-LUX 5 and the Nikon 1 J5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The J5 can be obtained in three different colors (black, silver, white), while the D-LUX 5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon 1 J5 is notably smaller (18 percent) than the Leica D-LUX 5. In this context, it is worth noting that neither the D-LUX 5 nor the J5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX 5 has a lens built in, whereas the J5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	699	ebay.com
2.		Nikon 1 J5	98 mm	60 mm	32 mm	231 g	250	n	Apr 2015	399	ebay.com
3.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	699	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
5.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
6.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
7.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	599	ebay.com
8.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	599	ebay.com
9.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	699	ebay.com
10.		Leica V-LUX 3	124 mm	81 mm	95 mm	540 g	410	n	Dec 2011	949	ebay.com
11.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	849	ebay.com
12.		Leica X1	124 mm	60 mm	32 mm	306 g	260	n	Sep 2009	1,995	ebay.com
13.		Leica V-LUX 1	141 mm	86 mm	142 mm	734 g	360	n	Sep 2006	849	ebay.com
14.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	549	ebay.com
15.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	499	ebay.com
16.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	449	ebay.com
17.		YI M1	114 mm	64 mm	34 mm	281 g	450	n	Sep 2016	349	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica D-LUX 5 features a 1/1.7-inch sensor and the Nikon 1 J5 an one-inch sensor. The sensor area in the J5 is 152 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.4 and 2.7. The sensor in the D-LUX 5 has a native 4:3 aspect ratio, while the one in the J5 offers a 3:2 aspect. The D-LUX 5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

With 20.7MP, the J5 offers a higher resolution than the D-LUX 5 (10MP), but the J5 nevertheless has larger individual pixels (pixel pitch of 2.37μm versus 2.14μm for the D-LUX 5) due to its larger sensor. Moreover, the J5 is a much more recent model (by 4 years and 6 months) than the D-LUX 5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the J5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon 1 J5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the J5 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Leica D-LUX 5 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The J5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Leica D-LUX 5 has a native sensitivity range from ISO 80 to ISO 3200, which can be extended to ISO 80-12800. The corresponding ISO settings for the Nikon 1 J5 are ISO 160 to ISO 12800 (no boost).

In terms of underlying technology, the D-LUX 5 is build around a CCD sensor, while the J5 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
2.		Nikon 1 J5	1-inch	20.7	5568	3712	4K/15p	21.1	12.0	479	65
3.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
6.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
7.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
8.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
9.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
10.		Leica V-LUX 3	1/2.3	12.0	4000	3000	1080/60p	19.7	11.0	430	42
11.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
12.		Leica X1	APS-C	12.2	4272	2856	none	22.6	11.8	1037	69
13.		Leica V-LUX 1	1/1.8	10.0	3648	2736	480/30p	18.4	9.5	-727	29
14.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
15.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
16.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
17.		YI M1	Four Thirds	20.2	5184	3888	4K/30p	23.0	12.6	1030	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the J5 provides a better video resolution than the D-LUX 5. It can shoot movie footage at 4K/15p, while the Leica is limited to 720/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The D-LUX 5 and the J5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the D-LUX 5 can be equipped with an optional viewfinder – the EVF1. The adjacent table lists some of the other core features of the Leica D-LUX 5 and Nikon 1 J5 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
2.		Nikon 1 J5	none	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
3.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
7.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
8.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
9.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
10.		Leica V-LUX 3	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
11.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
12.		Leica X1	none	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	n
13.		Leica V-LUX 1	235	n	2.0 / 207	tilting	n	1/2000s	2.0/s	Y	Y
14.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
15.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
16.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
17.		YI M1	none	n	3.0 / 1040	fixed	Y	1/4000s	5.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The J5 has a touchscreen, while the D-LUX 5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the J5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon 1 J5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D-LUX 5 and the J5 write their files to SDXC cards. The J5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D-LUX 5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica D-LUX 5 and Nikon 1 J5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
2.		Nikon 1 J5	-	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
6.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
8.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Leica V-LUX 3	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Leica X1	Y	- / -	-	-	mini	2.0	-	-	-
13.		Leica V-LUX 1	Y	mono / mono	-	-	-	2.0	-	-	-
14.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
15.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		YI M1	Y	stereo / mono	-	-	micro	2.0	Y	-	Y

It is notable that the D-LUX 5 has a hotshoe, while the J5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the D-LUX 5 and the J5 have been discontinued, but can regularly be found used on ebay. The D-LUX 5 was replaced by the Leica D-LUX 6, while the J5 does not have a direct successor. Further information on the features and operation of the D-LUX 5 and J5 can be found, respectively, in the Leica D-LUX 5 Manual (free pdf) or the online Nikon 1 J5 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Leica D-LUX 5 or the Nikon 1 J5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Leica D-LUX 5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Ready to shoot: Has a lens built-in, whereas the J5 requires a separate lens.
• Longer lasting: Can take more shots (400 versus 250) on a single battery charge.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been available for much longer (launched in September 2010).

Advantages of the Nikon 1 J5:

• More detail: Has more megapixels (20.7 vs 10MP), which boosts linear resolution by 47%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/15p vs 720/60p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (60 vs 2.5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (98x60mm vs 110x65mm) and will fit more readily into a bag.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 4 years and 6 months of technical progress since the D-LUX 5 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the J5 is the clear winner of the contest (21 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica D-LUX 5 and the Nikon 1 J5 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D-LUX 5 and the J5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	699	ebay.com
2.		Nikon 1 J5	..	..	..	..	4.5/5	4.5/5	Apr 2015	399	ebay.com
3.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	699	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
5.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
6.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
7.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	599	ebay.com
8.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	599	ebay.com
9.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	699	ebay.com
10.		Leica V-LUX 3	..	..	..	..	..	..	Dec 2011	949	ebay.com
11.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	849	ebay.com
12.		Leica X1	3/5	..	..	+	..	4/5	Sep 2009	1,995	ebay.com
13.		Leica V-LUX 1	..	..	..	..	..	..	Sep 2006	849	ebay.com
14.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	549	ebay.com
15.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	499	ebay.com
16.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	449	ebay.com
17.		YI M1	..	..	..	69/100	..	..	Sep 2016	349	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check D-LUX 5 offers at
ebay.com
Check J5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check D-LUX 5 offers at
ebay.com
Check J5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
