Kodak S-1 vs Nikon D4

The Kodak PixPro S-1 and the Nikon D4 are two digital cameras that were revealed to the public in January 2012. The S-1 is a mirrorless interchangeable lens camera, while the D4 is a DSLR. The cameras are based on a Four Thirds (S-1) and a full frame (D4) sensor. The Kodak has a resolution of 16.1 megapixels, whereas the Nikon provides 16.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Kodak S-1		Nikon D4
Mirrorless system camera		Digital single lens reflex
Micro Four Thirds lenses		Nikon F mount lenses
16.1 MP – Four Thirds sensor		16.2 MP – Full Frame sensor
1080/30p Video		1080/30p Video
ISO 200-12,800		ISO 100-12,800 (50 - 204,800)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 920k dots		3.2" LCD – 921k dots
Tilting screen (no touchscreen)		Fixed screen (not touch-sensitive)
4 shutter flaps per second		11 shutter flaps per second
In-body stabilization		Lens stabilization only
not weather sealed		Weathersealed body
410 shots per battery charge		2600 shots per battery charge
116 x 68 x 36 mm, 290 g		160 x 157 x 91 mm, 1340 g

Check S-1 offers at
ebay.com
Check D4 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Kodak PixPro S-1 and the Nikon D4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Kodak S-1 and the Nikon D4 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The S-1 can be obtained in two different colors (black, white), while the D4 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D4 is considerably larger (218 percent) than the Kodak S-1. Moreover, the D4 is substantially heavier (362 percent) than the S-1. It is noteworthy in this context that the D4 is splash and dust-proof, while the S-1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Micro Four Thirds Lens Catalog (S-1) and the Nikon Lens Catalog (D4). Mirrorless cameras, such as the Kodak S-1, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.

Concerning battery life, the S-1 gets 410 shots out of its Kodak LB-070 battery, while the D4 can take 2600 images on a single charge of its Nikon EN-EL18 power pack. As can be seen in the images above, the D4 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the S-1 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Kodak S-1	116 mm	68 mm	36 mm	290 g	410	n	Jan 2012	299	ebay.com
2.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	5,999	ebay.com
3.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	6,499	ebay.com
4.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	6,499	ebay.com
5.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	2,749	ebay.com
6.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	5,199	ebay.com
7.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	4,999	ebay.com
8.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
9.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	599	ebay.com
10.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	599	ebay.com
11.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	499	ebay.com
12.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	599	ebay.com
13.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	499	ebay.com
14.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	499	ebay.com
15.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	999	ebay.com
16.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	599	ebay.com
17.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The S-1 was launched at a markedly lower price (by 95 percent) than the D4, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

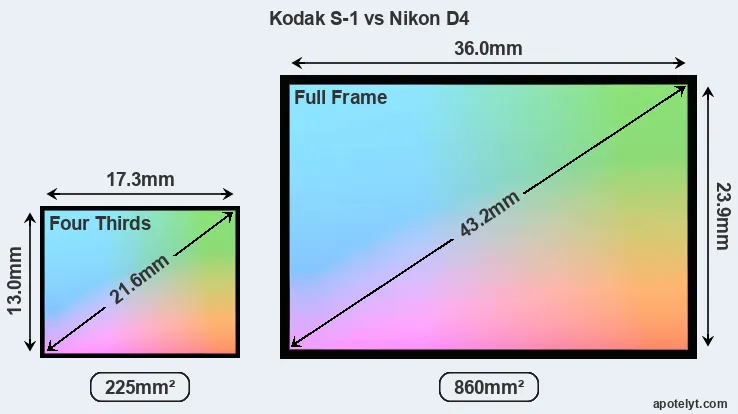

Of the two cameras under consideration, the Kodak S-1 features a Four Thirds sensor and the Nikon D4 a full frame sensor. The sensor area in the D4 is 282 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the S-1 has a native 4:3 aspect ratio, while the one in the D4 offers a 3:2 aspect.

With 16.2MP, the D4 offers a higher resolution than the S-1 (16.1MP), but the D4 nevertheless has larger individual pixels (pixel pitch of 7.29μm versus 3.74μm for the S-1) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.

The Kodak PixPro S-1 has a native sensitivity range from ISO 200 to ISO 12800. The corresponding ISO settings for the Nikon D4 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 50-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Kodak S-1	Four Thirds	16.1	4640	3480	1080/30p	22.2	11.8	598	65
2.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
3.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
4.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
5.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
6.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
7.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
8.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
9.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
10.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
11.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
12.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
13.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
14.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
15.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
16.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
17.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D4 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the S-1 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Kodak S-1 and Nikon D4 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Kodak S-1	none	n	3.0 / 920	tilting	n	1/4000s	4.0/s	n	Y
2.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
3.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
4.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
5.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
6.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
7.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
8.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
9.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
10.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
13.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
14.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
15.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
16.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
17.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the S-1 and the D4 is in-body image stabilization (IBIS). The S-1 reduces the risk of handshake-induced blur with all attached lenses, while the D4 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The Nikon D4 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The S-1 writes its imaging data to SDXC cards, while the D4 uses Compact Flash or XQD cards. The D4 features dual card slots, which can be very useful in case a memory card fails. In contrast, the S-1 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Kodak PixPro S-1 and Nikon D4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Kodak S-1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
3.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
4.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
5.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
6.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
7.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
8.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
15.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
16.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the S-1 offers wifi support, while the D4 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Nikon D4 (unlike the S-1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the S-1 and the D4 have been discontinued, but can regularly be found used on ebay. The D4 was replaced by the Nikon D4S, while the S-1 does not have a direct successor. Further information on the features and operation of the S-1 and D4 can be found, respectively, in the Kodak S-1 Manual (free pdf) or the online Nikon D4 Manual.

Review summary

So how do things add up? Is the Kodak S-1 better than the Nikon D4 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Kodak PixPro S-1:

• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (116x68mm vs 160x157mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 1050g or 78 percent) and hence easier to carry around.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced into a lower priced category (95 percent cheaper at launch).

Advantages of the Nikon D4:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (11 vs 4 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Gets more shots (2600 versus 410) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.

If the number of relative strengths (bullet points above) is taken as a guide, the D4 is the clear winner of the contest (17 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Kodak S-1 and the Nikon D4 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the S-1 and the D4 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Kodak S-1	..	..	..	..	4/5	4/5	Jan 2012	299	ebay.com
2.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	5,999	ebay.com
3.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	6,499	ebay.com
4.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	6,499	ebay.com
5.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	2,749	ebay.com
6.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	5,199	ebay.com
7.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	4,999	ebay.com
8.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
9.		Olympus E-PL6	..	..	..	..	..	..	May 2013	599	ebay.com
10.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
11.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	499	ebay.com
12.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	599	ebay.com
13.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	499	ebay.com
14.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	499	ebay.com
15.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	999	ebay.com
16.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	599	ebay.com
17.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check S-1 offers at
ebay.com
Check D4 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check S-1 offers at
ebay.com
Check D4 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
