Fujifilm X-T20 vs Nikon D7500

The Fujifilm X-T20 and the Nikon D7500 are two digital cameras that were officially introduced, respectively, in January 2017 and April 2017. The X-T20 is a mirrorless interchangeable lens camera, while the D7500 is a DSLR. Both cameras are equipped with an APS-C sensor. The Fujifilm has a resolution of 24 megapixels, whereas the Nikon provides 20.7 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.


Headline Specifications
Fujifilm X-T20   Nikon D7500
Fujifilm X-T20 Nikon D7500
Mirrorless system camera Digital single lens reflex
Fujifilm X mount lenses Nikon F mount lenses
24 MP, APS-C Sensor 20.7 MP, APS-C Sensor
4K/30p Video 4K/30p Video
ISO 200-12800 (100-51200) ISO 100-51200 (50-1640000)
Electronic viewfinder (2360k dots) Optical viewfinder
3.0" LCD, 1040k dots 3.2" LCD, 922k dots
Tilting touchscreen Tilting touchscreen
8 shutter flaps per second 8 shutter flaps per second
Not weather sealedWeathersealed body
350 shots per battery charge950 shots per battery charge
118 x 83 x 41 mm, 383 g 136 x 104 x 73 mm, 720 g

Body comparison: Fujifilm X-T20 vs Nikon D7500

The physical size and weight of the Fujifilm X-T20 and the Nikon D7500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left side – the X-T20 – represents the basis for the calculations across all the size and weight measures).

Compare Fujifilm X-T20 and Nikon D7500
Compare X-T20 versus D7500 top
Compare X-T20 or D7500 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D7500 is considerably larger (44 percent) than the Fujifilm X-T20. Moreover, the D7500 is substantially heavier (88 percent) than the X-T20. It is noteworthy in this context that the D7500 is splash and dust-proof, while the X-T20 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-T20) and the Nikon Lens Catalog (D7500). Mirrorless cameras, such as the Fujifilm X-T20, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.

Concerning battery life, the X-T20 gets 350 shots out of its NP-W126S battery, while the D7500 can take 950 images on a single charge of its EN-EL15a power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Fujifilm X-T20» 4.6 in 3.3 in 1.6 in 13.5 oz 350 n Jan 2017 899 i i Fujifilm X-T20
Nikon D7500« 5.4 in 4.1 in 2.9 in 25.4 oz 950 Y Apr 2017 1,299 i i Nikon D7500
Canon 80D« » 5.5 in 4.1 in 3.1 in 25.8 oz 960 Y Feb 2016 1,199 i i Canon 80D
Fujifilm X-A5« » 4.6 in 2.7 in 1.6 in 12.7 oz 450 n Jan 2018 399 i i Fujifilm X-A5
Fujifilm X-T100« » 4.8 in 3.3 in 1.9 in 15.8 oz 430 n May 2018 599 i i Fujifilm X-T100
Fujifilm X-E3« » 4.8 in 2.9 in 1.7 in 11.9 oz 350 n Sep 2017 899 i i Fujifilm X-E3
Fujifilm X70« » 4.4 in 2.5 in 1.7 in 12.0 oz 330 n Jan 2016 799- i Fujifilm X70
Fujifilm X-A3« » 4.6 in 2.6 in 1.6 in 12.0 oz 410 n Aug 2016 399- i Fujifilm X-A3
Fujifilm X-A10« » 4.6 in 2.6 in 1.6 in 11.7 oz 410 n Dec 2016 399- i Fujifilm X-A10
Fujifilm X-E2S« » 5.1 in 3.0 in 1.5 in 12.3 oz 350 n Jan 2016 699- i Fujifilm X-E2S
Fujifilm X-T10« » 4.6 in 3.3 in 1.6 in 13.4 oz 350 n May 2015 799- i Fujifilm X-T10
Fujifilm X-E2« » 5.1 in 3.0 in 1.5 in 12.3 oz 350 n Oct 2013 999- i Fujifilm X-E2
Fujifilm X-E1« » 5.1 in 3.0 in 1.5 in 12.3 oz 350 n Sep 2012 999- i Fujifilm X-E1
Nikon D500« » 5.8 in 4.5 in 3.2 in 30.3 oz 1240 Y Jan 2016 1,999 i i Nikon D500
Nikon D7200« » 5.4 in 4.2 in 3.0 in 27.0 oz 1110 Y Mar 2015 1,199- i Nikon D7200
Nikon D7100« » 5.4 in 4.2 in 3.0 in 27.0 oz 950 Y Feb 2013 1,199- i Nikon D7100
Nikon D7000« » 5.2 in 4.1 in 3.0 in 27.5 oz 1050 Y Sep 2010 1,499- i Nikon D7000

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X-T20 was launched at a markedly lower price (by 31 percent) than the D7500, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Fujifilm X-T20 vs Nikon D7500

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

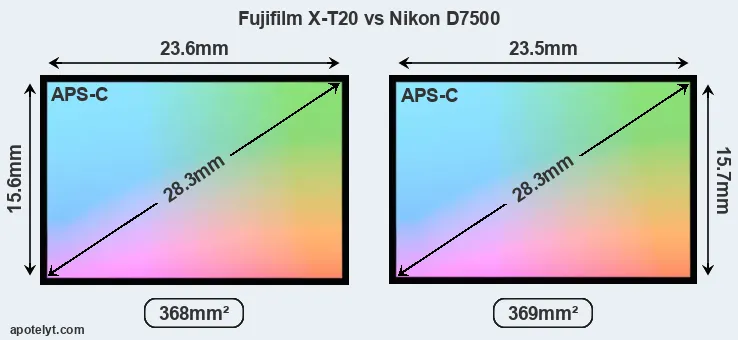

Fujifilm X-T20 and Nikon D7500 sensor measures

Despite having a slightly smaller sensor, the Fujifilm X-T20 offers a higher resolution of 24 megapixels, compared with 20.7 MP of the Nikon D7500. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.92μm versus 4.22μm for the D7500). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the X-T20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The X-T20 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during video recording.

The Fujifilm X-T20 has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 100-51200. The corresponding ISO settings for the Nikon D7500 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-1640000..

X-T20 versus D7500 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Fujifilm X-T20» APS-C 24.0 6000 40004K/30p----Fujifilm X-T20
Nikon D7500« APS-C 20.7 5568 37124K/30p24.314.0148386Nikon D7500
Canon 80D« » APS-C 24.0 6000 40001080/60p23.613.2113579Canon 80D
Fujifilm X-A5« » APS-C 24.0 6000 40004K/15p----Fujifilm X-A5
Fujifilm X-T100« » APS-C 24.0 6000 40004K/15p----Fujifilm X-T100
Fujifilm X-E3« » APS-C 24.0 6000 40004K/30p----Fujifilm X-E3
Fujifilm X70« » APS-C 16.0 4896 32641080/60p----Fujifilm X70
Fujifilm X-A3« » APS-C 24.0 6000 40001080/60p----Fujifilm X-A3
Fujifilm X-A10« » APS-C 16.0 4896 32641080/30p----Fujifilm X-A10
Fujifilm X-E2S« » APS-C 16.0 4896 32641080/60p----Fujifilm X-E2S
Fujifilm X-T10« » APS-C 16.0 4896 32641080/60p----Fujifilm X-T10
Fujifilm X-E2« » APS-C 16.0 4896 32641080/60p----Fujifilm X-E2
Fujifilm X-E1« » APS-C 16.0 4896 32641080/24p----Fujifilm X-E1
Nikon D500« » APS-C 20.7 5568 37124K/30p24.014.0132483Nikon D500
Nikon D7200« » APS-C 24.0 6000 40001080/60p24.514.6133387Nikon D7200
Nikon D7100« » APS-C 24.0 6000 40001080/60p24.213.7125683Nikon D7100
Nikon D7000« » APS-C 16.1 4928 326410800/24p23.513.9116780Nikon D7000

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/30p).



Feature comparison: Fujifilm X-T20 vs Nikon D7500

Beyond body and sensor, cameras can and do differ across a range of features. For example, the X-T20 has an electronic viewfinder (2360k dots), while the D7500 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Fujifilm X-T20 and Nikon D7500 in connection with corresponding information for a sample of similar cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model
Fujifilm X-T20»2360 n 3.0 1040 tilting Y 4000 8.0 Y n Fujifilm X-T20
Nikon D7500«optical Y 3.2 922 tilting Y 8000 8.0 Y n Nikon D7500
Canon 80D« »optical Y 3.0 1040 swivel Y 8000 7.0 Y n Canon 80D
Fujifilm X-A5« »- n 3.0 1040 tilting Y 4000 6.0 Y n Fujifilm X-A5
Fujifilm X-T100« »2360 n 3.0 1040 full-flex Y 4000 6.0 Y n Fujifilm X-T100
Fujifilm X-E3« »2360 n 3.0 1040 fixed Y 4000 8.0 n n Fujifilm X-E3
Fujifilm X70« »- n 3.0 1040 tilting Y 4000 8.0 Y n Fujifilm X70
Fujifilm X-A3« »- n 3.0 1040 tilting Y 4000 6.0 Y n Fujifilm X-A3
Fujifilm X-A10« »- n 3.0 1040 tilting n 4000 6.0 Y n Fujifilm X-A10
Fujifilm X-E2S« »2360 n 3.0 1040 fixed n 4000 7.0 Y n Fujifilm X-E2S
Fujifilm X-T10« »2360 n 3.0 920 tilting n 4000 8.0 Y n Fujifilm X-T10
Fujifilm X-E2« »2360 n 3.0 1040 fixed n 4000 7.0 Y n Fujifilm X-E2
Fujifilm X-E1« »2360 n 2.8 460 fixed n 4000 6.0 Y n Fujifilm X-E1
Nikon D500« »optical Y 3.2 2359 tilting Y 8000 10.0 n n Nikon D500
Nikon D7200« »optical Y 3.2 1229 fixed n 8000 6.0 Y n Nikon D7200
Nikon D7100« »optical Y 3.2 1229 fixed n 8000 6.0 Y n Nikon D7100
Nikon D7000« »optical Y 3.0 921 fixed n 8000 6.0 Y n Nikon D7000

One feature that is present on the D7500, but is missing on the X-T20 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed and shutter burst refer to the use of the mechanical shutter. In addition, the X-T20 features an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

Concerning the storage of imaging data, both the X-T20 and the D7500 write their files to SDXC cards.

Connectivity comparison: Fujifilm X-T20 vs Nikon D7500

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-T20 and Nikon D7500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Fujifilm X-T20»YstereomonoY-micro2.0Y--Fujifilm X-T20
Nikon D7500«YstereomonoYYmini2.0Y-YNikon D7500
Canon 80D« »YstereomonoYYmini2.0YY-Canon 80D
Fujifilm X-A5« »YstereomonoY-mini2.0Y-YFujifilm X-A5
Fujifilm X-T100« »YstereomonoY-micro2.0Y-YFujifilm X-T100
Fujifilm X-E3« »YstereomonoY-micro2.0Y-YFujifilm X-E3
Fujifilm X70« »YstereomonoY-micro2.0Y--Fujifilm X70
Fujifilm X-A3« »Ystereomono--micro2.0Y--Fujifilm X-A3
Fujifilm X-A10« »-stereomono--mini2.0Y--Fujifilm X-A10
Fujifilm X-E2S« »YstereomonoY-micro2.0Y--Fujifilm X-E2S
Fujifilm X-T10« »YstereomonoY-micro2.0Y--Fujifilm X-T10
Fujifilm X-E2« »YstereomonoY-micro2.0Y--Fujifilm X-E2
Fujifilm X-E1« »YstereomonoY-mini2.0---Fujifilm X-E1
Nikon D500« »YstereomonoYYmini3.0YYYNikon D500
Nikon D7200« »YstereomonoYYmini2.0YY-Nikon D7200
Nikon D7100« »YstereomonoYYmini2.0---Nikon D7100
Nikon D7000« »YmonomonoY-mini2.0---Nikon D7000

It is notable that the D7500 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The X-T20 lacks such a headphone port.

Both the X-T20 and the D7500 are recent models that feature in their makers' current product line-up. The X-T20 replaced the earlier Fujifilm X-T10, while the D7500 followed on from the Nikon D7200.


Review summary: Fujifilm X-T20 vs Nikon D7500

So what is the bottom line? Is there a clear favorite between the Fujifilm X-T20 and the Nikon D7500? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Fujifilm X-T20:

  • More detail: Offers more megapixels (24 vs 20.7MP) with a 8% higher linear resolution.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better video autofocus: Features on-sensor phase-detection for more confident movie autofocus.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (118x83mm vs 136x104mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 337g or 47 percent) and hence easier to carry around.
  • More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
  • More affordable: Was introduced into a lower priced category (31 percent cheaper at launch).

ilogo

Reasons to prefer the Nikon D7500:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Longer lasting: Gets more shots (950 versus 350) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.

If the number of relative strengths (bullet points above) is taken as a guide, the X-T20 comes out slightly ahead of the D7500 (10 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

X-T20 10:09 D7500

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the X-T20 or the D7500 handle or perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews: Fujifilm X-T20 vs Nikon D7500

This is why hands-on reviews by experts are important. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Fujifilm X-T20»HiRec82/1005/5-4.5/5 Jan 2017 899 i i Fujifilm X-T20
Nikon D7500«HiRec86/1005/54.5/54.5/5 Apr 2017 1,299 i i Nikon D7500
Canon 80D« »HiRec84/1004.5/54.5/54.5/5 Feb 2016 1,199 i i Canon 80D
Fujifilm X-A5« »Rec-4/54/53.5/5 Jan 2018 399 i i Fujifilm X-A5
Fujifilm X-T100« »Rec79/1004/5-4.5/5 May 2018 599 i i Fujifilm X-T100
Fujifilm X-E3« »Rec84/1004.5/54.5/54.5/5 Sep 2017 899 i i Fujifilm X-E3
Fujifilm X70« »-76/1004.5/54/54.5/5 Jan 2016 799- i Fujifilm X70
Fujifilm X-A3« »-74/1004.5/5-4/5 Aug 2016 399- i Fujifilm X-A3
Fujifilm X-A10« »--4/5-4/5 Dec 2016 399- i Fujifilm X-A10
Fujifilm X-E2S« »-77/1004.5/5-4.5/5 Jan 2016 699- i Fujifilm X-E2S
Fujifilm X-T10« »HiRec80/1005/54/55/5 May 2015 799- i Fujifilm X-T10
Fujifilm X-E2« »-80/1004.5/5-5/5 Oct 2013 999- i Fujifilm X-E2
Fujifilm X-E1« »HiRec79/1004.5/54.5/54.5/5 Sep 2012 999- i Fujifilm X-E1
Nikon D500« »HiRec91/1004.5/55/55/5 Jan 2016 1,999 i i Nikon D500
Nikon D7200« »HiRec84/1004.5/54/54.5/5 Mar 2015 1,199- i Nikon D7200
Nikon D7100« »HiRec85/1004.5/55/54.5/5 Feb 2013 1,199- i Nikon D7100
Nikon D7000« »-80/1004.5/55/54.5/5 Sep 2010 1,499- i Nikon D7000

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.



Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Fujifilm X-T20 vs Nikon D7500

    Camera and Lens Specs
    Camera Model Fujifilm X-T20 Nikon D7500
    Camera Type Mirrorless system camera Digital single lens reflex
    Camera Lens Fujifilm X mount lenses Nikon F mount lenses
    Launch Date January 2017 April 2017
    Launch Price USD 899 USD 1299
    Sensor Specs
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 23.6 x 15.6 mm 23.5 x 15.6 mm
    MP Resolution 24 Megapixels 20.7 Megapixels
    Image Resolution 6000 x 4000 pixels 5568 x 3712 pixels
    Pixel Size 3.92 μm 4.22 μm
    Movie Capability 4K/30p Video 4K/30p Video
    ISO Setting 200-12800 ISO 100-51200 ISO
    ISO Boost 100-51200 ISO 50-1640000 ISO
    Screen Specs
    Viewfinder Type Electronic viewfinder Optical viewfinder
    Viewfinder Resolution 2360k dots n/a
    Top-Level Screen no Top Display Control Panel
    Rear LCD Size 3.0 inch 3.2 inch
    LCD Resolution 1040k dots 922k dots
    LCD Attachment Tilting screen Tilting screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs
    Maximum Shutter Speed 1/4000s 1/8000s
    Continuous Shooting 8 shutter flaps/s 8 shutter flaps/s
    Silent ShootingElectronic Shutterno E-Shutter
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Connectivity Specs
    USB Connector USB 2.0 USB 2.0
    HDMI Port micro HDMI mini HDMI
    Wifi Support Wifi built-in Wifi built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs
    Environmental SealingNot weather sealedWeathersealed body
    Battery Type NP-W126S power pack EN-EL15a power pack
    Battery Life350 shots per charge950 shots per charge
    Body Dimensions 118 x 83 x 41 mm
    (4.6 x 3.3 x 1.6 in)
    136 x 104 x 73 mm
    (5.4 x 4.1 x 2.9 in)
    Camera Weight 383 g (13.5 oz) 720 g (25.4 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
