Fujifilm X-M1 vs Nikon D5100

The Fujifilm X-M1 and the Nikon D5100 are two digital cameras that were officially introduced, respectively, in June 2013 and April 2011. The X-M1 is a mirrorless interchangeable lens camera, while the D5100 is a DSLR. Both cameras are equipped with an APS-C sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Nikon provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-M1		Nikon D5100
Mirrorless system camera		Digital single lens reflex
Fujifilm X mount lenses		Nikon F mount lenses
16 MP – APS-C sensor		16.1 MP – APS-C sensor
1080/30p Video		1080/30p Video
ISO 200-6,400 (100 - 25,600)		ISO 100-6,400 (100 - 25,600)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 920k dots		3.0" LCD – 921k dots
Tilting screen (no touchscreen)		Swivel screen (not touch-sensitive)
5.6 shutter flaps per second		4 shutter flaps per second
350 shots per battery charge		660 shots per battery charge
117 x 67 x 39 mm, 330 g		128 x 97 x 79 mm, 560 g

Check X-M1 offers at
ebay.com
Check D5100 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-M1 and the Nikon D5100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

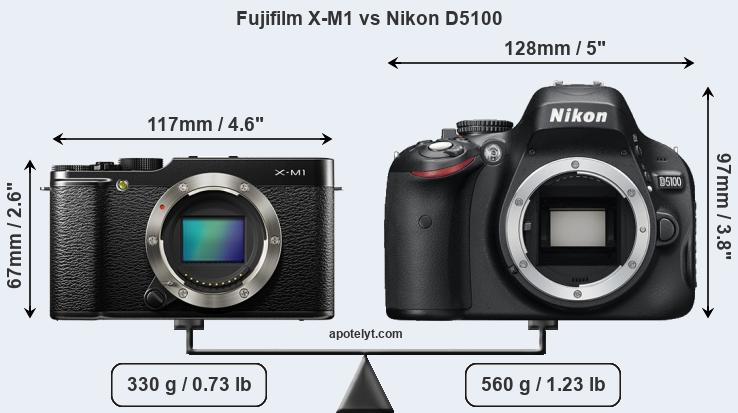

The physical size and weight of the Fujifilm X-M1 and the Nikon D5100 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The X-M1 can be obtained in three different colors (black, silver, brown), while the D5100 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5100 is considerably larger (58 percent) than the Fujifilm X-M1. Moreover, the D5100 is substantially heavier (70 percent) than the X-M1. In this context, it is worth noting that neither the X-M1 nor the D5100 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-M1) and the Nikon Lens Catalog (D5100). Mirrorless cameras, such as the Fujifilm X-M1, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.

Concerning battery life, the X-M1 gets 350 shots out of its Fujifilm NP-W126 battery, while the D5100 can take 660 images on a single charge of its Nikon EN-EL14 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	699	ebay.com
2.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	749	ebay.com
3.		Fujifilm X-A1	117 mm	67 mm	39 mm	330 g	350	n	Sep 2013	399	ebay.com
4.		Fujifilm X-A2	117 mm	67 mm	40 mm	350 g	410	n	Jan 2015	399	ebay.com
5.		Fujifilm X-A10	117 mm	67 mm	40 mm	331 g	410	n	Dec 2016	399	ebay.com
6.		Fujifilm X-E1	129 mm	75 mm	38 mm	350 g	350	n	Sep 2012	999	ebay.com
7.		Fujifilm X-E2	129 mm	75 mm	37 mm	350 g	350	n	Oct 2013	999	ebay.com
8.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	699	ebay.com
9.		Fujifilm X-Pro1	140 mm	82 mm	43 mm	450 g	300	n	Jan 2012	1,699	ebay.com
10.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	799	ebay.com
11.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	599	ebay.com
12.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	749	ebay.com
13.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	749	ebay.com
14.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	799	ebay.com
15.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	899	ebay.com
16.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	749	ebay.com
17.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The X-M1 was somewhat cheaper (by 7 percent) than the D5100 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D5100 is 1 percent bigger. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 16.1MP, the D5100 offers a higher resolution than the X-M1 (16MP), but the D5100 nevertheless has the same individual pixel size (pixel pitch of 4.80μm) as the X-M1 due to its larger sensor. Moreover, the X-M1 is a much more recent model (by 2 years and 2 months) than the D5100, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Fujifilm X-M1 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D5100 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. The X-M1 uses Fujifilm's X-Trans layout of photosites, while the D5100 employs the more common Bayer array.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
2.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
3.		Fujifilm X-A1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1390	76
4.		Fujifilm X-A2	APS-C	16.0	4896	3264	1080/30p	23.6	12.8	1515	79
5.		Fujifilm X-A10	APS-C	16.0	4896	3264	1080/30p	23.9	13.2	1691	81
6.		Fujifilm X-E1	APS-C	16.0	4896	3264	1080/24p	23.2	12.4	1298	75
7.		Fujifilm X-E2	APS-C	16.0	4896	3264	1080/60p	23.4	12.6	1400	77
8.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
9.		Fujifilm X-Pro1	APS-C	16.0	4896	3264	1080/24p	23.1	12.3	1238	74
10.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
11.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
12.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
13.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
14.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
15.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
16.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
17.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D5100 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X-M1 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Fujifilm X-M1 and Nikon D5100 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
2.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
3.		Fujifilm X-A1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
4.		Fujifilm X-A2	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
5.		Fujifilm X-A10	none	n	3.0 / 1040	tilting	n	1/4000s	6.0/s	Y	n
6.		Fujifilm X-E1	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
7.		Fujifilm X-E2	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
8.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
9.		Fujifilm X-Pro1	1440	n	3.0 / 1230	fixed	n	1/4000s	6.0/s	n	n
10.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
11.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
13.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
14.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
15.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
16.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
17.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Nikon D5100 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-M1 and the D5100 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-M1 and Nikon D5100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
3.		Fujifilm X-A1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X-A2	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Fujifilm X-A10	-	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Fujifilm X-E1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Fujifilm X-E2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Fujifilm X-Pro1	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
13.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
15.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
16.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
17.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the X-M1 offers wifi support, while the D5100 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the X-M1 and the D5100 have been discontinued, but can regularly be found used on ebay. The D5100 was replaced by the Nikon D5200, while the X-M1 does not have a direct successor. Further information on the features and operation of the X-M1 and D5100 can be found, respectively, in the Fujifilm X-M1 Manual (free pdf) or the online Nikon D5100 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Fujifilm X-M1 and the Nikon D5100? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Fujifilm X-M1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Faster burst: Shoots at higher frequency (5.6 vs 4 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (117x67mm vs 128x97mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 230g or 41 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More modern: Reflects 2 years and 2 months of technical progress since the D5100 launch.

Advantages of the Nikon D5100:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (660 versus 350) out of a single battery charge.
• More heavily discounted: Has been around for much longer (launched in April 2011).

If the count of relative strengths (bullet points above) is taken as a measure, the D5100 comes out slightly ahead of the X-M1 (8 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-M1 and the Nikon D5100 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-M1 or the D5100. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	699	ebay.com
2.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	749	ebay.com
3.		Fujifilm X-A1	..	..	..	..	4.5/5	4.5/5	Sep 2013	399	ebay.com
4.		Fujifilm X-A2	4/5	..	..	..	4.5/5	4.5/5	Jan 2015	399	ebay.com
5.		Fujifilm X-A10	..	..	..	..	4/5	4/5	Dec 2016	399	ebay.com
6.		Fujifilm X-E1	4/5	+ +	..	79/100	4.5/5	4.5/5	Sep 2012	999	ebay.com
7.		Fujifilm X-E2	4/5	..	..	80/100	4.5/5	5/5	Oct 2013	999	ebay.com
8.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	699	ebay.com
9.		Fujifilm X-Pro1	5/5	+ +	..	79/100	4.5/5	4.5/5	Jan 2012	1,699	ebay.com
10.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	799	ebay.com
11.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	599	ebay.com
12.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	749	ebay.com
13.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	749	ebay.com
14.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	799	ebay.com
15.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	899	ebay.com
16.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	749	ebay.com
17.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
