Fujifilm X-M1 vs Nikon 1 J4

The Fujifilm X-M1 and the Nikon 1 J4 are two digital cameras that were revealed to the public, respectively, in June 2013 and April 2014. Both the X-M1 and the J4 are mirrorless interchangeable lens cameras that are based on an APS-C (X-M1) and an one-inch (J4) sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Nikon provides 18.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-M1		Nikon 1 J4
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Nikon 1 mount lenses
16 MP – APS-C sensor		18.2 MP – 1" sensor
1080/30p Video		1080/60p Video
ISO 200-6,400 (100 - 25,600)		ISO 160-12,800
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 920k dots		3.0" LCD – 1037k dots
Tilting screen (no touchscreen)		no rear screen
5.6 shutter flaps per second		60 shutter flaps per second
350 shots per battery charge		300 shots per battery charge
117 x 67 x 39 mm, 330 g		100 x 60 x 29 mm, 232 g

Check X-M1 offers at
ebay.com
Check J4 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-M1 and the Nikon 1 J4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

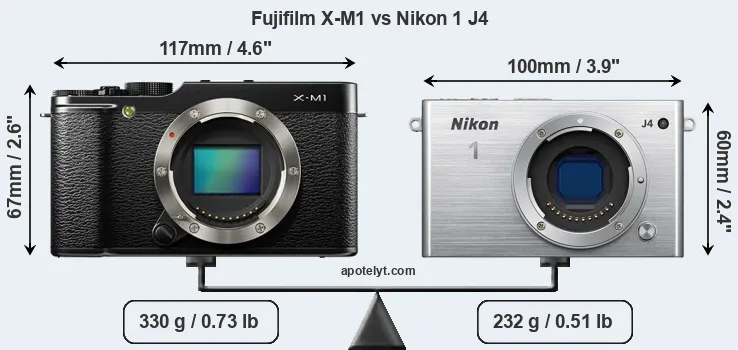

Body comparison

The physical size and weight of the Fujifilm X-M1 and the Nikon 1 J4 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The X-M1 can be obtained in three different colors (black, silver, brown), while the J4 is available in four color-versions (black, silver, orange, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon 1 J4 is notably smaller (23 percent) than the Fujifilm X-M1. Moreover, the J4 is markedly lighter (30 percent) than the X-M1. In this context, it is worth noting that neither the X-M1 nor the J4 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	699	ebay.com
2.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	549	ebay.com
3.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
4.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
5.		Fujifilm X-A10	117 mm	67 mm	40 mm	331 g	410	n	Dec 2016	399	ebay.com
6.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	699	ebay.com
7.		Fujifilm X-A2	117 mm	67 mm	40 mm	350 g	410	n	Jan 2015	399	ebay.com
8.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	799	ebay.com
9.		Fujifilm X-A1	117 mm	67 mm	39 mm	330 g	350	n	Sep 2013	399	ebay.com
10.		Fujifilm X-E2	129 mm	75 mm	37 mm	350 g	350	n	Oct 2013	999	ebay.com
11.		Fujifilm X-E1	129 mm	75 mm	38 mm	350 g	350	n	Sep 2012	999	ebay.com
12.		Fujifilm X-Pro1	140 mm	82 mm	43 mm	450 g	300	n	Jan 2012	1,699	ebay.com
13.		Nikon 1 J5	98 mm	60 mm	32 mm	231 g	250	n	Apr 2015	399	ebay.com
14.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	799	ebay.com
15.		Nikon 1 V2	109 mm	82 mm	46 mm	278 g	310	n	Oct 2012	799	ebay.com
16.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	749	ebay.com
17.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The J4 was launched at a somewhat lower price (by 21 percent) than the X-M1, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

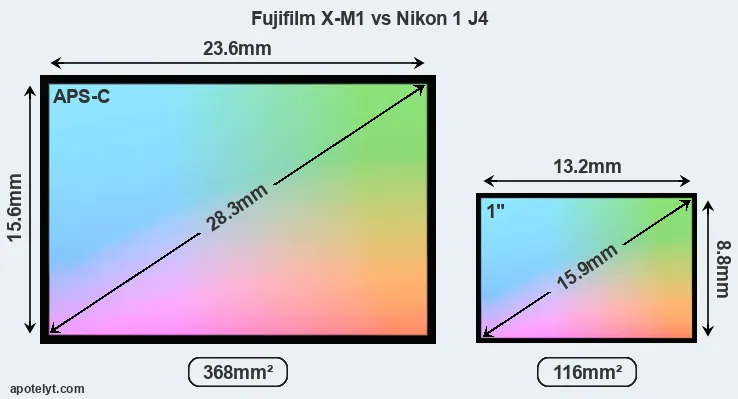

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Fujifilm X-M1 features an APS-C sensor and the Nikon 1 J4 an one-inch sensor. The sensor area in the J4 is 68 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

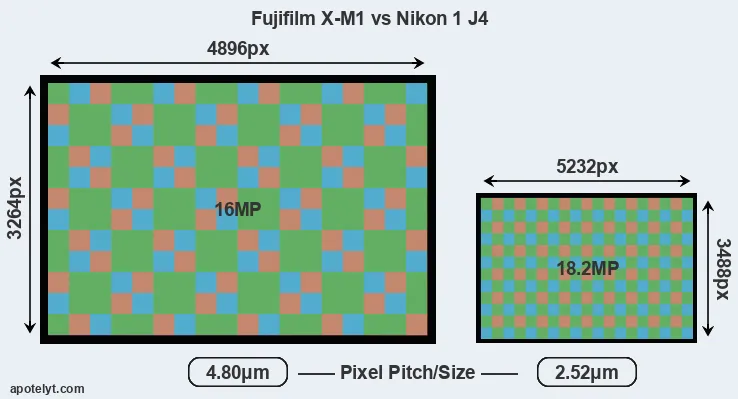

Despite having a smaller sensor, the J4 offers a higher resolution of 18.2 megapixels, compared with 16 MP of the X-M1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.52μm versus 4.80μm for the X-M1). However, it should be noted that the J4 is a somewhat more recent model (by 9 months) than the X-M1, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Nikon 1 J4 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the J4 for good quality output (200 dots per inch) amounts to 26.2 x 17.4 inches or 66.4 x 44.3 cm, for very good quality (250 dpi) 20.9 x 14 inches or 53.2 x 35.4 cm, and for excellent quality (300 dpi) 17.4 x 11.6 inches or 44.3 x 29.5 cm. The corresponding values for the Fujifilm X-M1 are 24.5 x 16.3 inches or 62.2 x 41.5 cm for good quality, 19.6 x 13.1 inches or 49.7 x 33.2 cm for very good quality, and 16.3 x 10.9 inches or 41.5 x 27.6 cm for excellent quality prints.

The J4 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Fujifilm X-M1 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon 1 J4 are ISO 160 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. The X-M1 uses Fujifilm's X-Trans layout of photosites, while the J4 employs the more common Bayer array.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
2.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
3.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
4.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
5.		Fujifilm X-A10	APS-C	16.0	4896	3264	1080/30p	23.9	13.2	1691	81
6.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
7.		Fujifilm X-A2	APS-C	16.0	4896	3264	1080/30p	23.6	12.8	1515	79
8.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
9.		Fujifilm X-A1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1390	76
10.		Fujifilm X-E2	APS-C	16.0	4896	3264	1080/60p	23.4	12.6	1400	77
11.		Fujifilm X-E1	APS-C	16.0	4896	3264	1080/24p	23.2	12.4	1298	75
12.		Fujifilm X-Pro1	APS-C	16.0	4896	3264	1080/24p	23.1	12.3	1238	74
13.		Nikon 1 J5	1-inch	20.7	5568	3712	4K/15p	21.1	12.0	479	65
14.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
15.		Nikon 1 V2	1-inch	14.2	4608	3072	1080/60p	20.2	10.8	403	50
16.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
17.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the J4 provides a faster frame rate than the X-M1. It can shoot movie footage at 1080/60p, while the Fujifilm is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The X-M1 and the J4 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Fujifilm X-M1, the Nikon 1 J4, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
2.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
3.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
4.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
5.		Fujifilm X-A10	none	n	3.0 / 1040	tilting	n	1/4000s	6.0/s	Y	n
6.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
7.		Fujifilm X-A2	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
8.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
9.		Fujifilm X-A1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
10.		Fujifilm X-E2	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
11.		Fujifilm X-E1	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
12.		Fujifilm X-Pro1	1440	n	3.0 / 1230	fixed	n	1/4000s	6.0/s	n	n
13.		Nikon 1 J5	none	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
14.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
15.		Nikon 1 V2	1440	n	3.0 / 921	fixed	n	1/4000s	15.0/s	Y	n
16.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
17.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The J4 has a touchscreen, while the X-M1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the J4 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The X-M1 writes its imaging data to SDXC cards, while the J4 uses micro SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-M1 and Nikon 1 J4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
3.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
5.		Fujifilm X-A10	-	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
7.		Fujifilm X-A2	Y	stereo / mono	-	-	mini	2.0	Y	-	-
8.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Fujifilm X-A1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
10.		Fujifilm X-E2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Fujifilm X-E1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Fujifilm X-Pro1	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Nikon 1 J5	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
15.		Nikon 1 V2	-	stereo / mono	-	-	mini	2.0	-	-	-
16.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
17.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the X-M1 has a hotshoe, while the J4 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the X-M1 and the J4 have been discontinued, but can regularly be found used on ebay. The J4 was replaced by the Nikon 1 J5, while the X-M1 does not have a direct successor. Further information on the features and operation of the X-M1 and J4 can be found, respectively, in the Fujifilm X-M1 Manual (free pdf) or the online Nikon 1 J4 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Fujifilm X-M1 or the Nikon 1 J4 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Fujifilm X-M1:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Longer lasting: Can take more shots (350 versus 300) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been on the market for longer (launched in June 2013).

Reasons to prefer the Nikon 1 J4:

• More detail: Has more megapixels (18.2 vs 16MP), which boosts linear resolution by 7%.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (60 vs 5.6 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More compact: Is smaller (100x60mm vs 117x67mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 98g or 30 percent) and is thus easier to take along.
• More affordable: Was released into a lower priced segment (21 percent cheaper at launch).
• More modern: Was introduced somewhat (9 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the J4 is the clear winner of the contest (11 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-M1 and the Nikon 1 J4 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the X-M1 or the J4 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	699	ebay.com
2.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	549	ebay.com
3.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
4.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
5.		Fujifilm X-A10	..	..	..	..	4/5	4/5	Dec 2016	399	ebay.com
6.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	699	ebay.com
7.		Fujifilm X-A2	4/5	..	..	..	4.5/5	4.5/5	Jan 2015	399	ebay.com
8.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	799	ebay.com
9.		Fujifilm X-A1	..	..	..	..	4.5/5	4.5/5	Sep 2013	399	ebay.com
10.		Fujifilm X-E2	4/5	..	..	80/100	4.5/5	5/5	Oct 2013	999	ebay.com
11.		Fujifilm X-E1	4/5	+ +	..	79/100	4.5/5	4.5/5	Sep 2012	999	ebay.com
12.		Fujifilm X-Pro1	5/5	+ +	..	79/100	4.5/5	4.5/5	Jan 2012	1,699	ebay.com
13.		Nikon 1 J5	..	..	..	..	4.5/5	4.5/5	Apr 2015	399	ebay.com
14.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	799	ebay.com
15.		Nikon 1 V2	3/5	..	..	..	4.5/5	4/5	Oct 2012	799	ebay.com
16.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	749	ebay.com
17.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check X-M1 offers at
ebay.com
Check J4 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check X-M1 offers at
ebay.com
Check J4 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
