Fujifilm X-M1 vs Leica C-LUX

The Fujifilm X-M1 and the Leica C-LUX are two digital cameras that were announced, respectively, in June 2013 and June 2018. The X-M1 is a mirrorless interchangeable lens camera, while the C-LUX is a fixed lens compact. The cameras are based on an APS-C (X-M1) and an one-inch (C-LUX) sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Leica provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-M1		Leica C-LUX
Mirrorless system camera		Fixed lens compact camera
Fujifilm X mount lenses		24-360mm f/3.3-6.4
16 MP – APS-C sensor		20 MP – 1" sensor
1080/30p Video		4K/30p Video
ISO 200-6,400 (100 - 25,600)		ISO 125-12,800 (80 - 25,600)
No viewfinder, LCD framing		Electronic viewfinder (2330k dots)
3.0" LCD – 920k dots		3.0" LCD – 1240k dots
Tilting screen (no touchscreen)		Fixed touchscreen
5.6 shutter flaps per second		10 shutter flaps per second
350 shots per battery charge		370 shots per battery charge
117 x 67 x 39 mm, 330 g		113 x 67 x 46 mm, 340 g

Check X-M1 offers at
ebay.com
Check C-LUX offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-M1 and the Leica C-LUX? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-M1 and the Leica C-LUX. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The X-M1 can be obtained in three different colors (black, silver, brown), while the C-LUX is available in two color-versions (gold, blue).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica C-LUX is somewhat smaller (3 percent) than the Fujifilm X-M1. In this context, it is worth noting that neither the X-M1 nor the C-LUX are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the C-LUX has a lens built in, whereas the X-M1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the X-M1 and their specifications in the Fujinon X Lens Catalog.

The power pack in the C-LUX can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	699	ebay.com
2.		Leica C-LUX	113 mm	67 mm	46 mm	340 g	370	n	Jun 2018	1,049	ebay.com
3.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	899	ebay.com
4.		Fujifilm X-A10	117 mm	67 mm	40 mm	331 g	410	n	Dec 2016	399	ebay.com
5.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	699	ebay.com
6.		Fujifilm X-A2	117 mm	67 mm	40 mm	350 g	410	n	Jan 2015	399	ebay.com
7.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	799	ebay.com
8.		Fujifilm X-A1	117 mm	67 mm	39 mm	330 g	350	n	Sep 2013	399	ebay.com
9.		Fujifilm X-E2	129 mm	75 mm	37 mm	350 g	350	n	Oct 2013	999	ebay.com
10.		Fujifilm X-E1	129 mm	75 mm	38 mm	350 g	350	n	Sep 2012	999	ebay.com
11.		Fujifilm X-Pro1	140 mm	82 mm	43 mm	450 g	300	n	Jan 2012	1,699	ebay.com
12.		Leica V-LUX 5	136 mm	97 mm	131 mm	812 g	350	n	Jul 2019	1,249	amazon.com
13.		Leica D-LUX 7	115 mm	66 mm	65 mm	392 g	300	n	Nov 2018	1,195	ebay.com
14.		Sony RX100 VII	102 mm	58 mm	43 mm	302 g	260	n	Jul 2019	1,199	amazon.com
15.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	999	ebay.com
16.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	749	ebay.com
17.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

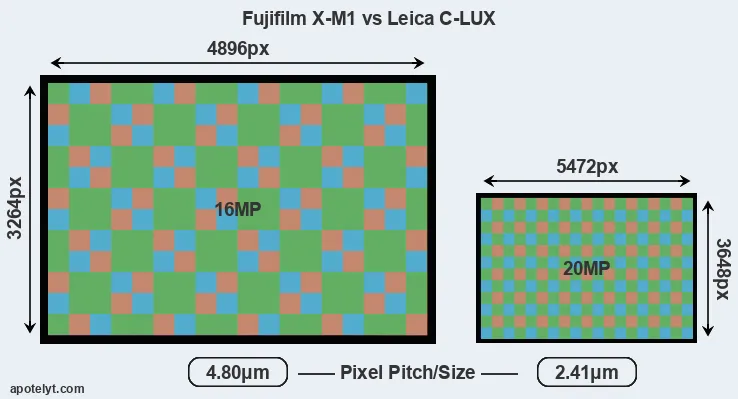

Of the two cameras under consideration, the Fujifilm X-M1 features an APS-C sensor and the Leica C-LUX an one-inch sensor. The sensor area in the C-LUX is 68 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the C-LUX offers a higher resolution of 20 megapixels, compared with 16 MP of the X-M1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 4.80μm for the X-M1). However, it should be noted that the C-LUX is much more recent (by 4 years and 11 months) than the X-M1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the X-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica C-LUX implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the C-LUX for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Fujifilm X-M1 are 24.5 x 16.3 inches or 62.2 x 41.5 cm for good quality, 19.6 x 13.1 inches or 49.7 x 33.2 cm for very good quality, and 16.3 x 10.9 inches or 41.5 x 27.6 cm for excellent quality prints.

The Fujifilm X-M1 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica C-LUX are ISO 125 to ISO 12800, with the possibility to increase the ISO range to 80-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. The X-M1 uses Fujifilm's X-Trans layout of photosites, while the C-LUX employs the more common Bayer array.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
2.		Leica C-LUX	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	481	64
3.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
4.		Fujifilm X-A10	APS-C	16.0	4896	3264	1080/30p	23.9	13.2	1691	81
5.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
6.		Fujifilm X-A2	APS-C	16.0	4896	3264	1080/30p	23.6	12.8	1515	79
7.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
8.		Fujifilm X-A1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1390	76
9.		Fujifilm X-E2	APS-C	16.0	4896	3264	1080/60p	23.4	12.6	1400	77
10.		Fujifilm X-E1	APS-C	16.0	4896	3264	1080/24p	23.2	12.4	1298	75
11.		Fujifilm X-Pro1	APS-C	16.0	4896	3264	1080/24p	23.1	12.3	1238	74
12.		Leica V-LUX 5	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	584	65
13.		Leica D-LUX 7	Four Thirds	16.8	4736	3552	4K/30p	22.9	12.8	1002	72
14.		Sony RX100 VII	1-inch	20.0	5472	3648	4K/30p	21.8	12.4	418	63
15.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70
16.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
17.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the C-LUX provides a better video resolution than the X-M1. It can shoot movie footage at 4K/30p, while the Fujifilm is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the C-LUX has an electronic viewfinder (2330k dots), which can be very helpful when shooting in bright sunlight. In contrast, the X-M1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Fujifilm X-M1, the Leica C-LUX, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
2.		Leica C-LUX	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
3.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
4.		Fujifilm X-A10	none	n	3.0 / 1040	tilting	n	1/4000s	6.0/s	Y	n
5.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
6.		Fujifilm X-A2	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
7.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
8.		Fujifilm X-A1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
9.		Fujifilm X-E2	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
10.		Fujifilm X-E1	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
11.		Fujifilm X-Pro1	1440	n	3.0 / 1230	fixed	n	1/4000s	6.0/s	n	n
12.		Leica V-LUX 5	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
13.		Leica D-LUX 7	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
14.		Sony RX100 VII	2359	n	3.0 / 921	tilting	Y	1/2000s	90.0/s	Y	Y
15.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
16.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
17.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The C-LUX has a touchscreen, while the X-M1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the C-LUX is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica C-LUX has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-M1 and the C-LUX write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-M1 and Leica C-LUX and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Leica C-LUX	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
4.		Fujifilm X-A10	-	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Fujifilm X-A2	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Fujifilm X-A1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
9.		Fujifilm X-E2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
10.		Fujifilm X-E1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Fujifilm X-Pro1	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Leica V-LUX 5	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Leica D-LUX 7	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Sony RX100 VII	-	stereo / mono	Y	-	micro	2.0	Y	Y	Y
15.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
17.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the X-M1 has a hotshoe, while the C-LUX does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the X-M1 and the C-LUX have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Fujifilm and Leica. Further information on the features and operation of the X-M1 and C-LUX can be found, respectively, in the Fujifilm X-M1 Manual (free pdf) or the online Leica C-LUX Manual.

Review summary

So how do things add up? Is the Fujifilm X-M1 better than the Leica C-LUX or vice versa? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Fujifilm X-M1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been available for much longer (launched in June 2013).

Reasons to prefer the Leica C-LUX:

• More detail: Has more megapixels (20 vs 16MP), which boosts linear resolution by 12%.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1240k vs 920k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (10 vs 5.6 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has an integrated lens, whereas the X-M1 necessitates an extra lens.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More modern: Reflects 4 years and 11 months of technical progress since the X-M1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the C-LUX is the clear winner of the contest (14 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-M1 and the Leica C-LUX place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the X-M1 and the C-LUX in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	699	ebay.com
2.		Leica C-LUX	..	..	3.5/5	..	4.5/5	4/5	Jun 2018	1,049	ebay.com
3.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	899	ebay.com
4.		Fujifilm X-A10	..	..	..	..	4/5	4/5	Dec 2016	399	ebay.com
5.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	699	ebay.com
6.		Fujifilm X-A2	4/5	..	..	..	4.5/5	4.5/5	Jan 2015	399	ebay.com
7.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	799	ebay.com
8.		Fujifilm X-A1	..	..	..	..	4.5/5	4.5/5	Sep 2013	399	ebay.com
9.		Fujifilm X-E2	4/5	..	..	80/100	4.5/5	5/5	Oct 2013	999	ebay.com
10.		Fujifilm X-E1	4/5	+ +	..	79/100	4.5/5	4.5/5	Sep 2012	999	ebay.com
11.		Fujifilm X-Pro1	5/5	+ +	..	79/100	4.5/5	4.5/5	Jan 2012	1,699	ebay.com
12.		Leica V-LUX 5	..	..	..	..	4/5	4/5	Jul 2019	1,249	amazon.com
13.		Leica D-LUX 7	..	..	..	..	..	4.5/5	Nov 2018	1,195	ebay.com
14.		Sony RX100 VII	4.5/5	..	4/5	..	4/5	5/5	Jul 2019	1,199	amazon.com
15.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	999	ebay.com
16.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	749	ebay.com
17.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
