Fujifilm X-H1 vs Panasonic S5

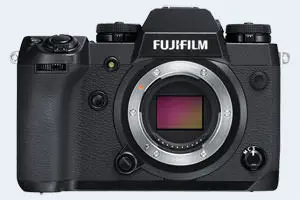

The Fujifilm X-H1 and the Panasonic Lumix DC-S5 are two enthusiast cameras that were revealed to the public, respectively, in February 2018 and September 2020. Both the X-H1 and the S5 are mirrorless interchangeable lens cameras that are based on an APS-C (X-H1) and a full frame (S5) sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-H1		Panasonic S5
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Leica L mount lenses
24 MP – APS-C sensor		24 MP – Full Frame sensor
4K/30p Video		4K/60p Video
ISO 200-12,800 (100 - 51,200)		ISO 100-51,200 (50 - 204,800)
Electronic viewfinder (3690k dots)		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1840k dots
Fully flexible touchscreen		Swivel touchscreen
14 shutter flaps per second		7 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
310 shots per battery charge		440 shots per battery charge
140 x 97 x 86 mm, 673 g		133 x 98 x 82 mm, 714 g

Check X-H1 offers at
ebay.com
Check S5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-H1 and the Panasonic Lumix DC-S5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Fujifilm X-H1 and the Panasonic S5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S5 is somewhat smaller (4 percent) than the Fujifilm X-H1. However, the S5 is markedly heavier (6 percent) than the X-H1. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the X-H1 gets 310 shots out of its Fujifilm NP-W126S battery, while the S5 can take 440 images on a single charge of its Panasonic DMW-BLK22 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Fujifilm X-H1	140 mm	97 mm	86 mm	673 g	310	Y	Feb 2018	1,899	ebay.com
2.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	1,999	amazon.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	1,999	amazon.com
4.		Fujifilm X-H2	136 mm	93 mm	85 mm	660 g	680	Y	Sep 2022	1,999	amazon.com
5.		Fujifilm X-H2S	136 mm	93 mm	85 mm	660 g	580	Y	May 2022	2,499	amazon.com
6.		Fujifilm X-Pro3	141 mm	83 mm	46 mm	497 g	440	Y	Oct 2019	1,799	amazon.com
7.		Fujifilm X-T4	135 mm	93 mm	64 mm	607 g	500	Y	Feb 2020	1,699	ebay.com
8.		Fujifilm X-T5	130 mm	91 mm	64 mm	557 g	580	Y	Nov 2022	1,699	amazon.com
9.		Nikon Z6	134 mm	101 mm	67 mm	675 g	310	Y	Aug 2018	1,999	ebay.com
10.		Panasonic G9	137 mm	97 mm	92 mm	658 g	400	Y	Nov 2017	1,699	ebay.com
11.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	1,999	ebay.com
12.		Panasonic GH5 II	139 mm	98 mm	87 mm	727 g	400	Y	May 2021	1,699	amazon.com
13.		Panasonic S1	149 mm	110 mm	97 mm	1017 g	400	Y	Feb 2019	2,499	amazon.com
14.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	1,999	amazon.com
15.		Sony A7 III	127 mm	96 mm	74 mm	650 g	610	Y	Feb 2018	1,999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X-H1 was somewhat cheaper (by 5 percent) than the S5 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Fujifilm X-H1 features an APS-C sensor and the Panasonic S5 a full frame sensor. The sensor area in the S5 is 130 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the S5 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the S5 has a lower pixel density and larger individual pixels (with a pixel pitch of 5.94μm versus 3.92μm for the X-H1), which gives it a potential advantage in terms of light gathering capacity. In addition, the S5 is much more recent (by 2 years and 6 months) than the X-H1, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The X-H1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the X-H1, the S5 has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Fujifilm X-H1 has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 100-51200. The corresponding ISO settings for the Panasonic Lumix DC-S5 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. The X-H1 uses Fujifilm's X-Trans layout of photosites, while the S5 employs the more common Bayer array.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-H1	APS-C	24.0	6000	4000	4K/30p	24.0	13.3	1806	82
2.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Fujifilm X-H2	APS-C	39.8	7728	5152	8k/30p	24.3	13.9	2249	86
5.		Fujifilm X-H2S	APS-C	26.0	6240	4160	6.2k/30p	24.3	13.9	2224	86
6.		Fujifilm X-Pro3	APS-C	26.0	6240	4160	4K/30p	24.1	13.6	1968	84
7.		Fujifilm X-T4	APS-C	26.0	6240	4160	4K/60p	24.1	13.6	1995	84
8.		Fujifilm X-T5	APS-C	39.8	7728	5152	6.2k/30p	24.3	13.9	2264	86
9.		Nikon Z6	Full Frame	24.3	6048	4024	4K/30p	25.3	14.3	3299	95
10.		Panasonic G9	Four Thirds	20.2	5184	3888	4K/60p	23.1	12.8	1138	74
11.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
12.		Panasonic GH5 II	Four Thirds	20.2	5184	3888	4K/60p	23.7	13.1	1136	79
13.		Panasonic S1	Full Frame	24.0	6000	4000	4K/60p	25.2	14.5	3333	95
14.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
15.		Sony A7 III	Full Frame	24.0	6000	4000	4K/30p	25.0	14.7	3730	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the S5 provides a faster frame rate than the X-H1. It can shoot movie footage at 4K/60p, while the Fujifilm is limited to 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the X-H1 offers a substantially higher resolution than the one in the S5 (3690k vs 2360k dots). The table below summarizes some of the other core capabilities of the Fujifilm X-H1 and Panasonic S5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-H1	3690	Y	3.0 / 1040	full-flex	Y	1/8000s	14.0/s	n	Y
2.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Fujifilm X-H2	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
5.		Fujifilm X-H2S	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
6.		Fujifilm X-Pro3	3690	n	3.0 / 1620	tilting	Y	1/8000s	8.0/s	n	n
7.		Fujifilm X-T4	3690	n	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
8.		Fujifilm X-T5	3690	n	3.0 / 1840	full-flex	Y	1/8000s	15.0/s	n	Y
9.		Nikon Z6	3690	Y	3.2 / 2100	tilting	Y	1/8000s	12.0/s	n	Y
10.		Panasonic G9	3680	Y	3.0 / 1040	swivel	Y	1/8000s	20.0/s	n	Y
11.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
12.		Panasonic GH5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	12.0/s	n	Y
13.		Panasonic S1	5760	Y	3.2 / 2100	full-flex	Y	1/8000s	9.0/s	n	Y
14.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
15.		Sony A7 III	2359	n	3.0 / 922	tilting	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the X-H1, but is missing on the S5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-H1 and the Panasonic S5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-H1 and the S5 write their files to SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. However, while the X-H1 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s) on both slots, the S5 supports UHS-II only on its first slot and UHS-I (data transfer speed up to 104 MB/s) on the second one.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-H1 and Panasonic Lumix DC-S5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-H1	Y	stereo / mono	Y	-	micro	3.0	Y	-	-
2.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Fujifilm X-H2	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
5.		Fujifilm X-H2S	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
6.		Fujifilm X-Pro3	Y	stereo / mono	Y	-	-	3.1	Y	-	Y
7.		Fujifilm X-T4	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
8.		Fujifilm X-T5	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
9.		Nikon Z6	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
10.		Panasonic G9	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
11.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
12.		Panasonic GH5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
13.		Panasonic S1	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
14.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Sony A7 III	Y	stereo / mono	Y	Y	micro	3.1	Y	Y	Y

It is notable that the S5 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The X-H1 lacks such a headphone port.

Studio photographers will appreciate that the Fujifilm X-H1 (unlike the S5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The S5 is a recent model that features in the current product line-up of Panasonic. In contrast, the X-H1 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the X-H1 from Fujifilm. Further information on the features and operation of the X-H1 and S5 can be found, respectively, in the Fujifilm X-H1 Manual (free pdf) or the online Panasonic S5 Manual.

Review summary

So what conclusions can be drawn? Is the Fujifilm X-H1 better than the Panasonic S5 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Fujifilm X-H1:

• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed viewfinder: Has higher resolution electronic viewfinder (3690k vs 2360k dots).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.75x vs 0.74x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster burst: Shoots at higher frequency (14 vs 7 flaps/sec) to capture the decisive moment.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in February 2018).

Advantages of the Panasonic Lumix DC-S5:

• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1040k dots).
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Longer lasting: Gets more shots (440 versus 310) out of a single battery charge.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 2 years and 6 months of technical progress since the X-H1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the S5 is the clear winner of the contest (12 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-H1 and the Panasonic S5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-H1 or the S5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Fujifilm X-H1	..	+	5/5	86/100	4.5/5	4.5/5	Feb 2018	1,899	ebay.com
2.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	1,999	amazon.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	1,999	amazon.com
4.		Fujifilm X-H2	5/5	+ +	5/5	89/100	5/5	5/5	Sep 2022	1,999	amazon.com
5.		Fujifilm X-H2S	5/5	+	5/5	90/100	5/5	5/5	May 2022	2,499	amazon.com
6.		Fujifilm X-Pro3	4/5	+	4/5	85/100	4/5	..	Oct 2019	1,799	amazon.com
7.		Fujifilm X-T4	5/5	+ +	5/5	88/100	5/5	5/5	Feb 2020	1,699	ebay.com
8.		Fujifilm X-T5	5/5	+ +	4.5/5	90/100	4.5/5	..	Nov 2022	1,699	amazon.com
9.		Nikon Z6	5/5	..	5/5	89/100	4.5/5	5/5	Aug 2018	1,999	ebay.com
10.		Panasonic G9	..	+ +	5/5	85/100	5/5	5/5	Nov 2017	1,699	ebay.com
11.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	1,999	ebay.com
12.		Panasonic GH5 II	4.5/5	..	4.5/5	85/100	4.5/5	5/5	May 2021	1,699	amazon.com
13.		Panasonic S1	4.5/5	+ +	4.5/5	88/100	4.5/5	4/5	Feb 2019	2,499	amazon.com
14.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	1,999	amazon.com
15.		Sony A7 III	..	+ +	4.5/5	89/100	5/5	5/5	Feb 2018	1,999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
