Fujifilm X-A10 vs Olympus E-PL5
The Fujifilm X-A10 and the Olympus PEN E-PL5 are two digital cameras that were announced, respectively, in December 2016 and September 2012. Both the X-A10 and the E-PL5 are mirrorless interchangeable lens cameras that are based on an APS-C (X-A10) and a Four Thirds (E-PL5) sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-A10 and the Olympus PEN E-PL5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

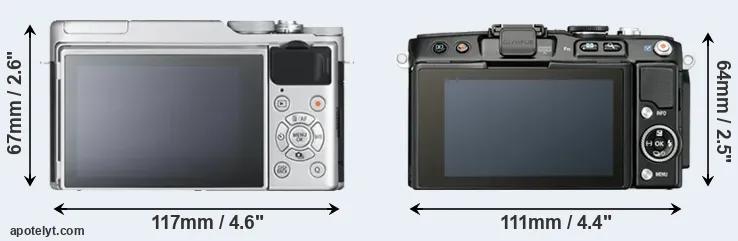

An illustration of the physical size and weight of the Fujifilm X-A10 and the Olympus E-PL5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL5 can be obtained in three different colors (black, silver, white), while the X-A10 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL5 is notably smaller (9 percent) than the Fujifilm X-A10. Moreover, the E-PL5 is slightly lighter (2 percent) than the X-A10. In this context, it is worth noting that neither the X-A10 nor the E-PL5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-A10) and the Micro Four Thirds Lens Catalog (E-PL5). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
Concerning battery life, the X-A10 gets 410 shots out of its NP-W126S battery, while the E-PL5 can take 360 images on a single charge of its BLS-5 power pack. The power pack in the X-A10 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Fujifilm X-A10||117 mm||67 mm||40 mm||331 g||410||n||Dec 2016||399|
|2.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599|
|3.||Fujifilm X-A5||117 mm||68 mm||40 mm||361 g||450||n||Jan 2018||399|
|4.||Fujifilm X-E3||121 mm||74 mm||43 mm||337 g||350||n||Sep 2017||899|
|5.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899|
|6.||Fujifilm X-A3||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399|
|7.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699|
|8.||Fujifilm X-A2||117 mm||67 mm||40 mm||350 g||410||n||Jan 2015||399|
|9.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|10.||Fujifilm X-A1||117 mm||67 mm||39 mm||330 g||350||n||Sep 2013||399|
|11.||Fujifilm X-M1||117 mm||67 mm||39 mm||330 g||350||n||Jun 2013||699|
|12.||Fujifilm X-E1||129 mm||75 mm||38 mm||350 g||350||n||Sep 2012||999|
|13.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|14.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|15.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599|
|16.||Olympus E-PM2||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499|
|17.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-A10 was launched at a markedly lower price (by 33 percent) than the E-PL5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Fujifilm X-A10 features an APS-C sensor and the Olympus E-PL5 a Four Thirds sensor. The sensor area in the E-PL5 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-A10 has a native 3:2 aspect ratio, while the one in the E-PL5 offers a 4:3 aspect.
With 16MP, the X-A10 offers a slightly higher resolution than the E-PL5 (15.9MP), but the X-A10 nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 3.76μm for the E-PL5) due to its larger sensor. Moreover, the X-A10 is a much more recent model (by 4 years and 2 months) than the E-PL5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The Fujifilm X-A10 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-PL5 are ISO 200 to ISO 25600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|13.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|14.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|15.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|16.||Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|17.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).
Beyond body and sensor, cameras can and do differ across a range of features. The X-A10 and the E-PL5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL5 can be equipped with an optional viewfinder – the VF-3. The table below summarizes some of the other core capabilities of the Fujifilm X-A10 and Olympus E-PL5 in connection with corresponding information for a sample of similar cameras.
|13.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The X-A10 has one, while the E-PL5 does not. While the built-in flash of the X-A10 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-A10 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-A10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the X-A10 and the E-PL5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-A10 and Olympus PEN E-PL5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|13.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the X-A10 offers wifi support, while the E-PL5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the X-A10 and the E-PL5 have been discontinued, but can regularly be found used on eBay. The E-PL5 was replaced by the Olympus E-PL6, while the X-A10 was followed by the Fujifilm X-A5. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Olympus websites.
So what conclusions can be drawn? Is the Fujifilm X-A10 better than the Olympus E-PL5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Fujifilm X-A10:
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (410 versus 360) on a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
- More modern: Reflects 4 years and 2 months of technical progress since the E-PL5 launch.
Reasons to prefer the Olympus PEN E-PL5:
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (8 vs 6 flaps/sec) to capture the decisive moment.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been around for much longer (launched in September 2012).
If the count of relative strengths (bullet points above) is taken as a measure, the X-A10 is the clear winner of the match-up (13 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X-A10 and the Olympus E-PL5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-A10 or the E-PL5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Fujifilm X-A10||..||..||..||4/5||4/5||Dec 2016||399|
|2.||Olympus E-PL5||3/5||+ +||..||4.5/5||4.5/5||Sep 2012||599|
|3.||Fujifilm X-A5||..||+||..||4/5||3.5/5||Jan 2018||399|
|4.||Fujifilm X-E3||4.5/5||+||84/100||4.5/5||4.5/5||Sep 2017||899|
|5.||Fujifilm X-T20||5/5||+ +||82/100||5/5||4.5/5||Jan 2017||899|
|6.||Fujifilm X-A3||..||..||74/100||4.5/5||4/5||Aug 2016||399|
|7.||Fujifilm X-E2S||4.5/5||..||77/100||4.5/5||4.5/5||Jan 2016||699|
|8.||Fujifilm X-A2||4/5||..||..||4.5/5||4.5/5||Jan 2015||399|
|9.||Fujifilm X-T10||4.5/5||+ +||80/100||5/5||5/5||May 2015||799|
|10.||Fujifilm X-A1||..||..||..||4.5/5||4.5/5||Sep 2013||399|
|11.||Fujifilm X-M1||3/5||+||77/100||4.5/5||4.5/5||Jun 2013||699|
|12.||Fujifilm X-E1||4/5||+ +||79/100||4.5/5||4.5/5||Sep 2012||999|
|13.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|14.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|15.||Olympus E-PL6||..||..||..||..||..||May 2013||599|
|16.||Olympus E-PM2||3/5||..||77/100||5/5||4.5/5||Sep 2012||499|
|17.||Olympus E-PL3||3/5||+ +||72/100||4.5/5||4/5||Jun 2011||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Fujifilm X-A10 vs Olympus E-PL5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X-A10||Olympus E-PL5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Fujifilm X mount lenses||Micro Four Thirds lenses|
|Launch Date||December 2016||September 2012|
|Launch Price||USD 399||USD 599|
|Sensor Specs||Fujifilm X-A10||Olympus E-PL5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||368.16 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||16 Megapixels||15.9 Megapixels|
|Image Resolution||4896 x 3264 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.80 μm||3.76 μm|
|Pixel Density||4.34 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||200 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||..||72|
|DXO Color Depth (bits)||..||22.8|
|DXO Dynamic Range (EV)||..||12.3|
|DXO Low Light (ISO)||..||889|
|Screen Specs||Fujifilm X-A10||Olympus E-PL5|
|Viewfinder Type||no viewfinder||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||460k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Fujifilm X-A10||Olympus E-PL5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||6 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Fujifilm X-A10||Olympus E-PL5|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Fujifilm X-A10||Olympus E-PL5|
|Battery Life (CIPA)||410 shots per charge||360 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
117 x 67 x 40 mm
(4.6 x 2.6 x 1.6 in)
111 x 64 x 38 mm
(4.4 x 2.5 x 1.5 in)
|Camera Weight||331 g (11.7 oz)||325 g (11.5 oz)|
