Epson R-D1 vs Panasonic ZS200

The Epson R-D1 and the Panasonic Lumix DC-ZS200 (labelled Panasonic TZ200 in some countries) are two digital cameras that were announced, respectively, in March 2004 and February 2018. The R-D1 is a rangefinder-focusing mirrorless camera, while the ZS200 is a fixed lens compact. The cameras are based on an APS-C (R-D1) and an one-inch (ZS200) sensor. The Epson has a resolution of 6 megapixels, whereas the Panasonic provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Epson R-D1		Panasonic ZS200
Rangefinder camera		Fixed lens compact camera
Leica M mount lenses		24-360mm f/3.3-6.4
6 MP – APS-C sensor		20 MP – 1" sensor
no Video		4K/30p Video
ISO 200-1,600		ISO 125-12,800 (80 - 25,600)
Optical viewfinder		Electronic viewfinder (2330k dots)
2.0" LCD – 235k dots		3.0" LCD – 1240k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
1 shutter flaps per second		10 shutter flaps per second
no shake reduction		In-body stabilization
142 x 89 x 40 mm, 620 g		111 x 65 x 45 mm, 340 g

Check R-D1 offers at
ebay.com
Check ZS200 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Panasonic Lumix DC-ZS200? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

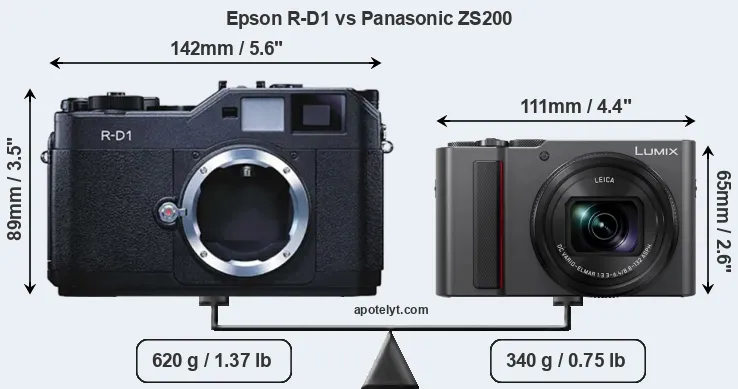

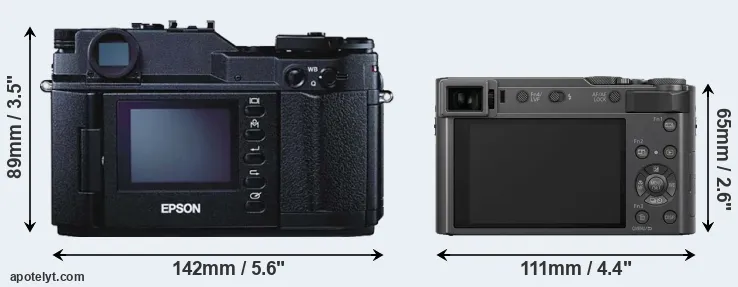

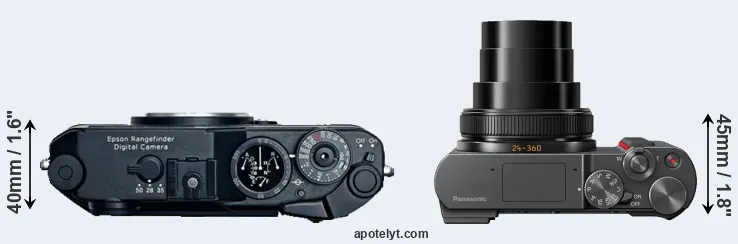

The physical size and weight of the Epson R-D1 and the Panasonic ZS200 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The ZS200 can be obtained in two different colors (black, silver), while the R-D1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic ZS200 is considerably smaller (43 percent) than the Epson R-D1. In this context, it is worth noting that neither the R-D1 nor the ZS200 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the ZS200 has a lens built in, whereas the R-D1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the R-D1 and their specifications in the Leica M Lens Catalog.

The power pack in the ZS200 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	2,999	ebay.com
2.		Panasonic ZS200	111 mm	65 mm	45 mm	340 g	370	n	Feb 2018	799	amazon.com
3.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	899	ebay.com
4.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	899	ebay.com
5.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	2,795	ebay.com
6.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	6,595	ebay.com
7.		Leica X-U Typ 113	140 mm	79 mm	88 mm	635 g	450	Y	Jan 2016	2,950	ebay.com
8.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	2,850	ebay.com
9.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	7,999	ebay.com
10.		Nikon D40	124 mm	94 mm	64 mm	522 g	470	n	Nov 2006	499	ebay.com
11.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	749	ebay.com
12.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	899	ebay.com
13.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	999	ebay.com
14.		Panasonic FZ1000 II	136 mm	97 mm	131 mm	810 g	350	n	Feb 2019	899	amazon.com
15.		Panasonic GX9	124 mm	72 mm	47 mm	407 g	260	n	Feb 2018	849	ebay.com
16.		Panasonic LX10	106 mm	60 mm	42 mm	310 g	260	n	Sep 2016	699	amazon.com
17.		Panasonic ZS100	111 mm	65 mm	44 mm	312 g	300	n	Jan 2016	699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The ZS200 was launched at a lower price than the R-D1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

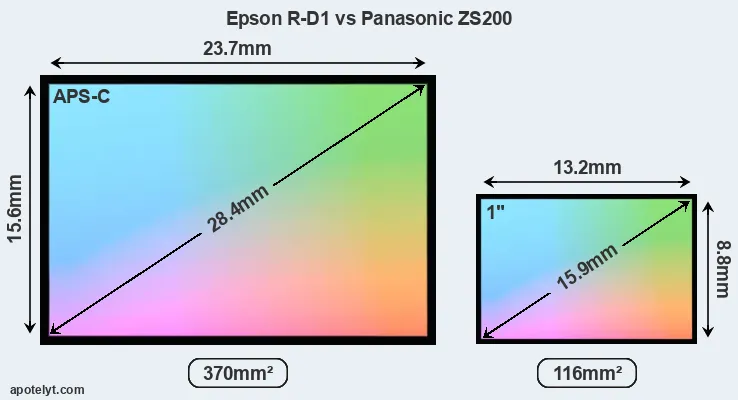

Of the two cameras under consideration, the Epson R-D1 features an APS-C sensor and the Panasonic ZS200 an one-inch sensor. The sensor area in the ZS200 is 69 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

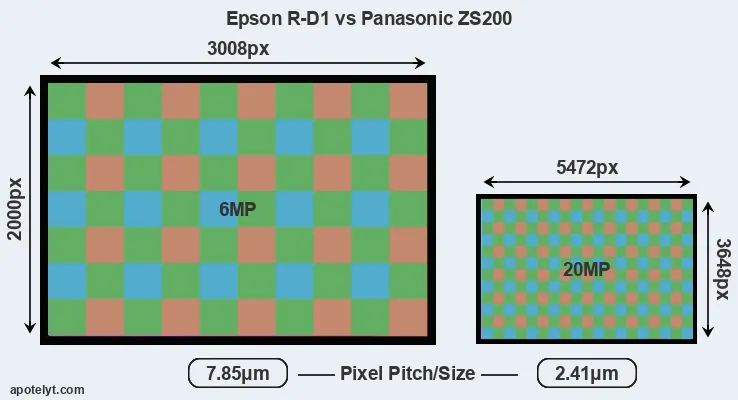

Despite having a smaller sensor, the ZS200 offers a higher resolution of 20 megapixels, compared with 6 MP of the R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 7.85μm for the R-D1). However, it should be noted that the ZS200 is much more recent (by 13 years and 11 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic ZS200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the ZS200 for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DC-ZS200 are ISO 125 to ISO 12800, with the possibility to increase the ISO range to 80-25600.

In terms of underlying technology, the R-D1 is build around a CCD sensor, while the ZS200 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
2.		Panasonic ZS200	1-inch	20.0	5472	3648	4K/30p	22.0	12.2	449	64
3.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
4.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
5.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
6.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
7.		Leica X-U Typ 113	APS-C	16.1	4928	3264	1080/30p	23.8	13.0	1614	80
8.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
9.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
10.		Nikon D40	APS-C	6.0	3008	2000	none	21.0	11.0	561	56
11.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
12.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
13.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
14.		Panasonic FZ1000 II	1-inch	20.0	5472	3648	4K/30p	22.1	12.4	546	65
15.		Panasonic GX9	Four Thirds	20.2	5184	3888	4K/30p	23.1	12.8	1163	74
16.		Panasonic LX10	1-inch	20.0	5472	3648	4K/30p	22.8	12.5	581	70
17.		Panasonic ZS100	1-inch	20.0	5472	3648	4K/30p	22.8	12.5	559	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The ZS200 indeed provides for movie recording, while the R-D1 does not. The highest resolution format that the ZS200 can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the ZS200 has an electronic viewfinder (2330k dots), while the R-D1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Epson R-D1 and Panasonic ZS200 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
2.		Panasonic ZS200	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
3.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
4.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
5.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
6.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
7.		Leica X-U Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
8.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
9.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
10.		Nikon D40	optical	n	2.5 / 230	fixed	n	1/4000s	2.5/s	Y	n
11.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
12.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
13.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
14.		Panasonic FZ1000 II	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
15.		Panasonic GX9	2760	n	3.0 / 1240	tilting	Y	1/4000s	9.0/s	Y	Y
16.		Panasonic LX10	none	n	3.0 / 1040	tilting	Y	1/4000s	10.0/s	Y	Y
17.		Panasonic ZS100	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The ZS200 has a touchscreen, while the R-D1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the ZS200 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic ZS200 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R-D1 writes its imaging data to SDHC cards, while the ZS200 uses SDXC cards. The ZS200 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the R-D1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Panasonic Lumix DC-ZS200 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
2.		Panasonic ZS200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
4.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
5.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
6.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
7.		Leica X-U Typ 113	Y	stereo / mono	-	-	-	2.0	-	-	-
8.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
10.		Nikon D40	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
12.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
13.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
14.		Panasonic FZ1000 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
15.		Panasonic GX9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Panasonic LX10	-	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic ZS100	-	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the R-D1 has a hotshoe, while the ZS200 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Epson R-D1 (unlike the ZS200) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The ZS200 is a recent model that features in the current product line-up of Panasonic. In contrast, the R-D1 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the R-D1 from Epson. Further information on the features and operation of the R-D1 and ZS200 can be found, respectively, in the Epson R-D1 Manual (free pdf) or the online Panasonic ZS200 Manual.

Review summary

So what is the bottom line? Is the Epson R-D1 better than the Panasonic ZS200 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Epson R-D1:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in March 2004).

Arguments in favor of the Panasonic Lumix DC-ZS200:

• More detail: Has more megapixels (20 vs 6MP), which boosts linear resolution by 82%.
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1240k vs 235k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (10 vs 1 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has an integrated lens, whereas the R-D1 necessitates an extra lens.
• More compact: Is smaller (111x65mm vs 142x89mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the R-D1).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 13 years and 11 months of technical progress since the R-D1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the ZS200 is the clear winner of the contest (20 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the R-D1 and the ZS200 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Epson R-D1	..	..	..	..	..	..	Mar 2004	2,999	ebay.com
2.		Panasonic ZS200	..	+ +	4.5/5	81/100	4.5/5	4.5/5	Feb 2018	799	amazon.com
3.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	899	ebay.com
4.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	899	ebay.com
5.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	2,795	ebay.com
6.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	6,595	ebay.com
7.		Leica X-U Typ 113	3.5/5	..	..	..	..	3.5/5	Jan 2016	2,950	ebay.com
8.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	2,850	ebay.com
9.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	7,999	ebay.com
10.		Nikon D40	..	81/100	..	+ +	o	4.5/5	Nov 2006	499	ebay.com
11.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	749	ebay.com
12.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	899	ebay.com
13.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	999	ebay.com
14.		Panasonic FZ1000 II	..	..	..	83/100	4.5/5	4.5/5	Feb 2019	899	amazon.com
15.		Panasonic GX9	4/5	+	4/5	84/100	4.5/5	4.5/5	Feb 2018	849	ebay.com
16.		Panasonic LX10	..	+ +	4/5	81/100	4/5	4.5/5	Sep 2016	699	amazon.com
17.		Panasonic ZS100	4.5/5	+ +	..	82/100	4.5/5	4.5/5	Jan 2016	699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
