Epson R-D1 vs Fujifilm X20

The Epson R-D1 and the Fujifilm X20 are two digital cameras that were officially introduced, respectively, in March 2004 and January 2013. The R-D1 is a rangefinder-focusing mirrorless camera, while the X20 is a fixed lens compact. The cameras are based on an APS-C (R-D1) and a 2/3 (X20) sensor. The Epson has a resolution of 6 megapixels, whereas the Fujifilm provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Epson R-D1		Fujifilm X20
Rangefinder camera		Fixed lens compact camera
Leica M mount lenses		28-112mm f/2.0-2.8
6 MP – APS-C sensor		12 MP – Two Thirds sensor
no Video		1080/60p Video
ISO 200-1,600		ISO 100-12,800
Optical viewfinder		Optical viewfinder
2.0" LCD – 235k dots		2.8" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1 shutter flaps per second		12 shutter flaps per second
142 x 89 x 40 mm, 620 g		117 x 70 x 57 mm, 353 g

Check R-D1 offers at
ebay.com
Check X20 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Fujifilm X20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

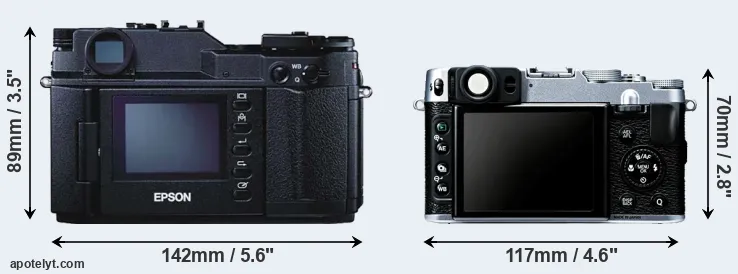

The side-by-side display below illustrates the physical size and weight of the Epson R-D1 and the Fujifilm X20. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The X20 can be obtained in two different colors (black, silver), while the R-D1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X20 is considerably smaller (35 percent) than the Epson R-D1. In this context, it is worth noting that neither the R-D1 nor the X20 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X20 has a lens built in, whereas the R-D1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the R-D1 and their specifications in the Leica M Lens Catalog.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	2,999	ebay.com
2.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	599	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
4.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	899	ebay.com
5.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	599	ebay.com
6.		Fujifilm XQ1	100 mm	59 mm	33 mm	206 g	240	n	Oct 2013	499	ebay.com
7.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	599	ebay.com
8.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	2,795	ebay.com
9.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	6,595	ebay.com
10.		Leica X-U Typ 113	140 mm	79 mm	88 mm	635 g	450	Y	Jan 2016	2,950	ebay.com
11.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	2,850	ebay.com
12.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	7,999	ebay.com
13.		Nikon D40	124 mm	94 mm	64 mm	522 g	470	n	Nov 2006	499	ebay.com
14.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	749	ebay.com
15.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	899	ebay.com
16.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	999	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The X20 was launched at a lower price than the R-D1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Epson R-D1 features an APS-C sensor and the Fujifilm X20 a 2/3 sensor. The sensor area in the X20 is 84 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 3.9. The sensor in the R-D1 has a native 3:2 aspect ratio, while the one in the X20 offers a 4:3 aspect.

Despite having a smaller sensor, the X20 offers a higher resolution of 12 megapixels, compared with 6 MP of the R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.20μm versus 7.85μm for the R-D1). However, it should be noted that the X20 is much more recent (by 8 years and 9 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the X20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Fujifilm X20 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X20 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The X20 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Fujifilm X20 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the R-D1 is build around a CCD sensor, while the X20 uses a CMOS imager. Like most digital cameras, the R-D1 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X20 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
2.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
5.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
6.		Fujifilm XQ1	2/3	12.0	4000	3000	1080/60p	20.3	11.0	-390	47
7.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
8.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
9.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
10.		Leica X-U Typ 113	APS-C	16.1	4928	3264	1080/30p	23.8	13.0	1614	80
11.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
12.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
13.		Nikon D40	APS-C	6.0	3008	2000	none	21.0	11.0	561	56
14.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
15.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
16.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The X20 indeed provides for movie recording, while the R-D1 does not. The highest resolution format that the X20 can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The R-D1 and the X20 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The following table reports on some other key feature differences and similarities of the Epson R-D1, the Fujifilm X20, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
2.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
5.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
6.		Fujifilm XQ1	none	n	3.0 / 920	fixed	n	1/4000s	12.0/s	Y	Y
7.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
8.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
9.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
10.		Leica X-U Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
11.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
12.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
13.		Nikon D40	optical	n	2.5 / 230	fixed	n	1/4000s	2.5/s	Y	n
14.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
15.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
16.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X20 has one, while the R-D1 does not. While the built-in flash of the X20 is not very powerful, it can at times be useful as a fill-in light.

The R-D1 writes its imaging data to SDHC cards, while the X20 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Fujifilm X20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
2.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
5.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Fujifilm XQ1	-	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
9.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
10.		Leica X-U Typ 113	Y	stereo / mono	-	-	-	2.0	-	-	-
11.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
13.		Nikon D40	Y	- / -	-	-	-	2.0	-	-	-
14.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
15.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
16.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Epson R-D1 (unlike the X20) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R-D1 and the X20 have been discontinued, but can regularly be found used on ebay. The X20 was replaced by the Fujifilm X30, while the R-D1 does not have a direct successor. Further information on the features and operation of the R-D1 and X20 can be found, respectively, in the Epson R-D1 Manual (free pdf) or the online Fujifilm X20 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Epson R-D1 and the Fujifilm X20? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Epson R-D1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in March 2004).

Reasons to prefer the Fujifilm X20:

• More detail: Has more megapixels (12 vs 6MP), which boosts linear resolution by 38%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (2.8" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 235k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 1 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has an integrated lens, whereas the R-D1 necessitates an extra lens.
• More compact: Is smaller (117x70mm vs 142x89mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the R-D1).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 8 years and 9 months of technical progress since the R-D1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the X20 is the clear winner of the contest (15 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the R-D1 or the X20 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Epson R-D1	..	..	..	..	..	..	Mar 2004	2,999	ebay.com
2.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	599	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
4.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	899	ebay.com
5.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	599	ebay.com
6.		Fujifilm XQ1	..	..	..	..	4.5/5	4.5/5	Oct 2013	499	ebay.com
7.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	599	ebay.com
8.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	2,795	ebay.com
9.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	6,595	ebay.com
10.		Leica X-U Typ 113	3.5/5	..	..	..	..	3.5/5	Jan 2016	2,950	ebay.com
11.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	2,850	ebay.com
12.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	7,999	ebay.com
13.		Nikon D40	..	81/100	..	+ +	o	4.5/5	Nov 2006	499	ebay.com
14.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	749	ebay.com
15.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	899	ebay.com
16.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	999	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
