Canon XTi vs Sony NEX-5T

The Canon EOS Rebel XTi (called Canon 400D in some regions) and the Sony Alpha NEX-5T are two digital cameras that were officially introduced, respectively, in August 2006 and August 2013. The XTi is a DSLR, while the NEX-5T is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Sony provides 16 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XTi		Sony NEX-5T
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Sony E mount lenses
10.1 MP – APS-C sensor		16 MP – APS-C sensor
no Video		1080/60p Video
ISO 100-1,600		ISO 100-25,600
Optical viewfinder		Viewfinder optional
2.5" LCD – 230k dots		3.0" LCD – 922k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		10 shutter flaps per second
370 shots per battery charge		330 shots per battery charge
127 x 84 x 65 mm, 556 g		111 x 59 x 39 mm, 276 g

Check XTi offers at
ebay.com
Check NEX-5T offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XTi and the Sony Alpha NEX-5T? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon XTi and the Sony NEX-5T is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The NEX-5T can be obtained in two different colors (black, silver), while the XTi is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5T is considerably smaller (39 percent) than the Canon XTi. Moreover, the NEX-5T is substantially lighter (50 percent) than the XTi. In this context, it is worth noting that neither the XTi nor the NEX-5T are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XTi) and the Sony E-Mount Lens Catalog (NEX-5T). Mirrorless cameras, such as the NEX-5T, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the XTi gets 370 shots out of its NB-2LH battery, while the NEX-5T can take 330 images on a single charge of its NP-FW50 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
2.		Sony NEX-5T	111 mm	59 mm	39 mm	276 g	330	n	Aug 2013	699	ebay.com
3.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
4.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
5.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
6.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
7.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
8.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	449	ebay.com
9.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	799	ebay.com
10.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299	ebay.com
11.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	899	ebay.com
12.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	899	ebay.com
13.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	549	ebay.com
14.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	599	ebay.com
15.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	749	ebay.com
16.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	599	ebay.com
17.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The NEX-5T was launched at a somewhat lower price (by 13 percent) than the XTi, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

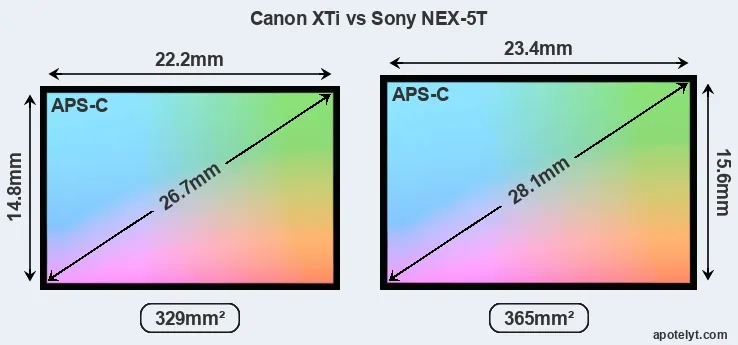

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-5T is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (XTi) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 16MP, the NEX-5T offers a higher resolution than the XTi (10.1MP), but the NEX-5T has smaller individual pixels (pixel pitch of 4.78μm versus 5.71μm for the XTi). Yet, the NEX-5T is a much more recent model (by 7 years) than the XTi, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sony NEX-5T implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NEX-5T for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.4 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.9 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.6 x 27.6 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon EOS Rebel XTi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Sony Alpha NEX-5T are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the NEX-5T offers substantially better image quality than the XTi (overall score 16 points higher). The advantage is based on 1.5 bits higher color depth, 2 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
2.		Sony NEX-5T	APS-C	16.0	4912	3264	1080/60p	23.6	13.0	1015	78
3.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
4.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
5.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
6.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
7.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
8.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
9.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
10.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
11.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
12.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
13.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
14.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
15.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
16.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
17.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68

Many modern cameras cannot only take still pictures, but also record videos. The NEX-5T indeed provides for movie recording, while the XTi does not. The highest resolution format that the NEX-5T can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the XTi has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-5T relies on live view and the rear LCD for framing. That said, the NEX-5T can be equipped with an optional viewfinder – the FDA-EV1S. The table below summarizes some of the other core capabilities of the Canon XTi and Sony NEX-5T in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Sony NEX-5T	optional	n	3.0 / 922	tilting	Y	1/4000s	10.0/s	n	n
3.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
7.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
8.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
10.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
11.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
13.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
14.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
15.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
16.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
17.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The XTi has one, while the NEX-5T does not. While the built-in flash of the XTi is not very powerful, it can at times be useful as a fill-in light.

The XTi writes its imaging data to Compact Flash cards, while the NEX-5T uses SDXC or Memory Stick PRO Duo cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XTi and Sony Alpha NEX-5T and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
2.		Sony NEX-5T	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
3.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
5.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
7.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
8.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
9.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
10.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
11.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
12.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
13.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
16.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the NEX-5T offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XTi does not provide wifi capability.

Both the XTi and the NEX-5T have been discontinued, but can regularly be found used on ebay. The XTi was replaced by the Canon Xsi, while the NEX-5T was followed by the Sony A5100. Further information on the features and operation of the XTi and NEX-5T can be found, respectively, in the Canon XTi Manual (free pdf) or the online Sony NEX-5T Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon XTi or the Sony NEX-5T – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS Rebel XTi:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Can take more shots (370 versus 330) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More heavily discounted: Has been available for much longer (launched in August 2006).

Advantages of the Sony Alpha NEX-5T:

• More detail: Has more megapixels (16 vs 10.1MP), which boosts linear resolution by 26%.
• Better image quality: Scores substantially higher (16 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.5 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.6 stops ISO advantage).
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (111x59mm vs 127x84mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 280g or 50 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was released into a lower priced segment (13 percent cheaper at launch).
• More modern: Reflects 7 years of technical progress since the XTi launch.

If the count of individual advantages (bullet points above) is taken as a guide, the NEX-5T is the clear winner of the contest (19 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XTi and the Sony NEX-5T place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the XTi or the NEX-5T perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
2.		Sony NEX-5T	..	..	..	..	4.5/5	4.5/5	Aug 2013	699	ebay.com
3.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
4.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
5.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
6.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
7.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
8.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	449	ebay.com
9.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	799	ebay.com
10.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299	ebay.com
11.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	899	ebay.com
12.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	899	ebay.com
13.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	549	ebay.com
14.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	599	ebay.com
15.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	749	ebay.com
16.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	599	ebay.com
17.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	599	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
