Canon XTi vs Sony NEX-5
The Canon EOS Rebel XTi (called Canon 400D in some regions) and the Sony Alpha NEX-5 are two digital cameras that were officially introduced, respectively, in August 2006 and May 2010. The XTi is a DSLR, while the NEX-5 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Sony provides 14 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XTi and the Sony Alpha NEX-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

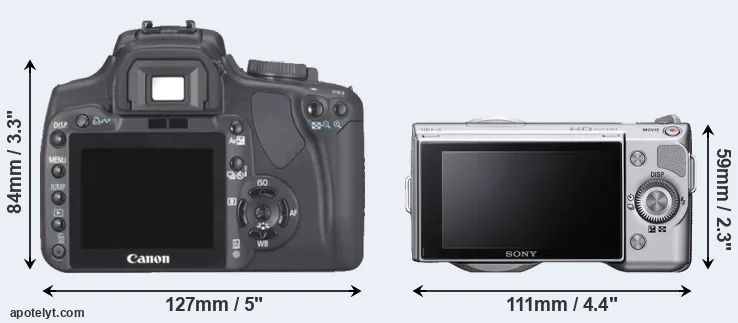

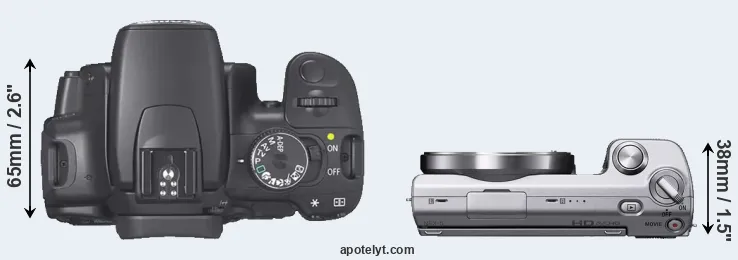

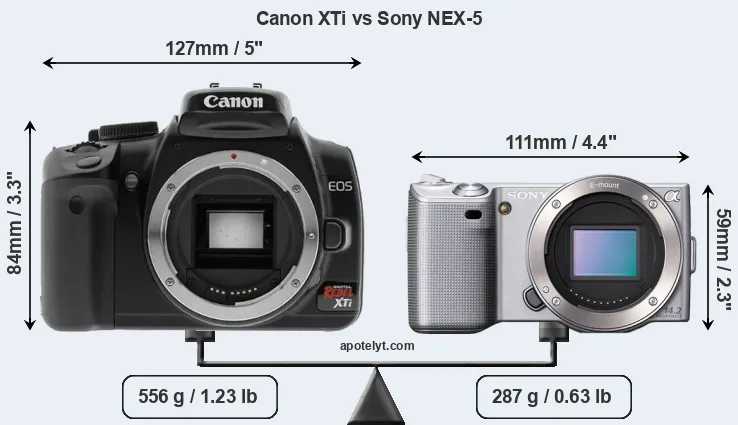

An illustration of the physical size and weight of the Canon XTi and the Sony NEX-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The NEX-5 can be obtained in two different colors (black, silver), while the XTi is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5 is considerably smaller (39 percent) than the Canon XTi. Moreover, the NEX-5 is substantially lighter (48 percent) than the XTi. In this context, it is worth noting that neither the XTi nor the NEX-5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XTi) and the Sony E-Mount Lens Catalog (NEX-5). Mirrorless cameras, such as the NEX-5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|2.||Sony NEX-5||111 mm||59 mm||38 mm||287 g||330||n||May 2010||699|
|3.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|4.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|6.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|7.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|8.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|9.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|10.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|11.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|12.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|13.||Sony NEX-5R||111 mm||59 mm||39 mm||276 g||330||n||Aug 2012||749|
|14.||Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599|
|15.||Sony NEX-5N||111 mm||59 mm||38 mm||269 g||460||n||Aug 2011||699|
|16.||Sony NEX-C3||110 mm||60 mm||33 mm||225 g||400||n||Jun 2011||599|
|17.||Sony NEX-3||117 mm||62 mm||33 mm||297 g||330||n||May 2010||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NEX-5 was launched at a somewhat lower price (by 13 percent) than the XTi, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-5 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (XTi) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

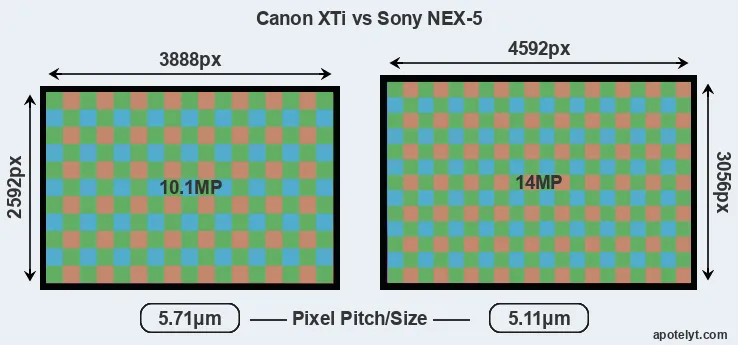

With 14MP, the NEX-5 offers a higher resolution than the XTi (10.1MP), but the NEX-5 has smaller individual pixels (pixel pitch of 5.11μm versus 5.71μm for the XTi). Yet, the NEX-5 is a much more recent model (by 3 years and 8 months) than the XTi, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Sony NEX-5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NEX-5 for good quality output (200 dots per inch) amounts to 23 x 15.3 inches or 58.3 x 38.8 cm, for very good quality (250 dpi) 18.4 x 12.2 inches or 46.7 x 31 cm, and for excellent quality (300 dpi) 15.3 x 10.2 inches or 38.9 x 25.9 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS Rebel XTi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Sony Alpha NEX-5 are ISO 200 to ISO 12800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the NEX-5 has a markedly higher DXO score than the XTi (overall score 7 points higher), which will translate into better image quality. The advantage is based on 0.099999999999998 bits higher color depth, 1.2 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The NEX-5 indeed provides for movie recording, while the XTi does not. The highest resolution format that the NEX-5 can use is 1080/60i.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the XTi has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-5 relies on live view and the rear LCD for framing. That said, the NEX-5 can be equipped with an optional viewfinder – the FDA-SV1. The following table reports on some other key feature differences and similarities of the Canon XTi, the Sony NEX-5, and comparable cameras.
One difference between the cameras concerns the presence of an on-board flash. The XTi has one, while the NEX-5 does not. While the built-in flash of the XTi is not very powerful, it can at times be useful as a fill-in light.The NEX-5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the XTi does not have a selfie-screen.
The XTi writes its imaging data to Compact Flash cards, while the NEX-5 uses SDXC or Memory Stick PRO Duo cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XTi and Sony Alpha NEX-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
Both the XTi and the NEX-5 have been discontinued, but can regularly be found used on eBay. The XTi was replaced by the Canon Xsi, while the NEX-5 was followed by the Sony NEX-5N. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So what is the bottom line? Is there a clear favorite between the Canon XTi and the Sony NEX-5? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS Rebel XTi:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Can take more shots (370 versus 330) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More heavily discounted: Has been available for much longer (launched in August 2006).
Reasons to prefer the Sony Alpha NEX-5:
- More detail: Has more megapixels (14 vs 10.1MP), which boosts linear resolution by 18%.
- Better image quality: Scores markedly higher (7 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (1.2 EV of extra DR).
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (111x59mm vs 127x84mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 269g or 48 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was released into a lower priced segment (13 percent cheaper at launch).
- More modern: Reflects 3 years and 8 months of technical progress since the XTi launch.
If the number of relative strengths (bullet points above) is taken as a guide, the NEX-5 is the clear winner of the contest (14 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XTi and the Sony NEX-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the XTi or the NEX-5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|2.||Sony NEX-5||3/5||+ +||71/100||4.5/5||4/5||May 2010||699|
|3.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|4.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|6.||Canon T3||..||80/100||69/100||4/5||4.5/5||Feb 2011||449|
|7.||Canon T2i||..||+ +||77/100||4/5||4.5/5||Feb 2010||699|
|8.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|9.||Canon XSi||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|10.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|11.||Canon XT||..||80/100||+ +||o||..||Feb 2005||899|
|12.||Canon Rebel||..||..||+ +||..||..||Aug 2003||899|
|13.||Sony NEX-5R||..||..||..||4.5/5||4.5/5||Aug 2012||749|
|14.||Sony NEX-F3||4/5||..||74/100||4.5/5||4.5/5||May 2012||599|
|15.||Sony NEX-5N||3/5||+ +||79/100||4.5/5||4.5/5||Aug 2011||699|
|16.||Sony NEX-C3||3/5||+ +||74/100||4.5/5||4/5||Jun 2011||599|
|17.||Sony NEX-3||..||..||70/100||4.5/5||4/5||May 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon XTi vs Sony NEX-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XTi||Sony NEX-5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||August 2006||May 2010|
|Launch Price||USD 799||USD 699|
|Sensor Specs||Canon XTi||Sony NEX-5|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.2 x 14.8 mm||23.4 x 15.6 mm|
|Sensor Area||328.56 mm2||365.04 mm2|
|Sensor Diagonal||26.7 mm||28.1 mm|
|Sensor Resolution||10.1 Megapixels||14 Megapixels|
|Image Resolution||3888 x 2592 pixels||4592 x 3056 pixels|
|Pixel Pitch||5.71 μm||5.11 μm|
|Pixel Density||3.07 MP/cm2||3.84 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||100 - 1,600 ISO||200 - 12,800 ISO|
|Image Processor||DIGIC II||BIONZ|
|DXO Sensor Quality (score)||62||69|
|DXO Color Depth (bits)||22.1||22.2|
|DXO Dynamic Range (EV)||11.0||12.2|
|DXO Low Light (ISO)||664||796|
|Screen Specs||Canon XTi||Sony NEX-5|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon XTi||Sony NEX-5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3 shutter flaps/s||7 shutter flaps/s|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon XTi||Sony NEX-5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon XTi||Sony NEX-5|
|Battery Life (CIPA)||370 shots per charge||330 shots per charge|
127 x 84 x 65 mm
(5.0 x 3.3 x 2.6 in)
111 x 59 x 38 mm
(4.4 x 2.3 x 1.5 in)
|Camera Weight||556 g (19.6 oz)||287 g (10.1 oz)|
