Canon XTi vs Olympus E-30

The Canon EOS Rebel XTi (called Canon 400D in some regions) and the Olympus E-30 are two digital cameras that were officially introduced, respectively, in August 2006 and November 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (XTi) and a Four Thirds (E-30) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XTi		Olympus E-30
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Four Thirds lenses
10.1 MP – APS-C sensor		12.2 MP – Four Thirds sensor
no Video		no Video
ISO 100-1,600		ISO 100-3,200
Optical viewfinder		Optical viewfinder
2.5" LCD – 230k dots		2.7" LCD – 230k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
3 shutter flaps per second		5 shutter flaps per second
Lens stabilization only		In-body stabilization
370 shots per battery charge		750 shots per battery charge
127 x 84 x 65 mm, 556 g		142 x 108 x 75 mm, 701 g

Check XTi offers at
ebay.com
Check E-30 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XTi and the Olympus E-30? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

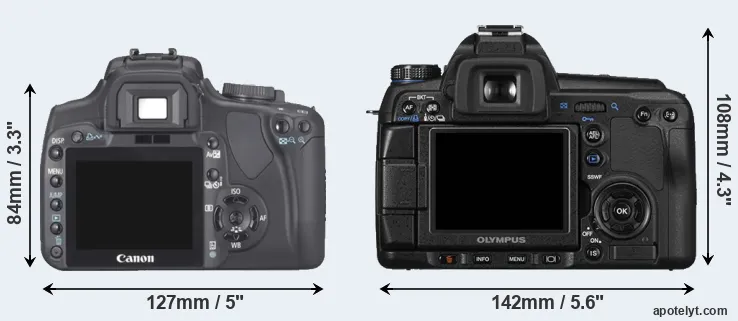

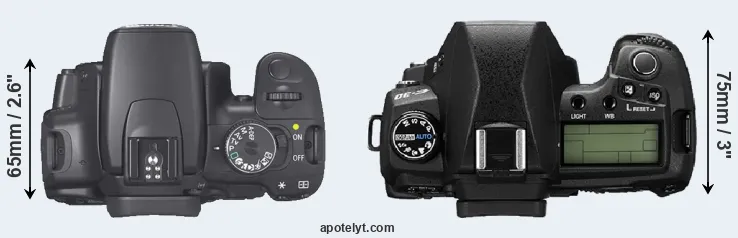

Body comparison

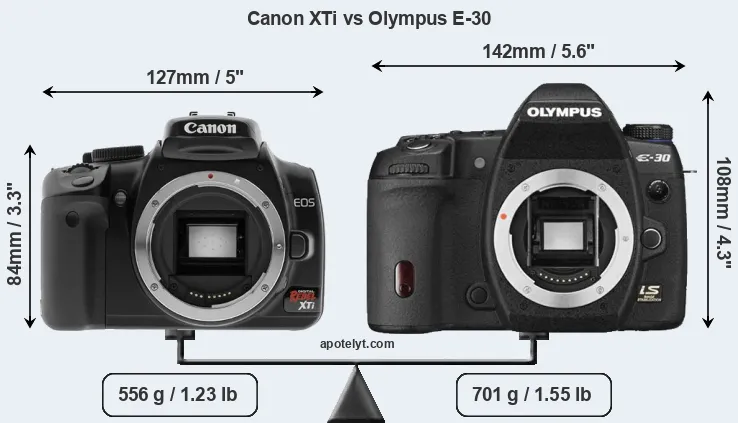

The physical size and weight of the Canon XTi and the Olympus E-30 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-30 is considerably larger (44 percent) than the Canon XTi. Moreover, the E-30 is markedly heavier (26 percent) than the XTi. In this context, it is worth noting that neither the XTi nor the E-30 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XTi) and the Four Thirds Lens Catalog (E-30).

Concerning battery life, the XTi gets 370 shots out of its Canon NB-2LH battery, while the E-30 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
2.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	1,299	ebay.com
3.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
4.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
5.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
6.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
7.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
8.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	449	ebay.com
9.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	799	ebay.com
10.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299	ebay.com
11.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	899	ebay.com
12.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	899	ebay.com
13.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	449	ebay.com
14.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	699	ebay.com
15.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	699	ebay.com
16.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	699	ebay.com
17.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XTi was launched at a markedly lower price (by 38 percent) than the E-30, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

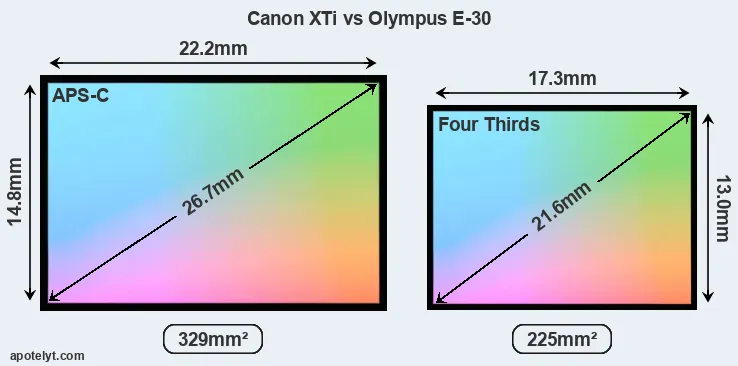

Of the two cameras under consideration, the Canon XTi features an APS-C sensor and the Olympus E-30 a Four Thirds sensor. The sensor area in the E-30 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the XTi has a native 3:2 aspect ratio, while the one in the E-30 offers a 4:3 aspect.

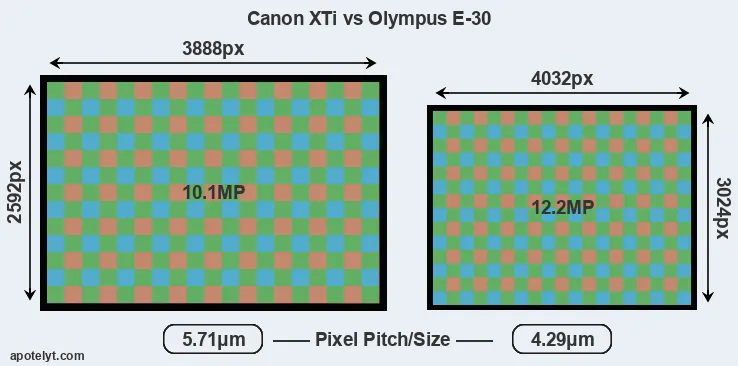

Despite having a smaller sensor, the E-30 offers a higher resolution of 12.2 megapixels, compared with 10.1 MP of the XTi. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.29μm versus 5.71μm for the XTi). However, it should be noted that the E-30 is much more recent (by 2 years and 2 months) than the XTi, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Olympus E-30 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-30 for good quality output (200 dots per inch) amounts to 20.2 x 15.1 inches or 51.2 x 38.4 cm, for very good quality (250 dpi) 16.1 x 12.1 inches or 41 x 30.7 cm, and for excellent quality (300 dpi) 13.4 x 10.1 inches or 34.1 x 25.6 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon EOS Rebel XTi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus E-30 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the XTi has a notably higher overall DXO score than the E-30 (overall score 7 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.8 bits higher color depth, 0.6 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
2.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
3.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
4.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
5.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
6.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
7.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
8.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
9.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
10.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
11.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
12.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
13.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
14.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
15.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
16.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
17.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The XTi and the E-30 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the E-30 offers a wider field of view (98%) than the one in the XTi (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-30 has a higher magnification (0.51x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon XTi and Olympus E-30 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
3.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
7.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
8.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
10.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
11.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
13.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
14.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
15.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
16.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
17.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-30 and the XTi is in-body image stabilization (IBIS). The E-30 reduces the risk of handshake-induced blur with all attached lenses, while the XTi offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The XTi writes its imaging data to Compact Flash cards, while the E-30 uses Compact Flash or xD Picture cards. The E-30 features dual card slots, which can be very useful in case a memory card fails. In contrast, the XTi only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XTi and Olympus E-30 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
5.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
7.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
8.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
9.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
10.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
11.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
12.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
13.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-

Both the XTi and the E-30 have been discontinued, but can regularly be found used on ebay. The XTi was replaced by the Canon Xsi, while the E-30 does not have a direct successor. Further information on the features and operation of the XTi and E-30 can be found, respectively, in the Canon XTi Manual (free pdf) or the online Olympus E-30 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon XTi and the Olympus E-30? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS Rebel XTi:

• Better image quality: Scores markedly higher (7 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (0.6 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.3 stops ISO advantage).
• More compact: Is smaller (127x84mm vs 142x108mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 145g or 21 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (38 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in August 2006).

Reasons to prefer the Olympus E-30:

• More detail: Has more megapixels (12.2 vs 10.1MP), which boosts linear resolution by 8%.
• More complete view: Has a viewfinder with a larger field of view (98% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.51x vs 0.49x).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (2.7" vs 2.5") for image review and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• Longer lasting: Gets more shots (750 versus 370) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Reflects 2 years and 2 months of technical progress since the XTi launch.

If the count of individual advantages (bullet points above) is taken as a guide, the E-30 is the clear winner of the contest (13 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XTi and the Olympus E-30 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the XTi or the E-30 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
2.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	1,299	ebay.com
3.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
4.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
5.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
6.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
7.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
8.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	449	ebay.com
9.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	799	ebay.com
10.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299	ebay.com
11.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	899	ebay.com
12.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	899	ebay.com
13.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	449	ebay.com
14.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	699	ebay.com
15.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	699	ebay.com
16.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	699	ebay.com
17.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
